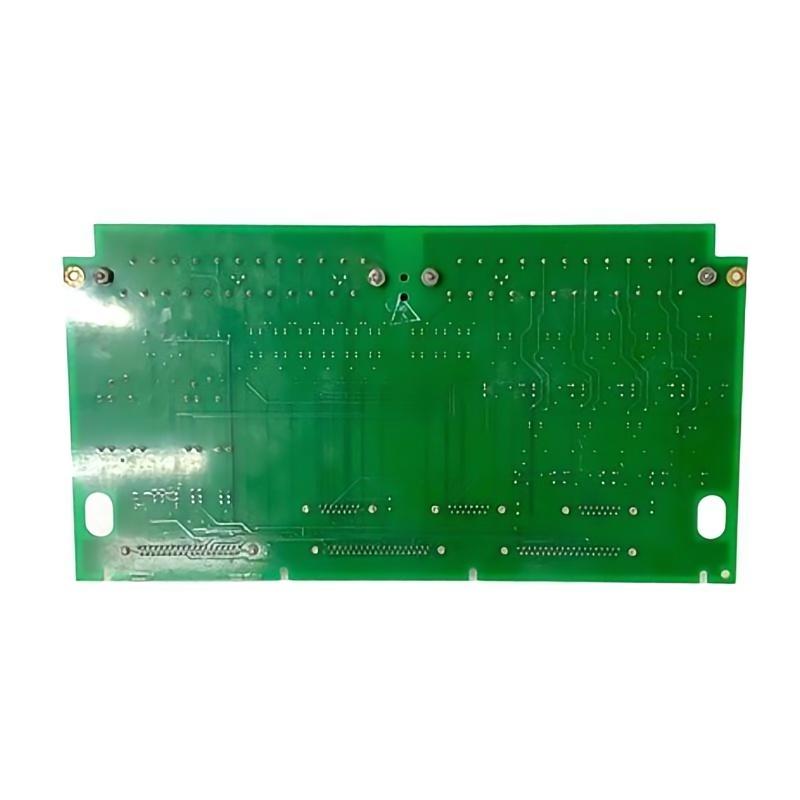

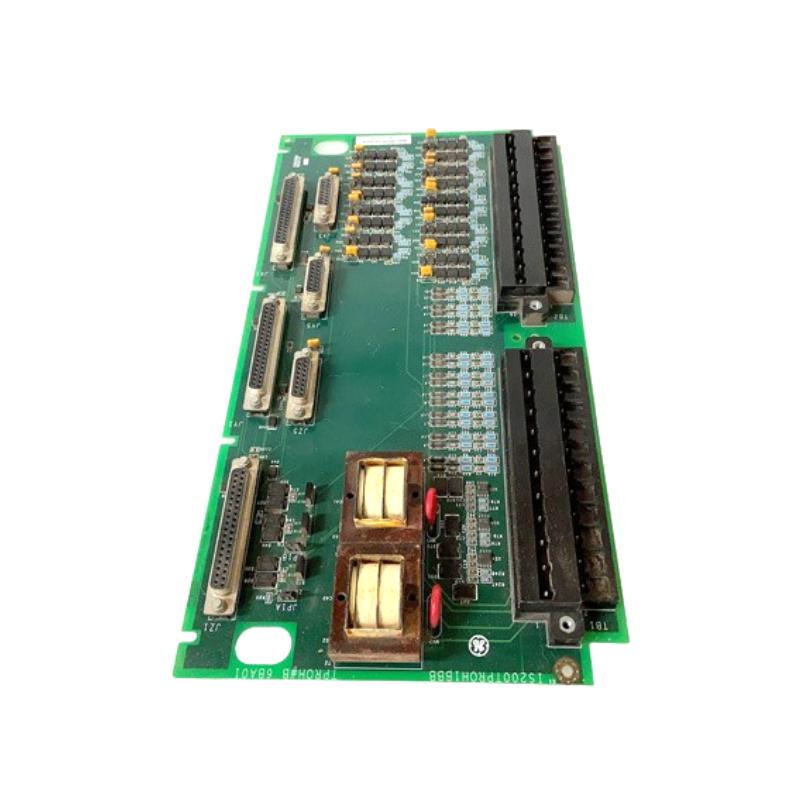

GE Fanuc IS200TSVCH1A Servo Input/Output Terminal Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200TSVCH1A |
| Manufacturer | GE Industrial Systems |
| Product Family | Mark VI / Mark VIe Turbine Control System |
| Product Type | Servo Input/Output Terminal Board |
| Module Type | TSVC Board |
| Function | Provides interface between electro-hydraulic servo valves and turbine control system, handling servo command signals and position feedback (LVDT) within GE Mark VI architecture |
| Application | Gas Turbine Control, Steam Turbine Control, Fuel Control Systems, Valve Position Control |
| Input Signals | LVDT feedback signals, pulse inputs, servo reference/control signals from control modules |
| Output Signals | Electro-hydraulic servo valve drive signals (coil current outputs), excitation signals |
| Signal Types | Analog servo control signals and LVDT feedback signals |
| Channel Function | Servo valve control, valve position feedback acquisition, signal routing |
| Servo Channels | Typically 2 servo valve channels (A/B depending on configuration) |
| LVDT Interface | Multiple LVDT feedback inputs for valve position sensing |
| Signal Conditioning | Excitation supply, demodulation support (via paired processor modules), noise filtering |
| Communication Interface | Interfaces with PSVO / WSVO / VPRO-type control modules depending on system architecture |
| Isolation Type | Galvanic isolation between field servo circuits and control electronics |
| Diagnostic Features | LVDT open/short detection, excitation monitoring, signal health diagnostics via controller |
| Connector Type | Barrier terminal blocks + Mark VI backplane connectors |
| Mounting Type | Rack-mounted terminal board (Mark VI VME cabinet system) |
| Power Supply | 28 VDC system supply (via backplane/control module) |
| System Compatibility | GE Mark VI turbine control systems |
| Redundancy Support | Compatible with simplex, dual, and Triple Modular Redundant (TMR) configurations |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | ~330 × 178 × 50 mm |
| Weight | ~0.3–0.8 kg |
| Typical Applications | Steam/gas turbine fuel valve control, IGV control, electro-hydraulic servo positioning systems |
| Revision Level | A |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200TSVCH1A?
A1: It is a servo input/output terminal board used in GE Mark VI turbine control systems for interfacing electro-hydraulic servo valves and LVDT position feedback.
Q2: What is its main function?
A2: It connects field servo valves and LVDT sensors to the turbine control system, enabling precise valve position control.
Q3: What does it control in a turbine?
A3: It is commonly used for fuel valves, steam valves, or inlet guide vanes (IGVs), depending on system configuration.
Q4: Does it perform control logic?
A4: No. All control algorithms are executed in upstream Mark VI controllers; this board only handles signal interfacing.
Q5: What feedback signals does it handle?
A5: It primarily handles LVDT (Linear Variable Differential Transformer) feedback signals for valve position measurement.
Q6: Is it part of the protection system?
A6: No. It is part of the servo control subsystem, not the emergency protection/trip system.
Q7: What modules does it work with?
A7: Typically works with PSVO, WSVO, and related Mark VI servo control processor modules.
Q8: Is it still in production?
A8: No. It is a legacy GE Mark VI / Mark VIe component, usually replaced via refurbished or surplus channels.
GE Fanuc IS200TSVCH1A Servo Input/Output Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
