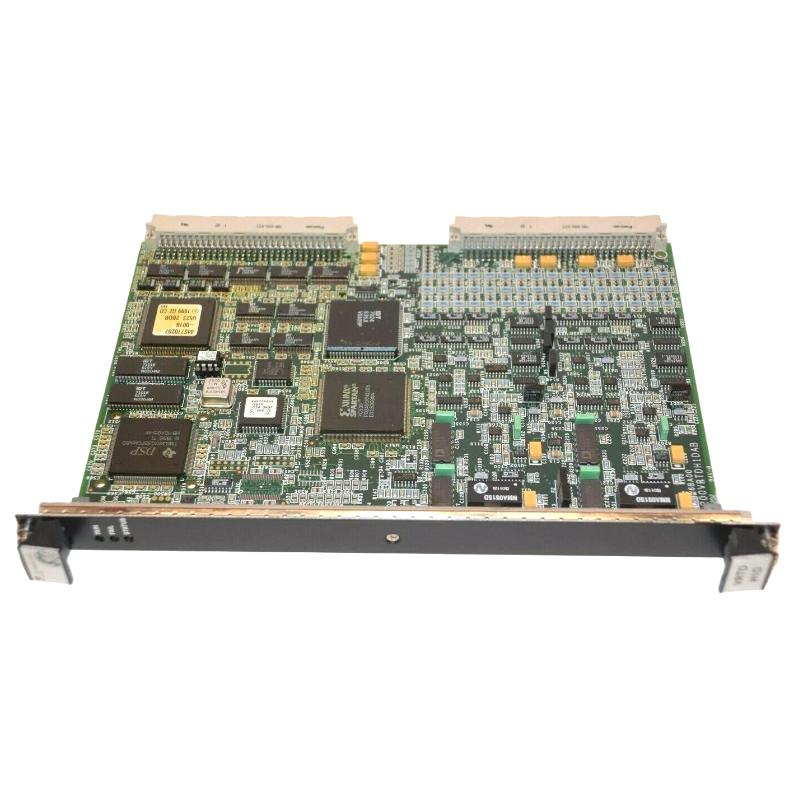

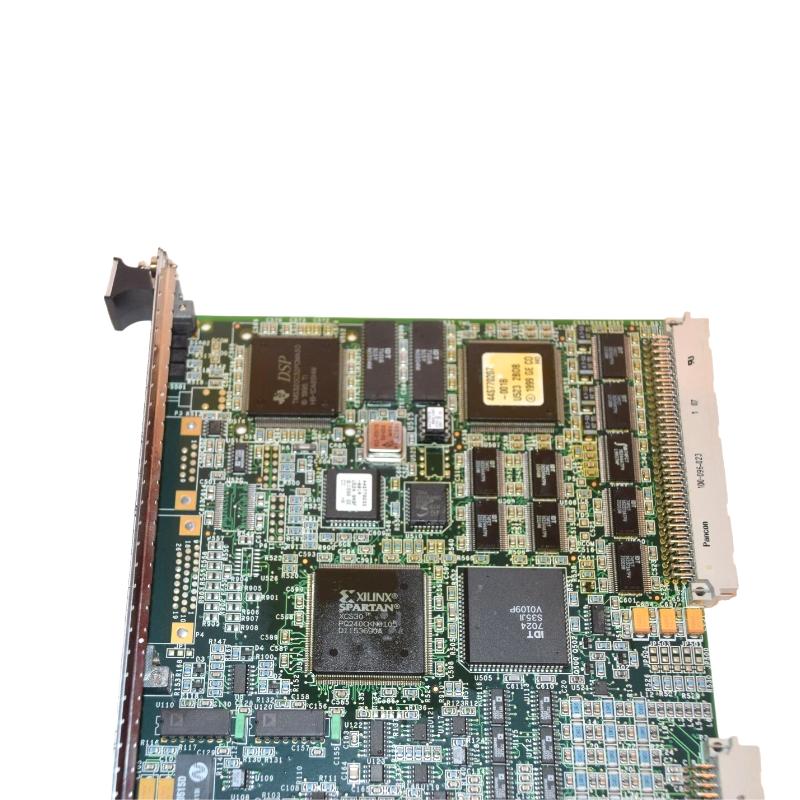

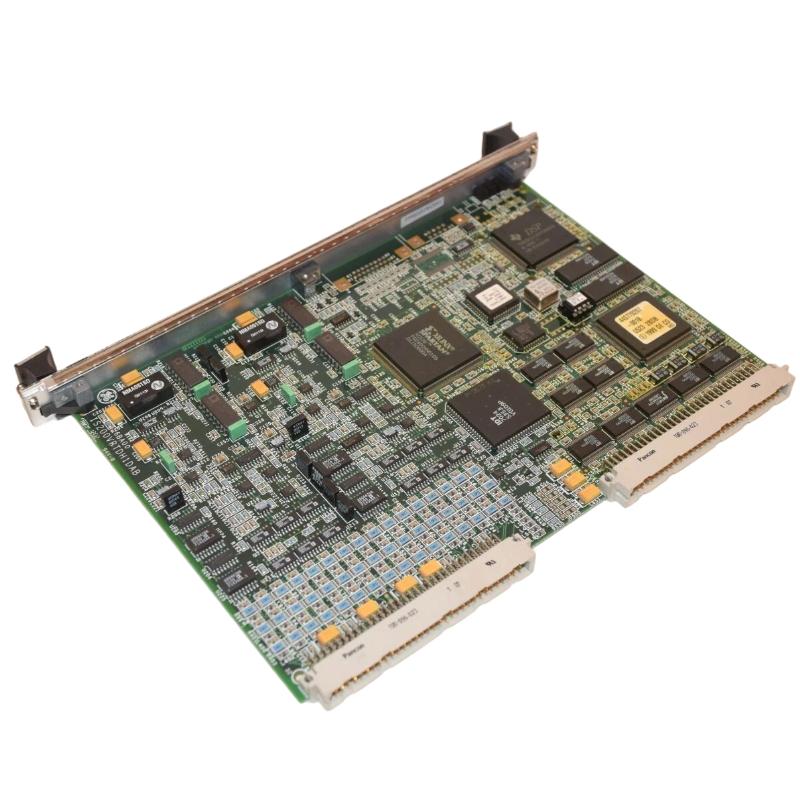

GE Fanuc IS200VRTDH1D RTD (Resistance Temperature Device) Input Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200VRTDH1D |
| Manufacturer | GE Industrial Systems |
| Product Family | Mark VI Turbine Control System |
| Product Type | RTD (Resistance Temperature Device) Input Board |
| Module Type | VRTD Board |
| Function | Acquires temperature signals from RTD sensors, converts them into digital values, and transmits them to the Mark VI controller via the VME backplane |
| Application | Gas Turbine Control, Steam Turbine Control, Generator Temperature Monitoring, Industrial Protection Systems |
| Input Signals | 3-wire RTD temperature sensors (typically up to 16 channels) |
| Output Signals | Digital temperature data sent to controller via VME system communication |
| Signal Types | Temperature measurement signals (RTD resistance converted to digital values) |
| Channel Function | Temperature acquisition, excitation, linearization, and digital conversion |
| Channel Capacity | Up to 16 RTD input channels |
| Signal Conditioning | RTD excitation current source, noise filtering, linearization, open-wire detection |
| Conversion | Analog-to-digital temperature conversion for each RTD channel |
| Communication Interface | VME backplane via VCMI module to Mark VI controller |
| Isolation Type | Galvanic isolation between field wiring and control electronics |
| Diagnostic Features | Open-circuit detection, channel fault alarms, board health status LEDs (Run/Fail/Status) |
| Connector Type | RTD terminal board interface (TRTD/DRTD) + VME backplane connector |
| Mounting Type | VME rack-mounted board |
| Power Supply | Supplied via VME backplane (system DC supply) |
| System Compatibility | GE Mark VI turbine control systems |
| Redundancy Support | Supports simplex and Triple Modular Redundant (TMR) architectures |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | ~180 × 160 × 30 mm (typical published range varies slightly by revision) |
| Weight | ~1.0–2.0 kg |
| Typical Applications | Turbine bearing temperature monitoring, stator temperature monitoring, process temperature feedback |
| Revision Level | H1D |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200VRTDH1D?
A1: It is a GE Mark VI RTD input board used to measure temperature from resistance temperature detectors in turbine control systems.
Q2: What is its main function?
A2: It converts RTD resistance signals into digital temperature values and sends them to the turbine control system.
Q3: How many temperature inputs does it support?
A3: Typically up to 16 RTD channels.
Q4: Does it connect directly to sensors?
A4: No. RTDs connect through a terminal board, which then connects to this module via cables.
Q5: What system does it belong to?
A5: GE Mark VI / Speedtronic turbine control system.
Q6: What happens if it fails?
A6: Loss of temperature monitoring for connected channels, which may trigger alarms or protective shutdown depending on configuration.
Q7: Is IS200VRTDH1D still manufactured?
A7: No. It is a legacy GE Mark VI component, typically available only through refurbished or surplus industrial markets.
GE Fanuc IS200VRTDH1D RTD (Resistance Temperature Device) Input Board is in stock. Please contact us for a quick quote and competitive pricing.
