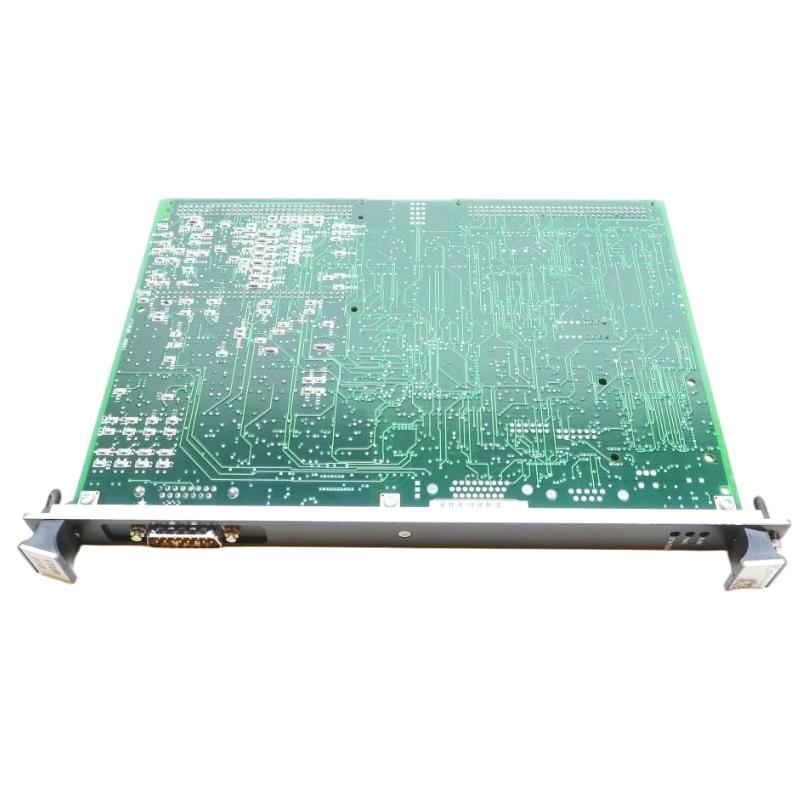

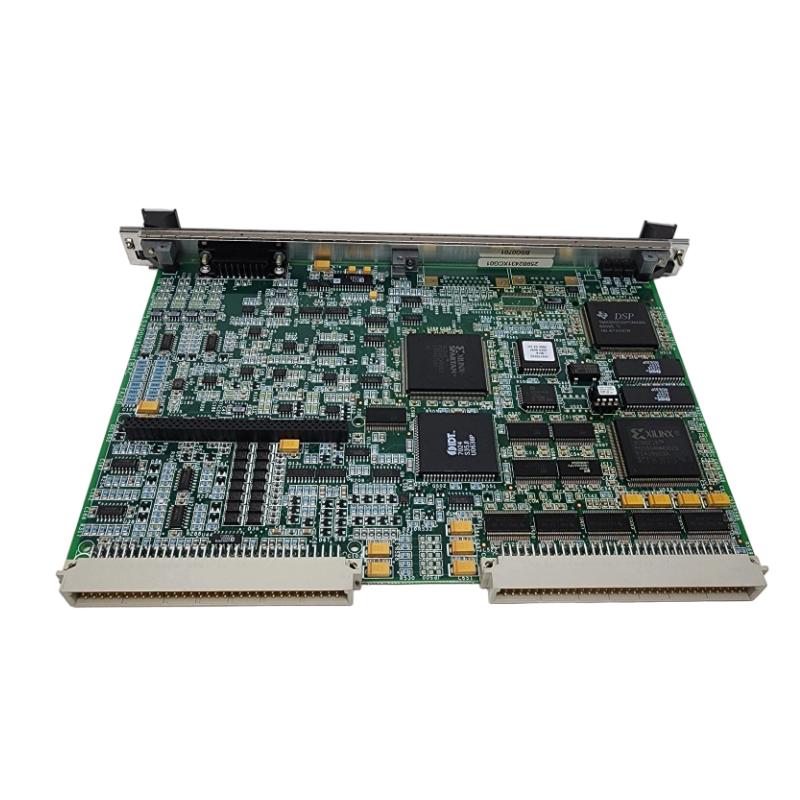

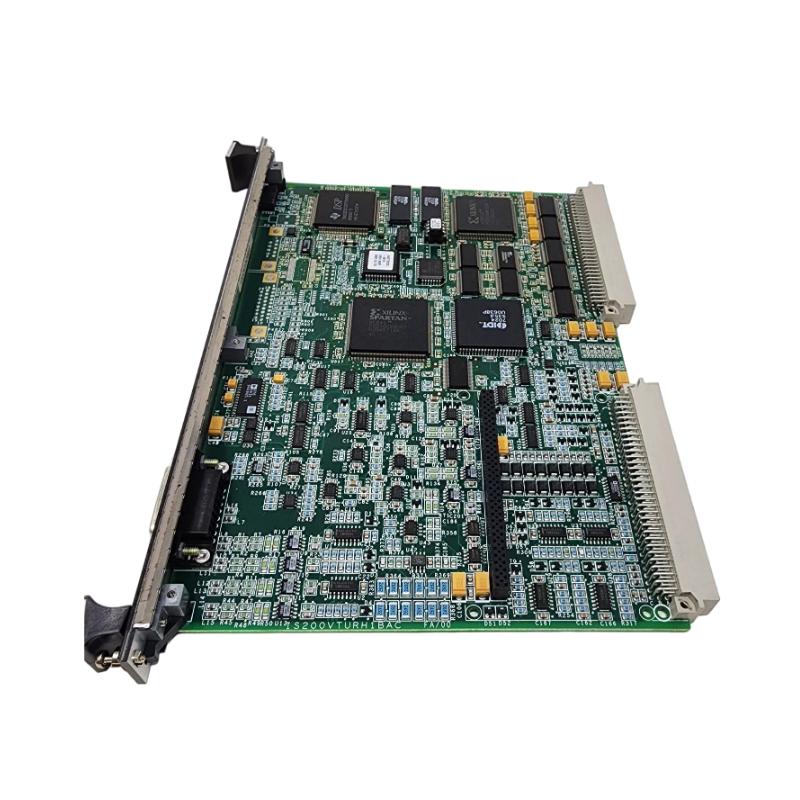

GE Fanuc IS200VTURH1B Primary Turbine Protection Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200VTURH1B |
| Manufacturer | GE Industrial Systems |
| Product Family | Mark VI Turbine Control System |
| Product Type | Primary Turbine Protection Board |
| Module Type | VTUR Board |
| Function | Performs turbine overspeed protection, speed monitoring, and trip logic initiation within GE Mark VI systems |
| Application | Gas Turbine Control, Steam Turbine Control, Generator Protection Systems |
| Input Signals | Magnetic speed pickup (MPU) pulse signals, shaft voltage/current monitoring signals, flame detector inputs (system-dependent) |
| Output Signals | Trip signals to TRPx terminal board, protection status signals to Mark VI controller |
| Signal Types | High-frequency pulse rate signals + protection/discrete control signals |
| Channel Function | Speed measurement, overspeed detection, protection voting, trip command generation |
| Speed Measurement Range | 2 Hz to 20 kHz (MPU input range) |
| Speed Accuracy | ~0.05% of reading (system-dependent) |
| Control Function | Primary overspeed trip generation and turbine protection logic execution |
| Trip Outputs | Controls up to 3 primary trip solenoids via TRPx interface |
| Communication Interface | VME backplane via Mark VI controller architecture |
| Protection Role | Primary turbine protection (overspeed + fault detection) |
| Redundancy Support | Supports simplex and Triple Modular Redundant (TMR) architectures |
| Diagnostic Features | LED status indicators, pulse monitoring, fault detection, self-test routines |
| Safety Function | Executes fast overspeed trip logic and safety shutdown initiation |
| Connector Type | VME backplane + TRPx terminal board interface |
| Mounting Type | VME rack-mounted board |
| Power Supply | Supplied via VME backplane system power |
| System Compatibility | GE Mark VI turbine control systems |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (H × W × D) | ~260 × 188 × 30 mm (varies by revision/source) |
| Weight | ~0.2–0.6 kg |
| Typical Applications | Turbine overspeed protection, emergency shutdown initiation, speed monitoring, flame supervision support |
| Revision Level | H1B |
| Lifecycle Status | Obsolete / Legacy Product |
FAQ
Q1: What is the IS200VTURH1B?
A1: It is a GE Mark VI Primary Turbine Protection board responsible for overspeed detection and turbine trip initiation.
Q2: What is its main function?
A2: It monitors turbine speed using MPU signals and triggers protective trips when unsafe conditions (like overspeed) occur.
Q3: What signals does it handle?
A3: It processes high-frequency speed pulses, shaft monitoring signals, and protection-related inputs.
Q4: What does it control?
A4: It drives trip signals to the TRPx terminal board, which activates turbine shutdown solenoids.
Q5: Is it part of control or protection?
A5: It is primarily a protection module, not a control logic module.
Q6: What happens if it fails?
A6: Loss of protection monitoring can occur, often forcing the system into a safe shutdown or redundancy transfer depending on configuration.
Q7: Is IS200VTURH1B still manufactured?
A7: No. It is a legacy GE Mark VI component, typically available only through refurbished or surplus industrial markets.
GE Fanuc IS200VTURH1B Primary Turbine Protection Board is in stock. Please contact us for a quick quote and competitive pricing.
