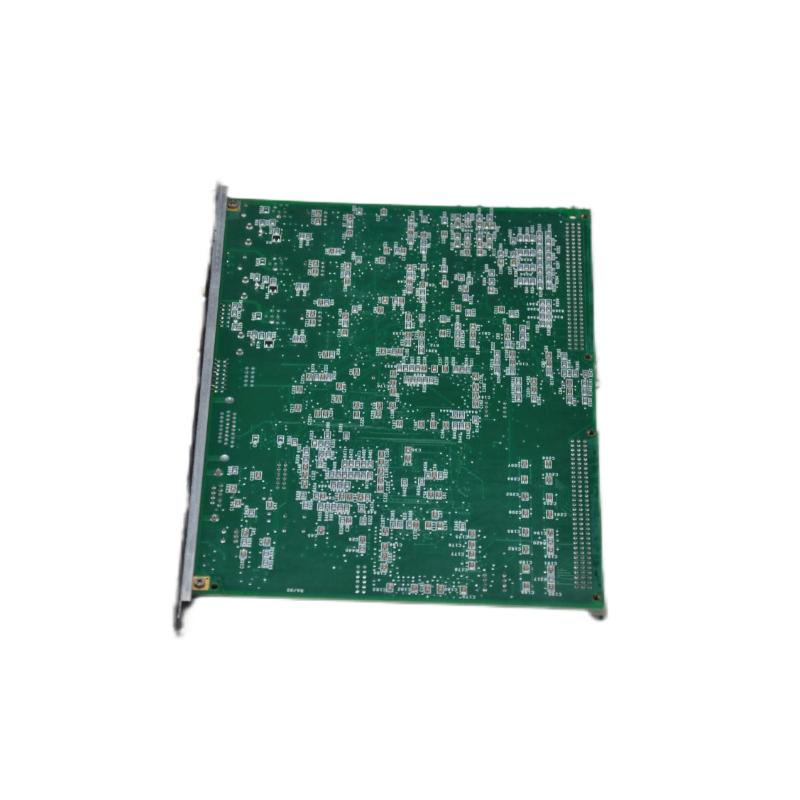

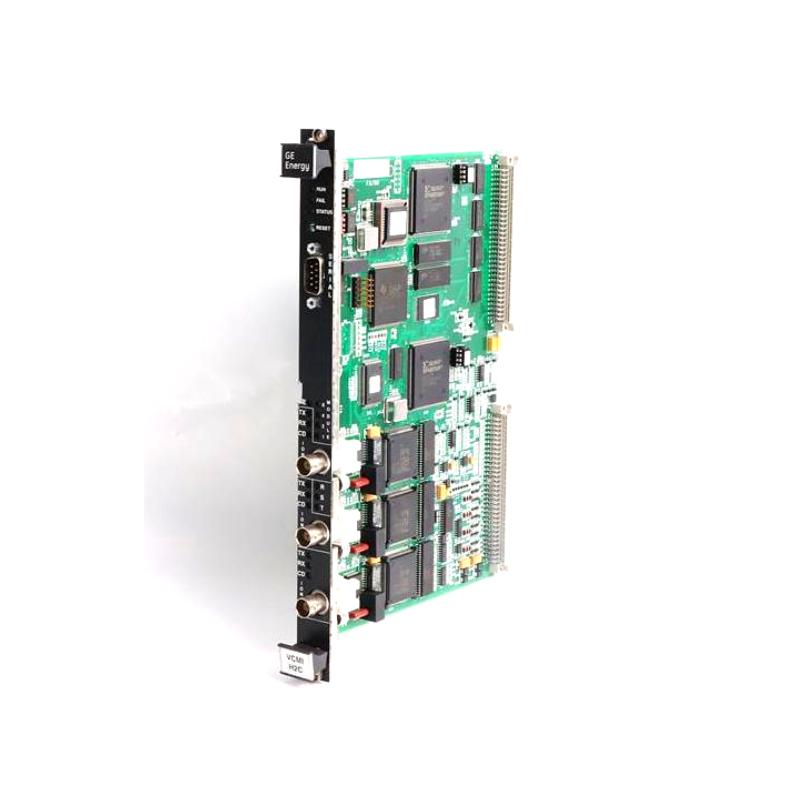

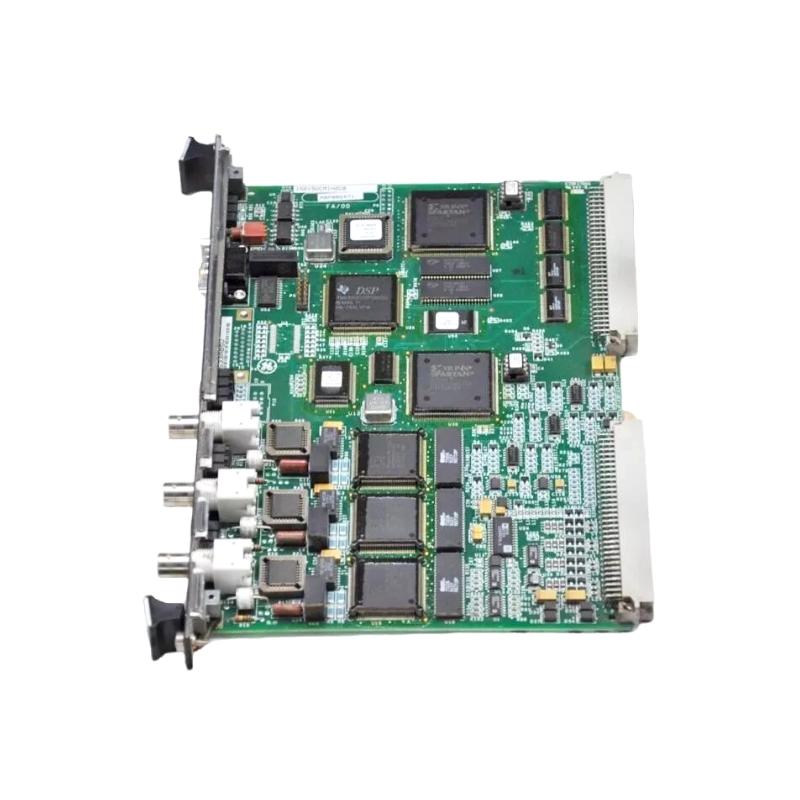

GE Fanuc IS215VCMIH2B IS200VCMIH2B VME Communication Interface Board / VME Bus Master Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS215VCMIH2B / IS200VCMIH2B |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VI Speedtronic Turbine Control System |
| Product Type | VME Communication Interface Board / VME Bus Master Controller |
| Functional Acronym | VCMI |
| Main Function | Communication interface between turbine controllers, I/O boards, and the IONet control network |
| Application | Gas turbine, steam turbine, and industrial power generation control systems |
| Board Function | Manages VME bus communication, I/O rack communication, and system board identification |
| Board Type | 6U VME board |
| Processor | Texas Instruments TMS320C32 32-bit digital signal processor |
| Dual-Port Memory | 32 KB dual-port memory |
| SRAM Memory | 64K × 32 static RAM |
| Flash Memory | 128K × 8 flash memory |
| Communication Interface | VME bus and IONet communication interface |
| IONet Interface | 3 × 10Base2 Ethernet ports with BNC connectors |
| Communication Speed | 10 Mbps |
| Serial Interface | 1 × RS-232C serial port |
| Serial Communication Rate | 9600 / 19200 / 38400 bps |
| Parallel Interface | 8-bit bidirectional parallel interface |
| Power Supply | 28 VDC nominal |
| Control Function | Provides communication coordination between controller modules and I/O boards |
| System Architecture Support | Simplex and Triple Modular Redundant (TMR) configurations |
| Frame Rate | 10 ms for simplex systems; 40 ms for TMR systems |
| Diagnostic Features | Power monitoring, communication status monitoring, board identification, and fault diagnostics |
| LED Indicators | Run, Fail, Status, TX, RX, CD, and communication activity indicators |
| Installation Type | VME rack installation |
| PCB Design | Industrial-grade conformal coated PCB |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approximately 273 mm × 220 mm × 20 mm |
| Weight | Approximately 1 kg |
| Revision Level | H2B |
| Compatibility | GE Mark VI turbine control platforms |
FAQ
Q1: What is the primary function of the IS215VCMIH2B / IS200VCMIH2B?
A: The IS215VCMIH2B and IS200VCMIH2B are GE Mark VI VCMI communication boards designed to manage data exchange between turbine controllers, VME I/O boards, and the IONet control network.
Q2: What role does the VCMI board perform in a Mark VI system?
A: The VCMI board acts as a communication controller, coordinating VME bus operations, I/O communication, and system data transfer within the turbine control rack.
Q3: What processor is used on the IS215VCMIH2B / IS200VCMIH2B?
A: The board uses a Texas Instruments TMS320C32 32-bit digital signal processor to handle communication processing and control system management tasks.
Q4: How many IONet communication ports are available on the IS215VCMIH2B?
A: The module provides three IONet 10Base2 Ethernet communication ports for connection with GE Mark VI network components.
Q5: Does the IS215VCMIH2B support redundant turbine control architectures?
A: Yes. The module supports GE Mark VI system configurations including simplex and Triple Modular Redundant (TMR) architectures.
Q6: What should be checked before replacing an IS215VCMIH2B / IS200VCMIH2B module?
A: Users should verify system compatibility, VME rack location, IONet connections, serial communication wiring, hardware revision, and control configuration before installation.
Q7: What factors may affect the operation of the IS215VCMIH2B / IS200VCMIH2B?
A: Network communication faults, unstable power supply, damaged cables, incorrect rack installation, environmental conditions, and configuration errors may affect module performance.
Q8: How can the reliability of the IS215VCMIH2B / IS200VCMIH2B be maintained?
A: Regular inspection, proper cabinet environment, secure communication connections, stable power conditions, and preventive maintenance help ensure reliable long-term operation.
GE Fanuc IS215VCMIH2B IS200VCMIH2B VME Communication Interface Board / VME Bus Master Controller is in stock. Please contact us for a quick quote and competitive pricing.
