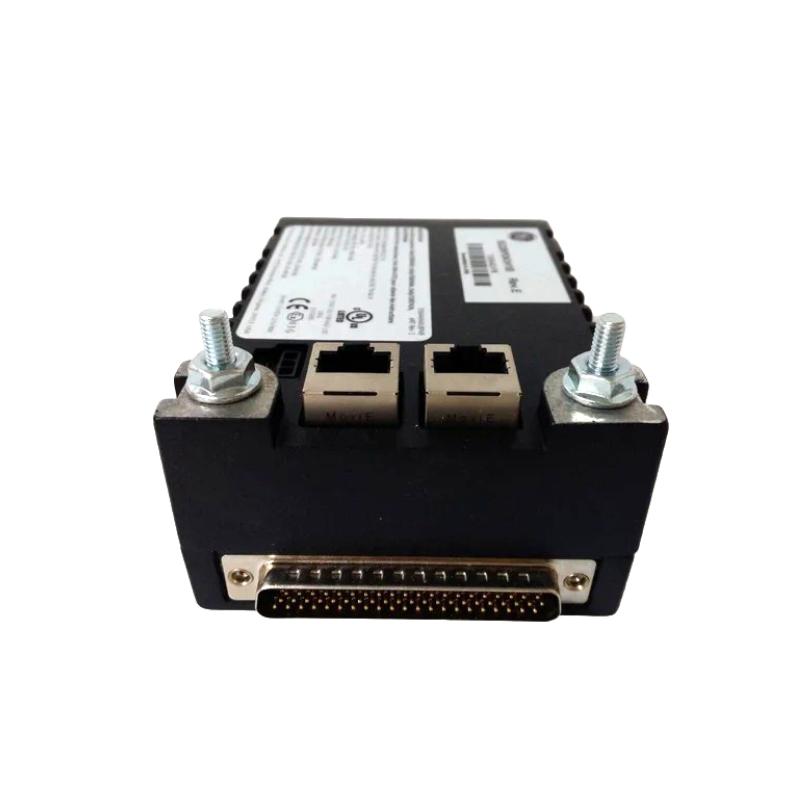

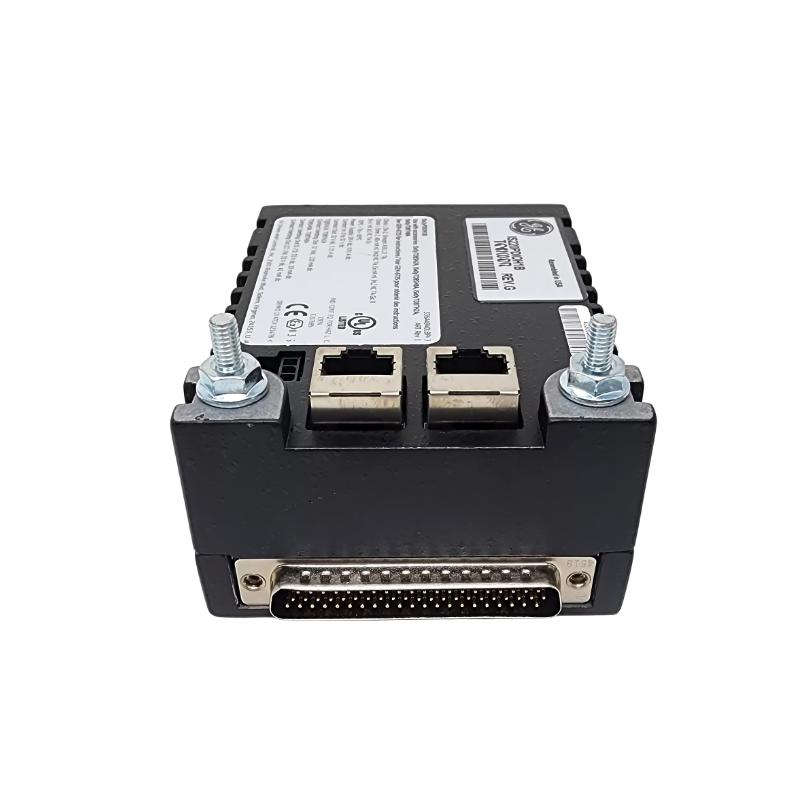

GE Fanuc IS220PDIIH1A Isolated Discrete Input I/O Pack
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS220PDIIH1A |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe Speedtronic Turbine Control System |
| Product Type | Isolated Discrete Input I/O Pack |
| Functional Acronym | PDII |
| Main Function | Isolated discrete signal acquisition and communication between field devices and Mark VIe controllers |
| Application | Gas turbine, steam turbine, and industrial automation control systems |
| Module Function | Provides electrical interface between IONet Ethernet networks and isolated discrete input terminal boards |
| Input Channels | 16 isolated discrete input channels |
| Input Type | Dry contact and discrete voltage signals |
| Input Isolation | Point isolation or group isolation depending on terminal board configuration |
| Supported Input Voltage | 24 VDC, 48 VDC, 125 VDC, 250 VDC, 115 VAC RMS, 230 VAC RMS depending on configuration |
| Isolation Voltage | 1500 Vrms galvanic isolation |
| Signal Processing | Digital input acquisition, isolation, conditioning, and communication processing |
| Communication Interface | Dual 10/100 Ethernet IONet communication ports |
| Ethernet Connector | Dual RJ-45 connectors |
| Terminal Interface | DC-37 connector for discrete input terminal boards |
| Power Supply | 28 VDC nominal |
| Power Supply Range | Approximately 27.4–28.6 VDC |
| Processor Module | Mark VIe common processor board architecture |
| Terminal Board Compatibility | SDII and related isolated discrete input terminal boards |
| System Architecture Support | Simplex and Triple Modular Redundant (TMR) configurations |
| Diagnostic Features | Channel monitoring, module health diagnostics, communication status monitoring, and fault detection |
| LED Indicators | Power, status, Ethernet link, and activity indicators |
| Installation Type | Mark VIe distributed I/O installation |
| Mounting Method | DIN rail / terminal board mounted installation |
| PCB Design | Industrial-grade conformal coated PCB |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approximately 83 mm × 42 mm × 121 mm |
| Weight | Approximately 0.78 kg |
| Revision Level | H1A |
| Compatibility | GE Mark VIe turbine control platforms |
FAQ
Q1: What is the main function of the IS220PDIIH1A?
A: The IS220PDIIH1A is a GE Mark VIe isolated discrete input I/O pack designed to collect isolated field contact signals and transmit processed data to turbine control systems.
Q2: How many input channels does the IS220PDIIH1A provide?
A: The module provides 16 isolated discrete input channels for monitoring field switches, contact signals, and industrial status inputs.
Q3: What types of signals can the IS220PDIIH1A accept?
A: The module supports discrete contact inputs and multiple voltage levels depending on the selected terminal board configuration.
Q4: What is the purpose of isolation in the IS220PDIIH1A?
A: Electrical isolation protects the control system from field-side voltage differences and improves signal reliability in industrial environments.
Q5: What communication interface does the IS220PDIIH1A use?
A: The module communicates with Mark VIe controllers through dual Ethernet IONet communication ports.
Q6: What should be checked before replacing an IS220PDIIH1A module?
A: Users should verify terminal board compatibility, input voltage requirements, Ethernet connections, power supply conditions, system configuration, and hardware revision before replacement.
Q7: What factors may affect the performance of the IS220PDIIH1A?
A: Incorrect field wiring, unstable power supply, damaged terminal connections, communication faults, excessive temperature, and improper configuration may affect module operation.
Q8: How can the reliability of the IS220PDIIH1A be maintained?
A: Regular inspection, proper cabinet installation, stable 28 VDC power supply, secure signal connections, and preventive maintenance help ensure reliable long-term performance.
GE Fanuc IS220PDIIH1A Isolated Discrete Input I/O Pack is in stock. Please contact us for a quick quote and competitive pricing.
