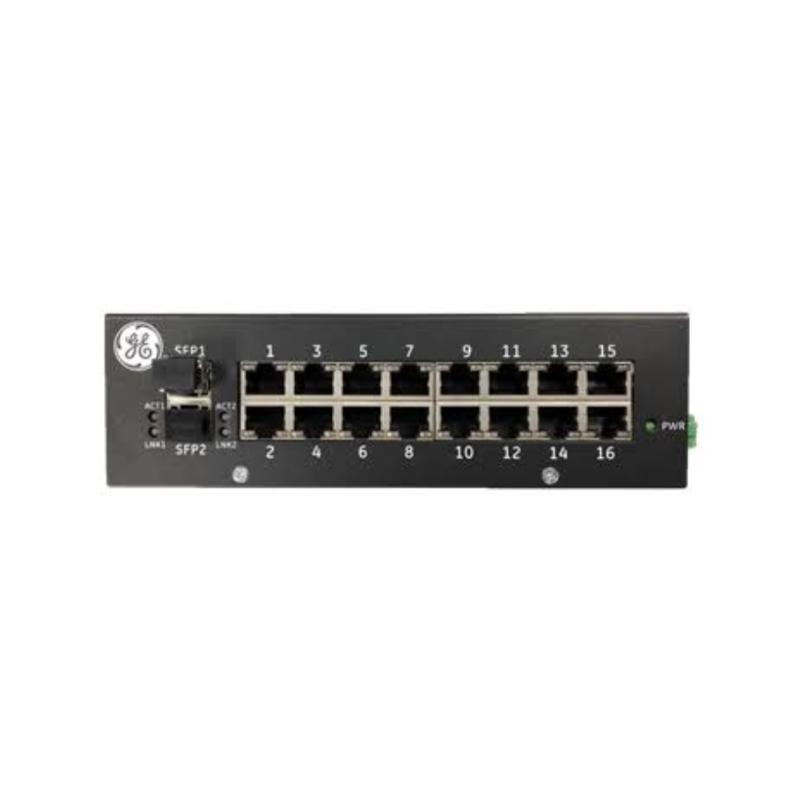

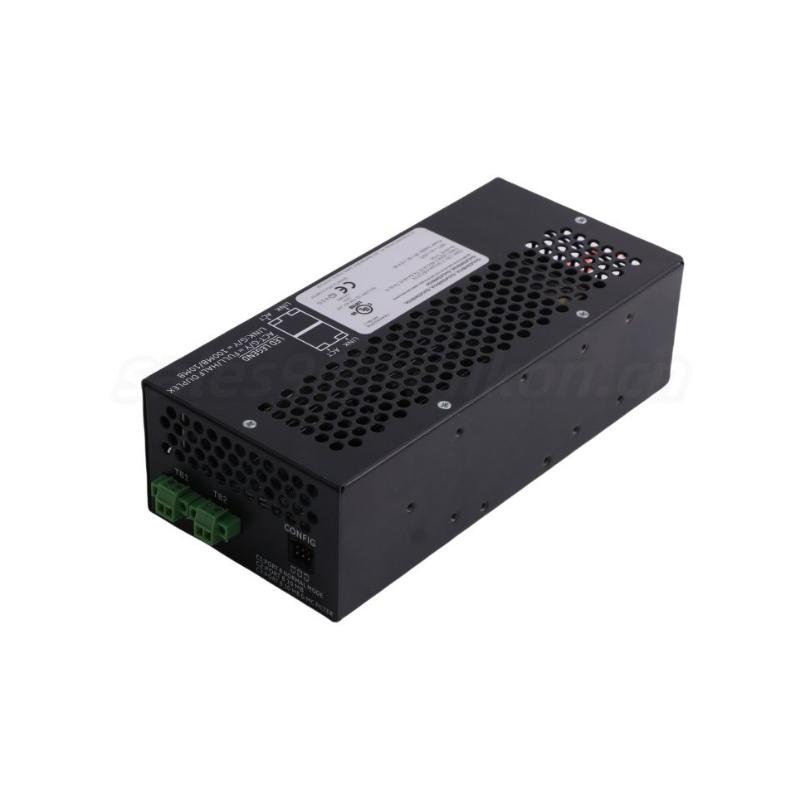

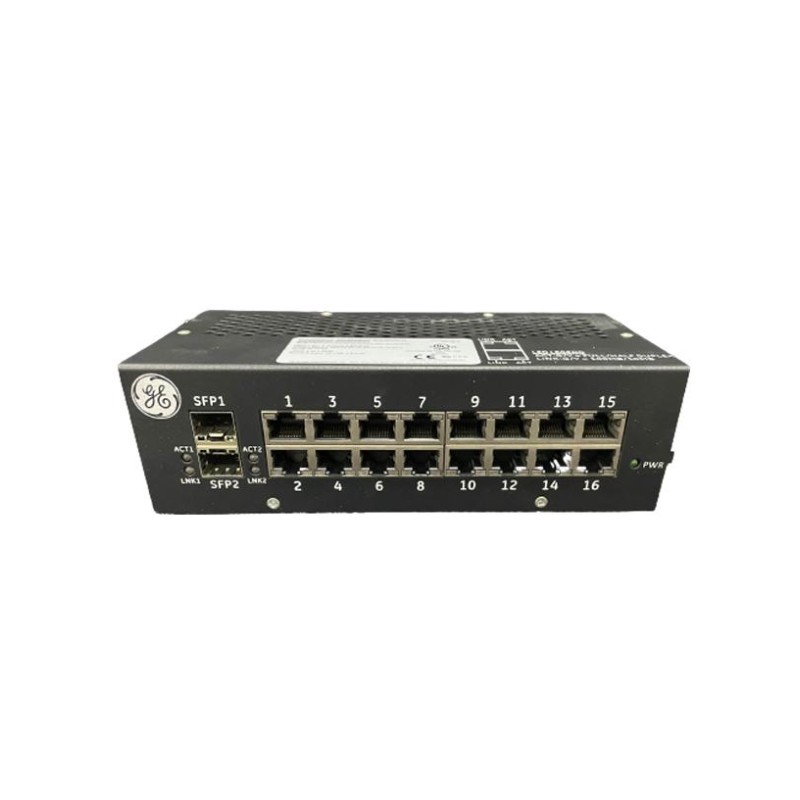

GE Fanuc IS420ESWBH2A Industrial Ethernet IONet Switch
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS420ESWBH2A |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe / Mark VIeS Speedtronic Turbine Control System |
| Product Type | Industrial Ethernet IONet Switch |
| Main Function | Provides reliable Ethernet communication switching between Mark VIe controllers, I/O packs, and industrial network devices |
| Application | Gas turbine, steam turbine, and industrial automation control networks |
| Network Role | Unmanaged industrial Ethernet switch for real-time control system communication |
| Copper Ports | 16 × 10/100Base-TX Ethernet ports |
| Copper Connector Type | RJ-45 connectors |
| Fiber Ports | 2 × 100Base-FX multimode fiber ports |
| Fiber Connector Type | LC-type connectors |
| Communication Speed | 10/100 Mbps auto-negotiation |
| Ethernet Standard Support | IEEE 802.3, IEEE 802.3u, and IEEE 802.3x compatibility |
| Switching Function | Store-and-forward Ethernet switching |
| MAC Address Capacity | Up to 4K MAC addresses |
| Packet Buffer Capacity | Minimum 256 KB buffer |
| Latency | Less than 5 μs |
| Duplex Mode | Full/half duplex auto-negotiation |
| Flow Control | Ethernet flow control support |
| Power Supply | 24/28 VDC nominal |
| Power Consumption | Maximum approximately 1 A at 24 VDC |
| Power Input | Dual independent power inputs with diode-OR redundancy |
| Cooling Method | Convection cooling |
| Mounting Type | DIN rail mounting |
| Cable Compatibility | Cat 5e UTP copper cable with RJ-45 connectors |
| Diagnostic Features | Link status, activity monitoring, duplex indication, speed indication, and power status monitoring |
| LED Indicators | Power, port link, activity, duplex, and speed indicators |
| Hazardous Location Capability | Supports industrial hazardous environment applications with applicable certification |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 188 mm × 86 mm × 56 mm |
| Weight | Approximately 0.66 kg |
| Revision Level | H2A |
| Compatibility | GE Mark VIe and Mark VIeS turbine control platforms |
FAQ
Q1: What is the main function of the IS420ESWBH2A?
A: The IS420ESWBH2A is a GE Mark VIe industrial Ethernet IONet switch designed to provide stable network communication between turbine controllers, distributed I/O modules, and other control system components.
Q2: How many Ethernet ports does the IS420ESWBH2A provide?
A: The module provides 16 copper 10/100Base-TX Ethernet ports and 2 100Base-FX multimode fiber ports for flexible network communication.
Q3: What type of fiber connection is supported by the IS420ESWBH2A?
A: The switch supports two 100Base-FX multimode fiber connections using LC-type connectors for extended industrial network communication.
Q4: What power supply does the IS420ESWBH2A require?
A: The module operates with a 24/28 VDC power supply and supports redundant power inputs to improve system availability.
Q5: Where is the IS420ESWBH2A typically installed?
A: The switch is commonly installed in GE Mark VIe and Mark VIeS control systems using DIN rail mounting for industrial Ethernet network applications.
Q6: What should be checked before replacing an IS420ESWBH2A module?
A: Users should verify network topology, Ethernet and fiber connections, power wiring, mounting arrangement, communication configuration, and system compatibility before replacement.
Q7: What factors may affect the performance of the IS420ESWBH2A?
A: Damaged network cables, unstable DC power, incorrect network configuration, excessive temperature, electromagnetic interference, and improper installation may affect switch performance.
Q8: How can the reliability of the IS420ESWBH2A be maintained?
A: Regular inspection of network connections, proper cabinet conditions, stable redundant power supply, clean connectors, and communication status monitoring help ensure reliable long-term operation.
GE Fanuc IS420ESWBH2A Industrial Ethernet IONet Switch is in stock. Please contact us for a quick quote and competitive pricing.
