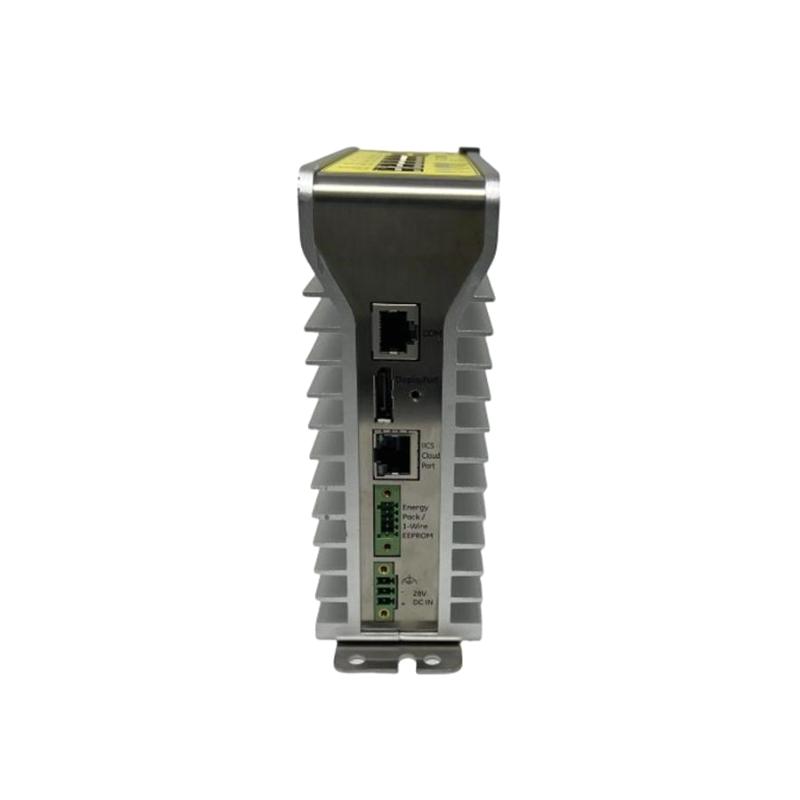

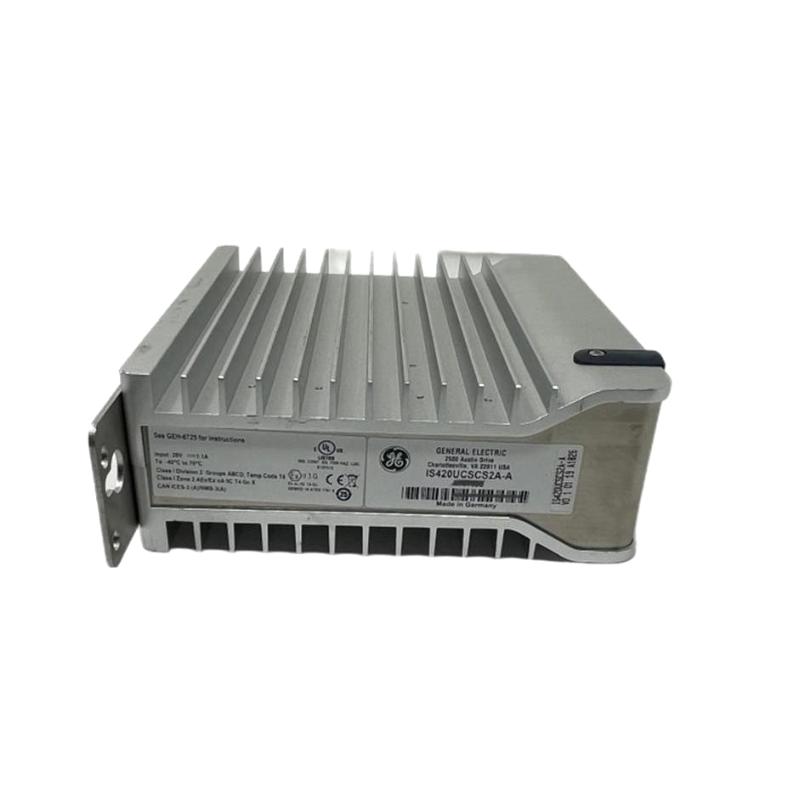

GE Fanuc IS420UCSCH1A UCSC Universal Controller Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS420UCSCH1A |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe / Mark VIeS Control System |
| Product Type | UCSC Universal Controller Module |
| Functional Acronym | UCSC |
| Main Function | Executes real-time control applications, manages I/O communication, and performs advanced turbine control processing |
| Application | Gas turbine, steam turbine, combined-cycle power plant, and industrial automation control systems |
| Controller Type | Standalone embedded controller |
| Processor Type | Quad-core AMD G-Series processor |
| Processor Speed | 1.2 GHz |
| Operating System | QNX Neutrino real-time operating system |
| Memory | 4 GB DDR3-1333 SDRAM |
| Storage | Internal flash storage for application programs and configuration data |
| Control Function | Executes control logic, sequencing, data processing, and system coordination tasks |
| Communication Interfaces | Ethernet-based communication interfaces, IONet, and UDH communication network |
| Ethernet Ports | Multiple Ethernet ports for control network communication |
| IONet Support | Supports Mark VIe I/O module communication |
| Industrial Protocol Support | PROFINET, EtherCAT, HSSL, and onboard I/O network communication |
| Redundancy Support | Simplex, dual, and Triple Modular Redundant (TMR) configurations |
| Programming Environment | GE ControlST / ToolboxST configuration environment |
| Diagnostic Features | Controller health monitoring, communication diagnostics, fault detection, and system status monitoring |
| Cooling Method | Convection cooling without fan |
| Installation Type | Base-mounted panel installation |
| Power Supply | 24 VDC nominal |
| Power Input Range | 18–32 VDC |
| Mounting Requirement | Direct mounting on dedicated controller base |
| Environmental Protection | Industrial-grade design for harsh operating environments |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% relative humidity, non-condensing |
| Dimensions | Approximately 168 mm × 150 mm × 55 mm |
| Dimensions with Mounting Base | Approximately 204 mm × 152 mm × 55 mm |
| Weight | Approximately 1.327 kg |
| Revision Level | H1A |
| Compatibility | GE Mark VIe and Mark VIeS turbine control platforms |
FAQ
Q1: What is the main function of the IS420UCSCH1A?
A: The IS420UCSCH1A is a GE Mark VIe UCSC controller module designed to execute turbine control applications, process real-time data, and manage communication between control system components.
Q2: What processor is used in the IS420UCSCH1A?
A: The module uses a quad-core AMD G-Series processor operating at 1.2 GHz, providing high-performance processing capability for industrial control applications.
Q3: What operating system does the IS420UCSCH1A use?
A: The controller uses the QNX Neutrino real-time operating system, which provides deterministic processing and reliable execution for critical control tasks.
Q4: What communication interfaces are available on the IS420UCSCH1A?
A: The controller supports Ethernet communication, IONet connections for I/O modules, and industrial communication interfaces including PROFINET and EtherCAT depending on system configuration.
Q5: Does the IS420UCSCH1A support redundant control architectures?
A: Yes. The controller supports simplex, dual, and Triple Modular Redundant (TMR) configurations for different turbine control requirements.
Q6: What should be checked before replacing an IS420UCSCH1A module?
A: Users should verify controller compatibility, mounting base requirements, power supply conditions, communication network settings, software configuration, and hardware revision before replacement.
Q7: What factors may affect the performance of the IS420UCSCH1A?
A: Incorrect configuration, unstable DC power, network communication faults, insufficient ventilation, excessive temperature, and improper installation may affect controller performance.
Q8: How can the reliability of the IS420UCSCH1A be maintained?
A: Regular diagnostic checks, proper cabinet installation, stable power supply, secure network connections, clean operating conditions, and preventive maintenance help ensure reliable long-term operation.
GE Fanuc IS420UCSCH1A UCSC Universal Controller Module is in stock. Please contact us for a quick quote and competitive pricing.
