1. What is the main function of the GE Multilin G60 Generator Management Relay?

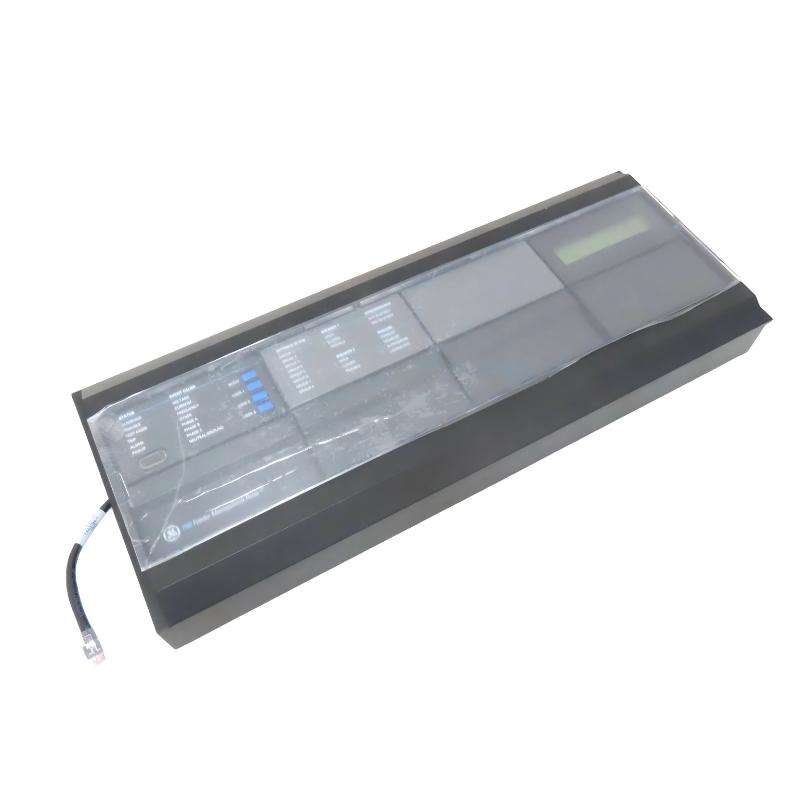

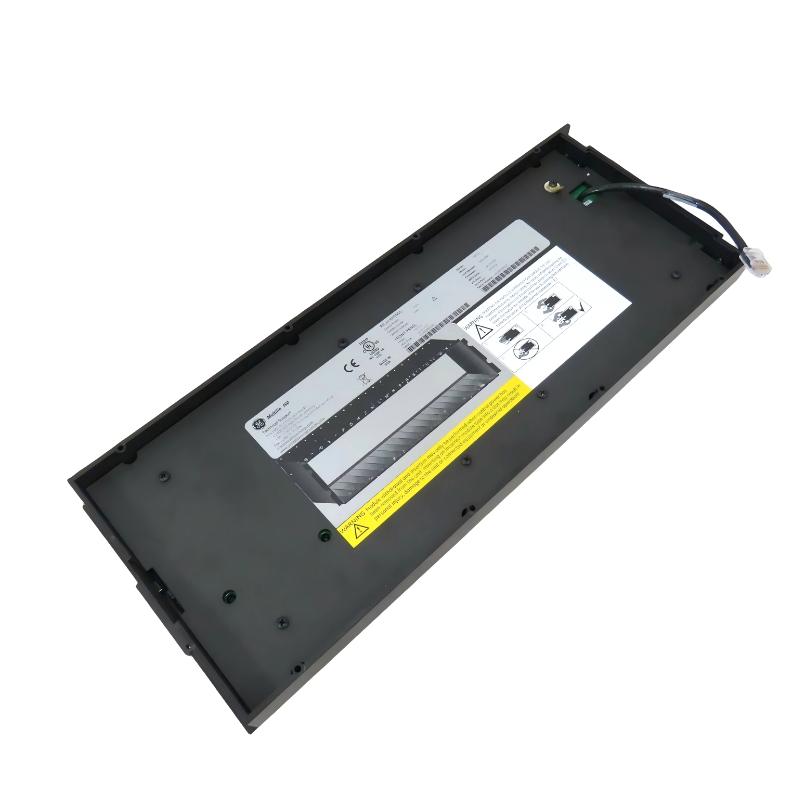

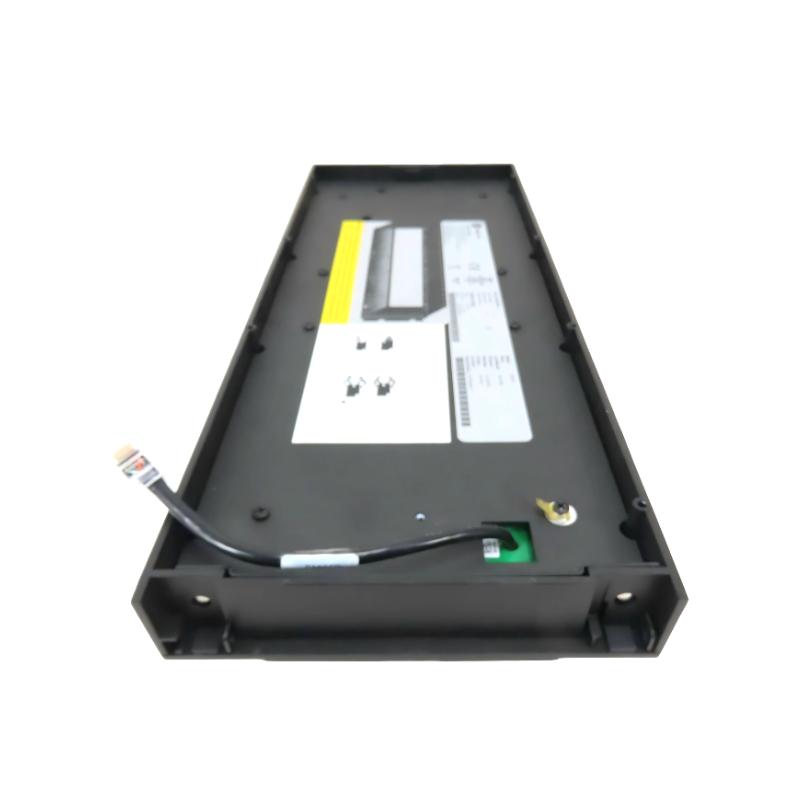

The GE Multilin G60 is a multifunction generator protection and management relay designed to protect, control, monitor and measure medium- and large-scale AC generators. It combines multiple protection functions in one relay, including stator differential protection, stator ground fault protection, loss-of-excitation protection, generator unbalance protection, overexcitation protection, reverse power protection, overcurrent protection and breaker failure protection. By integrating protection, control, metering, event recording and communication functions, the G60 can reduce the need for multiple independent protection devices and provide a centralized interface for generator monitoring.

2. What generator protection functions are available in the G60?

The G60 provides a comprehensive range of generator protection elements. Depending on the installed hardware and software configuration, functions include 87S stator differential, 87G restricted ground fault, 64S sub-harmonic stator ground protection, 64TN 100% stator ground protection, 64F field ground protection, 40 loss of excitation, 46 generator unbalance, 24 volts-per-hertz, 32 directional power, 50/51 overcurrent, 50BF breaker failure, 68 power swing blocking and 78 out-of-step protection. It also supports voltage and frequency protection elements, providing a broad protection solution for generator units.

3. How does the G60 support generator stator ground fault protection?

The G60 supports several approaches to stator ground fault protection depending on the installed configuration. These include third-harmonic-based 100% stator ground protection and sub-harmonic injection methods. The appropriate protection method depends on the generator grounding arrangement, voltage level, generator design and selected G60 hardware. The relay can also combine multiple protection elements to improve overall fault coverage. Proper CT and VT connections, generator grounding information and protection settings are essential when commissioning stator ground protection.

4. What communication protocols can be used with the G60?

The G60 supports a broad range of industrial and substation communication technologies. Depending on the communication modules and firmware configuration, it can support IEC 61850, Modbus RTU, Modbus TCP/IP, DNP 3.0, IEC 60870-5-103 and IEC 60870-5-104. IEC 61850 Edition 1 and Edition 2 capabilities allow the relay to integrate with modern substation automation systems. Process bus options can also support IEC 61850-9-2LE and IEC 61869 applications. Ethernet-based communication allows the relay to exchange protection, control, metering and diagnostic information with SCADA, DCS and other automation systems.

5. What monitoring and recording functions does the G60 provide?

The G60 provides integrated metering, oscillography, event recording and data logging functions. It can measure electrical quantities such as current, voltage, power, energy and frequency. Oscillography can record analog and digital parameters at up to 64 samples per cycle, providing useful information for post-fault analysis. The event recorder can store up to 1024 time-tagged events, while the data logger supports 16 channels with sampling rates of up to one sample per cycle. These functions allow engineers to analyze generator disturbances and protection operations without relying exclusively on external recording equipment.

6. What is FlexLogic™ in the G60, and why is it useful?

FlexLogic™ is the programmable logic environment used to customize control and protection logic within the G60. It allows engineers to combine input states, protection elements, timers, counters and internal logic signals to create application-specific control schemes. This can be used for trip logic, alarm generation, interlocking, breaker control, permissive logic and other automation functions. FlexLogic™ provides considerable flexibility because many control functions can be implemented within the relay rather than requiring additional external logic relays or PLC equipment.

7. How should the G60 be configured and commissioned after installation?

Commissioning should begin by verifying the complete hardware order code against the intended protection design, followed by inspection of control power, CT circuits, VT circuits, digital inputs, relay outputs and communication connections. The generator electrical data, CT and VT ratios, frequency, grounding arrangement and protection settings should then be entered according to the approved protection study. Each protection element should be tested using suitable secondary injection or other approved test equipment. Digital inputs and outputs, breaker control logic, FlexLogic™, alarms, communication channels and time synchronization should also be verified. Finally, event recording and trip logic should be checked before the relay is placed into normal service.

8. What should be checked if the G60 produces an incorrect trip or fails to trip?

Troubleshooting should start by reviewing the relay event records, oscillography and active targets to determine which protection element operated or failed to operate. Verify the relevant CT and VT input values and confirm that the measured electrical quantities correspond with the actual generator operating condition. Protection pickup levels, time delays, logic equations, blocking conditions and breaker failure logic should then be reviewed. If the protection logic appears correct, inspect the associated digital inputs, relay outputs, trip circuit and breaker interface. Communication or configuration problems should also be considered when remote control or SCADA indications do not correspond with the local relay status. Because the G60 is part of a generator protection system, any unexplained trip or failure to trip should be investigated using the complete protection and control circuit rather than replacing the relay without testing the surrounding system.
