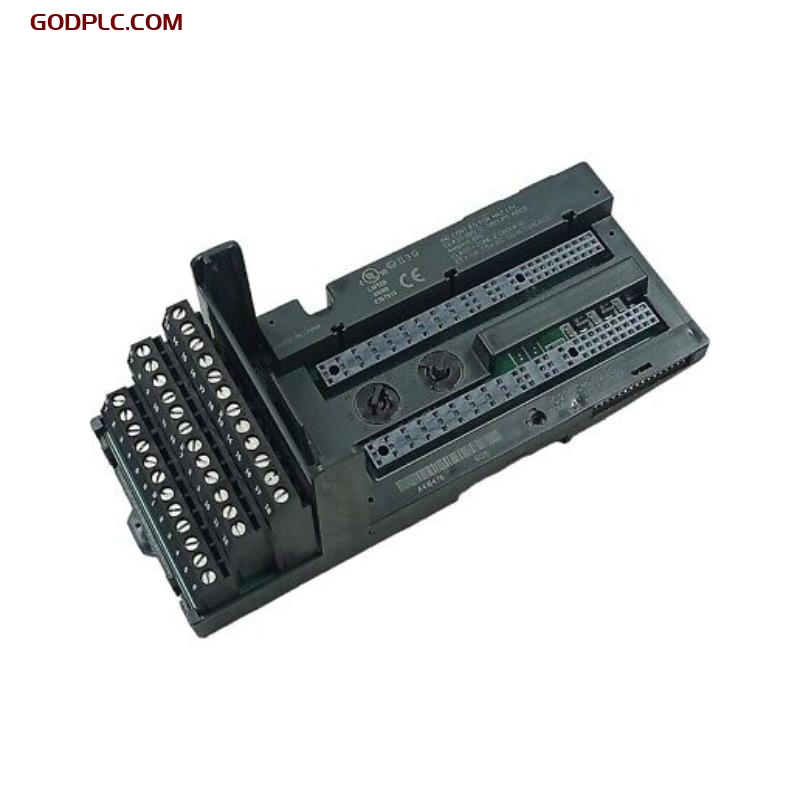

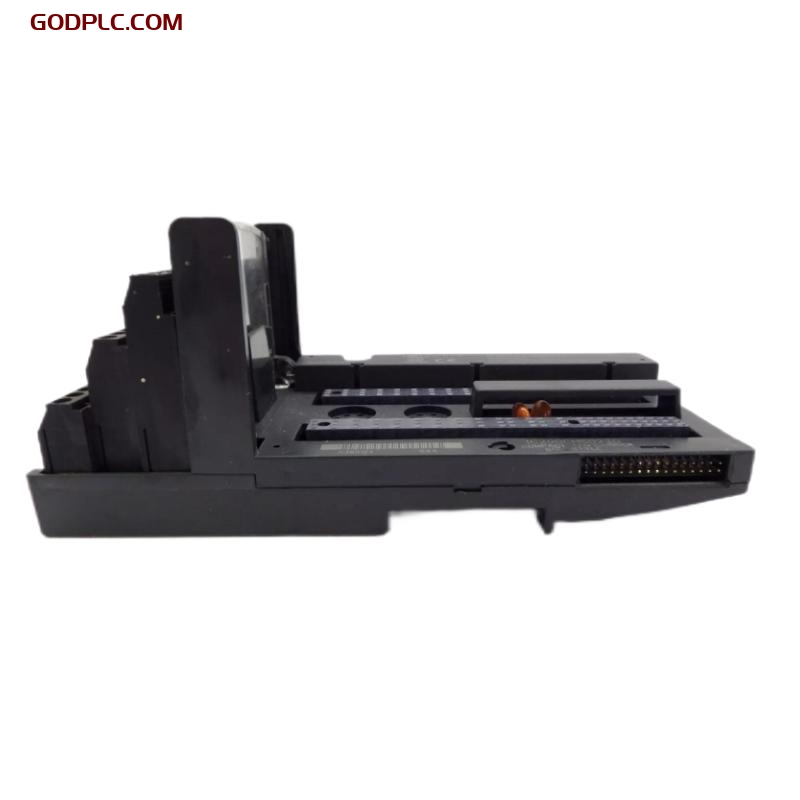

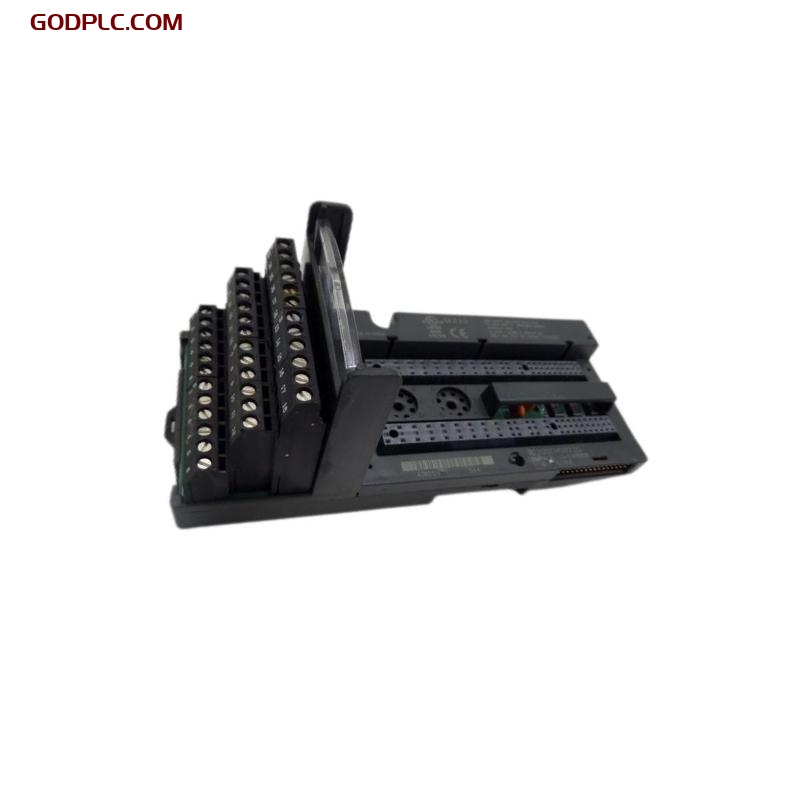

GE IC200CHS022G VersaMax Compact Cassette I/O Bracket
GE IC200CHS022G is a compact box I/O bracket in the VersaMax series, designed to simplify the integration of input/output modules in industrial automation systems. The bracket provides the necessary mechanical support, backplane communication and field wiring capabilities for a single I/O module, thereby enhancing the modularity and scalability of the control system.
Key Features:
-
36 IEC Box Terminals: Equipped with 36 terminals labeled A1–A18 and B1–B18, it facilitates organized and efficient wiring of up to 32 I/O points and 4 common/power connections.
-
Multiple installation options: Supports DIN rail and panel mounting, which can flexibly adapt to various installation requirements.
-
Integrated Holder: Features a built-in holder that articulates with terminal wiring for clear marking and simplified maintenance procedures.
-
High Current Capacity: Each contact is rated to handle up to 2 amps, with a maximum of 8 amps per power and ground segment, ensuring robust performance in demanding applications.
Technical Specifications:
| scope | Specification |
|---|---|
| Product range | Visamax |
| model | IC200CHS022G |
| Number of terminals | 36 (labeled A1–A18 and B1–B18) |
| Module capacity | Supports 1 I/O module |
| Installation Options | DIN rail or panel mounting |
| Dimensions (W x H x D) | 66.8 mm x 163.5 mm x 70 mm |
| weight | 0.34 kg |
| Operating temperature | 0°C to 60°C |
| Storage temperature | -40°C to 85°C |
| humidity | 5% to 95% non-condensing |
| Shock resistance | 5 g and 10–500 Hz |
| Impact resistance | 30 g |
| Terminal voltage rating | 0–264 VAC |
| Contact current rating | 2 A per terminal, 8 A per power/ground segment |
| Wire Gauge Support | Single wire: AWG #14–#22; Dual wire: AWG #18 |
| Certification and Compliance | Complies with CE, UL, CSA, RoHS standards |
Wiring and Installation Guide:
-
Wire Compatibility: Terminals accommodate solid or stranded copper wire. For single-wire connections, use wire in the AWG #14 to AWG #22 range. For two-wire connections per terminal, use AWG #18 wire.
-
Terminal Ratings: Each terminal supports voltages up to 264 VAC and currents up to 2 amps, with a total maximum of 8 amps for the power and ground segments.
-
Mounting Orientation: Ensure that the holder is retracted during system operation to maintain proper airflow and module stability.
application:
The IC200CHS022G is versatile and suitable for a variety of industrial applications, including:
-
Manufacturing Automation: Seamlessly integrate into assembly lines and robotic systems, providing reliable I/O connectivity.
-
Process Control: Facilitates precise monitoring and control in industries such as chemical processing, oil and gas, and water treatment.
-
Building Management System: Supports HVAC, lighting and security system integration to enhance building automation.
-
Material Handling: Optimize conveyor systems, sorters and automated storage solutions through efficient I/O management.
Recommended related models:
To expand system capabilities, consider integrating the following VersaMax series modules:
| model | describe |
|---|---|
| IC200MDL640 | 16-point 120VAC input module |
| IC200MDL740 | 16-point 12/24VDC positive logic output module |
| IC200MDL241 | 16-point 24VDC negative logic input module |
| IC200MDL243 | 16-point 24VDC positive logic input module |
| IC200MDL930 | 16-point relay output module |
| IC200ALG320 | 4-channel analog voltage input module |
| IC200ALG260 | 4-channel analog current output module |
| IC200PWR102 | Power Module |
| IC200CPUE05 | CPU module with Ethernet interface |
| IC200GBI001 | Genius Bus Interface Module |
GE IC200CHS022G VersaMax Compact Box-Style I/O Carrier is in stock. Please contact us for a quick quote and competitive pricing.
