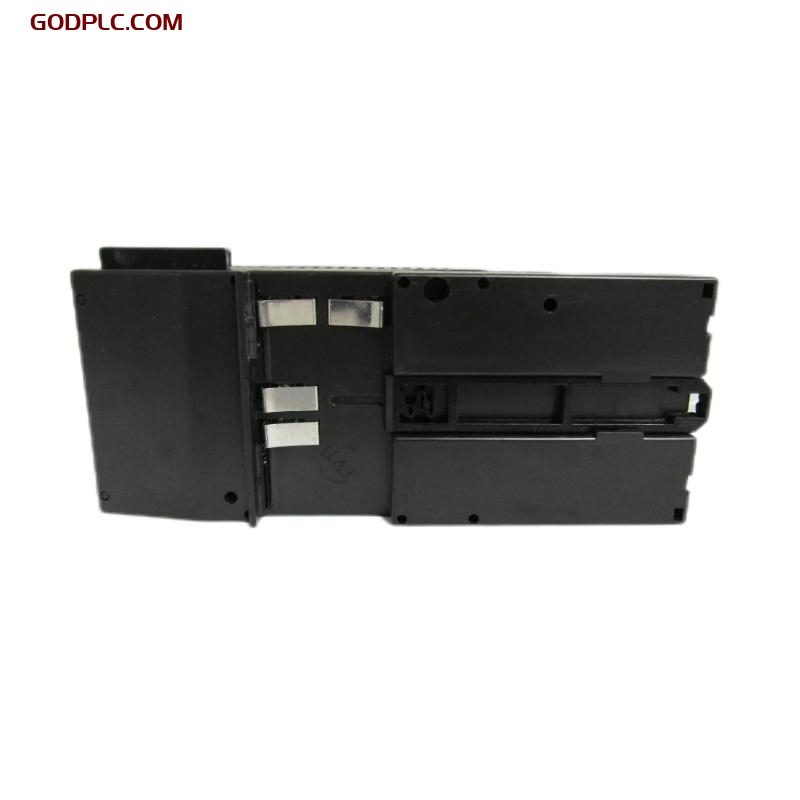

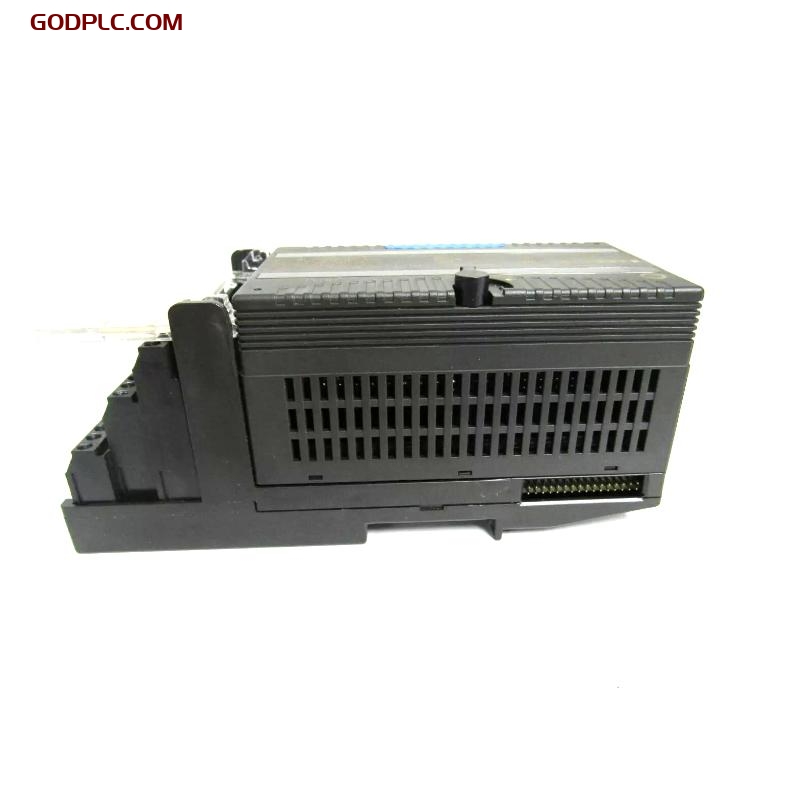

GE IC200MDL740J VersaMax Discrete Output Module
The GE IC200MDL740J is a 16-point discrete output module from the VersaMax series , designed for industrial automation applications that require efficient and reliable DC output switching . It is designed for positive logic (source) control and is suitable for systems where the load is connected to the negative terminal of the power supply.
The module integrates seamlessly into the VersaMax PLC platform , allowing easy expansion and flexible configuration for a variety of industrial applications such as manufacturing, process control and material handling systems.
Key Features and Benefits
1. Positive logic (source) output
The IC200MDL740J is a sourcing output module , which means it sources current to the load rather than sinking it. This type of output is often used with PNP (Positive-Negative-Positive) sensors and devices.
2. High-speed switching
The module’s on/off response time of just 0.5 milliseconds ensures fast operation, making it ideal for applications requiring fast signal processing.
3. Overcurrent and short circuit protection
Each output point is protected from over-current and short-circuit to prevent damage to the module and connected devices .
4. Built-in LED indicator
Each output channel has an LED indicator for easy troubleshooting.
- Green LED : Output is on (normal operation).
- Amber LED : An overload condition has been detected.
5. Modular and compact design
The module’s small footprint (110 × 66.8 × 50 mm) allows for efficient use of space in the control cabinet while maintaining high functionality.
6. Wide voltage range
The module supports a DC voltage range of 12V to 24V and is compatible with a variety of industrial power systems.
7. Industrial-grade durability
Designed to withstand harsh industrial environments, the module operates over a wide temperature range of 0°C to 60°C and can handle electrical noise and vibrations common in industrial applications .
Technical specifications
| scope | Specification |
|---|---|
| Product range | Visamax |
| Part Number | IC200MDL740J |
| Output Type | Discrete (digital) sourcing (positive logic) |
| Output points | 16 (two separate groups, 8 people each) |
| Output voltage range | 12-24 VDC |
| Maximum output voltage | 30 V DC |
| Nominal output current | 0.5 A per point |
| Maximum load current | 0.5 A per point, 4 A per module |
| Minimum load current | 1 mA |
| Response time (on/off) | 0.5 ms |
| Output leakage current | ≤ 0.1 mA at 30 VDC |
| Voltage drop (on state) | 0.3V max at 0.5A |
| Isolation voltage | 1500V between field side and logic side |
| Backplane current consumption | 150 mA |
| External power supply | Output load switching required |
| Status Indicator | 16 green LEDs (output on) 16 amber LEDs (overload status) |
| Module connector type | 20-pin terminal block |
| Wiring Type | Screw terminal or spring clamp connector |
| Installation Type | DIN rail or panel mounting |
| Operating temperature | 0°C to 60°C |
| Storage temperature | -40°C to 85°C |
| humidity | 5% to 95% non-condensing |
| Shock resistance | 5 g and 10-500 Hz |
| Impact resistance | 30 g |
| Dimensions (W x H x D) | 110 mm × 66.8 mm × 50 mm |
| weight | 0.23 kg |
| Certification and Compliance | Complies with CE, UL, CSA, RoHS standards |
application
IC200MDL740J is widely used in industrial control systems, such as:
- Material Handling Systems : Used in conveying systems to precisely control motors and actuators.
- Manufacturing Automation : Provide fast and reliable switching for automated production lines.
- Packaging machines : Control solenoids, valves and actuators during the packaging process.
- Food and Beverage Industry : Ensure accurate timing and control of process equipment.
- Building Automation : Lighting, security and HVAC automation for smart building control systems.
- Water and wastewater treatment : managing pumps and valves in process control systems.
Recommended related modules
The following are other VersaMax series modules that are compatible or closely related to the IC200MDL740J :
| model | describe |
|---|---|
| IC200MDL740 | 16-point 12/24VDC positive logic output module |
| IC200MDL750 | 32-point 12/24VDC positive logic output module |
| IC200MDL241 | 16-point 24VDC negative logic input module |
| IC200MDL243 | 16-point 24VDC positive logic input module |
| IC200MDL640 | 16-point 120VAC output module |
| IC200MDL930 | 16-point 24VDC relay output module |
| IC200MDL750C | 32-point 12/24VDC output module with conformal coating |
| IC200ALG320 | 4-channel analog voltage input module |
| IC200ALG260 | 4-channel analog current output module |
| IC200CHS022 | VersaMax 36-pin I/O Carrier |
GE IC200MDL740J VersaMax Discrete Output Module Curated Picks is in stock. Please contact us for a quick quote and competitive pricing.
