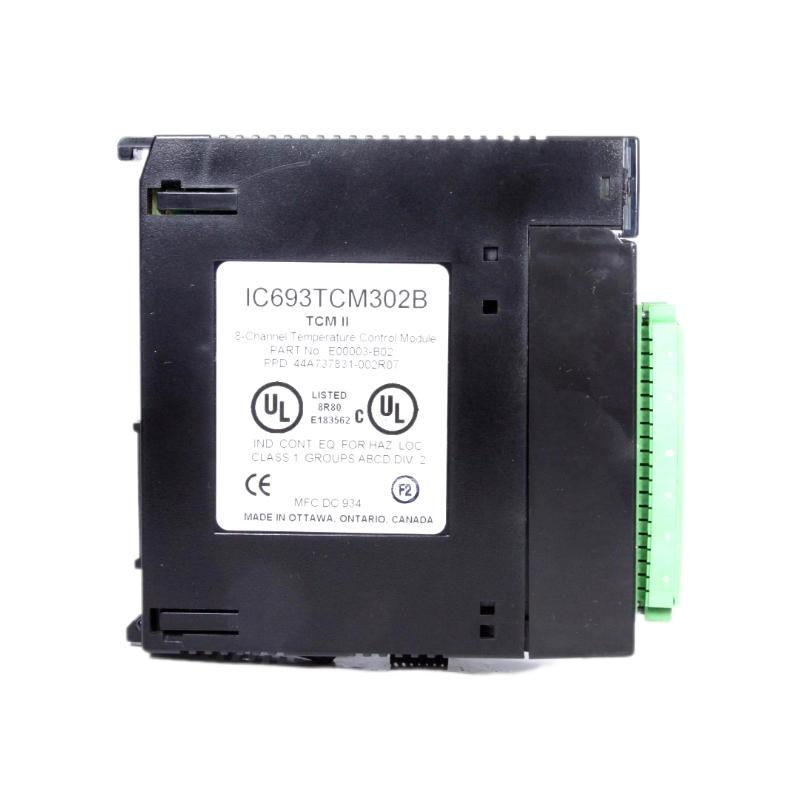

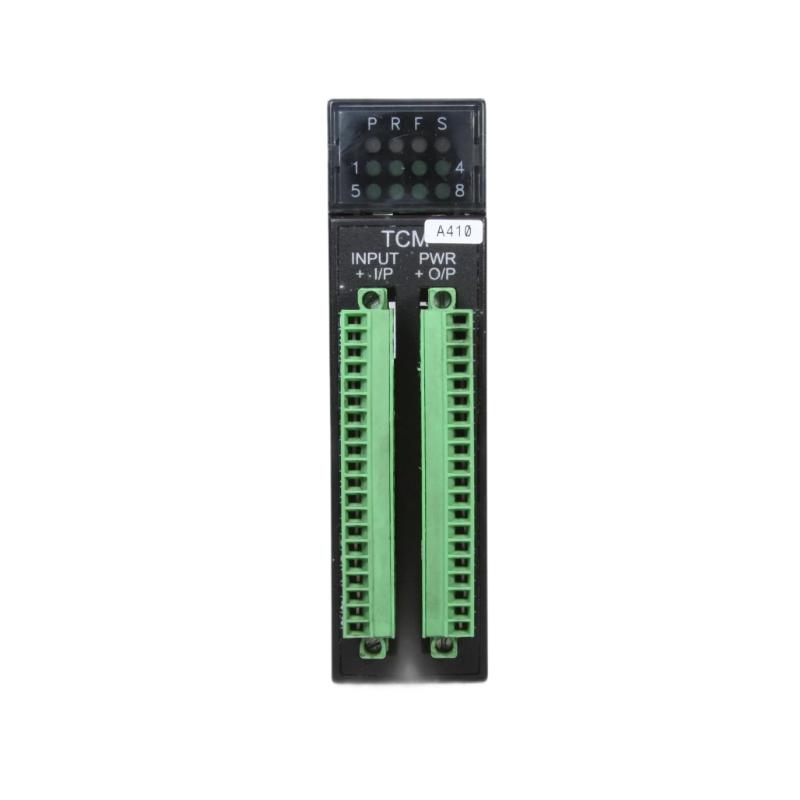

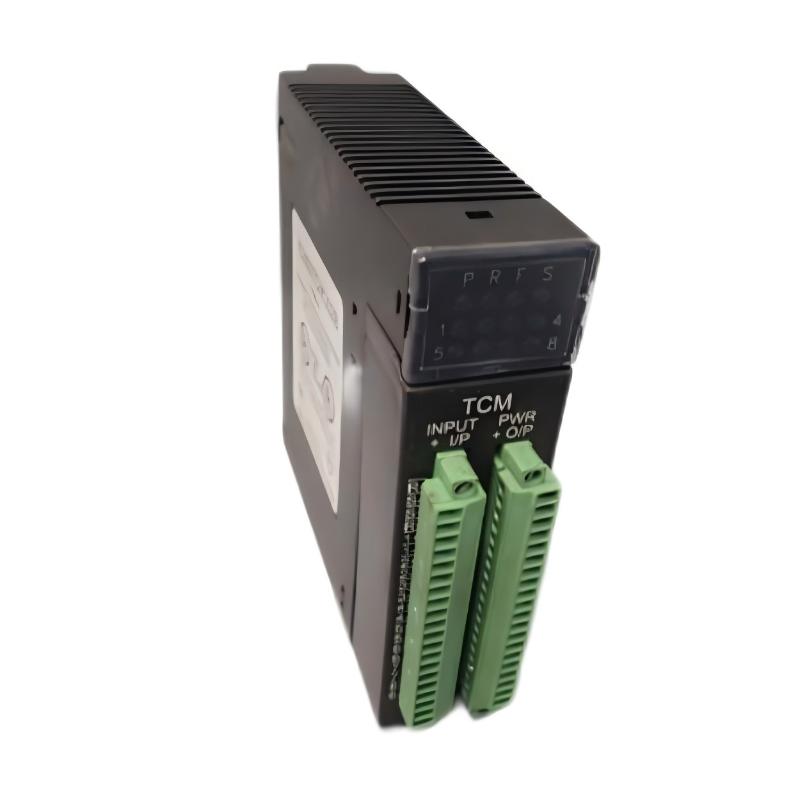

1. What is the main function of the GE IC693TCM302 Temperature Control Module?

The IC693TCM302 is a dedicated temperature control module designed for the GE Series 90-30 PLC platform. It provides eight thermocouple input channels and eight independent DC control outputs, allowing multiple temperature zones to be monitored and controlled from a single module. Each channel can operate independently, and the module can perform temperature-control functions without requiring the PLC CPU to execute the complete temperature regulation algorithm. This makes it suitable for applications such as industrial heaters, ovens, furnaces, process equipment, and other systems where several temperature zones must be controlled simultaneously.

2. Which thermocouple types are supported by the IC693TCM302?

The IC693TCM302 supports Type J, Type K, and Type L thermocouples. For this model, the specified ranges are 0–450°C for Type J, 0–600°C for Type K, and 0–450°C for Type L. The module also provides one RTD input for temperature compensation, supporting Pt-100 RTD devices. When selecting a sensor, the thermocouple type configured in the module must correspond to the actual sensor installed in the field. Incorrect sensor-type selection can result in inaccurate temperature readings and improper control behavior, so sensor configuration should always be verified during commissioning.

3. Can the IC693TCM302 control multiple temperature zones independently?

Yes. The IC693TCM302 provides eight independent temperature-control channels, allowing up to eight temperature zones to be monitored and controlled from one module. Each channel has its own thermocouple input and corresponding control output. The channels can operate independently with their own temperature setpoints and control requirements. This multi-zone architecture is useful in equipment where different sections need different temperature settings, such as multi-zone ovens, heating systems, plastic-processing equipment, and other thermal process machinery. The module performs the temperature-control functions locally, reducing the amount of control processing required from the PLC CPU.

4. What control modes are available on the IC693TCM302?

The IC693TCM302 supports both closed-loop and open-loop control modes. In closed-loop operation, the module uses the measured temperature and the configured setpoint to regulate the output, allowing the temperature of each zone to be maintained automatically. This mode is normally used when accurate and stable temperature control is required. Open-loop or manual operation allows the output to be controlled without using automatic temperature regulation, which can be useful during commissioning, testing, maintenance, or special process conditions. The control mode can be selected independently for the applicable temperature-control channel.

5. How does the IC693TCM302 detect thermocouple faults?

The module includes diagnostic functions for detecting conditions such as an open thermocouple and reverse thermocouple connection. It can also detect and report temperature values that fall outside configured tolerance limits. These diagnostic capabilities help maintenance personnel identify sensor and wiring problems without relying only on abnormal process temperature readings. During troubleshooting, the thermocouple wiring, polarity, sensor condition, terminal connections, and configured sensor type should all be checked. If the module reports a thermocouple fault, it is important to determine whether the problem is caused by the sensor itself, field wiring, incorrect polarity, or the module input before replacing components.

6. What is the purpose of the RTD input on the IC693TCM302?

The IC693TCM302 provides one RTD input using a Pt-100 device for temperature compensation. The compensation function helps the module account for temperature-related effects associated with thermocouple measurement and maintain more consistent temperature measurement performance. The RTD connection should be wired according to the module’s terminal requirements, and the correct Pt-100 sensor type should be used. During installation, poor RTD connections or incorrect wiring can affect temperature compensation and subsequently influence the accuracy of thermocouple measurements. Therefore, the RTD circuit should be checked whenever temperature readings appear inconsistent across multiple thermocouple channels.

7. What should be checked if the IC693TCM302 does not control the heater correctly?

If a heater or other temperature-control device does not respond correctly, troubleshooting should begin by checking the thermocouple input and confirming that the measured temperature is reasonable. The configured thermocouple type, sensor polarity, field wiring, and sensor condition should then be verified. Next, check whether the channel is operating in automatic or manual mode and confirm that the correct temperature setpoint and control parameters have been configured. The corresponding DC output and external power supply should also be checked, including output wiring and the connected load. If the input temperature is correct but the output does not respond as expected, inspect the output channel for short-circuit or overload conditions and verify that the external 18–36 VDC supply is available.

8. How should the IC693TCM302 be commissioned after installation?

Commissioning should begin by verifying that the module is correctly installed in the Series 90-30 system and that all field wiring is connected to the appropriate terminals. Confirm the thermocouple type for each channel, check the Pt-100 compensation connection, and verify the external power supply used for the control outputs. After powering the system, check the module status indicators and confirm that there are no reported thermocouple, output, or configuration faults. Each temperature channel should then be tested individually to verify that the measured temperature is reasonable and corresponds to the actual process condition. Finally, test the control outputs in the appropriate operating mode, verify the configured setpoints, and confirm that each temperature zone reaches and maintains its intended operating temperature.
