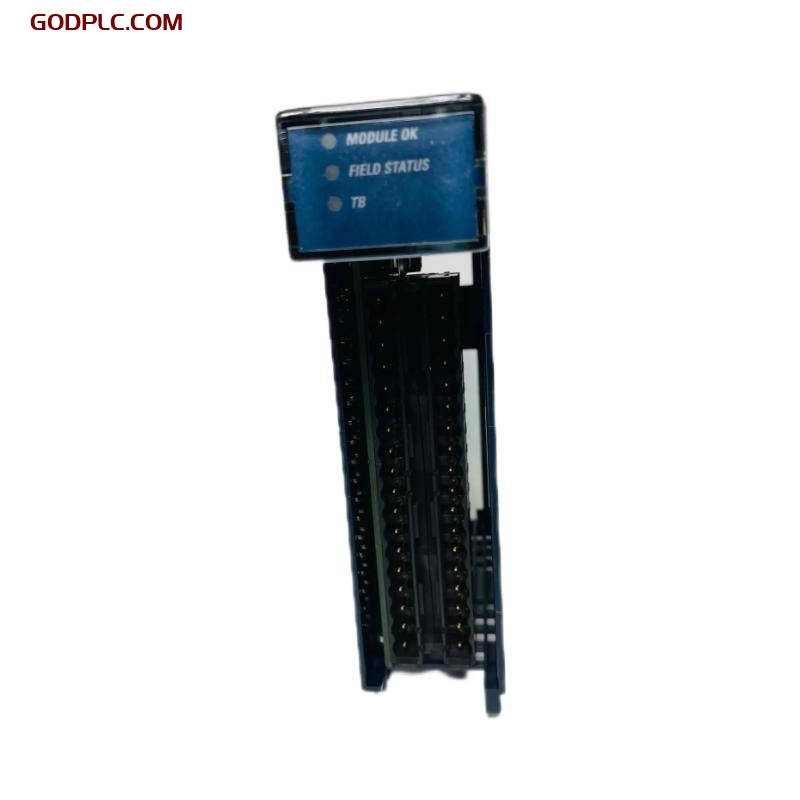

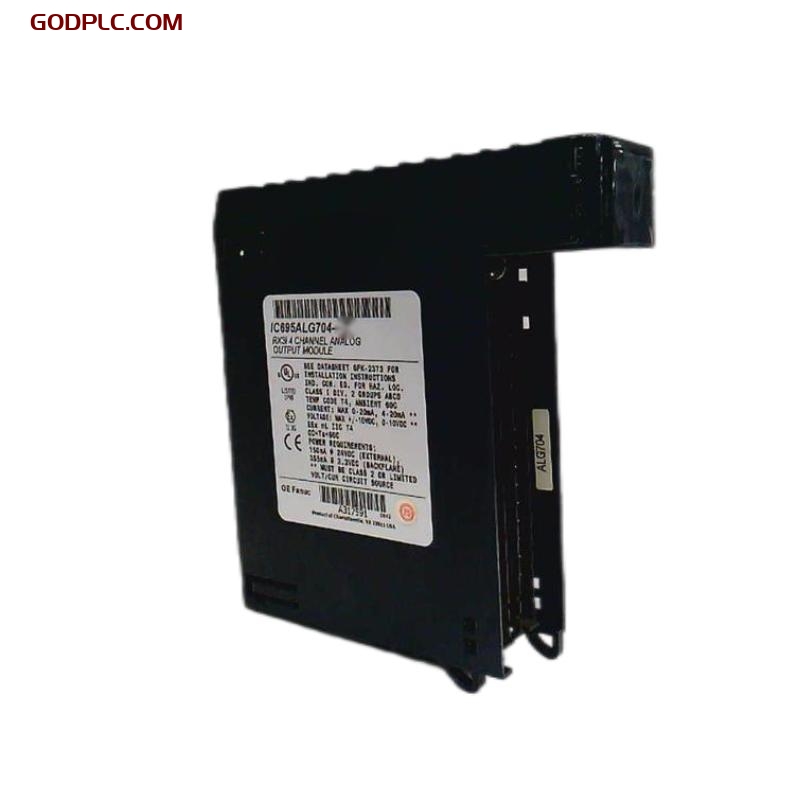

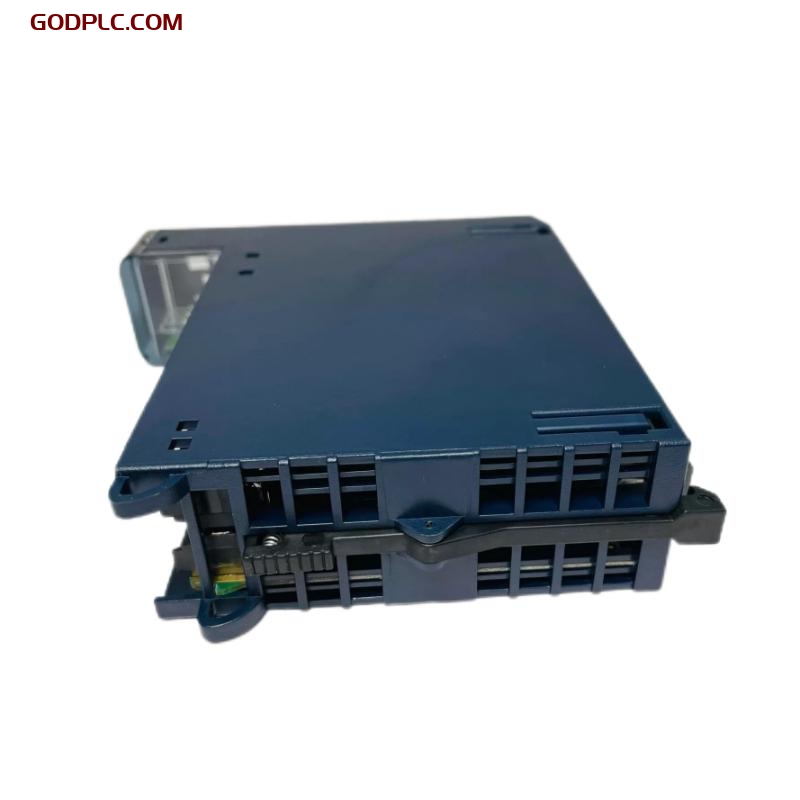

GE IC695ALG704 RX3i Analog Output Module
Product Overview
The GE IC695ALG704 is a 4-channel analog output module designed for the PACSystems RX3i programmable automation controllers (PACs). This module offers configurable voltage and current outputs, making it versatile for various industrial automation applications. It ensures precise control of analog devices such as actuators, valves, and drives, thereby enhancing process accuracy and efficiency.
The IC695ALG704 is engineered to deliver high-resolution outputs with reliable performance. Its design facilitates seamless integration into the RX3i system, supporting advanced control strategies in complex industrial environments. The module’s robust construction and compliance with international standards ensure durability and safety in operation.
Key Features
-
Configurable Outputs: Each of the four channels can be individually configured for voltage or current output, providing flexibility to meet diverse application requirements.
-
High Resolution: The module offers a 16-bit resolution, ensuring precise analog signal generation for accurate process control.
-
Fast Update Rate: With an update rate of 8 milliseconds, the IC695ALG704 supports rapid response times, essential for dynamic control applications.
-
Diagnostic Capabilities: Built-in diagnostics, including over-temperature alarms and field power loss detection, enhance system reliability by facilitating prompt maintenance actions.
-
Compact Design: Its compact form factor allows for efficient use of cabinet space, making it suitable for installations with space constraints.
-
Wide Operating Temperature Range: The module operates effectively in temperatures ranging from 0°C to 60°C, accommodating various industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC695ALG704 |
| Number of Channels | 4 |
| Output Signal Ranges | Voltage: 0 to +10 V, -10 to +10 V Current: 0-20 mA, 4-20 mA |
| Resolution | 16-bit |
| Update Rate | 8 milliseconds |
| Output Load | Voltage Mode: Minimum 2 kΩ Current Mode: Maximum 850 Ω |
| Power Consumption | 375 mA at +3.3 VDC 160 mA at +24 VDC isolated |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x D x H) | 34 mm x 140 mm x 145 mm |
| Weight | 0.227 kg |
| Mounting Type | Panel or DIN rail mounting |
| Degree of Protection | IP20 |
| Certifications | UL, UL Hazardous Location, Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR |
Note: The dimensions and weight are sourced from the manufacturer’s datasheet.
Applications
The IC695ALG704 is suitable for a wide range of industrial applications, including:
-
Process Control: Managing analog actuators and valves in chemical processing plants.
-
Manufacturing Automation: Controlling variable speed drives and positioning systems in automated production lines.
-
Energy Management: Regulating outputs in power generation and distribution systems.
-
Water and Wastewater Treatment: Controlling pumps and valves to maintain desired flow rates and levels.
-
HVAC Systems: Managing heating, ventilation, and air conditioning equipment for optimal environmental control.
Related Models
Here are 10 related models within the same series or with similar functionalities:
| Model | Description |
|---|---|
| IC695ALG708 | 8-Channel Analog Output Module |
| IC695ALG620 | 4-Channel Analog Input Module |
| IC695ALG628 | 8-Channel Analog Input Module |
| IC695ALG312 | 12-Channel Analog Input Module |
| IC695ALG616 | 16-Channel Analog Input Module |
| IC695ALG728 | 8-Channel High-Density Analog Output Module |
| IC695ALG508 | 8-Channel Thermocouple Input Module |
| IC695ALG512 | 12-Channel Thermocouple Input Module |
| IC695ALG616 | 16-Channel RTD Input Module |
| IC695ALG392 | 8-Channel Millivolt Input Module |
GE IC695ALG704 RX3i Analog Output Module Original stock is in stock. Please contact us for a quick quote and competitive pricing.
