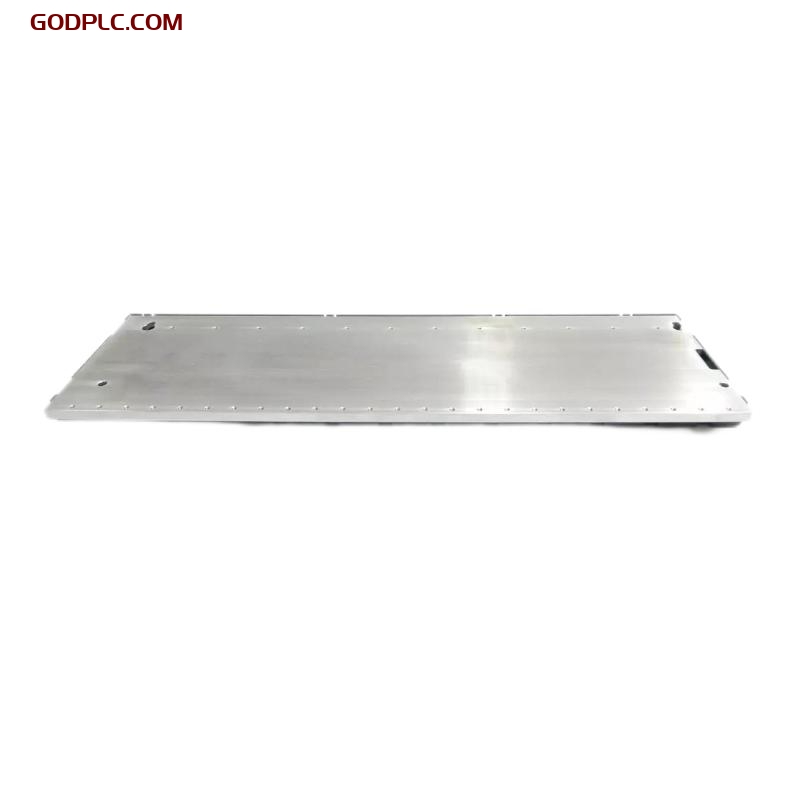

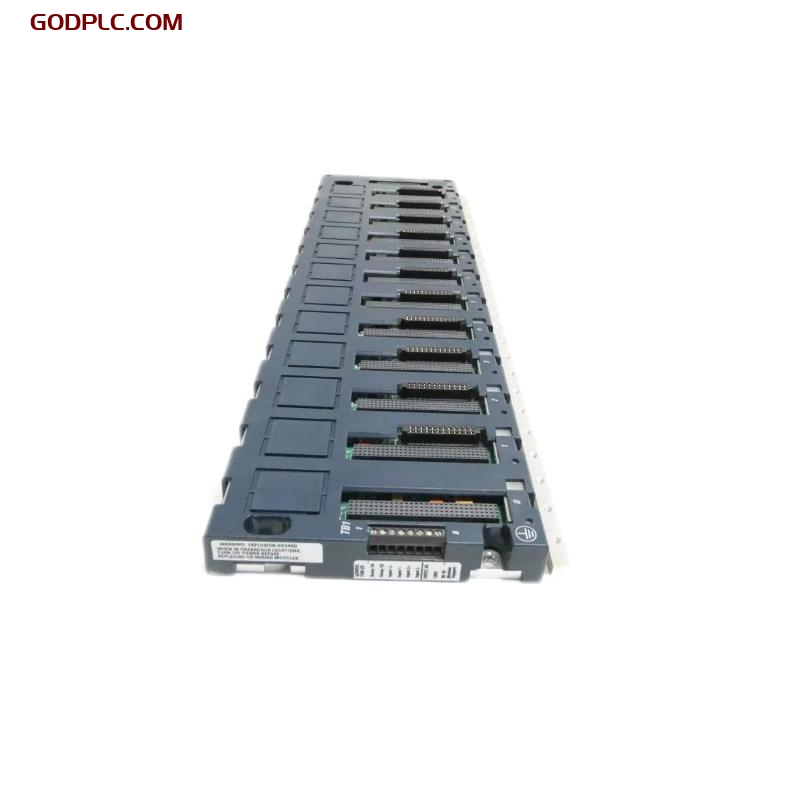

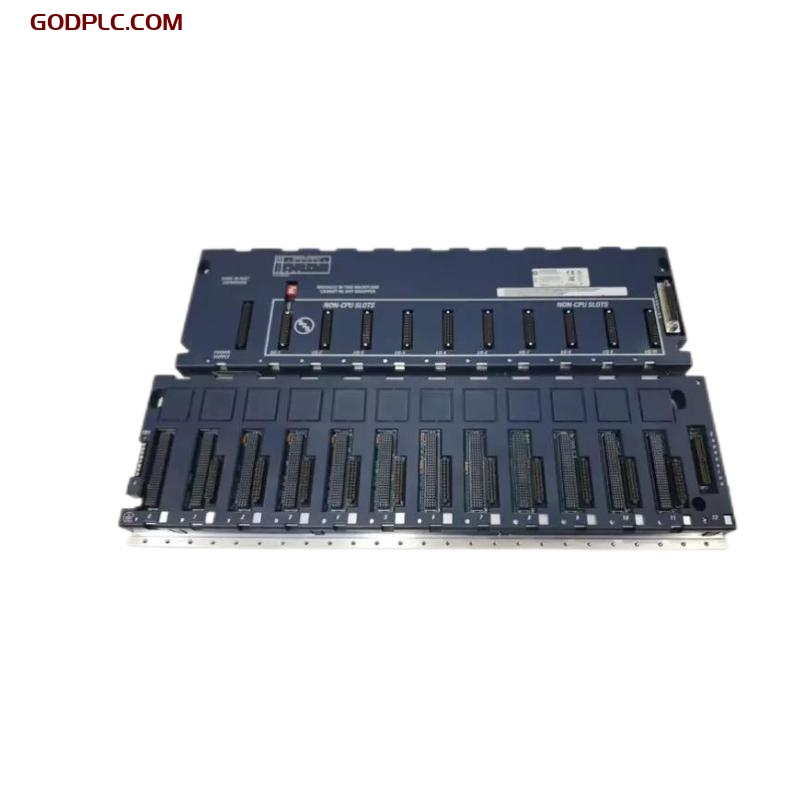

GE IC695CHS012-FA RX3i 12-Slot Universal Backplane One-year warranty
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
GE IC695CHS012-FA RX3i 12-Slot Universal Backplane – Product Description
Product Overview
The GE IC695CHS012-FA is a 12-slot universal backplane designed for the RX3i PACSystem. It serves as the foundation for modular automation control systems, enabling seamless integration of CPU, I/O, communication, and specialty modules. The backplane is engineered to support high-speed data transfer, ensuring reliable and efficient operation in industrial automation environments.
Built for flexibility and scalability, the IC695CHS012-FA accommodates a wide range of RX3i modules while maintaining backward compatibility with legacy Series 90-30 components. Its rugged construction ensures durability in demanding industrial applications, including manufacturing, power generation, and process automation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GE IC695CHS012-FA |
| System Compatibility | RX3i PACSystem, backward compatible with Series 90-30 |
| Number of Slots | 12 |
| Module Support | CPU, I/O, communication, and specialty modules |
| Bus Type | Universal RX3i backplane bus |
| Power Distribution | Supports system power supply for installed modules |
| Backplane Speed | High-speed data transfer for real-time operations |
| Redundancy Support | Yes, supports redundancy configurations |
| Environmental Protection | Industrial-grade, designed for harsh environments |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | Rack-mounted |
| Dimensions | 141.48 x 457.45 x 147.32 mm |
| Weight | 1.58 kg |
| Certifications | CE, UL, cUL, RoHS compliant |
Key Features
-
Universal 12-Slot Design
The IC695CHS012-FA provides 12 available slots, allowing for flexible configuration of CPUs, I/O, communication, and specialty modules within a single backplane. -
High-Speed Data Transfer
The backplane supports fast and reliable data transmission, ensuring efficient performance for high-demand industrial automation applications. -
Seamless Integration with RX3i System
Fully compatible with the GE RX3i PACSystem, enabling easy expansion and system upgrades. It also supports backward compatibility with Series 90-30 modules, making it a cost-effective upgrade solution. -
Robust Power Distribution
The integrated power supply system efficiently delivers stable power to installed modules, ensuring continuous and reliable operation. -
Industrial-Grade Durability
Designed for rugged industrial environments, the IC695CHS012-FA operates reliably in extreme temperature and humidity conditions. -
Redundancy and Reliability
Supports hot standby redundancy, ensuring high availability and fault tolerance, which is essential for mission-critical applications. -
Easy Rack-Mount Installation
The standard rack-mount design enables quick and straightforward installation, minimizing downtime and simplifying maintenance.
Typical Applications
-
Manufacturing Automation – Used in automated production lines, robotics, and motion control systems.
-
Power Generation – Integrated into turbine control, substation automation, and power distribution networks.
-
Process Control – Applied in chemical, oil & gas, and pharmaceutical industries for real-time monitoring and control.
-
Water Treatment Plants – Supports pump control, flow monitoring, and SCADA system integration.
-
Transportation and Infrastructure – Deployed in rail signaling, tunnel automation, and building management systems.
Recommended Related Models
| Model | Description |
|---|---|
| IC695CHS007 | RX3i 7-Slot Universal Backplane |
| IC695CHS016 | RX3i 16-Slot Universal Backplane |
| IC695CPU320 | RX3i 1.1GHz CPU with 64MB Memory |
| IC695CPU315 | RX3i 1GHz CPU with 32MB Memory |
| IC695PSD140 | RX3i Power Supply (24VDC, 40W) |
| IC695PNC001 | RX3i PROFINET Controller |
| IC695CMM002 | RX3i Serial Communications Module |
| IC695ETM001 | RX3i Ethernet Interface Module |
| IC695ALG616 | RX3i 16-Channel Analog Input Module |
| IC695STG608 | RX3i 8-Channel Temperature Input Module |
GE IC695CHS012-FA RX3i 12-Slot Universal Backplane One-year warranty is in stock. Please contact us for a quick quote and competitive pricing.
