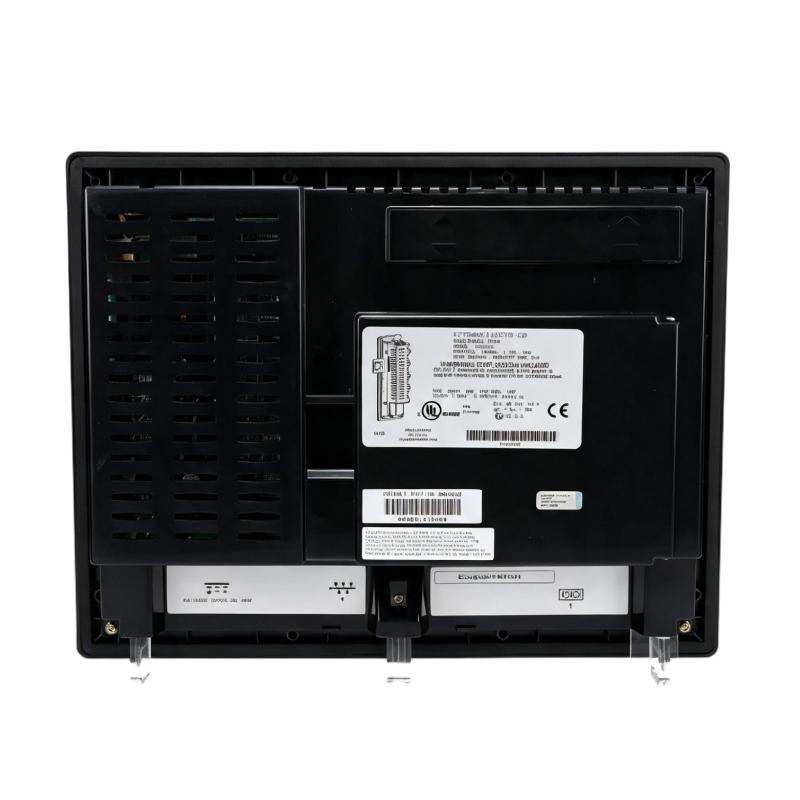

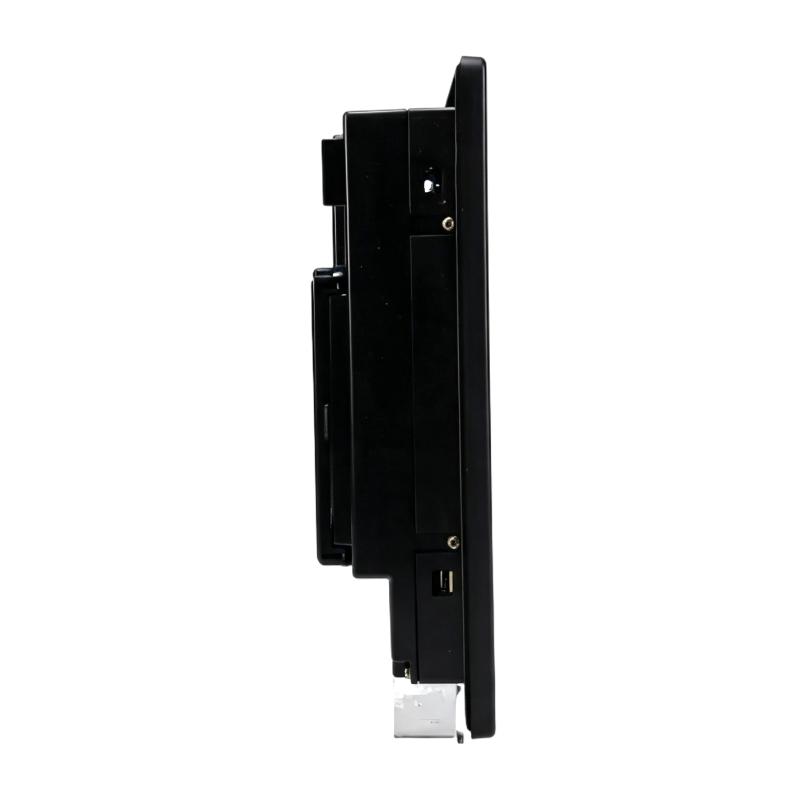

1. What is the main function of the GE IC754VSI12CTD-HH Operator Interface?
The IC754VSI12CTD-HH is an industrial operator interface designed to provide a local HMI between an operator and a control system. It allows operators to view process information, monitor machine status, enter operating commands, and interact with control applications through its color touchscreen. In a typical installation, the QuickPanel is connected to a PLC or other industrial controller and displays data supplied by the control system. Its purpose is to provide a practical operator station rather than perform the primary control logic itself.

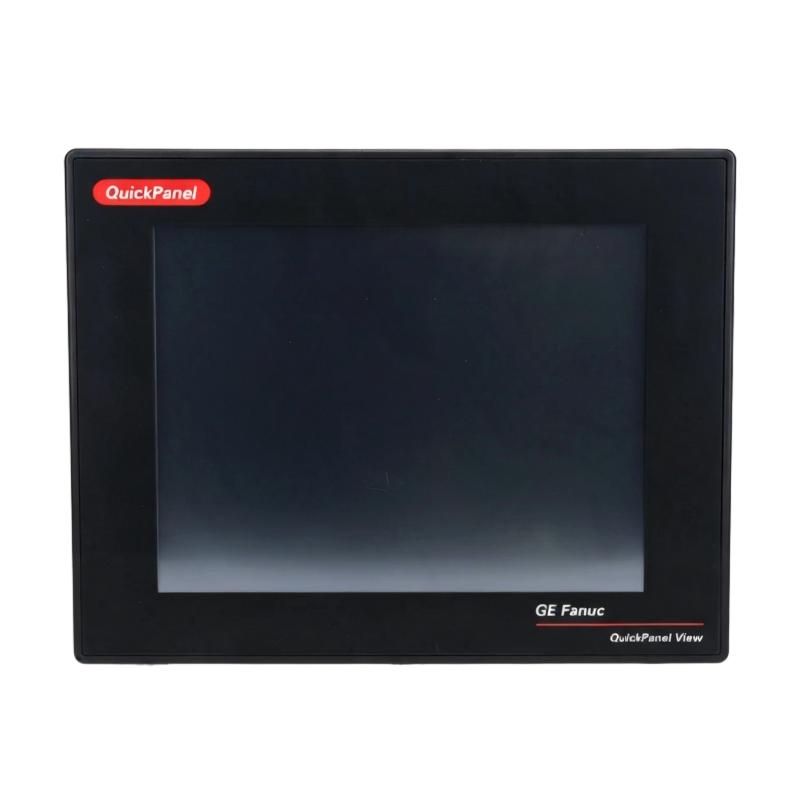

2. What type of display and touchscreen does the IC754VSI12CTD-HH use?
The unit uses a 12-inch color TFT display with an 800 × 600 pixel resolution. It also incorporates a touchscreen interface for operator input. The touchscreen allows users to select buttons, enter values, acknowledge alarms, navigate screens, and interact with configured HMI applications without requiring a separate keyboard or pointing device. The display resolution is suitable for conventional industrial process screens, alarm pages, status displays, and machine-control interfaces.

3. Which communication interfaces are available on the IC754VSI12CTD-HH?
The IC754VSI12CTD-HH provides Ethernet communication together with an RS-232/RS-485 serial interface. Ethernet supports 10/100 Mbps communication, while the serial interface can be used for compatible PLCs, controllers, drives, or other industrial devices. The appropriate interface depends on the controller architecture and the communication driver used by the HMI application. When replacing an existing unit, the original communication method and cable configuration should be verified before commissioning.

4. Can the IC754VSI12CTD-HH communicate with a GE Fanuc PLC?
Yes. The IC754VSI12CTD-HH was designed for industrial HMI applications and can be used with compatible GE Fanuc control systems through the supported communication interfaces. For example, serial communication can be used with controllers equipped with compatible RS-232 or RS-485 ports. The communication driver, PLC configuration, station address, baud rate, parity, and other protocol parameters must match the controller configuration. Incorrect serial settings are a common reason for an HMI displaying communication errors even when the hardware itself is functioning normally.

5. What power supply does the GE IC754VSI12CTD-HH require?
The IC754VSI12CTD-HH is designed for DC power and is commonly specified for 12 VDC or 24 VDC input. The power supply should provide a stable voltage within the required operating range and have sufficient capacity for the HMI and connected accessories. During installation, polarity should be checked carefully before energizing the unit. A low-quality or unstable DC supply can cause intermittent touchscreen operation, unexpected resets, communication interruptions, or failure to start correctly.

6. What should be checked if the IC754VSI12CTD-HH does not communicate with the PLC?
Start by checking the physical communication connection and confirming that the correct cable is being used. For serial communication, verify the RS-232 or RS-485 wiring, baud rate, parity, data bits, stop bits, station address, and communication protocol. For Ethernet communication, check the network cable, link status, IP configuration, subnet settings, and controller address. The HMI project should also be checked to ensure that the correct PLC driver and communication parameters are configured. If the connection hardware is correct but communication still fails, reviewing the controller’s communication status and HMI diagnostic information can help isolate the problem.

7. What are common causes of an IC754VSI12CTD-HH touchscreen or display problem?
A display problem can result from several different conditions, including incorrect power supply voltage, damaged display hardware, a touchscreen fault, loose internal connections, or problems with the loaded HMI application. If the screen remains completely blank, power input and startup behavior should be checked first. If the display operates but touchscreen commands are inaccurate or unresponsive, the touch interface and application configuration should be investigated. If the screen works normally but process values or controls are incorrect, the problem may instead be related to PLC communication or the HMI project rather than the display hardware.

8. What should be considered when replacing an IC754VSI12CTD-HH in an existing control system?
Before replacement, record the existing HMI communication settings, PLC connection method, application version, and cable arrangement. The replacement unit should be checked against the original part number and hardware revision, especially when maintaining an older QuickPanel installation. After installation, verify the DC supply, communication interface, HMI application, PLC connection, touchscreen operation, alarm functions, and displayed process values. Because this is a legacy GE Fanuc QuickPanel product, replacement planning should also consider availability of compatible software, project backups, communication cables, and a suitable long-term maintenance strategy.
