1. What is the primary function of the GE IS200BPIIH1AAA Bridging Power Board?

The IS200BPIIH1AAA is a Bridging Power Board used in GE Mark VI Speedtronic systems. Its primary function is to provide the signal interface between the control system and the power bridge, handling both gate-control commands and gate-status feedback. The board works with the BICI Bridge Interface Control Board, GGXI Expander Load Source Board, and CABP backplane to transfer control commands toward the power bridge and return operating-status information to the control electronics. This interface arrangement helps separate the low-voltage control circuitry from the high-voltage power section while maintaining reliable signal communication required for drive operation.

2. What type of system is the IS200BPIIH1AAA designed for?

The IS200BPIIH1AAA is primarily designed for GE Mark VI Speedtronic control platforms and associated Innovation Series Drives. It is an interface PCB within the drive system rather than an independent PLC CPU or general-purpose I/O module. The board works together with other hardware such as the BICI control board, GGXI interface board, and CABP backplane. Because its operation depends on the overall drive architecture, the complete hardware configuration should be verified before replacement. The board model, connector arrangement, rack position, and associated control hardware should all be compatible with the existing installation.

3. How many gate-control signals can the IS200BPIIH1AAA handle?

The IS200BPIIH1AAA supports 24 gate trigger commands and 24 gate-status feedback signals. The gate trigger commands are transmitted from the control system toward the associated power bridge to control the operating state of the power devices. The gate-status feedback signals are returned from the bridge to the control system so that the controller can monitor whether the expected gate conditions are present. This bidirectional signal structure allows the control system to issue drive commands while simultaneously monitoring bridge status. When a gate-related fault occurs, the control system’s diagnostic information can be used together with the GGXI interface, signal wiring, and power-bridge circuitry to identify the affected section.

4. Why does the IS200BPIIH1AAA use RS-422 signaling?

The IS200BPIIH1AAA uses RS-422 transmitters and receivers for point-to-point differential signal communication. RS-422 is well suited to industrial control applications because differential signaling provides improved resistance to electromagnetic interference compared with single-ended signaling. This is particularly useful for gate-control and status-feedback signals, where reliable transmission is essential to proper drive operation. The interface also allows the receiving circuitry to detect abnormal conditions associated with a disconnected signal path. As a result, a broken or disconnected cable can be recognized as an abnormal gate-status condition rather than being incorrectly interpreted as a normal operating signal.

5. What are the front and backplane connectors on the IS200BPIIH1AAA used for?

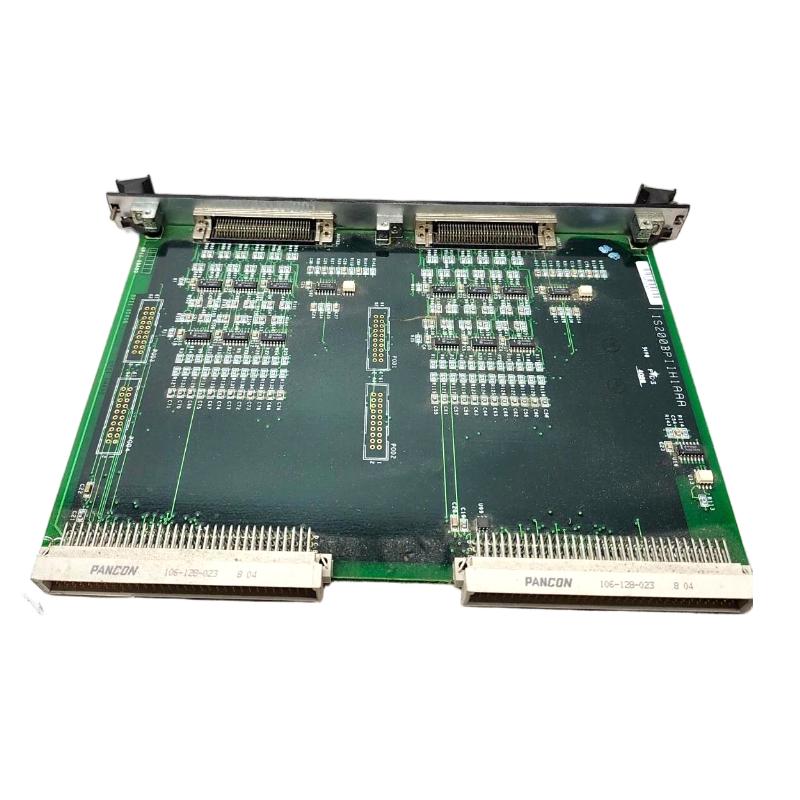

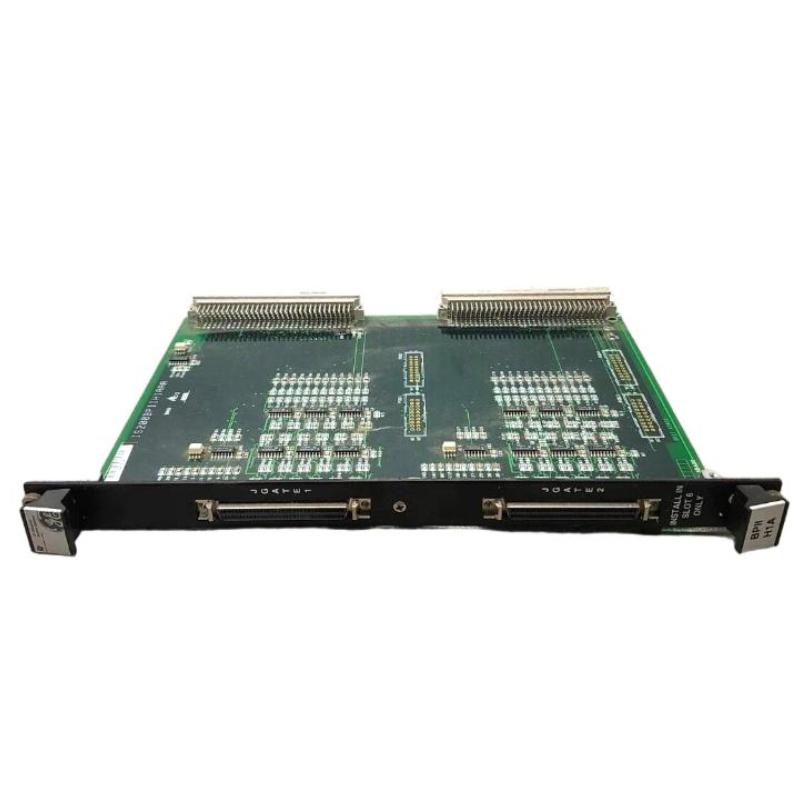

The IS200BPIIH1AAA uses two primary groups of connectors: two 68-pin front connectors and two 128-pin backplane connectors. The backplane connectors provide the board’s connection to the appropriate control rack and associated control-system circuitry, including the BICI interface. The front connectors provide connections to associated equipment such as the GGXI Expander Load Source Board and related signal paths. Each connector carries specific signals, so correct positioning and complete seating are essential during installation. Loose connectors, damaged pins, contamination, or poor contact can cause multiple gate-command or status-feedback channels to become abnormal at the same time.

6. What is the purpose of the board-identification function on the IS200BPIIH1AAA?

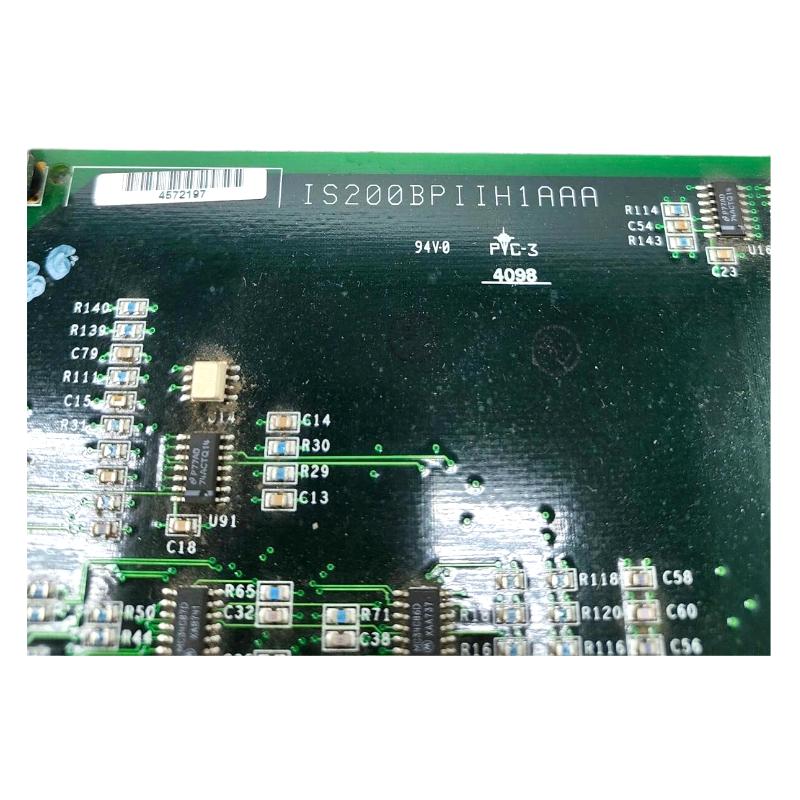

The IS200BPIIH1AAA includes a serial PROM ID device and uses the BRDID board-identification bus to provide hardware identification information to the control system. This identification function helps the Mark VI system determine the installed board type and verify the expected hardware configuration. Pull-up resistors are used as part of the BRDID signal circuitry to support reliable identification communication. Correct board identification is important after replacement because an improperly recognized board can prevent the system from operating as expected. If the board is not correctly identified, technicians should check the board installation, backplane connections, BRDID signal path, and associated connectors before concluding that the board itself is defective.

7. How should a gate-signal fault on the IS200BPIIH1AAA be diagnosed?

When a gate-trigger or gate-status fault occurs, the first step is to review the control-system diagnostic information and determine whether the problem affects one channel, several channels, or the entire interface. If only one or a small number of channels are affected, the corresponding GGXI interface, RS-422 signal path, connector, and power-bridge circuitry should be inspected. If many channels become abnormal simultaneously, attention should be directed toward the common BICI-to-IS200BPIIH1AAA connection, backplane interfaces, and related power conditions. Signal cables should also be checked for broken conductors or poor connections because an RS-422 receiver can identify an open signal path as an abnormal gate-status condition. The interface board itself should normally be considered only after external wiring and associated modules have been verified.

8. What precautions should be taken when installing or replacing the IS200BPIIH1AAA?

Before installing or replacing the IS200BPIIH1AAA, the associated control and drive equipment should be placed in a safe de-energized condition according to the site’s electrical safety procedures. The power section must also be properly isolated and discharged before the PCB is handled. Because the board is ESD-sensitive, technicians should use a grounded ESD wrist strap and suitable antistatic handling procedures. Before removing the existing board, the positions and connections of the front and backplane connectors should be documented. During installation, the two 128-pin backplane connectors and two 68-pin front connectors must be correctly aligned and fully seated without forcing the board into position. After installation, all signal connections and mechanical mounting should be checked before controlled power-up. During commissioning, the 24 gate-trigger command channels, 24 gate-status feedback channels, and related diagnostic signals should be verified to ensure stable operation of the complete drive system.
