1. What is the main function of the GE IS200HFPAG1ADC?

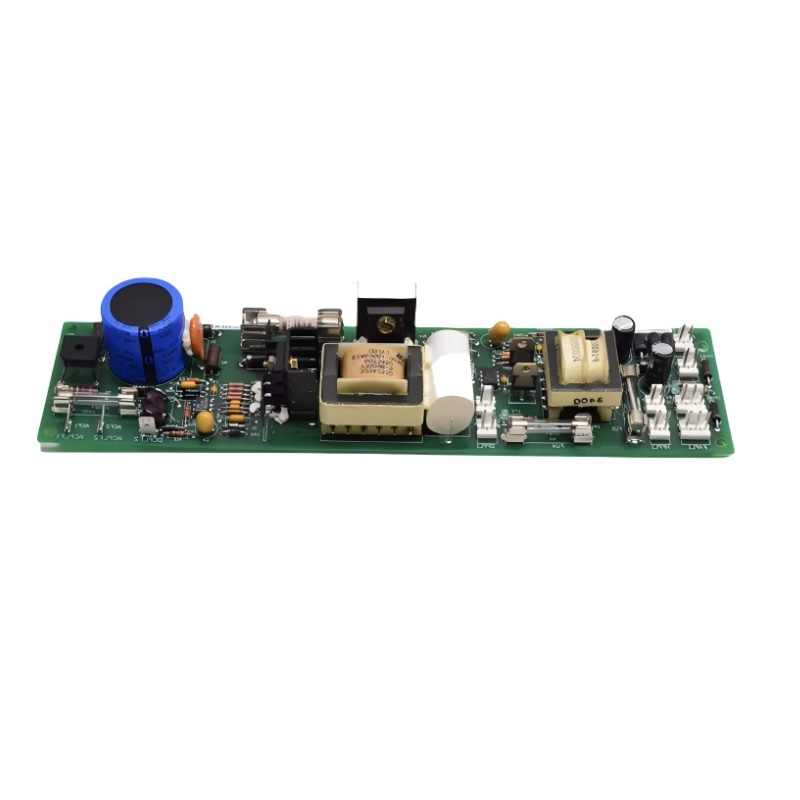

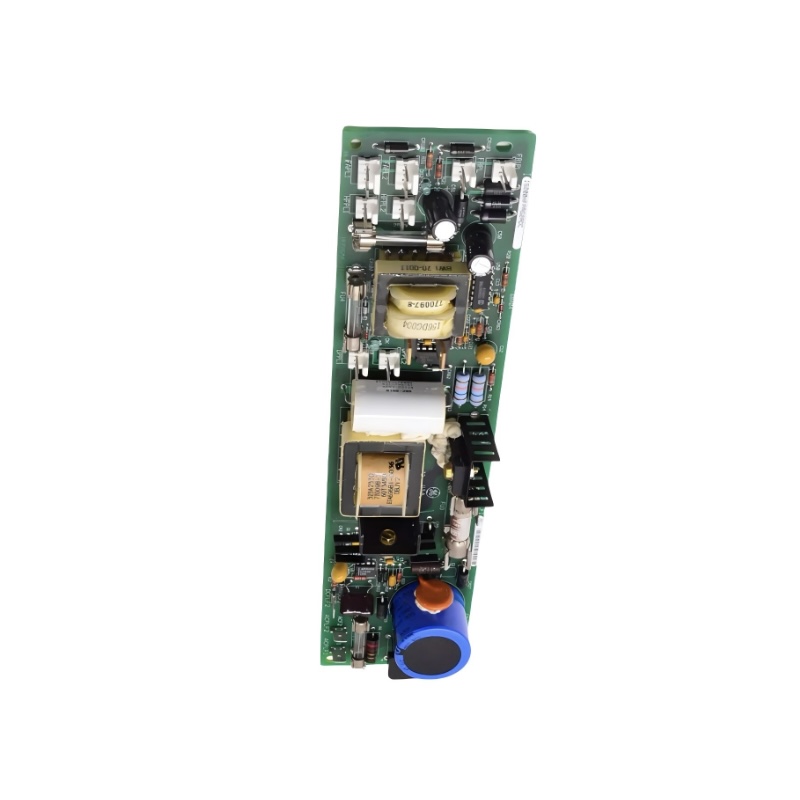

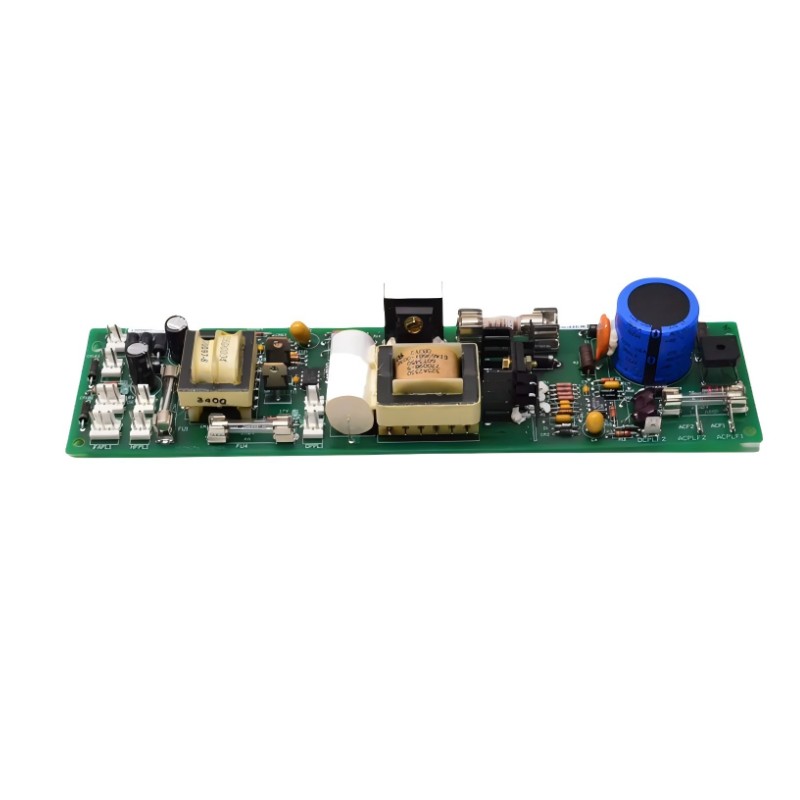

The GE IS200HFPAG1ADC is a high-frequency AC and fan power supply board used within the Mark VI Speedtronic turbine control platform. Its primary function is to convert the available input power into regulated high-frequency AC and auxiliary power required by connected system components. The board can provide a 48 VAC square-wave output and an isolated low-voltage AC output for specific auxiliary circuits. It is also associated with fan power applications, where reliable auxiliary power is important for maintaining proper cooling of control-system equipment. The board incorporates transformers, switching components, heat sinks, capacitors, fuses and surge-protection components to support stable operation in an industrial turbine environment. Because the HFPAG is part of the power-distribution layer rather than the main turbine logic controller, a failure can affect auxiliary equipment, cooling functions and other dependent circuits even when the primary control processor remains operational.

2. What type of power outputs does the IS200HFPAG1ADC provide?

The IS200HFPAG1ADC is designed to provide multiple high-frequency and auxiliary AC outputs. One of its important outputs is a 48 VAC square-wave supply, while another isolated output is approximately 17.7 VAC. The high-frequency output is associated with auxiliary power distribution and fan-related applications within the Mark VI system. The board uses high-frequency transformer and switching circuitry to generate the required output waveforms while maintaining electrical isolation where necessary. When diagnosing an output problem, it is important to identify which output is affected rather than treating the board as having a single supply output. The associated connectors, input source, fuses, transformer sections, switching components and output wiring should be checked systematically. An abnormal output may result from an external load problem or short circuit rather than an internal board failure.

3. How does the IS200HFPAG1ADC support cooling fan operation?

The IS200HFPAG1ADC can provide high-frequency AC power for fan-related circuits within the GE Mark VI turbine control system. Reliable cooling is important because turbine control cabinets contain electronic components that must remain within their specified operating temperature range. The board generates the required high-frequency AC supply and distributes it through its output connectors to associated fan or auxiliary circuits. If the HFPAG power supply becomes unstable or fails, the connected fan system may stop, operate incorrectly or fail to receive sufficient power. This can eventually cause elevated cabinet temperatures and secondary control-system problems. When a fan-related fault occurs, technicians should check both the HFPAG output and the connected fan circuit. A failed fan motor, damaged wiring or overloaded output can cause a healthy power supply board to appear defective, so the complete load circuit should be evaluated before replacing the PCB.

4. What protection components are installed on the IS200HFPAG1ADC?

The IS200HFPAG1ADC includes several components intended to protect the power supply circuitry from electrical and thermal stress. The board incorporates four fuses and a metal-oxide varistor for electrical protection. The fuses can help isolate the circuit when excessive current occurs, while the metal-oxide varistor provides protection against certain transient overvoltage conditions. The board also contains heat sinks associated with power components to help dissipate heat during operation. Three high-voltage capacitors and multiple switching transistors form part of the high-frequency conversion circuitry. During troubleshooting, a blown fuse should not simply be replaced without investigating why it operated. An overloaded output, short circuit, failed switching component or external wiring problem can cause repeated fuse failures. Finding and correcting the underlying cause is essential before returning the board to continuous service.

5. What are the common symptoms of an IS200HFPAG1ADC failure?

Common symptoms can include loss of one or more AC outputs, failure of connected fans, abnormal auxiliary power, repeated fuse operation, unstable output voltage or complete loss of board power indication. In some cases, the turbine control system may remain partially operational while connected auxiliary devices fail because the HFPAG board primarily supports power distribution rather than the main control processor. A failed transformer, switching transistor, capacitor, fuse, connector or protection component can produce different fault patterns. External loads can also create similar symptoms. For example, a shorted fan circuit can overload the output and cause a fuse to open, making the board appear faulty. Troubleshooting should therefore begin with input power verification and inspection of the board’s power indicators, followed by fuse checks and output measurements. The connected load should also be isolated and checked when appropriate.

6. How should the IS200HFPAG1ADC be tested during troubleshooting?

Testing should begin with the system safely isolated and the relevant maintenance procedures completed. The technician should first confirm that the expected input power is reaching the board and that there are no obvious signs of overheating, burning, damaged components or loose connectors. The two power-status LEDs can provide an initial indication of whether the expected electrical conditions are present. The four fuses should then be checked for continuity, but a failed fuse should be investigated rather than immediately replaced. Appropriate test equipment can be used to verify the required output voltages and waveform characteristics at the designated output connections. If one output is missing while the input is normal, the associated transformer, switching circuitry, connectors and load should be investigated. High-frequency outputs require suitable measurement equipment because ordinary meters may not accurately display the waveform or frequency. All measurements involving potentially hazardous voltages should be performed only by qualified personnel using appropriate procedures.

7. Why might the IS200HFPAG1ADC repeatedly blow a fuse?

Repeated fuse operation usually indicates that an abnormal current condition exists somewhere in the power circuit. The problem may be caused by a shorted output, overloaded fan, damaged wiring, failed switching transistor, defective capacitor, transformer fault or another internal component failure. Simply installing another fuse without determining the cause can result in repeated failure and may cause additional damage. The correct troubleshooting approach is to identify which fuse is operating and determine which circuit it protects. The corresponding output load should then be inspected for short circuits or excessive current demand. If the external load is confirmed to be healthy, the board’s power conversion components should be examined. Particular attention should be given to power semiconductors, high-voltage capacitors, transformer windings and areas showing signs of thermal stress. A fuse that operates immediately after power is applied may indicate a hard short, while intermittent operation may point toward an overheating component or unstable load.

8. What precautions should be taken when replacing the IS200HFPAG1ADC?

The IS200HFPAG1ADC should only be removed or installed after the Mark VI system has been placed in a safe maintenance condition and all relevant power sources have been isolated. The board contains high-voltage capacitors and power-conversion components, so stored electrical energy may remain after the external supply has been disconnected. Proper discharge and voltage verification procedures must therefore be completed before handling the PCB. Before removing the original board, technicians should record all input and output connector positions and inspect the surrounding wiring for signs of overheating or insulation damage. The replacement board should have the correct model and compatible hardware revision. After installation, connectors should be checked for secure engagement and the associated load circuits should be inspected before energizing the system. The input supply, power-status indicators, output voltages and connected fan or auxiliary equipment should then be tested. If the original board failed because of an external overload or short circuit, that underlying problem must be corrected before placing the replacement board into continuous operation.
