1. What are the main functions of the GE IS210DTCIH1A and IS200DTCIH1A?

The IS210DTCIH1A and IS200DTCIH1A are DTCI-series Simplex contact input terminal boards used in GE Mark VI turbine control systems. Their primary function is to collect discrete status signals from field switches, relay contacts, and other contact-based devices. The DTCI board provides the required DC excitation for field contacts and transfers the resulting contact-state signals to the VCCC or VCRC processor board for further processing. The board is a field interface component rather than a standalone controller, so its operation depends on the associated Mark VI processor hardware, control logic, and field devices.

2. How many contact inputs does the IS210DTCIH1A provide?

The DTCI terminal board provides 24 contact input channels, allowing multiple field switches, relay contacts, and other discrete devices to be connected to the Mark VI control system. Most input channels use an input current of approximately 2.5 mA, while channels 22 through 24 use a higher current level of approximately 10 mA for specific field interface requirements. Two DTCI boards can be connected to a VCCC or VCRC processor arrangement to expand the system to as many as 48 contact inputs. The actual assignment of each channel should be verified using the applicable Mark VI system drawings and I/O configuration.

3. What is the purpose of the 24 V DC excitation on the IS210DTCIH1A?

The DTCI board uses a nominal 24 V DC excitation for its contact input circuits. This excitation provides the electrical conditions required to detect the open or closed state of field contacts such as switches and relay contacts. When a field contact changes state, the electrical condition of the corresponding input circuit also changes, allowing the DTCI board to detect the status and transfer it to the Mark VI control system. Because correct excitation is essential for reliable contact detection, troubleshooting should include checking the 24 V DC supply, field wiring, contact device, and terminal connections. An excitation problem can cause a healthy field switch to appear abnormal to the control system.

4. How does the IS210DTCIH1A connect to the VCCC or VCRC processor board?

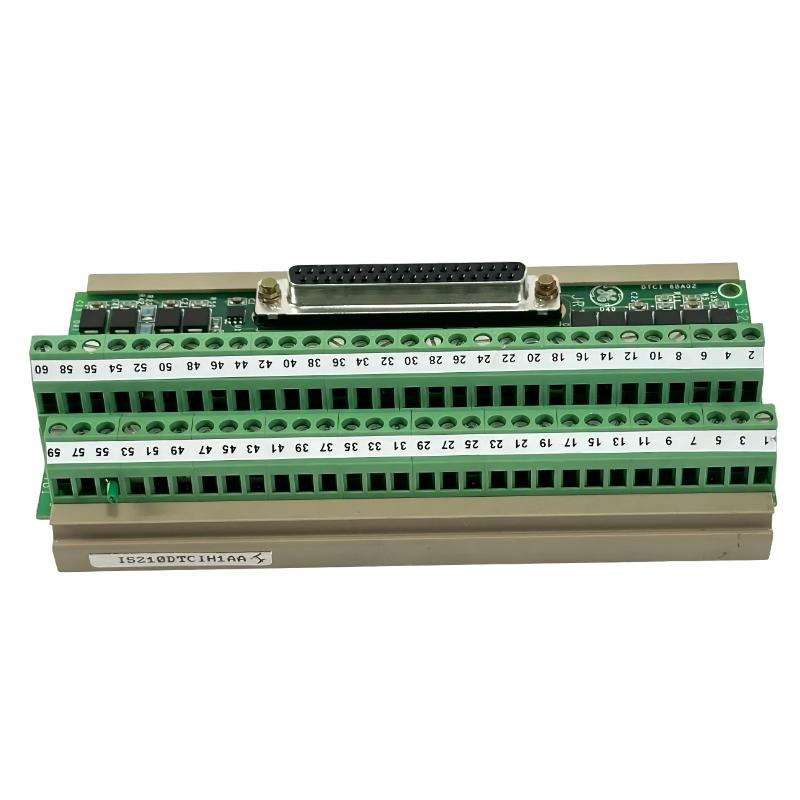

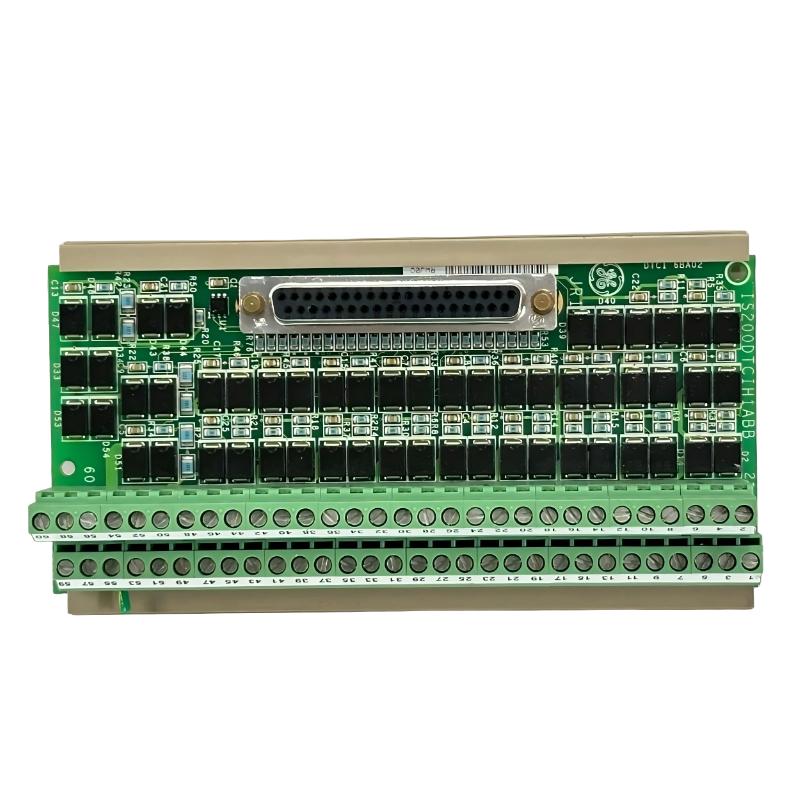

The DTCI board connects to a VCCC or VCRC processor board through a single cable using a 37-pin female connector. Field contact signals first enter the DTCI terminal board and then pass through its interface and signal-conditioning circuitry before being transferred to the processor board. The connector includes a locking mechanism to help maintain a secure connection during continuous industrial operation. When troubleshooting multiple missing contact inputs, the 37-pin connector and cable should be inspected carefully. A poor connection or damaged cable can affect several input channels at the same time and may initially appear to be a terminal-board problem.

5. How should a missing contact input on the IS210DTCIH1A be troubleshot?

Start by confirming that the field switch or relay contact is operating correctly. Then inspect the field wiring and terminal connections for loose connections, damaged conductors, or incorrect wiring. The 24 V DC excitation for the affected input should also be measured to confirm that the input circuit is receiving the required voltage. If the field contact and wiring are normal, inspect the corresponding DTCI terminal, internal circuitry, and 37-pin processor connection. Finally, review the VCCC or VCRC processor status and Mark VI diagnostic information. If only one channel is affected, the field device and individual input circuit should receive particular attention. If multiple channels fail simultaneously, common excitation, connector, cable, or processor-interface problems should be investigated first.

6. What is different about the high-current input channels on the IS210DTCIH1A?

The DTCI board does not use exactly the same input current characteristics for every channel. Channels 1 through 21 normally operate with an input current of approximately 2.5 mA, while channels 22 through 24 are designed for a higher input current of approximately 10 mA. This configuration allows the board to accommodate specific field contact interface requirements. When connecting or replacing field devices, technicians should confirm which input channel is being used and verify that the field device is compatible with the electrical characteristics of that channel. The input channels should not be assumed to be completely identical simply because they are all contact inputs.

7. What makes the IS210DTCIH1A different from a standard contact input terminal board?

The IS210DTCIH1A is designed specifically as a Simplex contact input terminal board for the GE Mark VI architecture. It provides field contact termination, 24 V DC excitation, grouped isolation, signal filtering, and an interface to the VCCC or VCRC processor hardware. Its electrical characteristics and processor interface are designed around the Mark VI control system. Therefore, a different contact input terminal board should not be selected solely because it has the same general function. The system architecture, excitation voltage, input characteristics, isolation method, processor interface, and complete part number all need to be verified before selecting a replacement.

8. What precautions should be taken when replacing an IS210DTCIH1A or IS200DTCIH1A?

Before replacing the DTCI board, verify the complete IS210DTCIH1A or IS200DTCIH1A part number and confirm that the replacement matches the original board’s function and hardware configuration. The Mark VI control system should be placed in the appropriate maintenance condition, and all required electrical isolation procedures should be completed before removal. Before disconnecting the existing board, clearly identify the 24 contact input circuits, SCOM connections, and the 37-pin processor cable to prevent wiring errors during reinstallation. After installing the replacement, inspect the 60 terminal connections, processor connector, 24 V DC excitation, and field wiring. Once the system is safely returned to service, test the contact inputs individually and verify that their states are correctly detected by the VCCC or VCRC processor. For inputs associated with turbine protection or critical interlocks, complete functional testing should be performed before normal operation is restored.
