1. What is the main function of the GE UR 6AH Digital I/O Module?

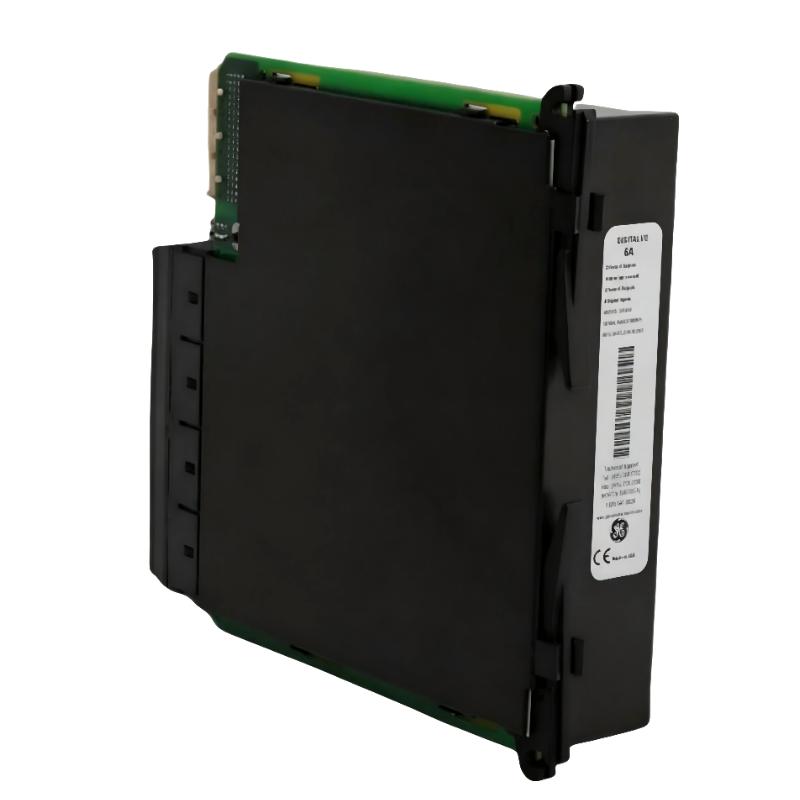

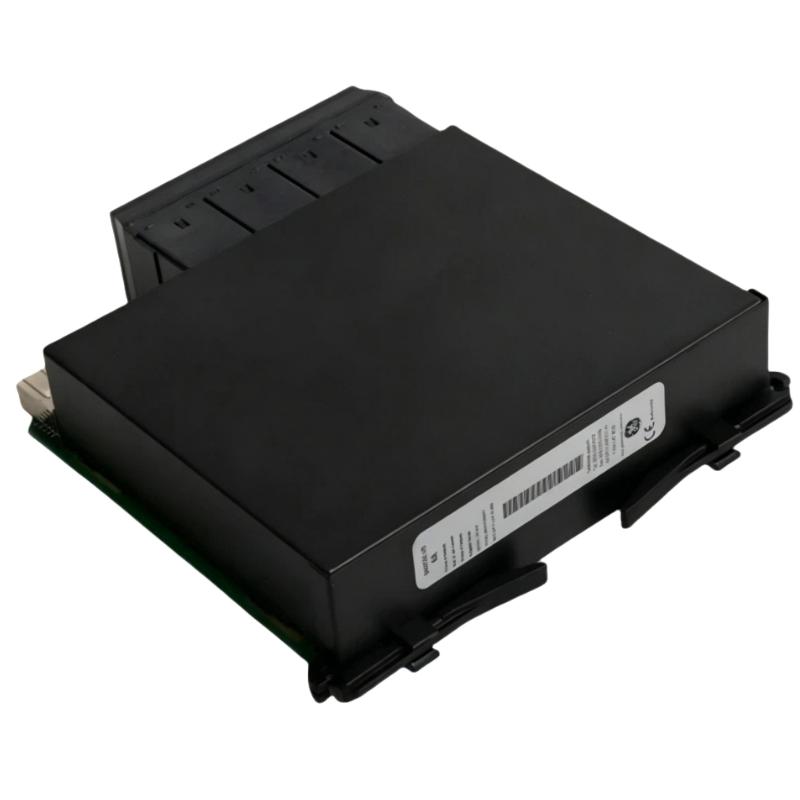

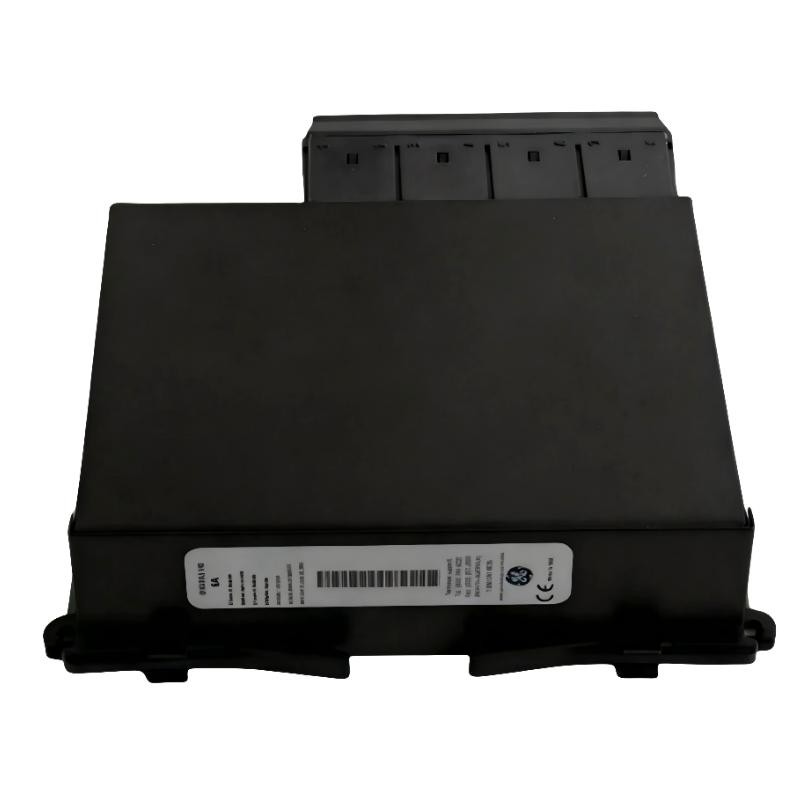

The GE UR 6AH is a digital I/O module designed for GE Multilin Universal Relay systems. It provides eight digital input channels and two relay output channels, allowing the UR relay to exchange binary status and control signals with external electrical equipment. The digital inputs can be used to monitor equipment states such as breaker positions, auxiliary contacts, alarms and other binary signals. The relay outputs can be used for control, alarm, trip, interlocking and other programmed functions. Because the UR platform uses a modular I/O architecture, the UR 6AH can expand the number of available binary channels according to the requirements of a particular protection and automation application.

2. How many digital inputs and outputs does the UR 6AH provide?
The UR 6AH provides eight digital or binary input channels and two relay output channels. The eight inputs are intended for monitoring external contact or binary status signals, while the two outputs provide relay-based control functions. According to the module configuration, the outputs use Form-A and Form-C contact arrangements and can support applications requiring electrical equipment control or signaling. The actual assignment of each input and output is determined by the configuration of the associated Universal Relay. During commissioning, each channel should be tested individually to ensure that the physical terminal, relay logic, and intended field device correspond correctly.

3. What are the typical applications of the UR 6AH?
The UR 6AH is suitable for applications where a GE Multilin Universal Relay needs additional binary monitoring and control capability. Typical applications include substation automation, feeder protection, transformer protection, motor protection and industrial power control systems. Digital inputs can monitor circuit breaker auxiliary contacts, disconnect switch positions, protection alarms, local or remote control signals and other binary conditions. The relay outputs can be assigned to functions such as trip commands, breaker control, alarms or interlocking. Because the Universal Relay platform supports programmable logic, the UR 6AH channels can be incorporated into customized protection and control schemes rather than being limited to a fixed function.

4. What type of signals can be connected to the UR 6AH digital inputs?
The eight digital inputs are intended for binary or contact-type signals used to indicate the state of external equipment. Typical signals include circuit breaker auxiliary contacts, disconnect status, alarm contacts, interlock conditions and external control commands. The exact input threshold and wiring arrangement should follow the specifications of the associated UR relay and the actual field circuit. When commissioning the module, technicians should verify the expected energized and de-energized states of every input and confirm that the corresponding status changes correctly within the relay. Incorrect wiring or an unsuitable contact arrangement can result in reversed status indications, false alarms or incorrect control logic.

5. What are the output functions of the UR 6AH?
The UR 6AH provides two relay output channels that can be assigned to control or signaling functions within the Universal Relay configuration. Depending on the protection and automation scheme, outputs can be used for breaker control, trip commands, alarms, interlocking or other programmed operations. The output contacts can be incorporated into external control circuits, allowing the UR relay to initiate actions based on measured conditions, protection elements or programmable logic. Because output operation can be associated with critical protection functions, the configuration should be reviewed carefully before commissioning. Each output should be tested under controlled conditions to confirm the correct contact behavior and intended external response.

6. How should the UR 6AH be configured in a GE Universal Relay system?
After the UR 6AH is installed in the compatible UR relay chassis, the relay configuration must identify the module and assign the digital input and output channels according to the system design. Each digital input should be mapped to the appropriate status or control signal, while each output should be assigned to the required protection, alarm, trip or control logic. GE’s UR platform supports programmable logic, allowing I/O signals to be combined into customized control and protection schemes. During commissioning, the technician should perform a point-by-point test of every input and output. The physical terminal, relay logic indication and actual field-device response should all be verified before the system is placed into normal operation.

7. What should be checked if a UR 6AH digital input does not respond?
Troubleshooting should begin by checking the external field circuit and confirming that the expected binary signal is actually reaching the input terminal. Wiring, terminal tightness, contact condition and the external control voltage should be inspected. The relay configuration should then be checked to confirm that the correct input channel is assigned to the intended logic point. If the physical signal is present but the relay does not recognize the change, the input channel, module connection and associated configuration should be investigated. It is also useful to compare the behavior with another known-good input when the system permits controlled testing. This approach helps distinguish between a field wiring problem, configuration error and actual UR 6AH hardware failure.

8. What precautions are required when replacing the UR 6AH?
Before replacing the UR 6AH, the associated protection and control system should be placed into an appropriate maintenance condition, and electrical isolation should be performed according to the site’s safety procedures. The technician should record the existing I/O configuration and verify the replacement module’s model and function before installation. Particular attention should be paid to digital input wiring and output circuits because incorrectly connected relay outputs can cause unintended control or protection actions. After installation, the module should be checked for correct seating and terminal connections. The relay configuration should then be verified, followed by individual testing of all eight digital inputs and both relay outputs. Critical trip, control and interlocking functions should be tested under controlled conditions before the protection system is returned to service.
