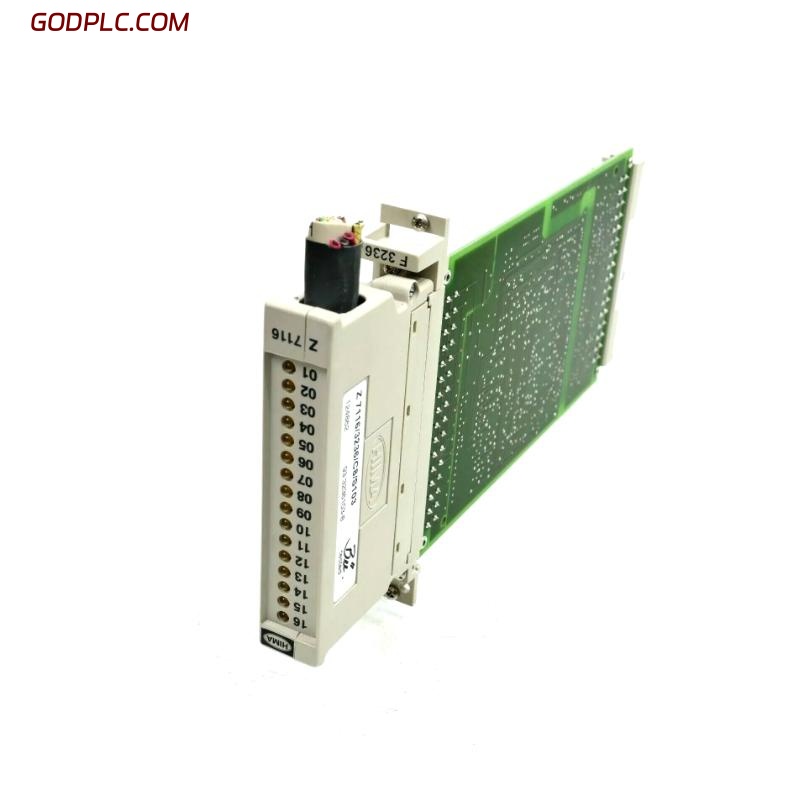

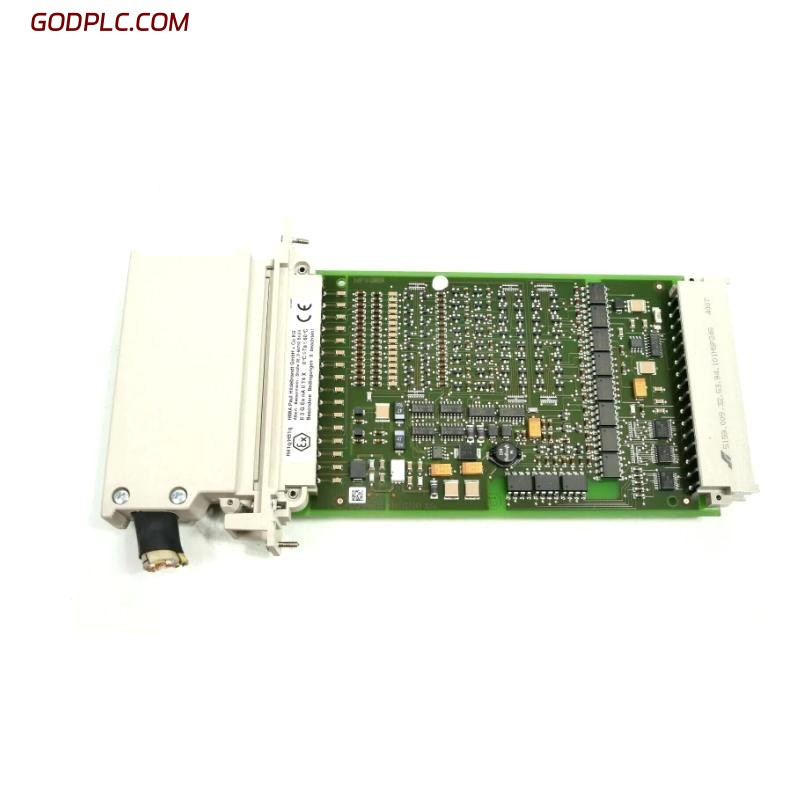

HIMA F3236 16-Channel Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The HIMA F3236 is a 16-channel digital input module designed for safety-related applications in process automation and control systems. It belongs to the HIMA HIMatrix I/O family and is intended for use wherever reliable input monitoring of sensors or switches is required under demanding conditions. It supports single-signal inputs or mechanical contact inputs, and it features automatic self-testing of channels to ensure correct operation and safety integrity.
The F3236 module is commonly used in emergency shutdown systems (ESD), fire & gas detection systems, turbine/rotating machinery protection, and other functional safety systems (e.g., up to requirement class AK 1–6) where IEC 61508 / IEC 62061 compliance is required. Its compact module width (4 TE) allows efficient rack mounting, and the built-in diagnostics and self-test features reduce maintenance and enhance system availability.
Key functional highlights include:
-
16 individual input channels for sensor or switch signals (single-signal 6 mA or mechanical contact 24 V).
-
Switching time typically around 8 ms.
-
Continuous automatic tests of input channel crosstalk, filter capacitor function and module integrity.
-
Low-profile module (occupies 4 TE in standard rack) with plug-in front cable connector for ease of installation and service.
-
Multiple supply voltage options (5 VDC, 24 VDC) with modest current consumption.
Technical Specifications
| Parameter | Specification | Remark / Description |
|---|---|---|
| Model number | F3236 | 16-fold input module, safety related |
| Input channels | 16 channels | Each channel for 1-signal (6 mA) or 24 V mechanical contact |
| Safety isolation class | Requirement class AK 1 … 6 | Safety-related module design |
| Typical switching time | Typ. 8 ms | Time from input change to registration |
| Supply voltage and current | 5 V DC: 120 mA • 24 V DC: 200 mA | Operating current under typical conditions |
| Space / module width | 4 TE | Rack width allocation |
| Dimensions (approx.) | 191 mm (W) × 129 mm (D) × 20 mm (H) | Typical module size (various sources) |
| Weight | Approx. 0.15 kg | Lightweight module |
| Origin | Germany | Country of manufacture |
| Diagnostic / self-test | Built-in continuous self-test of channels | Ensures input integrity and fault detection |
HIMA F3236 16-Channel Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
