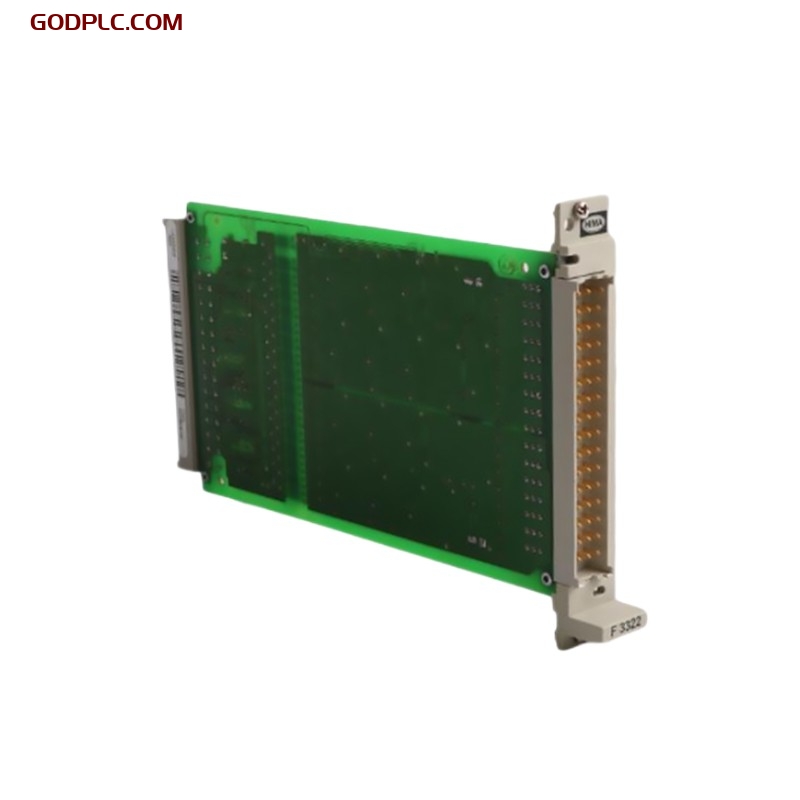

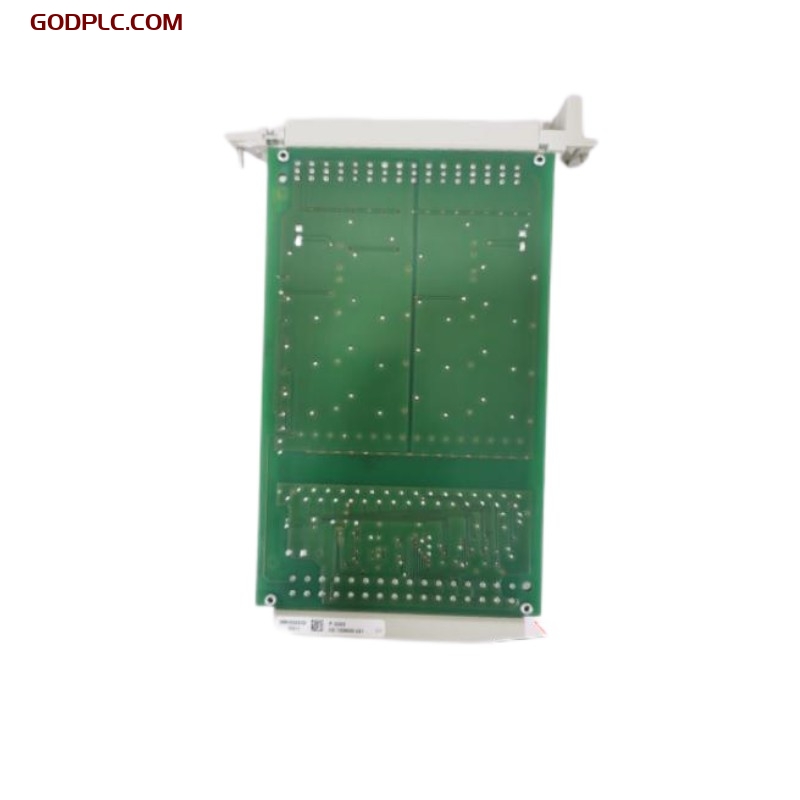

HIMA F3322 16-Channel Output Module

1. Product Overview

The HIMA F3322 16-Channel Output Module is a critical component of the HIMA safety control system, designed for use in safety-critical applications within industries such as process automation, chemical, and oil & gas. This module is used to interface with field devices, providing reliable control of output signals for actuators, valves, motors, and other equipment in industrial processes.

The F3322 module is engineered for safety applications that require high availability and fault tolerance. It features 16 output channels, making it suitable for large-scale systems requiring multiple control outputs. The module integrates seamlessly into the HIMA safety systems, enabling safe and efficient process control, while ensuring compliance with safety standards such as IEC 61508 and ISO 13849.

2. Key Features

• 16 Output Channels: Capable of controlling multiple actuators or field devices with 16 independent output channels.

• High Safety Integrity: Designed for safety-critical applications with features ensuring compliance with SIL 3 safety standards.

• Modular Design: Offers easy integration with other HIMA modules in a scalable and flexible system.

• High Availability: Built-in redundancy and fault tolerance features ensure reliable operation in demanding environments.

• Wide Range of Outputs: Supports both digital and analog outputs, offering flexibility for various industrial applications.

• Efficient Diagnostics: Real-time diagnostics and status monitoring for early detection of issues, improving system reliability and uptime.

3. Technical Specifications

3.1 Dimensions and Weight

3.2 General Information

3.3 Performance Parameters

3.4 Electrical Specifications

4. Industry Applications

The HIMA F3322 16-Channel Output Module is specifically designed for safety-critical applications across various industries, including:

• Process Automation: Used in process control systems to provide reliable output signals for control valves, actuators, and other field devices in chemical plants and refineries.

• Oil & Gas: Ensures safe operation of critical control loops, actuators, and shutdown systems in oil and gas production facilities.

• Power Generation: Used in power plants to control generators, turbines, and other key equipment, ensuring stable and safe plant operations.

• Manufacturing: Applied in automated production lines for controlling actuators and machinery, ensuring precise and safe production processes.

• Water Treatment: Used in water and wastewater treatment plants to control pumps, valves, and other equipment, ensuring efficient and safe operations.

The HIMA F3322 16-channel output module ensures the safety, reliability, and flexibility required in today’s demanding industrial environments, meeting the highest standards for safety and efficiency.
