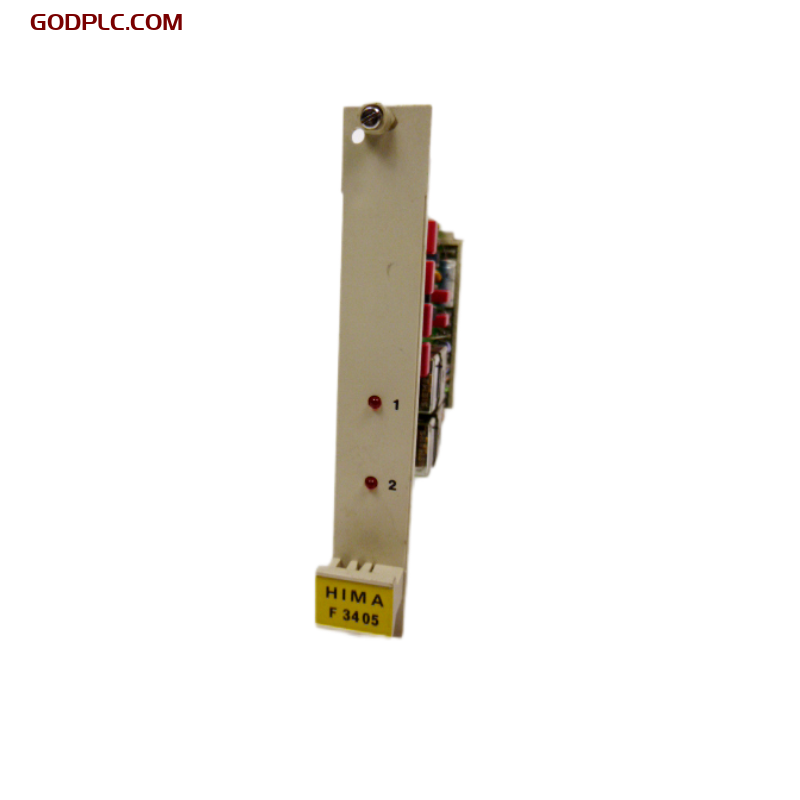

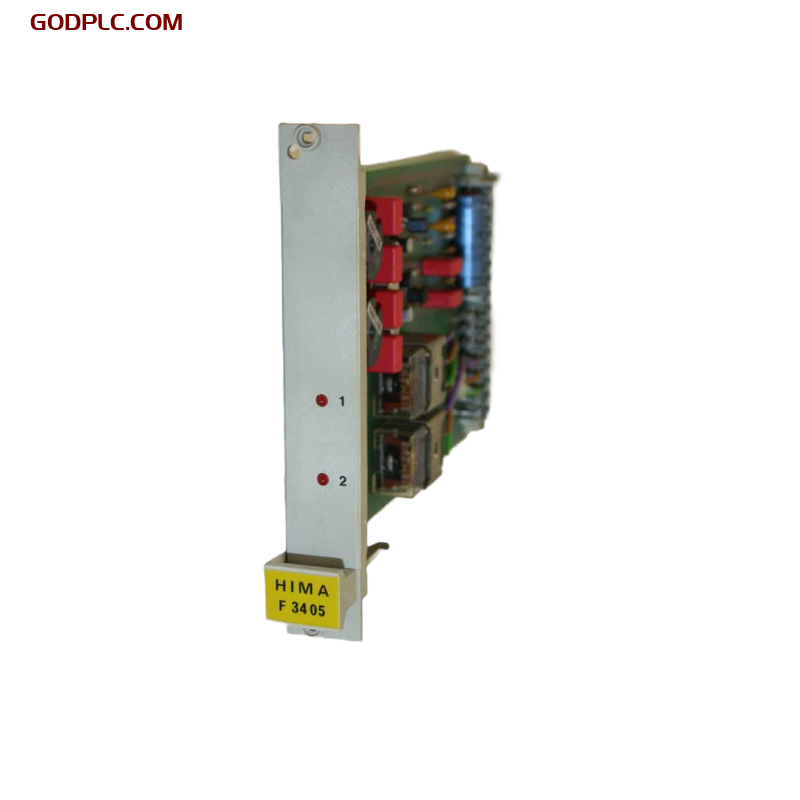

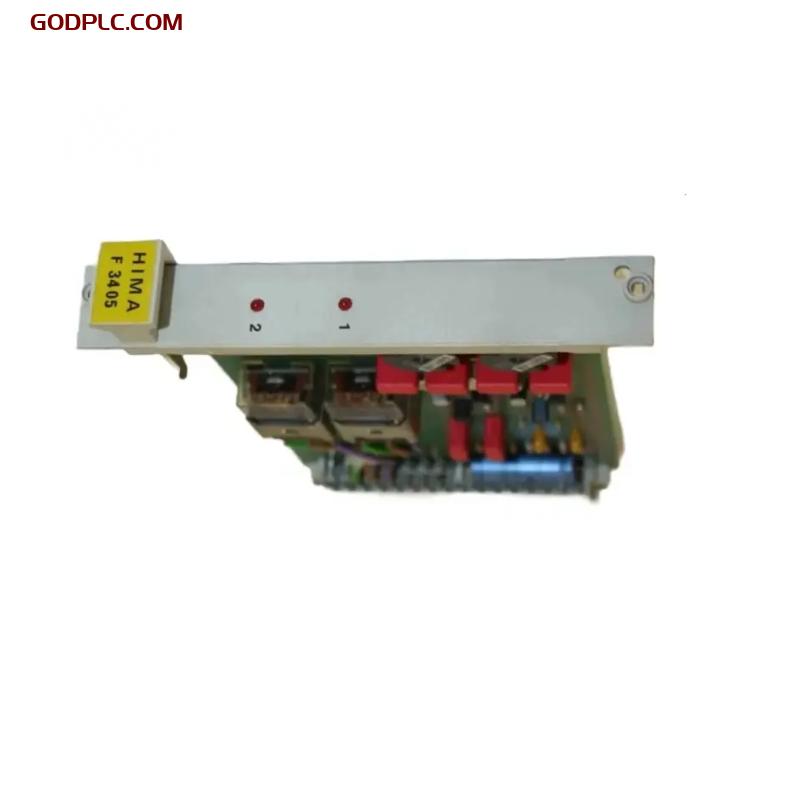

HIMA F3405 Relay Amplifier 4 Channel Fail-Safe PLC Board Shelf life 1 year
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
HIMA F3405 Product Introduction
The HIMA F3405 is a high-performance safety relay designed for industrial applications requiring reliable and fail-safe operation. It is part of HIMA’s renowned safety product lineup, known for its robust construction, advanced functionality, and compliance with international safety standards. The F3405 is widely used in critical safety systems across various industries, including oil & gas, chemical, power generation, and manufacturing.
This safety relay ensures the highest level of protection by monitoring emergency stop circuits, safety gates, and other safety-related functions. Its modular design allows for easy integration into existing control systems, making it a versatile choice for complex safety applications.
Product Advantages
- High Reliability – The F3405 is built with fail-safe circuitry to ensure continuous operation even in harsh industrial environments.
- Compliance with Standards – Meets IEC 61508, SIL 3, and other relevant safety certifications.
- Modular Design – Allows for flexible configuration and easy expansion.
- Wide Operating Range – Suitable for various voltage levels and industrial conditions.
- Diagnostic Capabilities – Features self-monitoring and fault detection for enhanced safety.
- Durability – Constructed with high-quality materials to withstand vibrations, temperature fluctuations, and electrical noise.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HIMA F3405 |
| Dimensions (W×H×D) | 198 x 162 x 108 mm |
| Weight | 1.2 kg |
| Operating Voltage | 24V DC (18V – 30V range) |
| Contact Rating | 6 A, 250V AC / 5 A, 30V DC |
| Safety Integrity Level (SIL) | SIL 3 (IEC 61508) |
| Operating Temperature | -20°C to +60°C |
| Relay Type | Electromechanical, forcibly guided |
| Certifications | CE, UL, TÜV, IEC 61508 |
Applications
The HIMA F3405 is used in various safety-critical applications, including:
- Emergency Stop Systems – Ensures immediate shutdown in hazardous situations.
- Machine Safety – Protects operators by monitoring safety gates and interlocks.
- Process Industry – Used in chemical plants and refineries for safety interlocks.
- Power Generation – Safeguards turbines and other high-risk equipment.
- Railway Systems – Ensures fail-safe operation in signaling and control systems.
Compatible Models for Integration
The HIMA F3405 can be paired with the following models for enhanced functionality:
- HIMA F3236 – Safety controller for complex logic applications.
- HIMA F8620A – Interface module for system communication.
- HIMA F7126 – Diagnostic module for fault detection.
- HIMA F3330 – Redundant safety relay for high-availability systems.
- HIMA F3356 – Expansion module for additional safety contacts.
Installation Instructions
- Mounting – Secure the relay on a DIN rail in a control cabinet.
- Wiring – Connect input voltage (24V DC) to terminals A1 (+) and A2 (-).
- Safety Contacts – Wire safety devices (e.g., E-stop buttons) to the appropriate terminals.
- Testing – Perform a functional test to verify correct operation.
- Diagnostics – Use LED indicators to monitor relay status and faults.
Ensure all connections comply with local electrical standards and HIMA’s installation guidelines.
Recommended Related Models (Same Series)
| Model | Dimensions (mm) | Weight | Voltage | Current Rating | SIL Level |
|---|---|---|---|---|---|
| HIMA F3406 | 45 × 100 × 121 | 460 g | 24V DC | 8 A, 250V AC | SIL 3 |
| HIMA F3410 | 45 × 100 × 121 | 470 g | 24V DC | 10 A, 250V AC | SIL 3 |
| HIMA F3350 | 45 × 100 × 121 | 440 g | 24V DC | 5 A, 30V DC | SIL 2 |
| HIMA F3330 | 45 × 100 × 121 | 480 g | 24V DC | 6 A, 250V AC | SIL 3 |
| HIMA F3236 | 60 × 120 × 150 | 600 g | 24V DC | 6 A, 250V AC | SIL 3 |
| HIMA F7126 | 45 × 100 × 121 | 430 g | 24V DC | 4 A, 30V DC | SIL 2 |
Popular HIMA Models (Other Series)
| Model | Dimensions (mm) | Weight | Voltage | Current Rating | Application |
|---|---|---|---|---|---|
| HIMA F8620A | 60 × 120 × 150 | 650 g | 24V DC | 2 A, 30V DC | Safety Controller |
| HIMA F3 DI 8/8 | 45 × 100 × 121 | 420 g | 24V DC | 0.5 A, 30V DC | Digital Input Module |
| HIMA F3 AI 4 | 45 × 100 × 121 | 410 g | 24V DC | – | Analog Input Module |
| HIMA F3 DO 8 | 45 × 100 × 121 | 430 g | 24V DC | 2 A, 30V DC | Digital Output Module |
| HIMA F3 AIO 4 | 45 × 100 × 121 | 440 g | 24V DC | – | Analog I/O Module |
| HIMA F3 COM 1 | 45 × 100 × 121 | 400 g | 24V DC | – | Communication Module |
| HIMA F3 CPU | 60 × 120 × 150 | 700 g | 24V DC | – | Central Processing Unit |
| HIMA F3 PS 1 | 45 × 100 × 121 | 450 g | 100-240V AC | – | Power Supply Module |
FAQ (Frequently Asked Questions)
Q1: What is the maximum load current for the HIMA F3405?
A1: The maximum contact rating is 6 A at 250V AC or 5 A at 30V DC.
Q2: Can the F3405 be used in SIL 4 applications?
A2: No, it is certified for SIL 3 only. For SIL 4, consider the HIMA F8620A.
Q3: What is the operating temperature range?
A3: The F3405 operates between -20°C and +60°C.
Q4: Does the F3405 support redundant configurations?
A4: Yes, it can be used in redundant setups with the HIMA F3330.
Q5: How do I diagnose a fault in the F3405?
A5: Use the built-in LED indicators to identify faults (refer to the manual for codes).
Q6: Is the F3405 compatible with PROFIBUS communication?
A6: No, for PROFIBUS integration, use the HIMA F3 COM 1 module.
HIMA F3405 Relay Amplifier 4 Channel Fail-Safe PLC Board Shelf life 1 year is in stock. Please contact us for a quick quote and competitive pricing.
