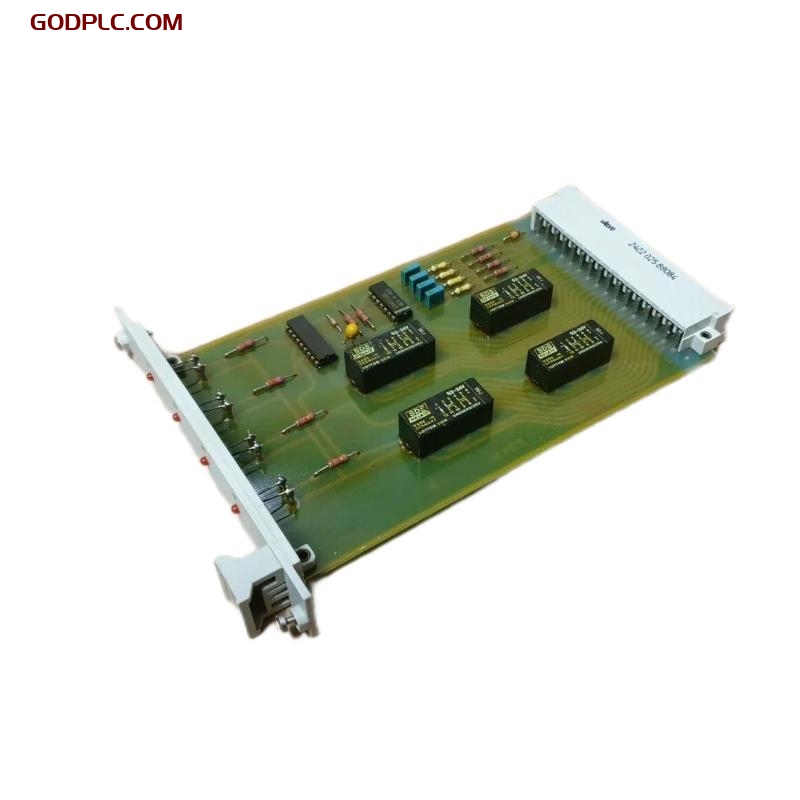

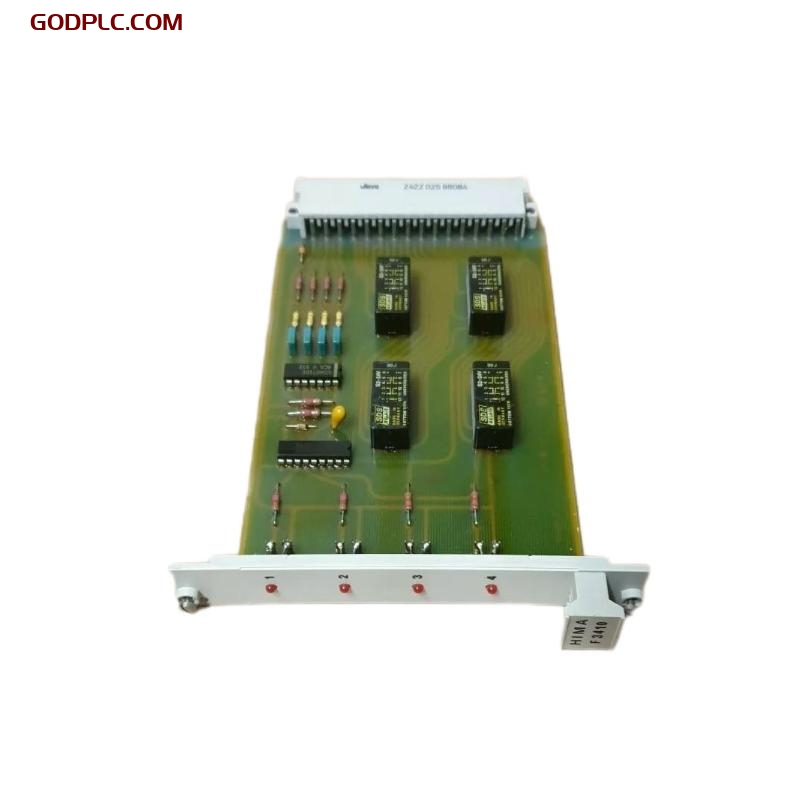

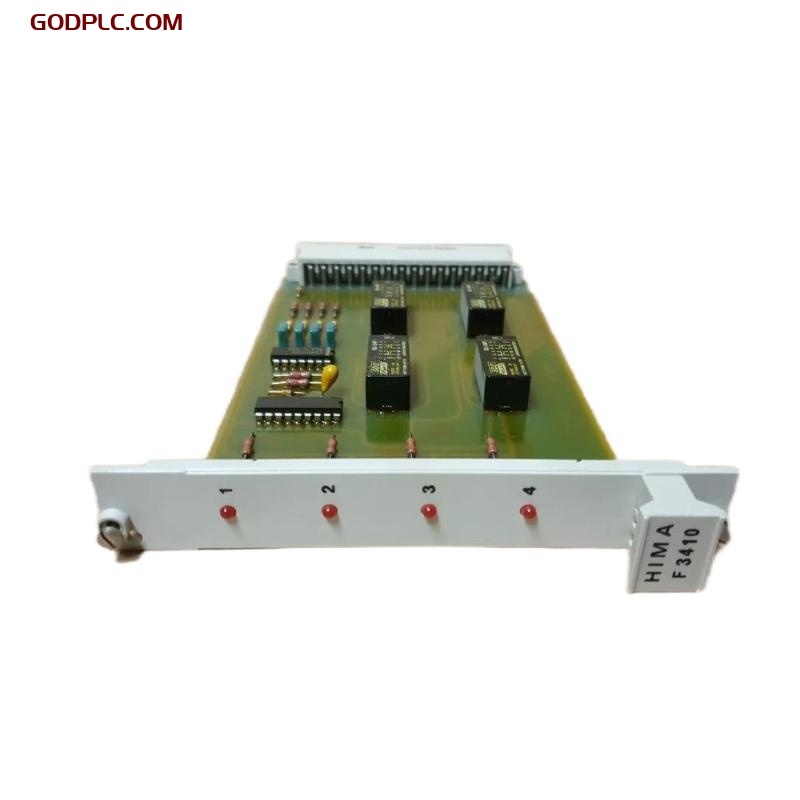

HIMA F3410 Relay Amplifier (Planar F System)
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
HIMA F3410 Relay Amplifier (Planar F System)
1. Product Overview
The HIMA F3410 Relay Amplifier is a high-performance device designed for use within the Planar F System, a highly reliable and fault-tolerant safety instrumented system. This relay amplifier is a critical component for the safe operation of emergency shutdown systems (ESD) and process control in industries such as chemical, oil & gas, power generation, and pharmaceuticals.
The F3410 amplifier converts input signals into relay outputs for controlling safety-critical devices like valves, alarms, and shutdown mechanisms. With dual-channel architecture, high reliability, and certification for safety integrity levels (SIL), the F3410 is suitable for safety applications demanding high reliability and availability.
2. Key Features
-
Dual-Channel Architecture: Provides redundancy to enhance reliability and fault tolerance for critical safety applications.
-
Safety Integrity Level (SIL) Certification: Complies with IEC 61508 and IEC 61511 standards, supporting up to SIL 3 safety integrity levels.
-
Wide Input Signal Compatibility: Accepts both digital and analog input signals, offering flexibility for a range of applications.
-
High-Performance Relays: Features high-quality relays for fast and reliable switching of safety devices.
-
Compact and Modular Design: Easily integrates into the Planar F System for scalable and flexible system configuration.
-
Diagnostic Monitoring: Provides real-time diagnostics and fault detection for system health and integrity.
-
Temperature and Vibration Resistance: Designed to perform reliably in harsh industrial environments.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 80 x 155 x 33mm |
| Weight | 0.3 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | F3410 |
| Manufacturer | HIMA |
| Installation | DIN Rail / Rack Mount |
| Power Supply | 24V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
3.3 Input/Output Performance
| Item | Specification |
|---|---|
| Input Signals | Digital (24V DC) and Analog (4-20mA) |
| Output Type | Relay Output (NO/NC) |
| Number of Outputs | 4 relay channels |
| Relay Rating | 250V AC, 2A |
| Response Time | ≤ 50 ms |
| Channel Redundancy | Dual-Channel Architecture |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24V DC ±20% |
| Power Consumption | Max 5W |
| Operating Current | ≤ 0.2 A |
| Status Indicators | LEDs for power, fault, operation |
4. Industry Applications
The HIMA F3410 Relay Amplifier is designed for use in safety-critical industries where maintaining safe and efficient operation is paramount:
-
Oil & Gas: Ensures the safe operation of shutdown systems for offshore platforms and refineries.
-
Chemical Processing: Used in hazardous process control to prevent unsafe conditions in chemical plants.
-
Power Generation: Provides safety functions for turbine control and emergency shutdown systems.
-
Pharmaceutical: Ensures compliance with safety standards in automated pharmaceutical manufacturing.
-
Automated Control Systems: Integral part of functional safety in industrial automation, including emergency shutdowns and safety interlocks.
With its high reliability, safety certifications, and versatile input/output options, the F3410 Relay Amplifier plays a crucial role in maintaining the integrity and safety of complex industrial systems.
HIMA F3410 Relay Amplifier (Planar F System) is in stock. Please contact us for a quick quote and competitive pricing.
