HIMA F4106 4-channel Door Card (Planar F system)
Product Overview

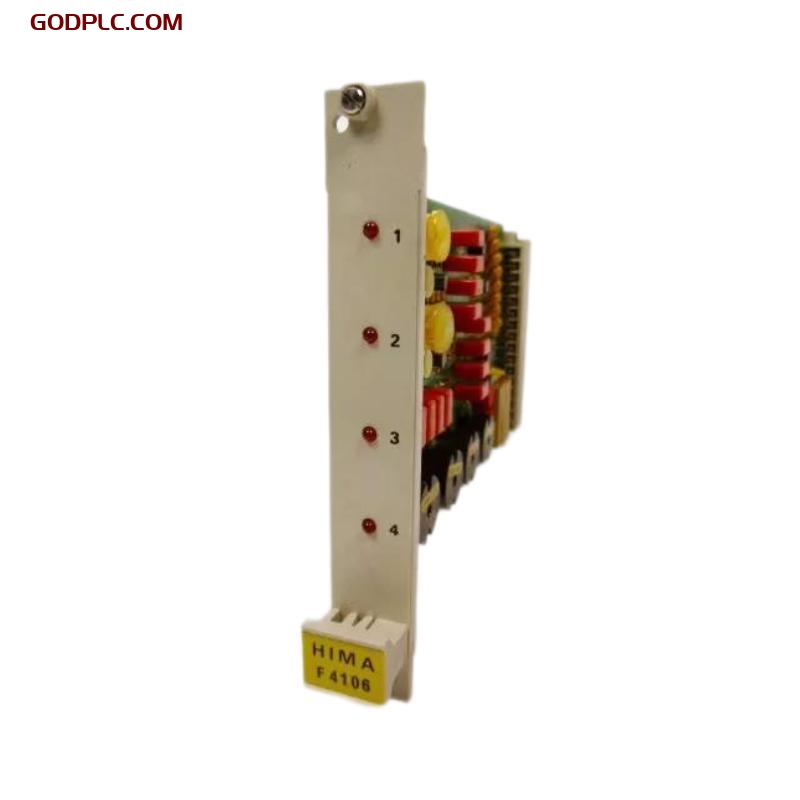

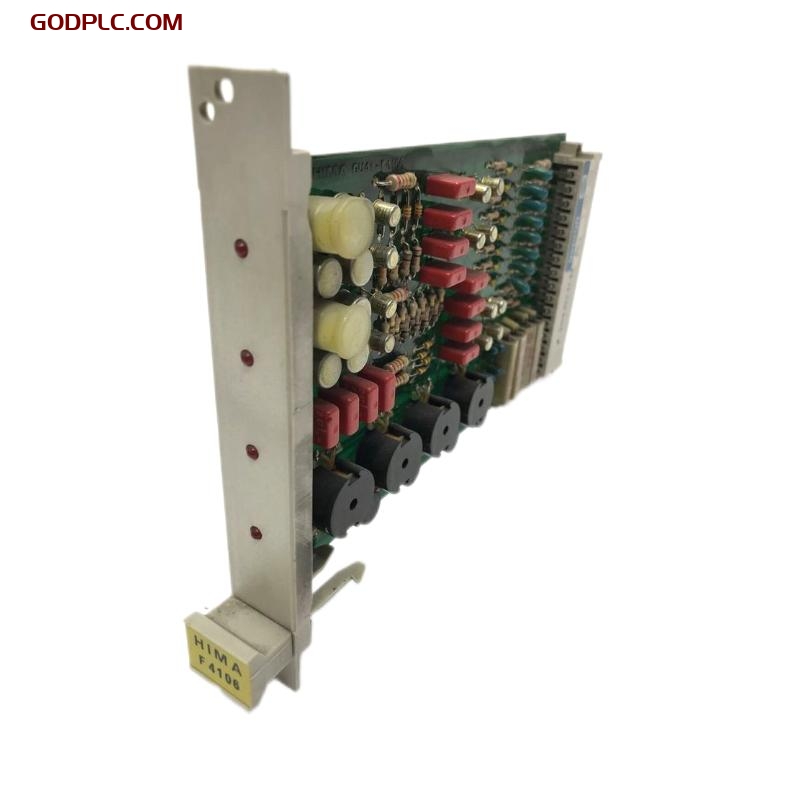

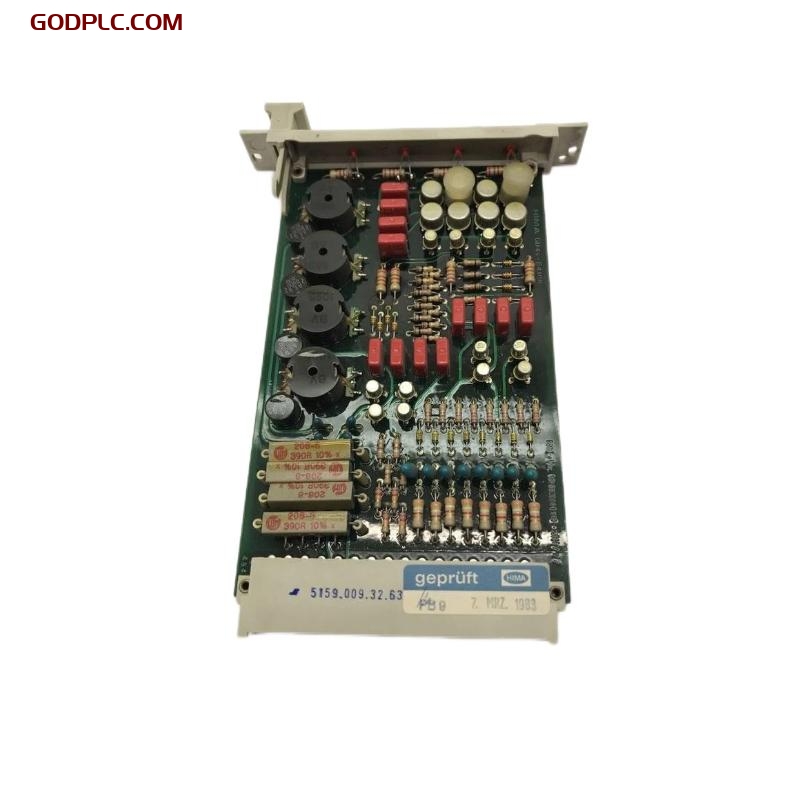

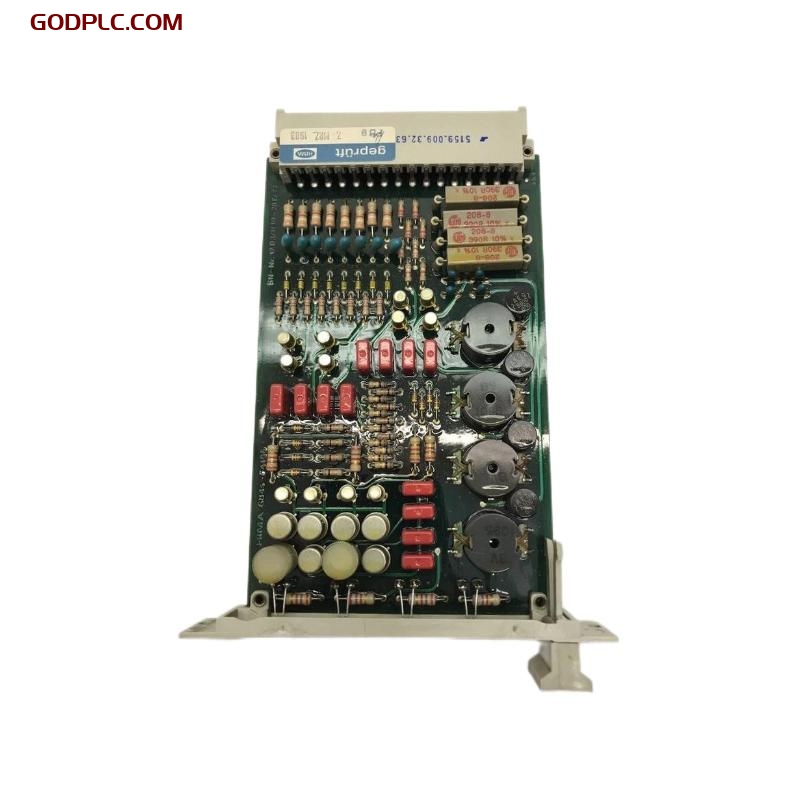

The HIMA F4106 4-channel Door Card is designed as part of the Planar F safety system, providing reliable and secure control for safety applications that require door monitoring. This module serves as a critical component in protecting access points and ensuring that safety procedures are strictly adhered to in hazardous or critical environments. The F4106 Door Card integrates seamlessly into the HIMA Planar F system, ensuring the continuous, safe operation of door systems by monitoring the status of up to four doors at once.
Key Features
-
High Safety Integrity: Ensures compliance with functional safety standards, contributing to SIL 3 certification.
-
Multiple Channels: Monitors up to 4 doors simultaneously, offering efficient and reliable operation.
-
Seamless Integration: Fully compatible with the Planar F system, allowing easy integration into existing safety architectures.
-
Redundant Operation: Offers redundancy to ensure continuous operation in case of a failure, providing fail-safe monitoring for door status.
-
Robust Performance: Built to perform reliably in harsh industrial environments, meeting stringent safety and performance standards.
-
Easy Maintenance: Modular design allows for quick replacement and easy maintenance, minimizing system downtime.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 257 x 114 x30mm |
| Weight | 0.231 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | F4106 |
| Part Number | 6637087B1 |
| Module Type | 4-channel Door Card |
| Channels | 4 Channels |
| Mounting | DIN Rail or Panel Mountable |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Power Consumption | < 6 W |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | HIMA Planar F System |
| Communication Protocol | Internal System Bus |
| Software Configuration | HIMA Configuration Software |
| Firmware Upgradeable | Yes |
Industry Applications
-
Industrial Safety Systems: Monitors access control in critical industrial environments such as power plants, chemical facilities, and manufacturing sites.
-
Emergency Shutdown Systems (ESD): Ensures the safe and controlled shutdown of systems in the event of hazardous conditions, preventing accidents.
-
Nuclear Power Plants: Offers high-integrity monitoring of safety doors in nuclear environments, where safety is of utmost importance.
-
Oil & Gas: Protects critical access points in hazardous offshore and onshore oil and gas facilities, ensuring compliance with safety protocols.
The HIMA F4106 4-channel Door Card is an essential part of the Planar F system, providing critical functionality for monitoring doors in safety systems. With its high integrity, ease of integration, and redundant operation, it is a reliable choice for industries requiring stringent safety and security measures.
