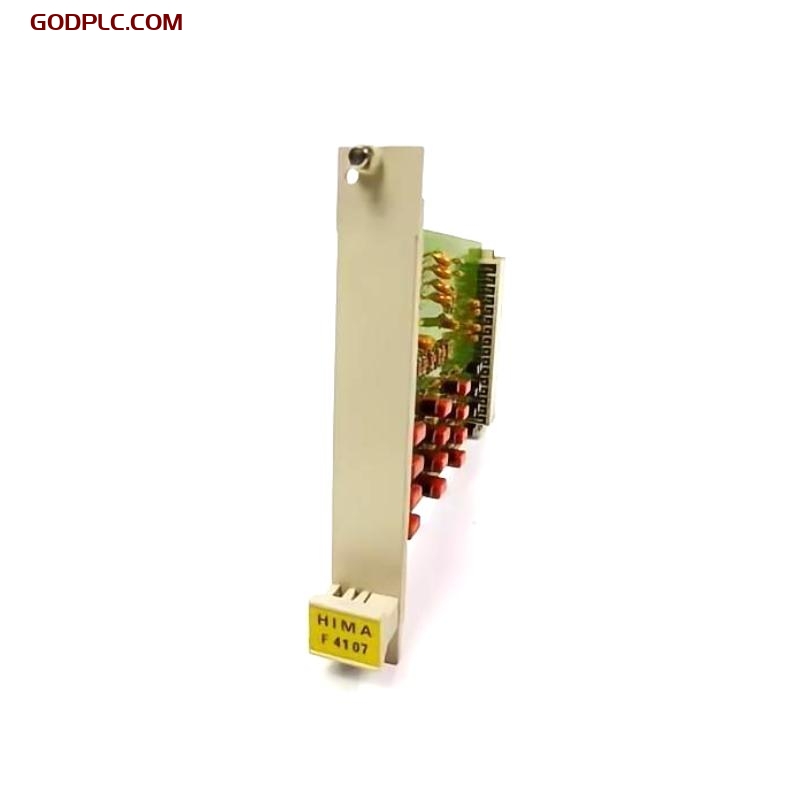

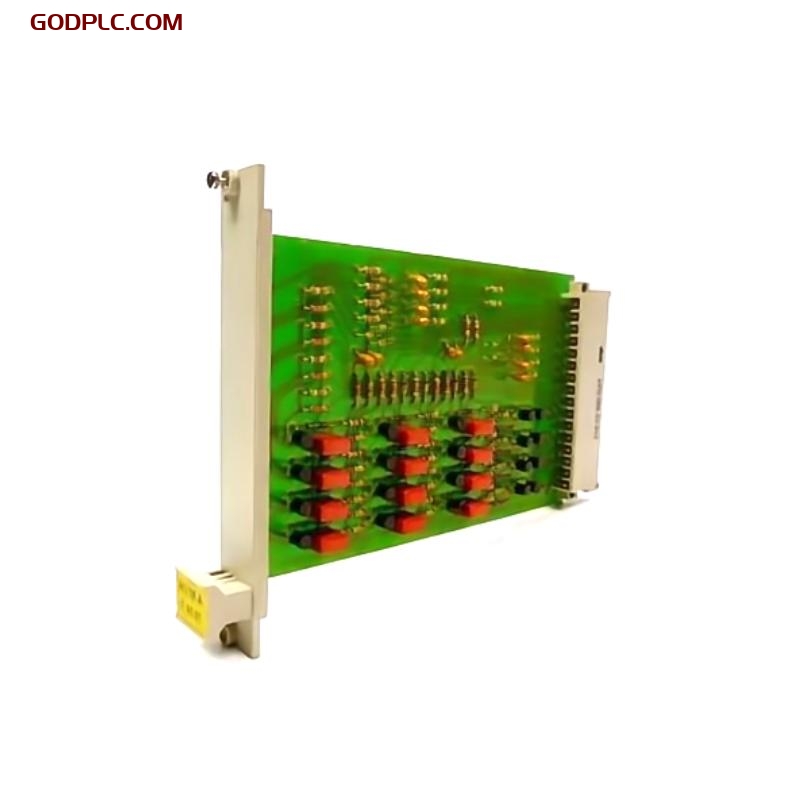

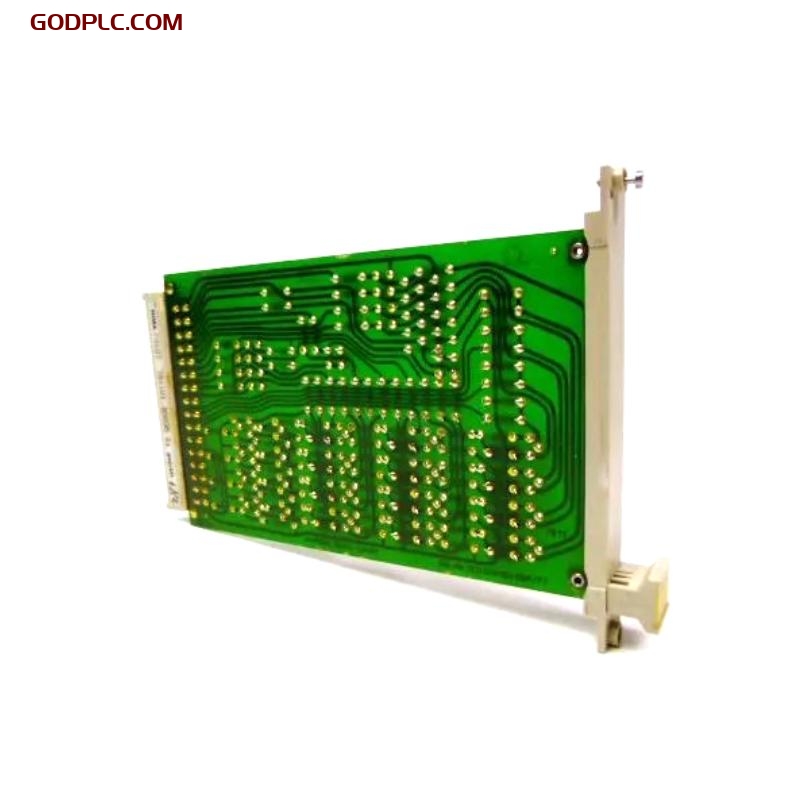

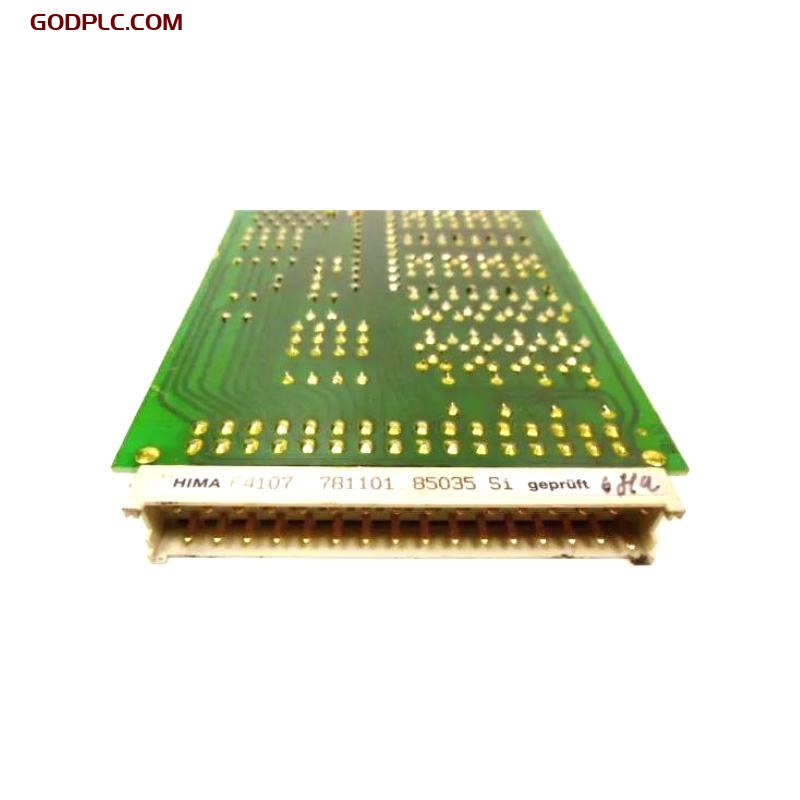

HIMA F4107 Safety Related Door Module (Planar F system)

Product Overview

The HIMA F4107 Safety Related Door Module is part of the Planar F safety system, designed to manage and monitor door systems in critical safety applications. This module is engineered to ensure safety protocols are strictly followed, particularly in environments where access control and safety are paramount. The F4107 module integrates seamlessly with other components in the Planar F system to offer reliable, fault-tolerant monitoring of door status, ensuring safe and secure operation in industrial environments.

Key Features

• Safety Integrity Level (SIL 3): Meets functional safety standards for safety-critical systems, offering SIL 3 certification.

• Dual Channel Monitoring: Monitors up to 2 safety-related doors, providing efficient door monitoring with high reliability.

• Redundant Operation: Offers redundancy in its operation to ensure continued functionality in case of a failure.

• Seamless Integration: Easily integrates with the Planar F safety system architecture, enabling quick and smooth deployment.

• Compact Design: Optimized for space-constrained environments, ensuring it fits easily within system installations.

• Fault Detection: Equipped with built-in diagnostics to detect faults and failures, ensuring safe operation and minimizing downtime.

Technical Specifications

3.1 Dimensions and Weight

3.2 Module Information

3.3 Electrical and Physical Characteristics

3.4 System Compatibility

Industry Applications

• Industrial Safety Systems: Ensures safe monitoring of access points and door systems in critical industrial applications such as chemical plants and power stations.

• Emergency Shutdown Systems (ESD): Plays a key role in emergency shutdown systems, ensuring that door systems comply with safety standards in hazardous conditions.

• Oil & Gas: Used to monitor safety-related doors in oil and gas installations, providing protection and compliance with stringent safety requirements.

• Automated Manufacturing: Protects workers and equipment in automated manufacturing settings, ensuring secure access control and safety during operation.

The HIMA F4107 Safety Related Door Module is a vital component for Planar F safety systems, ensuring that door monitoring is performed reliably and meets stringent safety standards. Its high-integrity design, ease of integration, and fault detection capabilities make it an ideal solution for mission-critical industrial applications.
