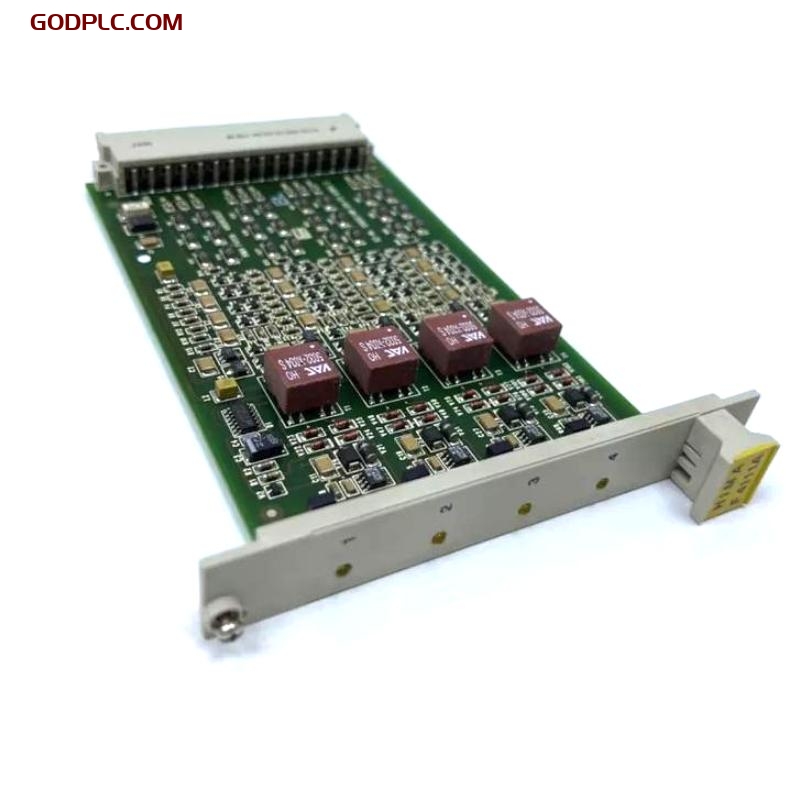

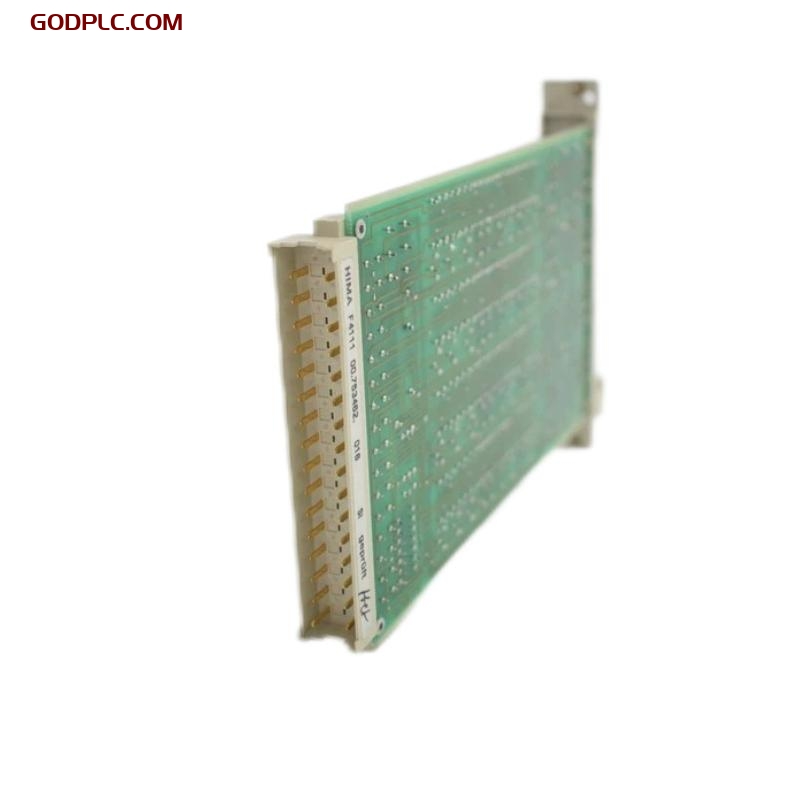

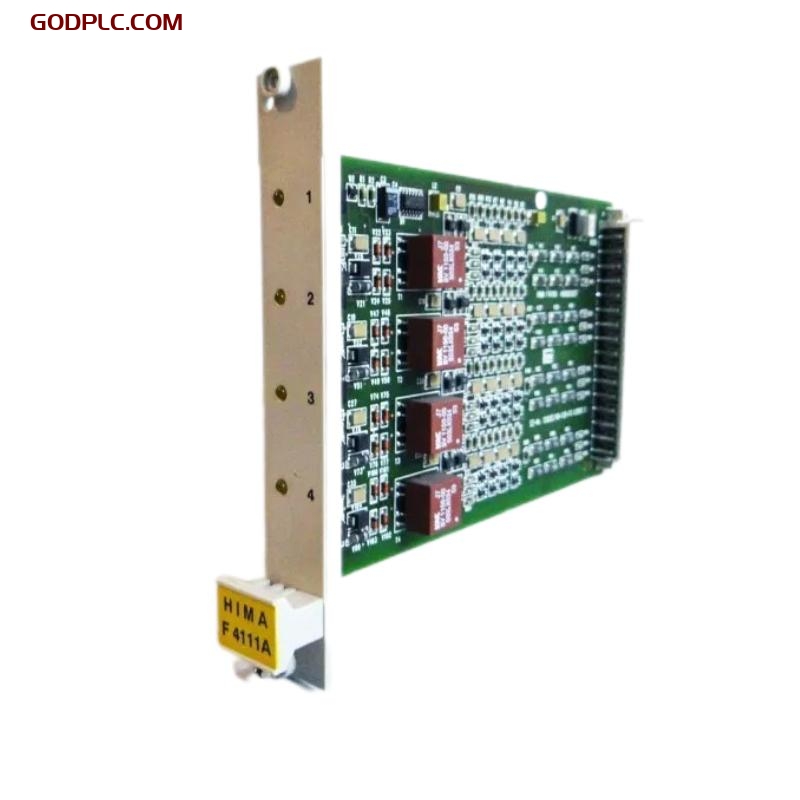

HIMA F4111 Safety-related Four-channel And Door Module (Planar F system)
__________________________________________________________________________________________

Product Overview

The HIMA F4111 is a safety-related four-channel and door module developed for the Planar F system, a key element in HIMA’s high-integrity safety solutions. This module is designed for applications requiring reliable monitoring and control of safety-critical components such as safety doors, interlocks, and emergency stop circuits. Each of the four channels operates independently, offering redundancy and fault detection capabilities in compliance with international safety standards (e.g., IEC 61508). The F4111 is ideal for use in demanding industrial environments such as process plants, power generation facilities, and manufacturing lines.

Key Features

• Four Independent Safety Channels: Ensures precise and separate monitoring of up to four safety-critical inputs.

• Redundant Design: Supports high safety integrity levels through redundancy and fault tolerance.

• Diagnostics and Monitoring: Built-in self-diagnostics continuously monitor channel integrity and status, enhancing system safety.

• Planar F System Integration: Seamless compatibility with HIMA’s Planar F safety system architecture.

• Safety Door Monitoring: Specifically designed to monitor safety doors and interlocks with configurable logic.

• Fault Reporting: Provides fault indication for open circuits, cross faults, and short circuits on input channels.

• Compact Form Factor: Space-saving design for control cabinet optimization.

• Industrial-grade Reliability: Withstands harsh operating conditions with strong immunity to electromagnetic interference.

Technical Specifications

3.1 Dimensions and Weight

3.2 Module Information

3.3 Electrical and Physical Characteristics

3.4 System Compatibility

Industry Applications

• Process Industry: Monitoring of emergency stop devices, interlocks, and safety doors in chemical and petrochemical plants.

• Power Generation: Ensures safe access to critical areas by monitoring door contacts and safety circuits.

• Manufacturing: Used in machine guarding and access control for production lines.

• Railway Systems: Supports secure operation and maintenance through access monitoring in safety-critical applications.

• Pharmaceutical & Food Processing: Enhances operator safety and system reliability in validated cleanroom environments.

The HIMA F4111 Safety-related Four-channel and Door Module is a robust and certified solution for critical safety applications, offering high integrity, fault tolerance, and seamless integration within HIMA’s Planar F safety platform. It ensures system reliability while meeting the stringent requirements of modern industrial safety systems.
