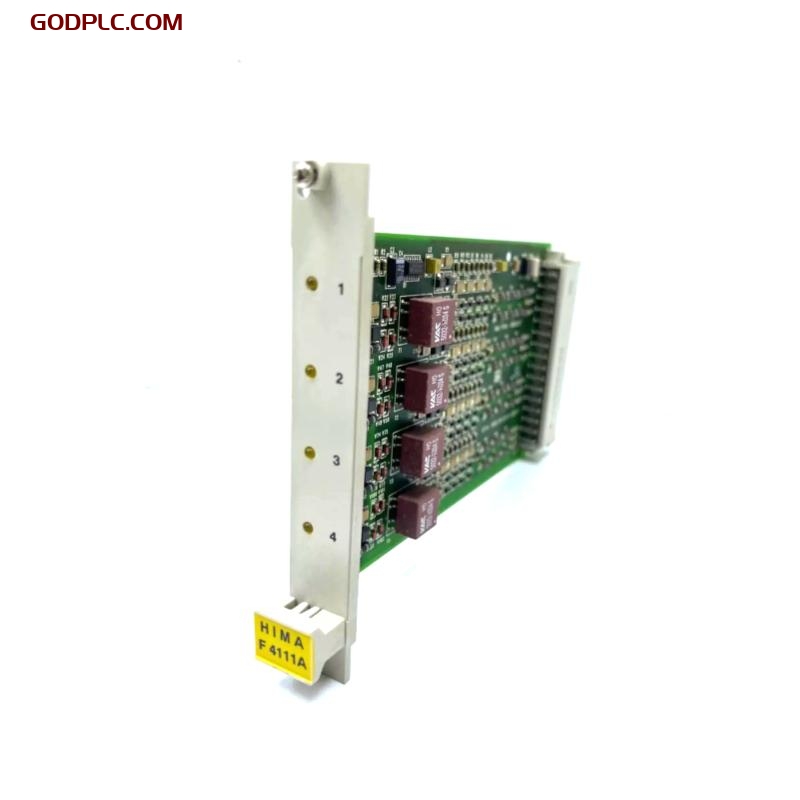

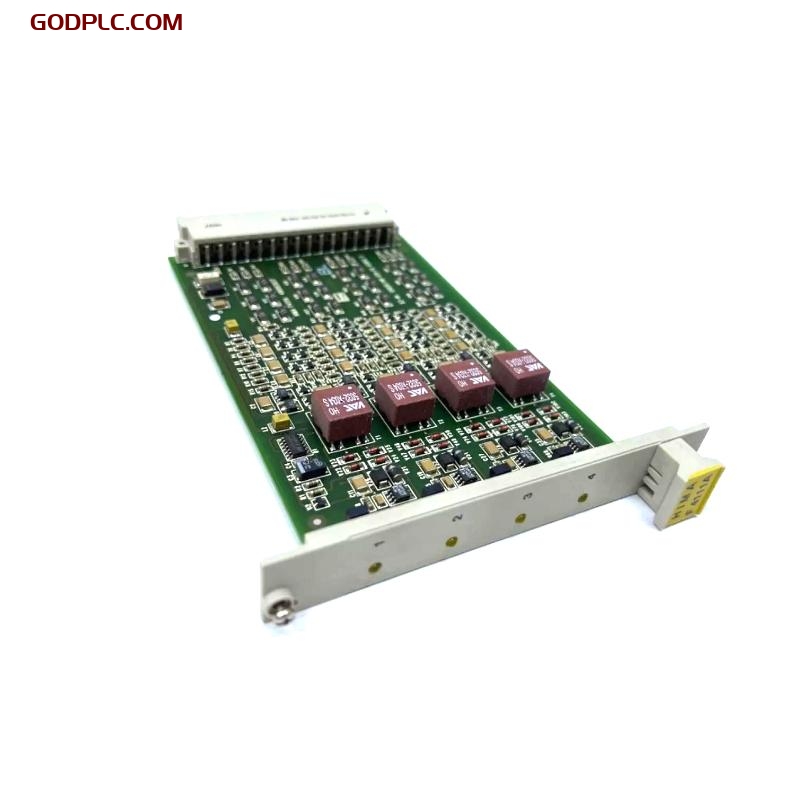

HIMA F4111A Safety-related Four-channel AND Door Module (Planar F system)
Product Overview
The HIMA F4111A is a safety-related four-channel AND logic module designed specifically for integration within the HIMA Planar F safety system architecture. It plays a critical role in high-integrity process safety applications by executing safety logic that ensures outputs are only activated when all required input conditions are met. This module is built with robust reliability and complies with SIL 3 safety standards, making it a key component in emergency shutdown systems and other critical control functions.
Key Features
-
Four-Channel AND Gate Logic: Enables precise safety condition verification by requiring all input signals to be valid before output activation.
-
SIL 3 Certified: Complies with IEC 61508 SIL 3 standards, ensuring suitability for high-demand safety applications.
-
Fail-Safe Operation: Designed to default to a safe state upon failure or power loss, ensuring maximum process safety.
-
Planar F System Integration: Fully compatible with HIMA’s Planar F safety system, allowing for seamless implementation in existing architectures.
-
LED Indicators: Onboard diagnostics with LED indicators for real-time monitoring of input/output status and module health.
-
Compact Design: Small form factor for easy installation in control cabinets.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 x 50 x 30 mm |
| Weight | 0.159 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | F4111A |
| Module Type | Four-channel AND Door Module |
| System Platform | HIMA Planar F System |
| Function | AND Logic (Safety Control) |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Output Voltage | 0–10 V DC |
| Rated Current | 2 A |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Protection Class | IP20 |
| Mounting | DIN rail |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | HIMA Planar F Safety System |
| Communication Type | TTL, RS-422, RS-232 |
| Safety Compliance | IEC 61508 SIL 3 |
Industry Applications
-
Emergency Shutdown Systems (ESD): Used in critical applications to ensure safety logic is verified before shutdown activation.
-
Process Automation Safety: Ensures that all necessary process conditions are met before proceeding with an operation.
-
Machine Interlocks: Provides logical validation for safe machine operation based on multiple input signals.
-
Critical Control Loops: Enhances control system reliability in chemical, petrochemical, and power generation sectors.
The HIMA F4111A offers a reliable and certified logic solution for demanding safety applications. With its four-channel AND functionality, integration-ready design, and adherence to the highest safety standards, it is a dependable choice for implementing safety logic in mission-critical environments.
HIMA F4111A Safety-related Four-channel AND Door Module (Planar F system) is in stock. Please contact us for a quick quote and competitive pricing.
