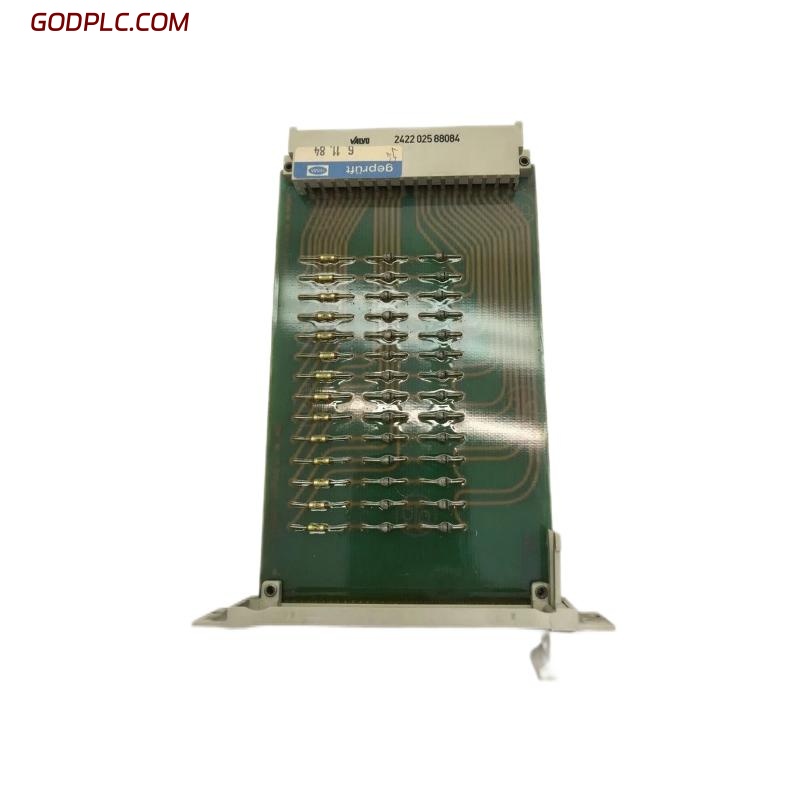

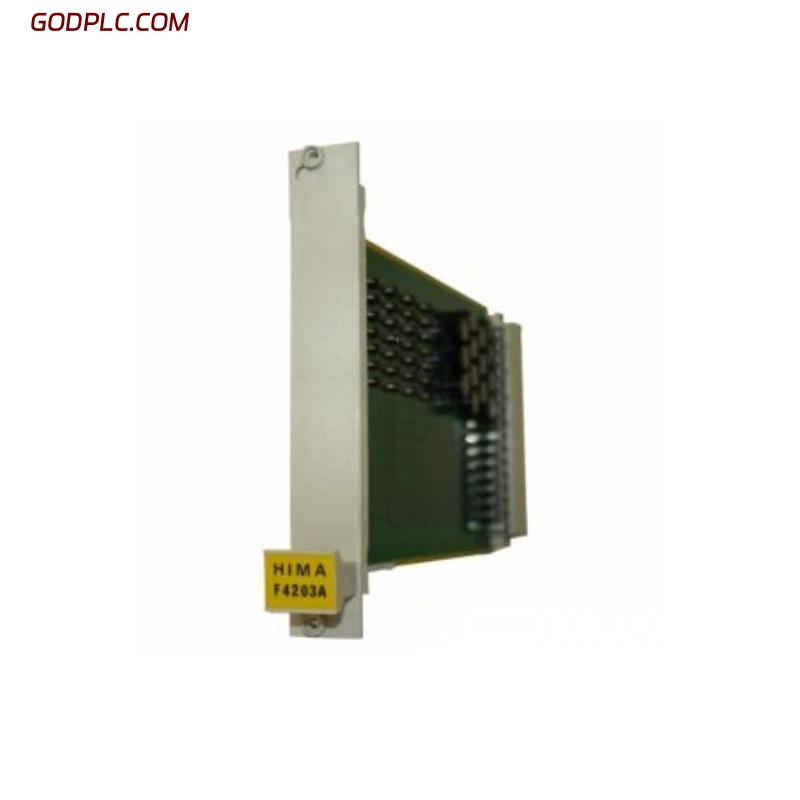

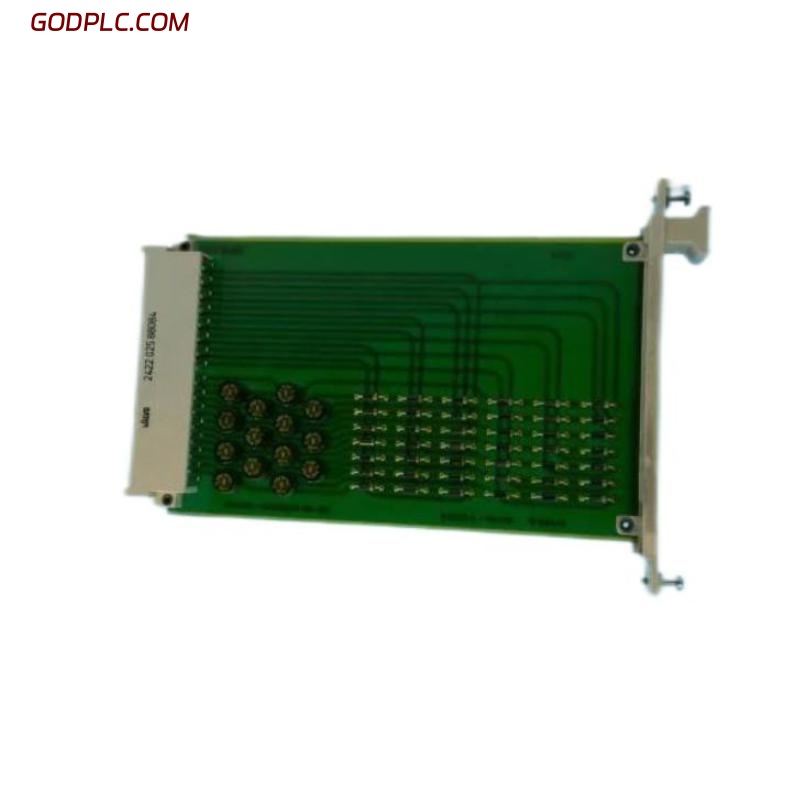

HIMA F4203A Safety Related Diode Pre-unit
Product Overview
The HIMA F4203A is a safety-related diode pre-unit designed for use in HIMA safety systems, primarily to provide reliable signal separation and protect critical control circuits from reverse voltage or overcurrent conditions. This module plays a key role in ensuring intrinsic safety by enabling galvanic isolation and controlled current flow between system components. It is especially suited for hazardous environments where functional safety and equipment protection are paramount.
Key Features
-
Ensures unidirectional signal flow with integrated diode circuits
-
Supports intrinsic safety applications in hazardous zones
-
Designed for high reliability in safety instrumented systems (SIS)
-
DIN rail-mountable form factor for easy integration
-
Operates passively—no external power required
-
Provides electrical isolation and surge suppression
-
Certified for use in safety-related applications per IEC 61508
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 220 x 100 x 30 mm |
| Weight | 0.14 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Function | Passive diode circuit for signal control |
| Voltage Drop | Approx. 0.7 V (typical forward drop) |
| Maximum Current | Up to 100 mA (per channel) |
| Isolation Voltage | ≥ 500 V AC (system to field) |
| Reverse Polarity Protection | Yes |
| Surge Suppression | Optional with external devices |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2-6 compliant |
| Protection Class | IP20 (installed in cabinet) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Platform | Compatible with HIMA HIMatrix and HIMax systems |
| Mounting System | DIN rail (EN 50022) |
| Safety Integrity Level | Suitable for SIL 3 applications |
| Application Type | Diode-based signal isolation and protection |
Industry Applications
-
Oil & Gas – Intrinsic safety protection in hazardous process areas
-
Chemical Industry – Prevents backfeeding in signal lines to SIS
-
Pharmaceuticals – Safety assurance in GxP-compliant automation systems
-
Power Generation – Isolated signal management in turbine safety systems
-
Water Treatment – Protection of analog input circuits in SCADA systems
The HIMA F4203A Safety Related Diode Pre-unit is a compact and effective module for ensuring signal directionality and safety compliance in complex automation environments. Its passive design and certified safety performance make it a reliable component in any safety-critical infrastructure.
HIMA F4203A Safety Related Diode Pre-unit is in stock. Please contact us for a quick quote and competitive pricing.
