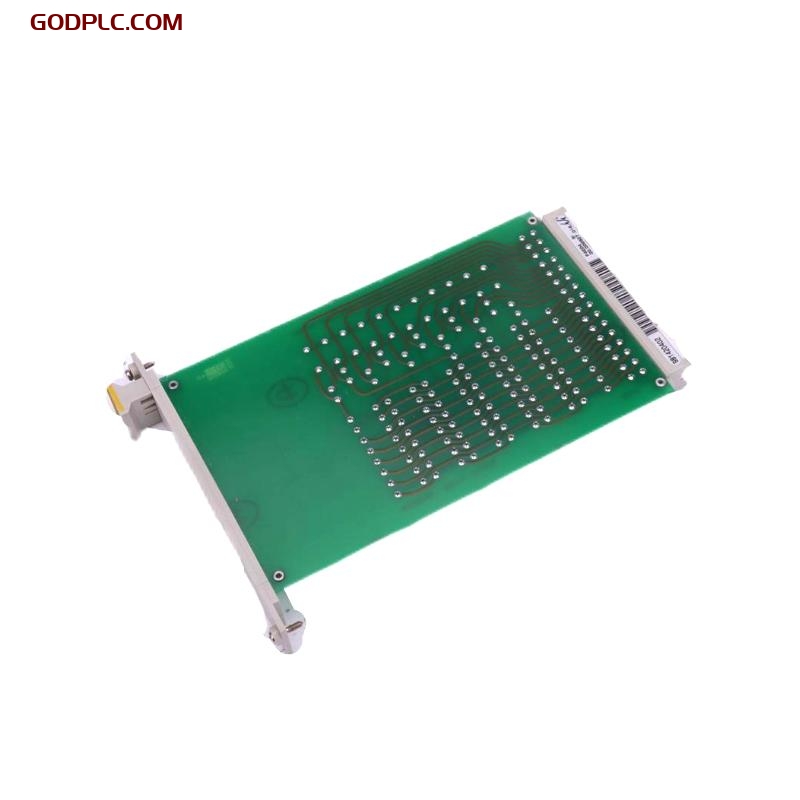

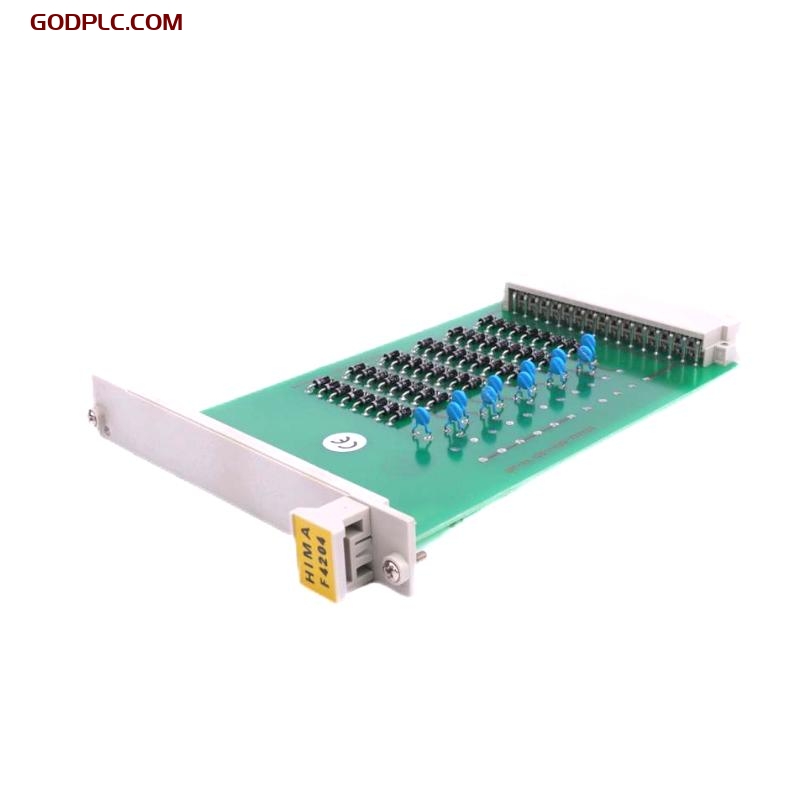

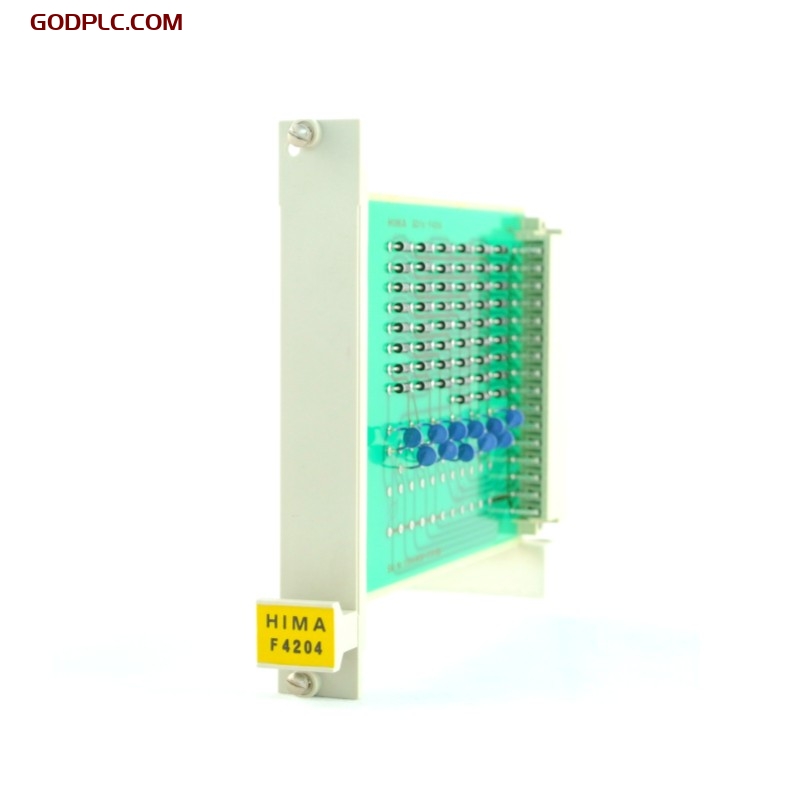

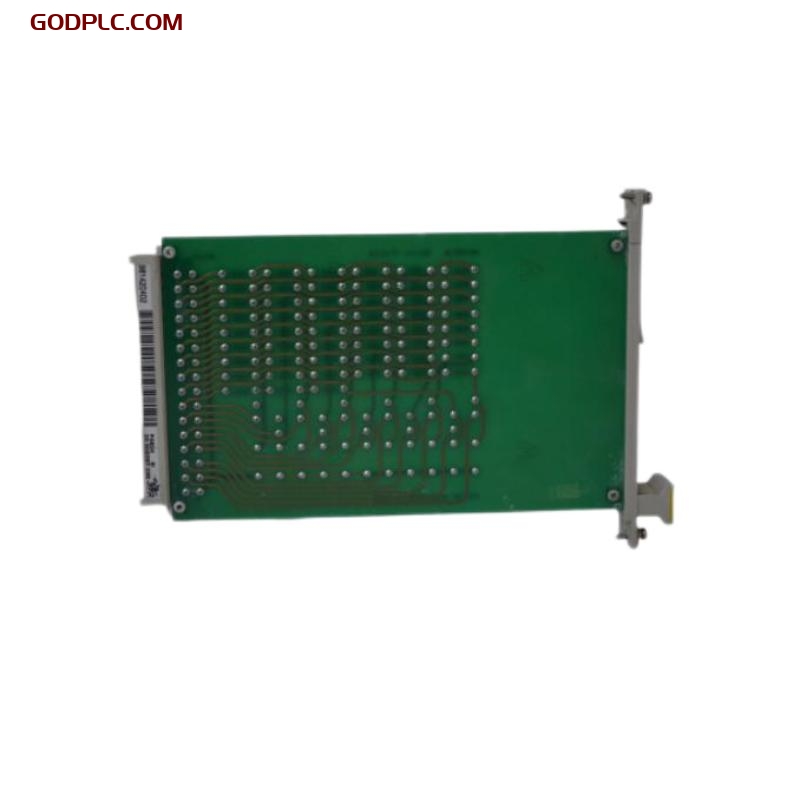

HIMA F4204 Safety-related Digital Output Module (Planar F system)
Product Overview
The HIMA F4204 is a safety-related digital output module designed for integration within the HIMA Planar F system architecture. It provides reliable and precise control of digital output signals, ensuring safe operation in critical industrial automation environments. With its robust design and compliance with international safety standards, the F4204 module is suitable for applications requiring high-integrity signal switching and control.plc-dcs.com+6dcsmodule.com+6dcsfcs.com+6
Key Features
-
Digital Output Functionality: Provides 6 isolated digital outputs for controlling external devices.
-
Safety Compliance: Certified to EN 61508 SIL 2 and IEC 62061 SIL 2 standards, ensuring suitability for safety-critical applications.
-
Fail-Safe Operation: Designed to default to a safe state upon detection of faults or power loss, enhancing system safety.
-
Planar F System Integration: Seamlessly integrates with HIMA’s Planar F safety system, facilitating straightforward implementation in existing setups.
-
Compact Design: Small form factor for easy installation in control cabinets.
-
LED Indicators: Provides visual feedback on module and channel status, simplifying troubleshooting.ControlTech Supply Limited
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 25 x 90 mm |
| Weight | 0.18 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | F4204 |
| Module Type | Digital Output Module |
| System Platform | HIMA Planar F System |
| Number of Channels | 6 |
| Output Type | Relay (SPDT) |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Rated Current | Max. 250 mA per channel |
| Operating Temp | -25°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Protection Class | IP20 |
| Mounting | DIN rail |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | HIMA Planar F Safety System |
| Communication Type | TTL, RS-422, RS-232 |
| Safety Compliance | EN 61508 SIL 2, IEC 62061 SIL 2 |
Industry Applications
-
Emergency Shutdown Systems (ESD): Used in critical applications to ensure safe deactivation of equipment during emergencies.
-
Process Automation Safety: Controls actuators and indicators in safety-related process control systems.
-
Machine Interlocks: Provides logical validation for safe machine operation based on multiple input signals.
-
Critical Control Loops: Enhances control system reliability in chemical, petrochemical, and power generation sectors.
The HIMA F4204 offers a reliable and certified digital output solution for demanding safety applications. With its robust design, fail-safe operation, and adherence to international safety standards, it is a dependable choice for implementing safety logic in mission-critical environments.
HIMA F4204 Safety Relay Module (Planar F system) is in stock. Please contact us for a quick quote and competitive pricing.
