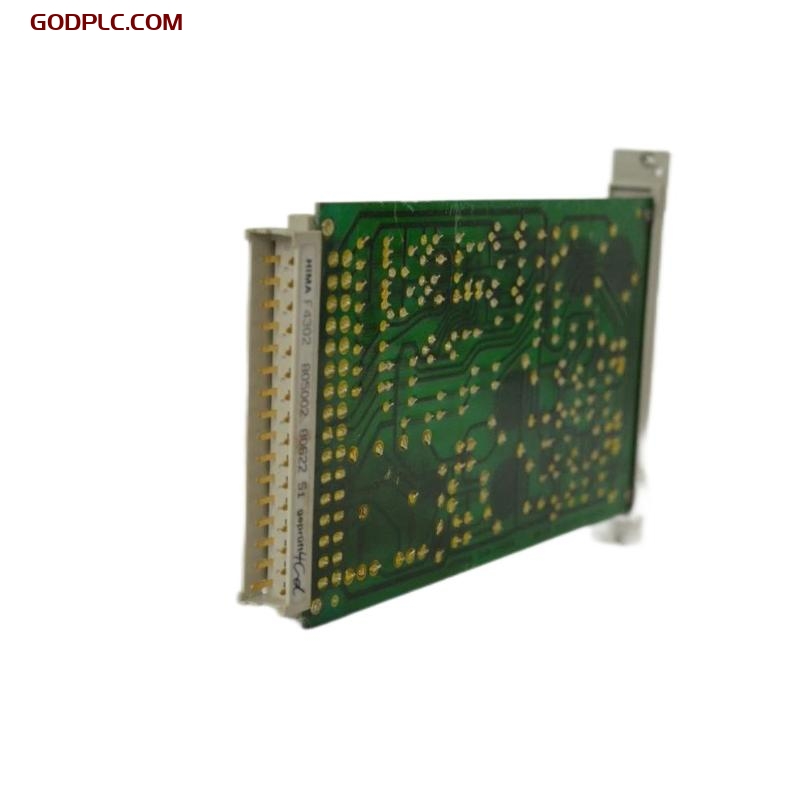

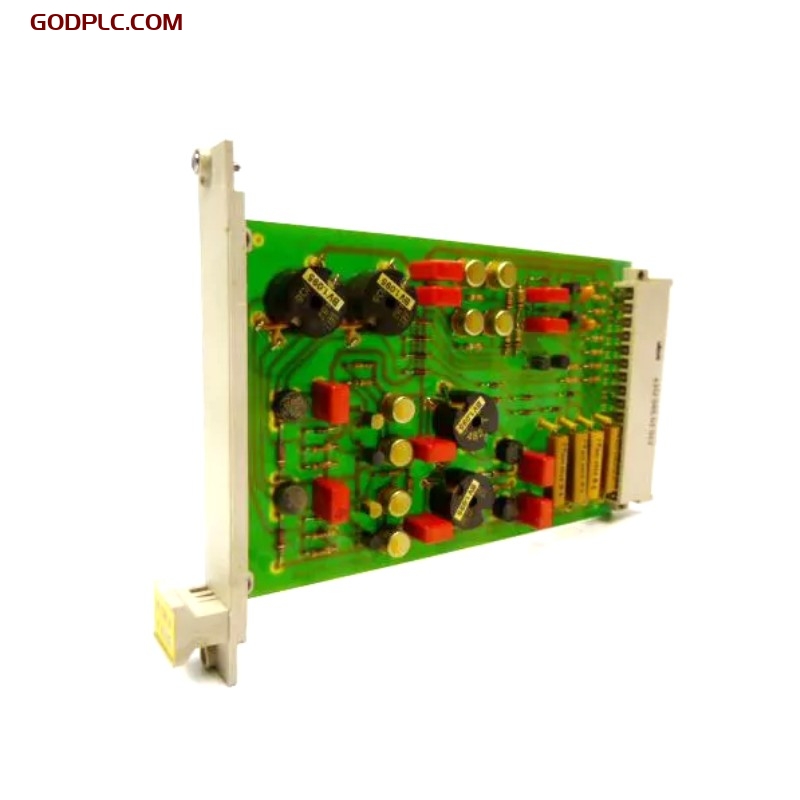

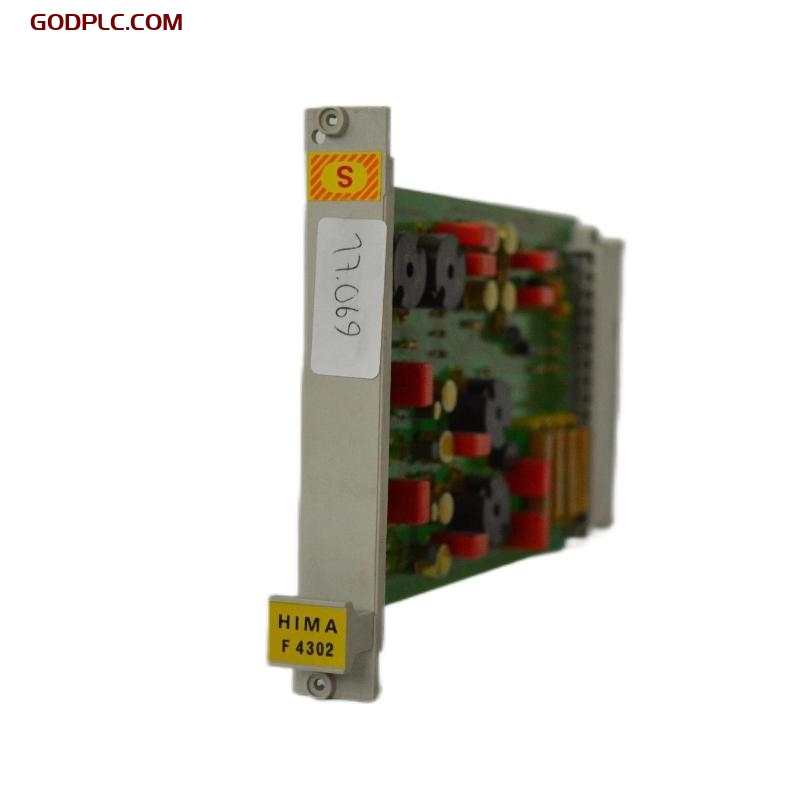

HIMA F4302 4-channel Blocking Door (Planar F system)
__________________________________________________________________________________________
Product Overview
The HIMA F4302 4-channel Blocking Door is a crucial safety component in the Planar F system, providing high-integrity protection for safety-critical systems. It ensures safe access control by blocking or allowing operation based on predefined conditions, with four independent channels to manage complex systems and meet the highest safety requirements. This module is designed to seamlessly integrate with HIMA’s safety controllers, offering enhanced operational flexibility, fault tolerance, and reliability in demanding environments.
Key Features
-
4-Channel Safety: Four independent channels allow for greater flexibility and redundancy, enhancing overall system safety.
-
Integrated Safety and Control: Works in conjunction with HIMA’s safety-related controllers to provide comprehensive safety solutions.
-
Planar F System Compatibility: Specifically designed to integrate within the Planar F safety architecture, ensuring seamless communication and control.
-
High Fault Tolerance: Provides high levels of fault detection and system integrity, reducing risk in safety-critical processes.
-
Blocking Function: Enables safe access control by blocking or allowing system access based on specific conditions and system states.
-
Durable Design: Built to withstand harsh industrial environments, with protection against dust and moisture (IP20 rated).
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 25 x 105 mm |
| Weight | 0.1 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | F4302 |
| Module Type | 4-Channel Blocking Door |
| Mounting | DIN Rail Mountable |
| Channels | 4 independent channels |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 V DC (18 to 30 V DC) |
| Power Consumption | Approx. 6 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Planar F System |
| Communication Interface | PROFIBUS-DP, Modbus, RS485 |
| Software Configuration | HIMA SILworX, ELOP II |
Industry Applications
-
Oil & Gas: Critical for safe system access control, ensuring that equipment is locked out during maintenance or hazardous conditions.
-
Chemical and Petrochemical: Used in process control systems where safe access to hazardous areas is essential.
-
Power Generation: Provides secure blocking and access control in power plant systems, especially in turbine and reactor control.
-
Rail Transportation: Ensures safe access and blocking functions in train signaling and control systems.
-
Water & Wastewater Treatment: Prevents unauthorized access to key treatment systems, ensuring operational safety.
The HIMA F4302 4-channel Blocking Door is a reliable, high-integrity access control solution designed for safety-critical applications. By offering redundant channels and seamless integration with HIMA’s safety controllers, it plays a vital role in protecting operations and ensuring safe access in industrial environments.
HIMA F4302 4-channel Blocking Door (Planar F system) is in stock. Please contact us for a quick quote and competitive pricing.
