HIMA F6205 Product Documentation
Product Introduction

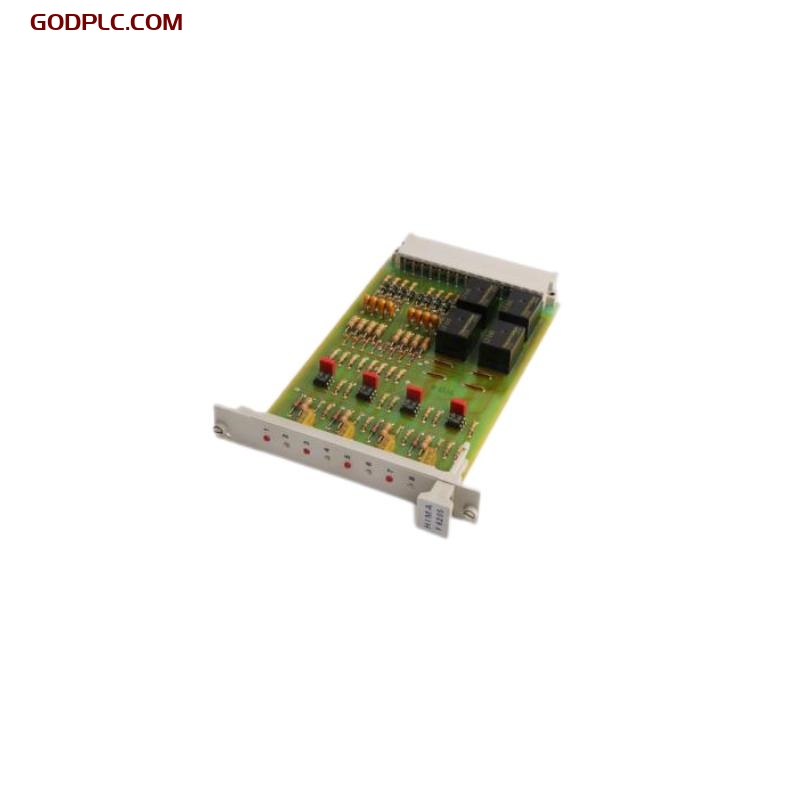

The HIMA F6205 is a high-performance safety relay designed for industrial applications requiring reliable and fail-safe operation. It is part of HIMA’s renowned safety solutions, offering robust performance in critical environments such as oil & gas, chemical plants, and manufacturing. The F6205 ensures compliance with international safety standards, including SIL 3 (Safety Integrity Level 3) and IEC 61508.
The relay features a compact design, easy integration, and high fault tolerance, making it ideal for safety-related shutdown systems. Its modular architecture allows for flexible configuration, ensuring compatibility with various control systems.
Product Advantages
- High Safety Integrity – Certified for SIL 3, ensuring maximum reliability in critical safety applications.
- Robust Construction – Designed to withstand harsh industrial environments, including extreme temperatures and vibrations.
- Easy Integration – Compatible with multiple control systems, reducing installation complexity.
- Fail-Safe Operation – Ensures safe shutdown in case of failure, preventing hazardous situations.
- Modular Design – Allows for flexible configuration and expansion based on application needs.
- Long Service Life – High-quality components ensure durability and reduced maintenance costs.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (W×H×D) | 45 mm × 100 mm × 115 mm |
| Weight | 0.5 kg |
| Operating Voltage | 24 V DC (18–30 V range) |
| Contact Rating | 6 A @ 230 V AC / 8 A @ 24 V DC |
| Safety Standard | SIL 3 (IEC 61508), PL e (ISO 13849-1) |
| Operating Temp. | -20°C to +60°C |
| Relay Type | Electromechanical, Forced-guided |
| Response Time | ≤ 15 ms |
| Protection Class | IP20 |
Applications
The HIMA F6205 is widely used in industries where safety is paramount, including:
- Oil & Gas – Emergency shutdown systems (ESD).
- Chemical Plants – Process safety interlocks.
- Manufacturing – Machine safety controls.
- Power Generation – Turbine and boiler protection.
- Railway Systems – Signaling and track safety.
- Mining – Hazardous area safety controls.
Compatible Models
The F6205 can be used alongside the following HIMA products:
- HIMA F3 DI 8/8 – Digital input module for signal processing.
- HIMA F-CPU 01 – Central processing unit for safety logic.
- HIMA F-RS 485 – Communication module for serial interface.
- HIMA F-PS 24V – Power supply unit for system integration.
- HIMA F-AI 8 – Analog input module for sensor interfacing.
- HIMA F-DO 8/8 – Digital output module for actuator control.
Installation Instructions
- Mounting – Secure the relay on a DIN rail in a well-ventilated control cabinet.
- Wiring – Connect the power supply (24 V DC) to terminals as per the wiring diagram.
- Safety Contacts – Wire the forced-guided contacts to the safety circuit.
- Testing – Perform a functional test to ensure proper operation before commissioning.
- Environmental Conditions – Ensure ambient temperature and humidity are within specified limits.
- Maintenance – Regularly inspect contacts and connections for wear or corrosion.
Recommended Related Models (Same Series)
| Model | Dimensions (mm) | Weight (kg) | Voltage | Key Feature |
|---|---|---|---|---|
| HIMA F6210 | 45 × 100 × 115 | 0.55 | 24 V DC | Dual-channel SIL 3 relay |
| HIMA F6220 | 45 × 100 × 115 | 0.6 | 24 V DC | High-current safety relay (10 A) |
| HIMA F6230 | 45 × 100 × 115 | 0.5 | 24 V DC | Redundant contact configuration |
| HIMA F6240 | 45 × 100 × 115 | 0.65 | 24 V DC | Fast-response safety relay (≤10 ms) |
| HIMA F6250 | 45 × 100 × 115 | 0.7 | 24 V DC | Extended temp. range (-40°C to +70°C) |
| HIMA F6260 | 45 × 100 × 115 | 0.55 | 24 V DC | Communication-enabled safety relay |
Popular HIMA Models (Other Series)
| Model | Dimensions (mm) | Weight (kg) | Voltage | Key Feature |
|---|---|---|---|---|
| HIMA X-CPU 01 | 120 × 90 × 70 | 0.8 | 24 V DC | Central safety controller |
| HIMA X-IO 16 | 60 × 120 × 80 | 0.6 | 24 V DC | 16-channel I/O module |
| HIMA X-PS 48V | 60 × 120 × 80 | 0.7 | 48 V DC | High-power safety supply |
| HIMA X-COM 01 | 60 × 120 × 80 | 0.5 | 24 V DC | Ethernet communication module |
| HIMA X-AI 8 | 60 × 120 × 80 | 0.55 | 24 V DC | 8-channel analog input |
| HIMA X-DO 16 | 60 × 120 × 80 | 0.65 | 24 V DC | 16-channel digital output |
| HIMA X-DI 32 | 60 × 120 × 80 | 0.7 | 24 V DC | 32-channel digital input |
| HIMA X-RS 232 | 60 × 120 × 80 | 0.5 | 24 V DC | Serial communication interface |
Frequently Asked Questions (FAQ)
Q1: What safety standards does the HIMA F6205 comply with?
A1: The F6205 is certified for SIL 3 (IEC 61508) and PL e (ISO 13849-1), ensuring high safety integrity.
Q2: Can the F6205 be used in explosive environments?
A2: No, the standard F6205 has an IP20 rating and is not suitable for explosive atmospheres. For hazardous areas, consider HIMA’s Ex-certified variants.
Q3: What is the maximum switching current of the F6205?
A3: The relay can handle up to 6 A at 230 V AC or 8 A at 24 V DC.
Q4: Is the F6205 compatible with PLC systems?
A4: Yes, it can be integrated with most PLCs using appropriate interface modules.
Q5: How often should the F6205 be inspected for maintenance?
A5: A yearly inspection is recommended, or more frequently in harsh operating conditions.
Q6: Can the F6205 be used in redundant configurations?
A6: Yes, it supports redundant wiring for increased system reliability.
HIMA F6205 Relay Control Module Price Advantage is in stock. Please contact us for a quick quote and competitive pricing.
