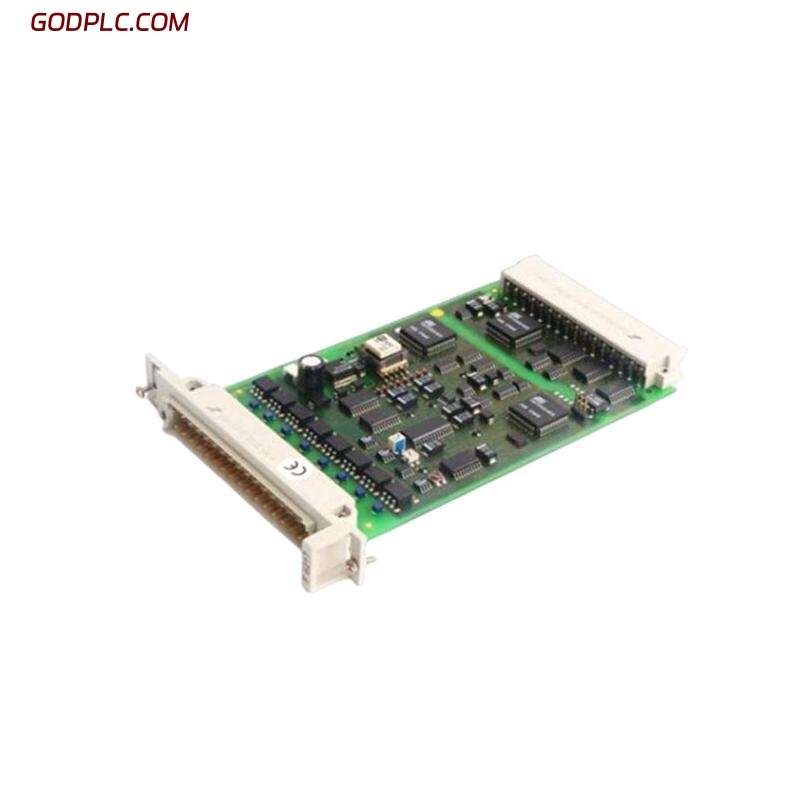

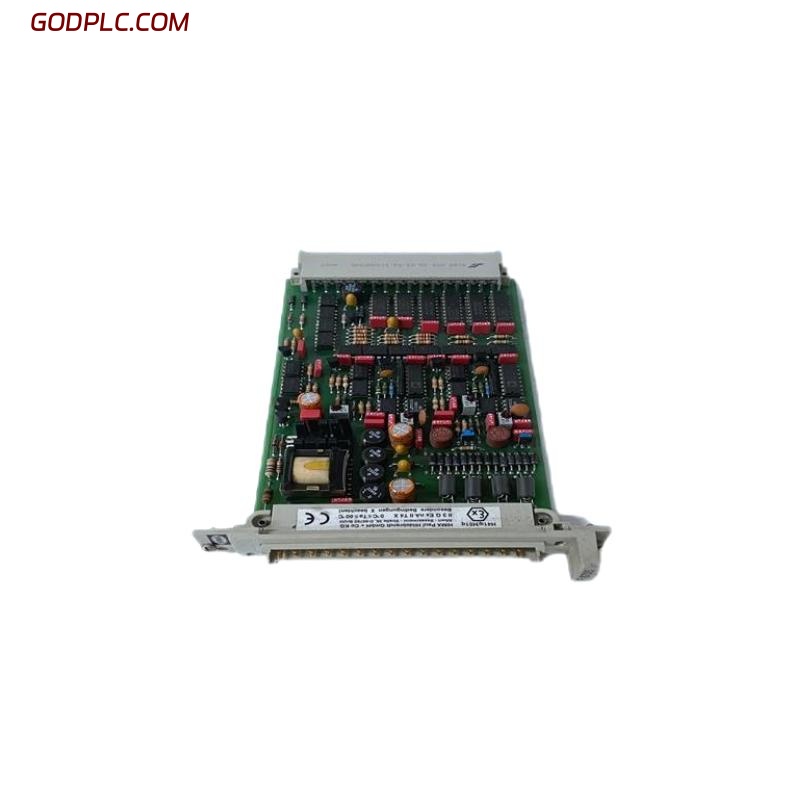

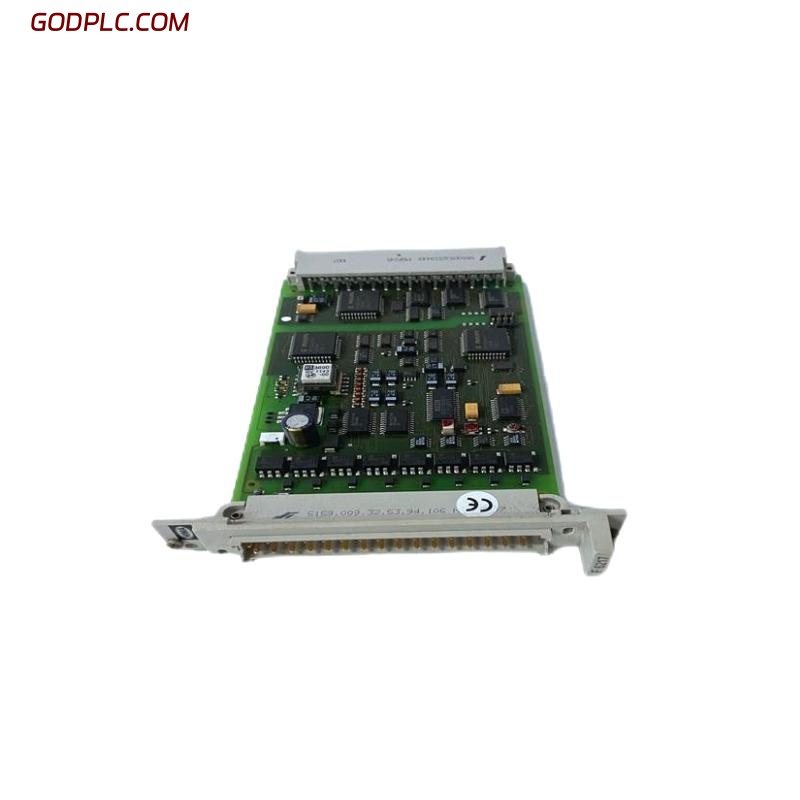

HIMA F6220 Analog Input Module

Product Overview
The HIMA F6220 Analog Input Module is designed to provide high-precision analog signal processing and conditioning for safety-critical applications. As part of the HIMA safety system portfolio, this module is optimized for use in industrial environments where reliable and accurate analog input is essential for monitoring and control. The F6220 module supports a variety of input signals such as voltage, current, and resistance, enabling seamless integration with a wide range of field devices in industries like oil & gas, power generation, and manufacturing.

Key Features

• High Precision – Provides high-accuracy analog input signal processing with excellent linearity and stability for critical control applications.

• Wide Input Range – Supports a broad range of analog input signals, including 0-10 VDC, 4-20 mA, and resistance-based inputs, offering flexible integration with diverse field devices.

• Safety Certified – Compliant with international safety standards (SIL3), ensuring the highest level of integrity for safety-related applications.

• Fail-Safe Operation – Designed with built-in redundancy and self-monitoring capabilities to ensure continuous operation even in case of failure.

• Low Power Consumption – Optimized to consume minimal power, making it suitable for applications with stringent power budgets.

• Real-time Diagnostics – Provides real-time diagnostic capabilities for easy fault detection, helping to improve system uptime and reliability.

• Compact and Modular Design – Easily integrates into HIMA F-System for scalable and flexible safety system architecture.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Oil & Gas – Monitors and conditions signals from various field devices such as pressure transducers and temperature sensors, ensuring safe and reliable data transmission in hazardous environments.

• Power Generation – Provides critical input signal conditioning for control systems monitoring turbines, generators, and other power plant equipment.

• Chemical Processing – Ensures accurate monitoring and control of process variables such as pressure, temperature, and flow, improving process safety and reliability.

• Manufacturing – Used in automated manufacturing environments to monitor analog signals from production machines, ensuring smooth operation and safety compliance.

• Automotive – Provides precise analog input signal conditioning for automotive safety systems, including temperature monitoring and pressure sensing in critical production processes.

The HIMA F6220 Analog Input Module is an essential component for safety-related applications that require high-precision analog signal conditioning. Its versatile input support, safety certification, and fail-safe design make it an ideal solution for industries where both reliability and safety are critical.
