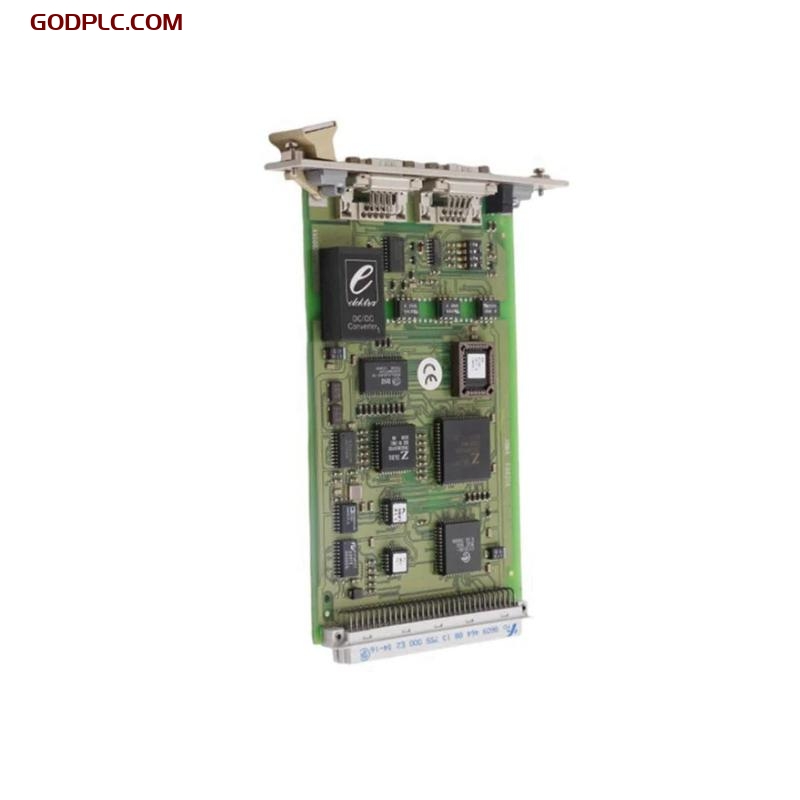

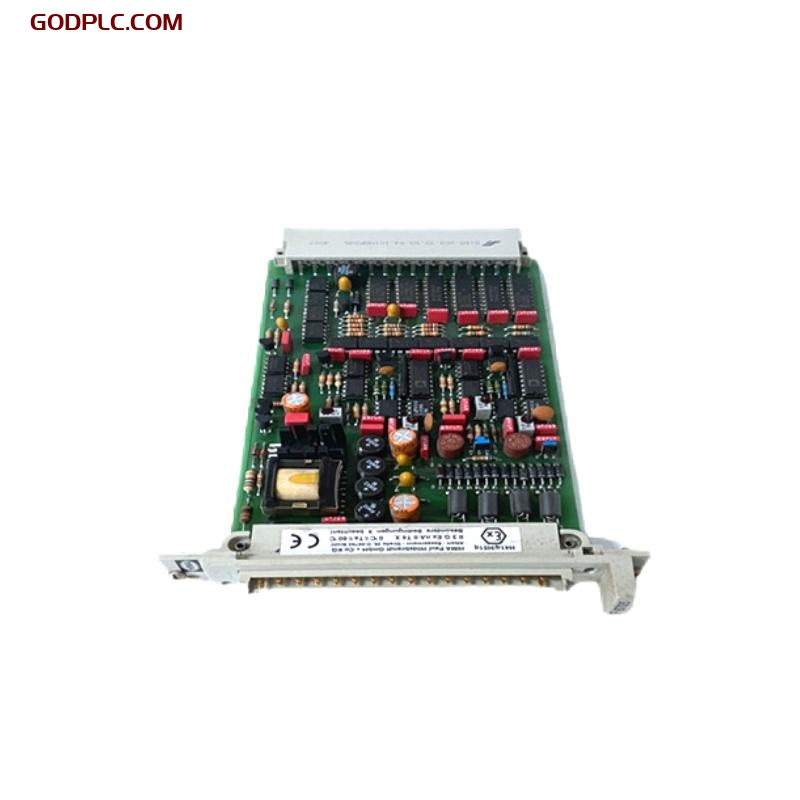

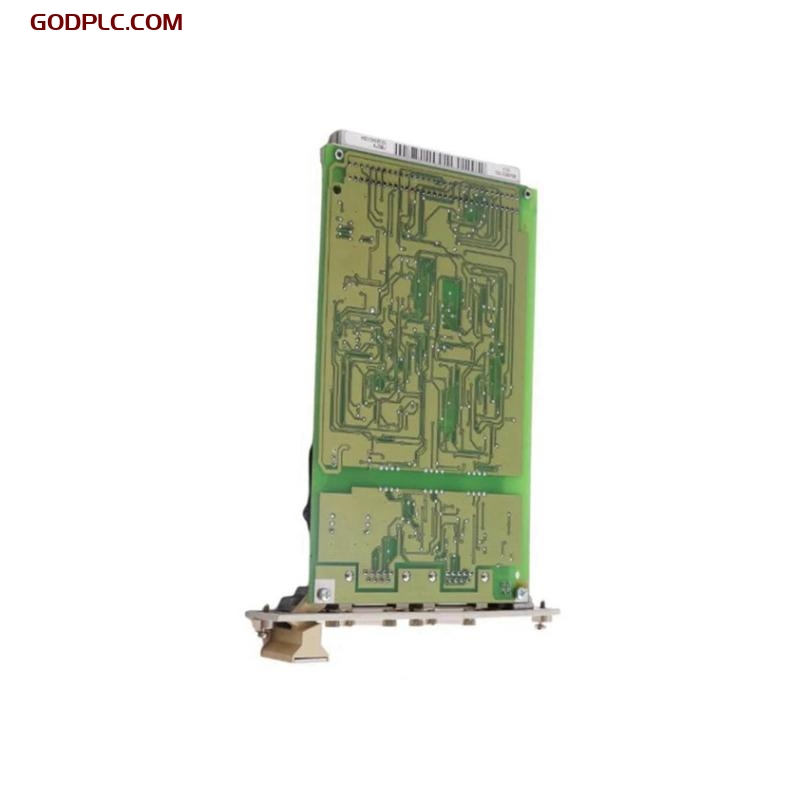

HIMA F6705 Analog Output Modules

Product Overview
The HIMA F6705 Analog Output Module is designed for use in safety-critical applications requiring precise control and reliable signal output. Part of the HIMA HIMax family, this module provides high-fidelity analog signal output for controlling actuators or other devices in industrial safety systems. It offers exceptional performance in applications demanding high availability, robust signal integrity, and superior isolation, making it ideal for use in hazardous and challenging environments.

Key Features

• High-Precision Analog Outputs – Provides up to 4 analog output channels with precise control of analog signals such as 4-20 mA or 0-10 V

• Excellent Isolation – Galvanic isolation of outputs to protect against electrical disturbances and ensure safe operation

• Redundant Configuration Support – Can be used in redundant configurations for increased system reliability and availability

• Integrated Diagnostics – Includes built-in diagnostics to continuously monitor module health and output signal integrity

• Compact Design – Space-efficient for easy integration into control panels and systems with limited space

• Certified for Safety Applications – Suitable for use in SIL 3 applications and certified for functional safety standards

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Oil & Gas – Provides precise control of actuators and valves in process control systems, ensuring safety and operational efficiency in critical applications

• Chemical Processing – Manages control loops for temperature, pressure, and flow in hazardous environments while maintaining functional safety compliance

• Power Generation – Controls critical output signals to actuators in turbine and boiler systems, ensuring safety and efficiency in power plants

• Pharmaceutical Manufacturing – Ensures accurate output control for regulated processes, maintaining high safety standards in pharmaceutical production environments

• Water & Wastewater – Provides safe and reliable signal output for controlling actuators and monitoring systems in water treatment plants

The HIMA F6705 Analog Output Module delivers high-precision control and reliable signal output for safety-critical applications. With its robust design, diagnostic capabilities, and functional safety certifications, it ensures reliable performance in industries such as oil and gas, chemical processing, and power generation, among others.
