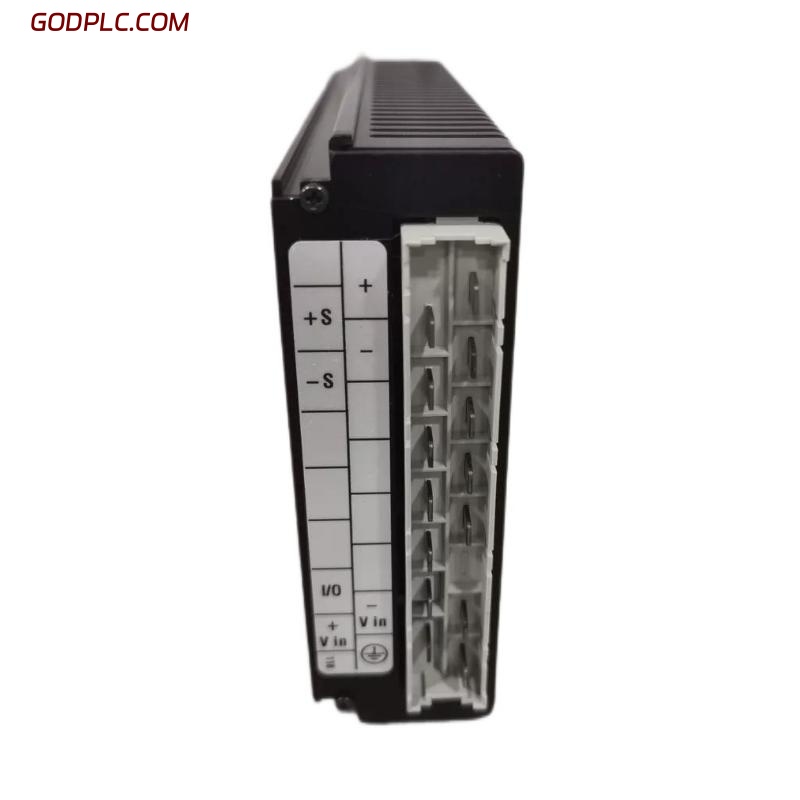

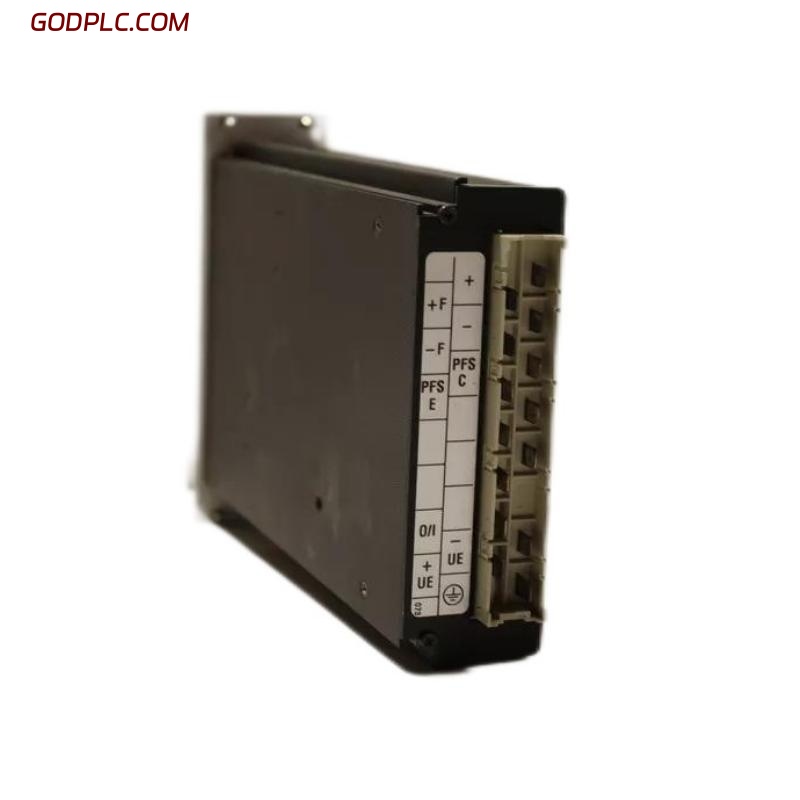

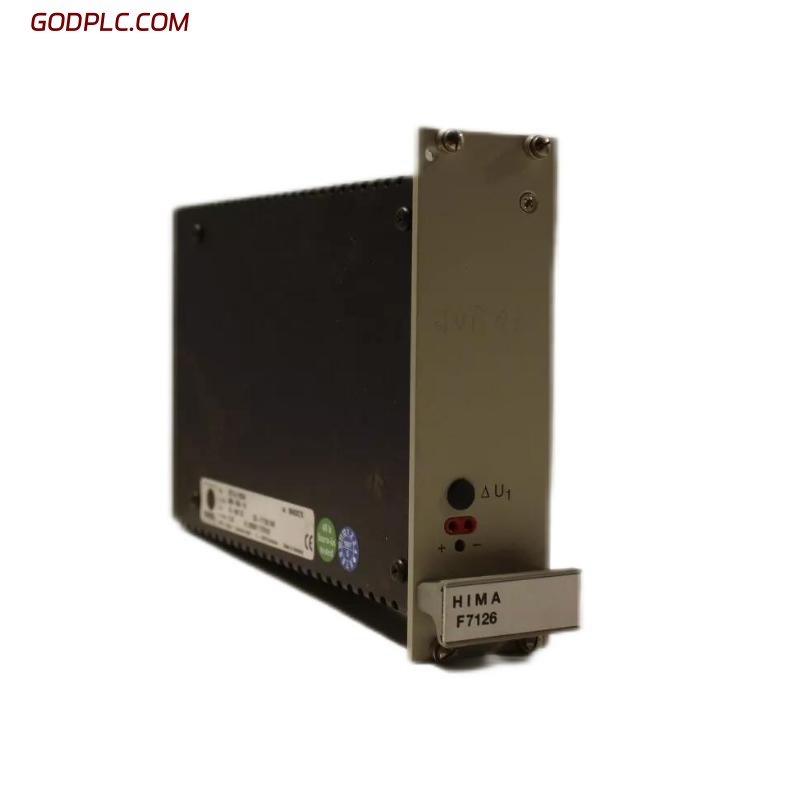

HIMA F7126 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The HIMA F7126 is a high-integrity Analog Output (AO) module designed for use within HIMA’s HIMax and HIQuad safety-related automation systems. It provides precise analog output signals for controlling actuators, control valves, and other field devices in safety instrumented systems (SIS) and process automation environments.
The module is built to comply with the strict requirements of IEC 61508 and SIL 3 standards, making it suitable for use in critical safety applications across industries such as oil & gas, petrochemical, power generation, and industrial process control.
The F7126 features robust channel isolation, diagnostics, and fault detection to ensure safe operation and system availability. Its modular design allows easy replacement without interrupting system operation, minimizing downtime during maintenance or upgrades.
Key Features
-
Provides analog output for process control and safety applications.
-
4 isolated channels with independent signal conditioning.
-
High accuracy and linearity over the full temperature range.
-
Hot-swappable design allowing replacement during operation.
-
Built-in channel and line fault diagnostics.
-
Compatible with HIMA HIMax / HIQuad safety controllers.
-
Designed and certified for SIL 3 applications according to IEC 61508.
-
Compact form factor suitable for high-density control cabinets.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | F7126 | Analog Output Module |
| Manufacturer | HIMA Paul Hildebrandt GmbH | Germany |
| System Compatibility | HIMax / HIQuad Safety Systems | For safety and process control |
| Function | Analog Output (AO) | Provides analog current/voltage signals |
| Number of Channels | 4 independent channels | Each channel isolated |
| Output Signal Range | 4–20 mA (configurable) | Standard process signal output |
| Load Resistance | 0–750 Ω typical | Depends on configuration |
| Accuracy | ±0.1% of full scale | High-precision output |
| Resolution | 12-bit or higher | Fine output adjustment |
| Isolation Voltage | 500 V (channel-to-channel and channel-to-system) | Electrical isolation protection |
| Diagnostics | Channel fault detection, line monitoring | Continuous self-testing |
| Power Supply Voltage | 24 V DC nominal (19.2 – 30 V DC) | Supplied via backplane |
| Power Consumption | Approx. 3 W | Typical per module |
| Operating Temperature Range | 0 °C – +60 °C | Industrial environment range |
| Storage Temperature | –25 °C – +85 °C | For transport and warehouse conditions |
| Humidity | 10 % – 95 % non-condensing | Suitable for industrial control rooms |
| Dimensions (H × W × D) | 128 mm × 20 mm × 100 mm | Compact DIN-rail size |
| Weight | Approx. 150 g (0.15 kg) | Lightweight module |
| Mounting Type | DIN rail or system rack | Plug-in module design |
| Protection Class | IP20 | Standard for control cabinets |
| Safety Integrity Level | SIL 3 (IEC 61508 certified) | For use in safety-critical applications |
| Country of Origin | Germany | Manufactured by HIMA |
HIMA F7126 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
