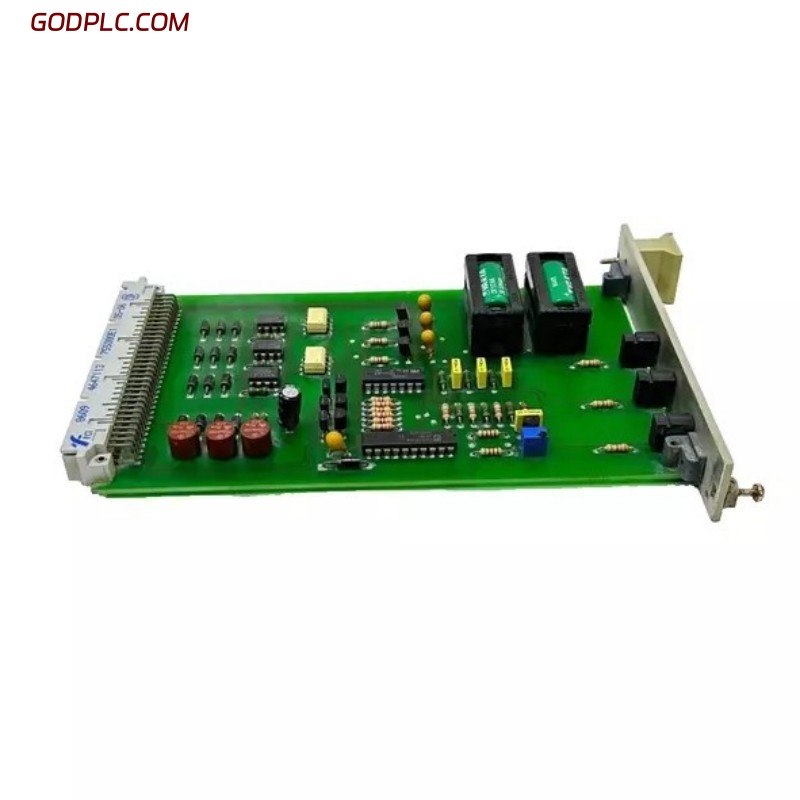

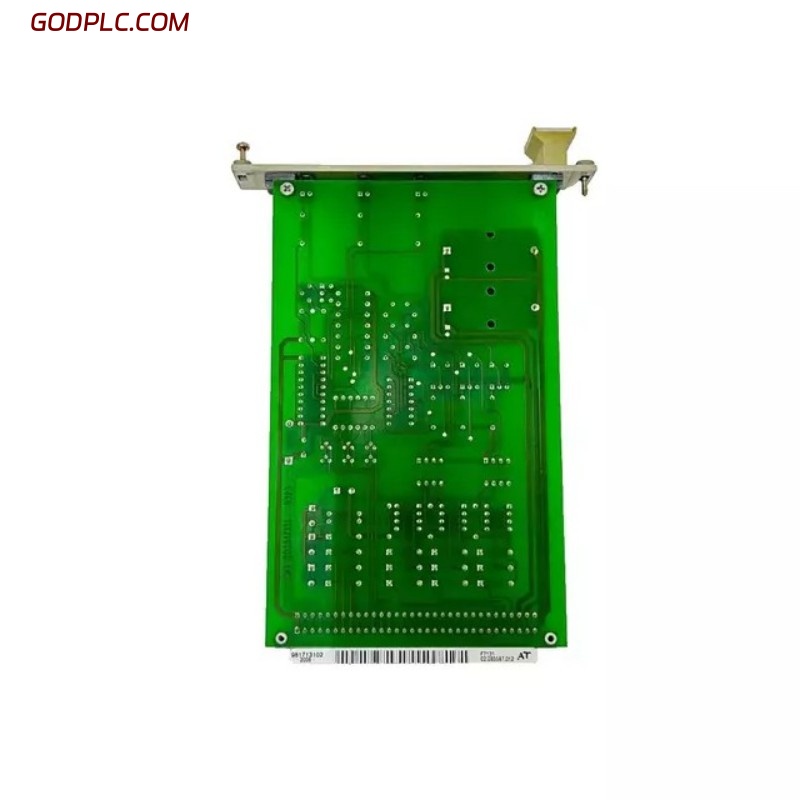

HIMA F7131 Power Supply Monitoring Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The HIMA F7131 is a power supply monitoring module with integrated buffer batteries, specifically designed for safety-critical automation systems such as the HIMA PES H51q.
Its primary function is to monitor up to three independent 5 V power supply sources, detect deviations or failures, and transmit diagnostic information to central processing units such as F8650 or F8651 modules.
The F7131 ensures that safety systems remain operational and fault-tolerant even under unstable power conditions. It provides LED status indicators, test bit outputs, and optional 24 V monitoring outputs when used with the appropriate power-supply assembly kit.
Key Features
-
Continuous monitoring of up to three 5 V DC power sources.
-

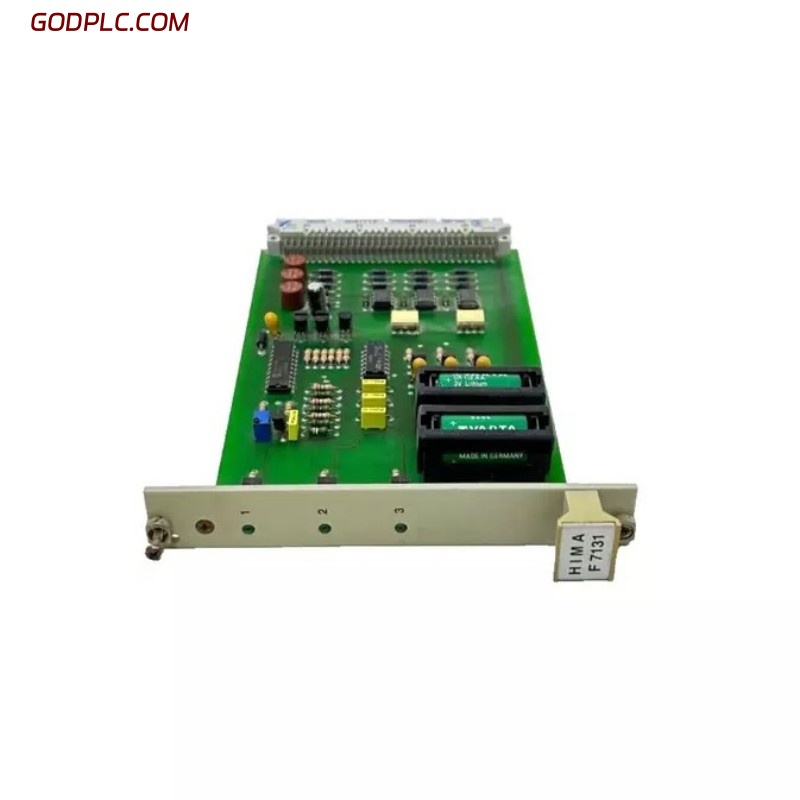

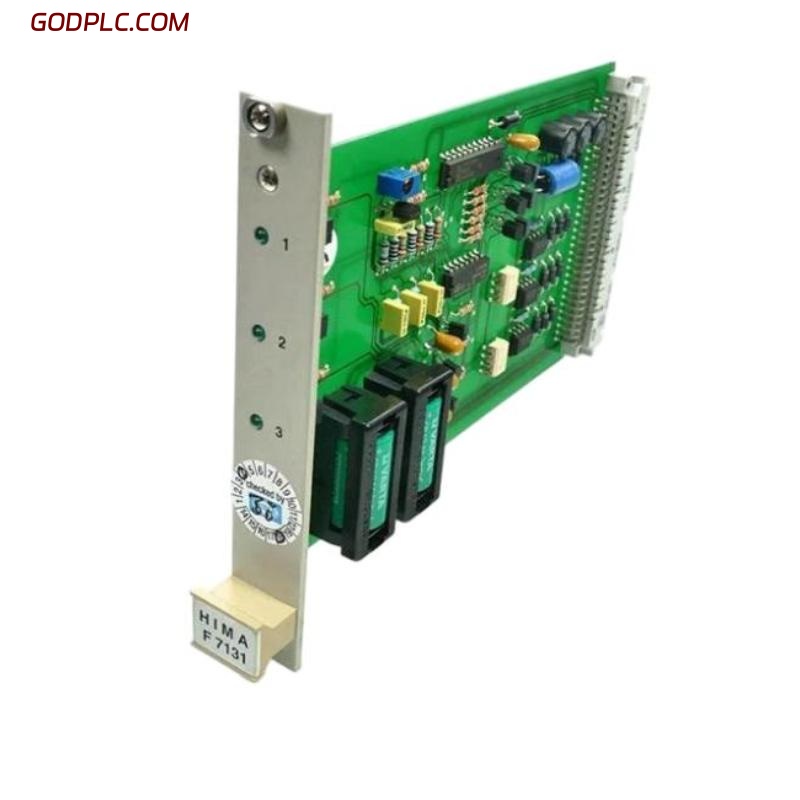

Three front-panel LED indicators showing the status of each power supply.
-
Diagnostic test bits for system monitoring and integration.
-
Integrated buffer batteries to maintain supervision during power interruptions.
-
Optional 24 V monitoring outputs (PS1–PS3) for auxiliary power supplies.
-
Compact rack-mount design (4 TE).
-
Recommended battery replacement every 4 years.
-
Designed for high reliability and long-term operation in safety-instrumented systems.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model / Part Number | F7131 | Power Supply Monitoring Module |
| Manufacturer | HIMA Paul Hildebrandt GmbH | — |
| System Compatibility | PES H51q | Used with F8650 / F8651 CPU modules |
| Function | Power Supply Monitoring with Buffer Batteries | For safety-related systems |
| Monitored Voltages | Three × 5 V DC | Independent channels |
| Operating Current | Approx. 25 mA (5 V), 20 mA (24 V) | Typical consumption |
| Outputs (24 V Monitoring) | 3 channels (PS1 – PS3) | Requires additional supply kit |
| Diagnostic Outputs | 3 test bits | For communication with central unit |
| LED Indicators | 3 LEDs | Power status display for each input |
| Buffer Battery Type | CR-½ AA-CB | HIMA P/N 44 0000016 |
| Battery Replacement Cycle | Every 4 years (recommended) | Prevents degradation |
| Space Requirement | 4 TE | Standard HIMA rack width |
| Operating Temperature Range | –20 °C to +60 °C | — |
| Storage Temperature Range | –40 °C to +85 °C | — |
| Dimensions (W × H × D) | Approx. 21 mm × 186 mm × 129 mm | Rack-mount module |
| Weight | Approx. 0.15 kg | Lightweight design |
| Country of Origin | Germany | Manufactured by HIMA in Brühl, Germany |
HIMA F7131 Power Supply Monitoring Module is in stock. Please contact us for a quick quote and competitive pricing.
