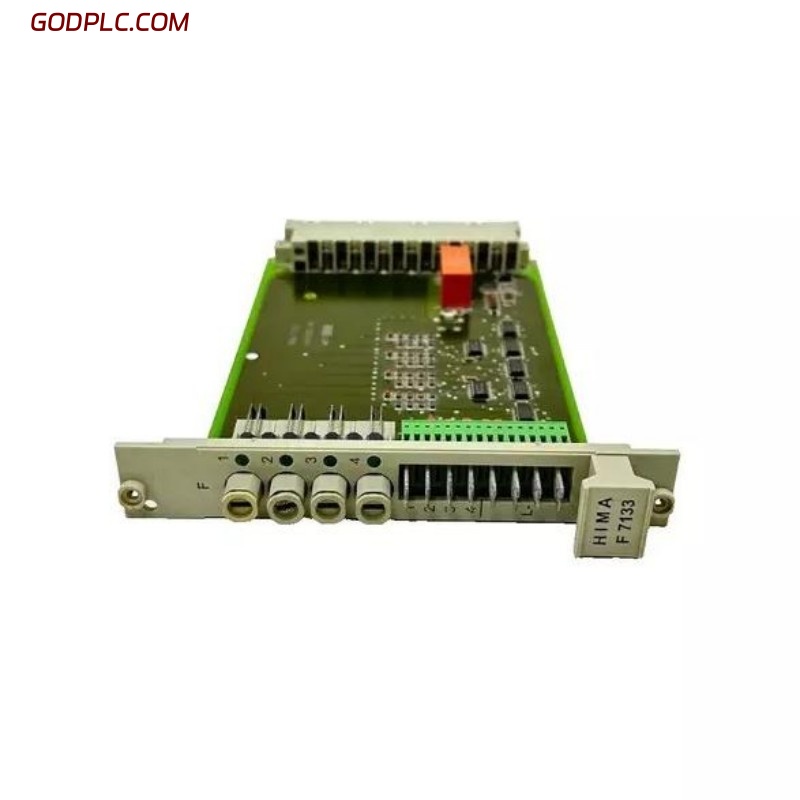

HIMA F7133 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The HIMA F7133 is a digital input module designed for use within HIMA’s safety-related control systems such as the HIMax, HIMatrix, and Planar 4 platforms. It is engineered to acquire and process discrete field signals in safety-critical industrial applications.
This module provides galvanically isolated input channels that detect the status of binary field devices such as switches, sensors, and contactors. Its robust design ensures reliable signal acquisition even in harsh industrial environments, meeting stringent SIL 3 requirements according to IEC 61508.
The F7133 is commonly used in process industries including oil & gas, petrochemical, power generation, and industrial automation, where high-integrity safety instrumented systems (SIS) are essential.
Key Features
-
16 independent digital input channels.
-
Galvanic isolation between field and system circuits.
-
Configurable signal thresholds for contact or electronic inputs.
-
High immunity to electrical noise and field interference.
-
Diagnostic functions for open-circuit and short-circuit detection.
-
Hot-swappable design for easy replacement during operation.
-
Compact form factor suitable for high-density I/O configurations.
-
Fully compliant with IEC 61508 (SIL 3) for use in safety-related systems.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | F7133 | Digital Input Module |
| Manufacturer | HIMA Paul Hildebrandt GmbH | Safety Automation Systems |
| Number of Channels | 16 digital inputs | Independent, isolated channels |
| Input Type | 24 V DC, potential-free contact or electronic signal | Compatible with standard field sensors |
| Input Current | Approx. 3 mA per channel | Typical at 24 V DC |
| Input Delay (Debounce) | ≤ 10 ms | Configurable per channel |
| Isolation Voltage | 1500 V AC | Galvanic isolation between field and system |
| Power Supply Voltage | 24 V DC (−20 % / +25 %) | Supplied from system backplane |
| Power Consumption | Approx. 3 W | Typical under full load |
| Internal Diagnostics | Line break, short circuit, and channel status monitoring | Fault indication via system bus |
| Operating Temperature | 0 °C to +60 °C | Standard module temperature range |
| Storage Temperature | −40 °C to +70 °C | For transport and long-term storage |
| Humidity | 5 % to 95 %, non-condensing | Industrial environment |
| Dimensions (H × W × D) | 160 mm × 30 mm × 115 mm (6.3 in × 1.2 in × 4.5 in) | Compact 30 mm slot width |
| Weight | Approx. 0.25 kg (0.55 lb) | Lightweight plug-in module |
| Mounting Type | Plug-in to backplane rack | Hot-swappable |
| Safety Integrity Level | SIL 3 (IEC 61508) | Certified for safety applications |
| Housing Material | Reinforced polyamide | Industrial-grade flame-retardant plastic |
| Cooling | Passive convection | No external fan required |
| Installation Location | Control cabinet (IP20) | For indoor use |
| Country of Origin | Germany | Manufactured by HIMA in Brühl, Germany |
HIMA F7133 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
