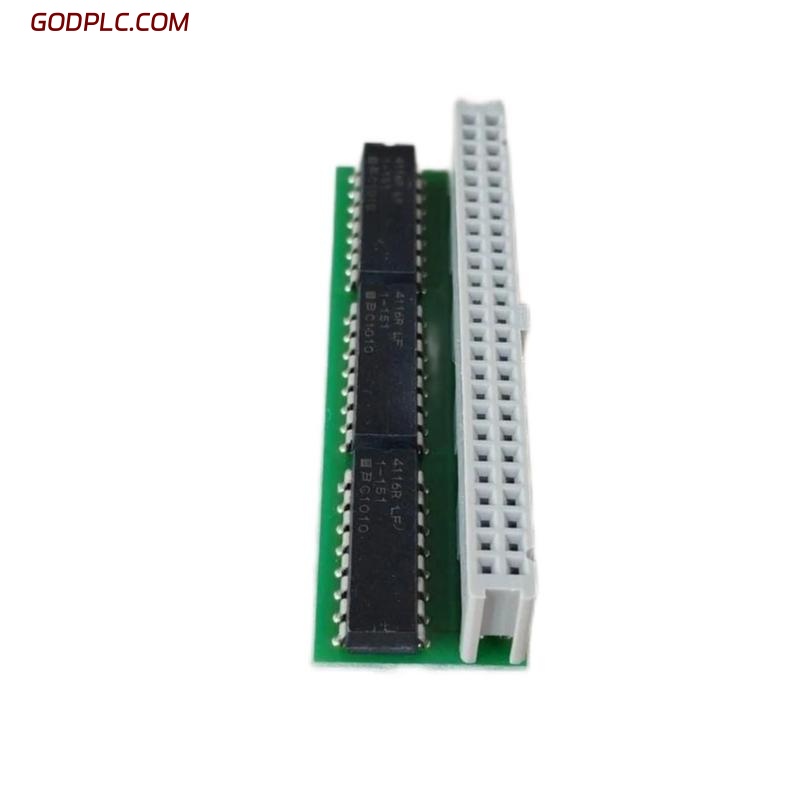

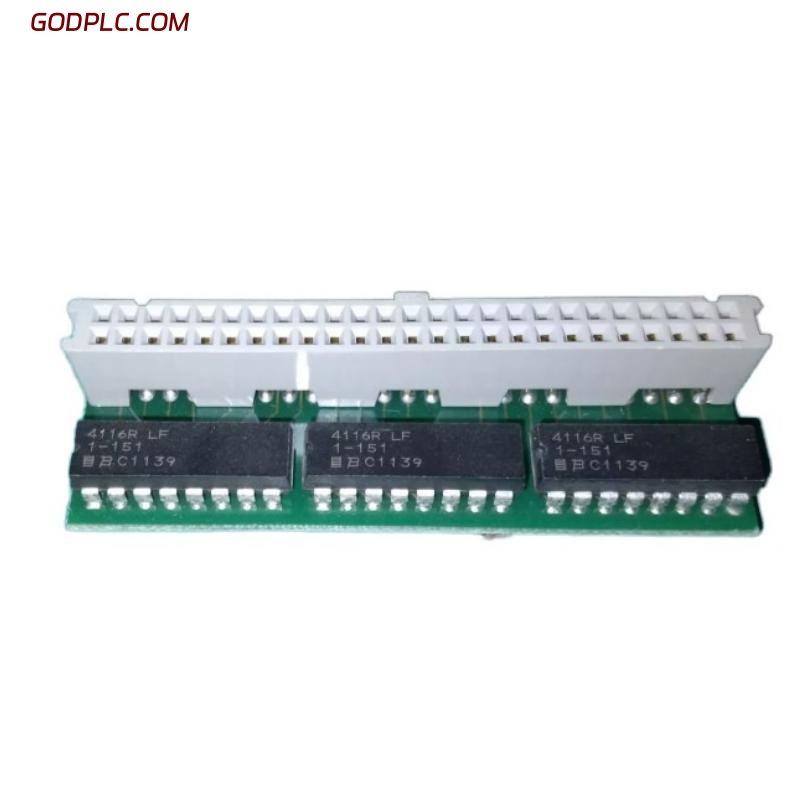

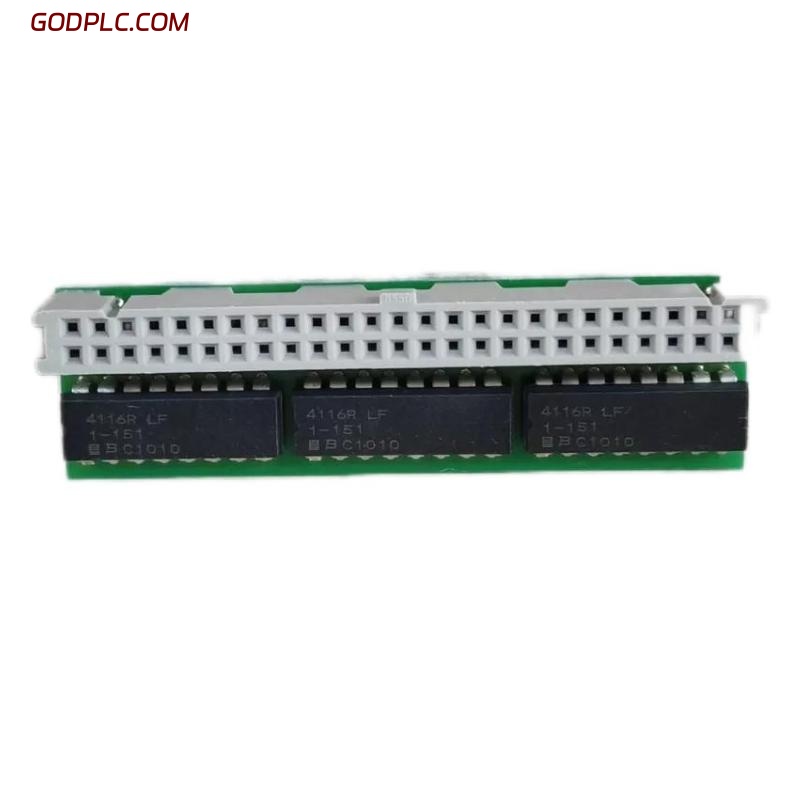

HIMA F7546 I/O Bus Coupling Module
Product Overview
The HIMA F7546 I/O Bus Coupling Module is designed to integrate various I/O modules within HIMA’s safety systems. It acts as a communication bridge, connecting remote I/O devices with the central controller, ensuring seamless data exchange between field devices and the safety system. With high reliability and robust performance, the F7546 module is ideal for critical applications in industries such as chemical, oil & gas, and power generation, where system integrity and fast response are paramount.
Key Features
-
High-Performance Communication – Facilitates high-speed communication between I/O modules and the central safety controller, ensuring efficient data exchange
-
Flexible Configuration – Supports various I/O configurations, enabling seamless integration with a wide range of field devices and safety modules
-
Robust and Reliable Design – Built for harsh industrial environments, providing reliable operation in critical applications
-
Redundant Power Supply – Ensures continuous operation with a redundant power supply setup, minimizing downtime in case of failure
-
Compact Design – Optimizes space usage in control panels, making it easy to integrate within existing systems
-
Built-in Diagnostics – Features diagnostic indicators and communication status LEDs for real-time monitoring and troubleshooting
-
Safety Compliance – Designed to meet industry standards for functional safety, ensuring the integrity of safety-critical systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 100 x 50 x 20 mm |
| Weight | 0.56 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC ± 10% |
| Power Consumption | 2 W (typical) |
| Communication Protocol | PROFIBUS, Modbus, or Ethernet options |
| Output Voltage | 24 VDC (for connected I/O modules) |
| Power Supply Redundancy | Yes |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | HIMA Safety System |
| Compatible Modules | Compatible with HIMA I/O modules |
| Module Type | I/O Bus Coupling Module |
Industry Applications
-
Safety Systems – Integrates I/O modules into safety-critical systems for industries such as oil & gas, power generation, and chemical plants
-
Process Automation – Facilitates seamless communication between I/O devices and central controllers in complex industrial processes
-
Industrial Control – Ensures reliable data exchange between field devices and control systems, enhancing the efficiency and safety of automated processes
-
Redundant Systems – Supports redundant configurations for high availability and fault tolerance in critical applications
-
Power Generation – Ensures the reliable operation of safety-critical systems in power plants, including emergency shutdown systems and protective relays
The HIMA F7546 I/O Bus Coupling Module offers a high-performance and reliable solution for connecting I/O modules in safety systems. Its flexible configuration, robust design, and diagnostics capabilities make it ideal for critical applications in industries that require high availability and safety compliance.
HIMA F7546 I/O Bus Coupling Modules is in stock. Please contact us for a quick quote and competitive pricing.
