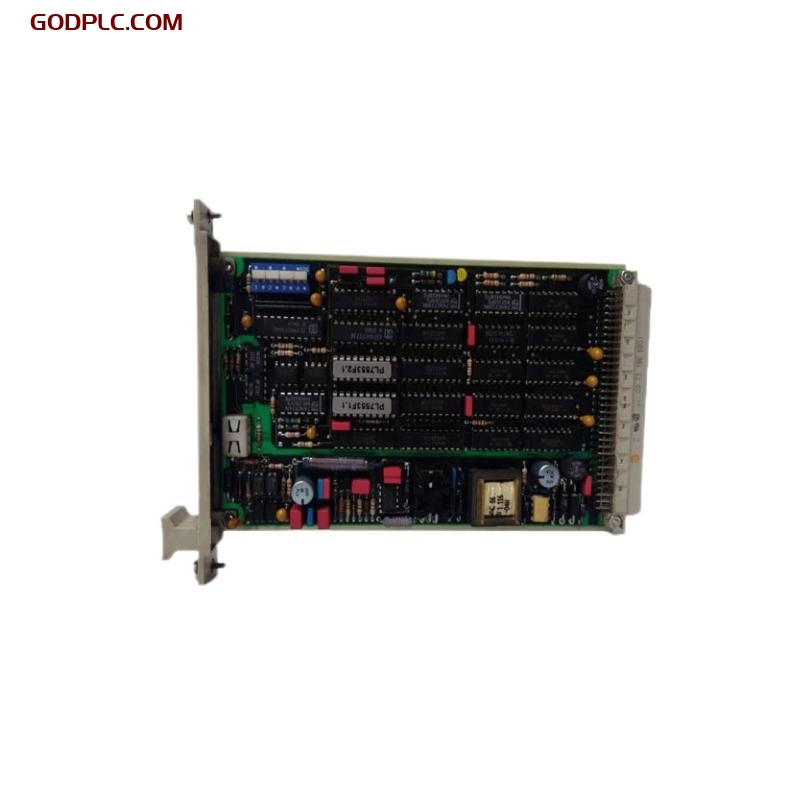

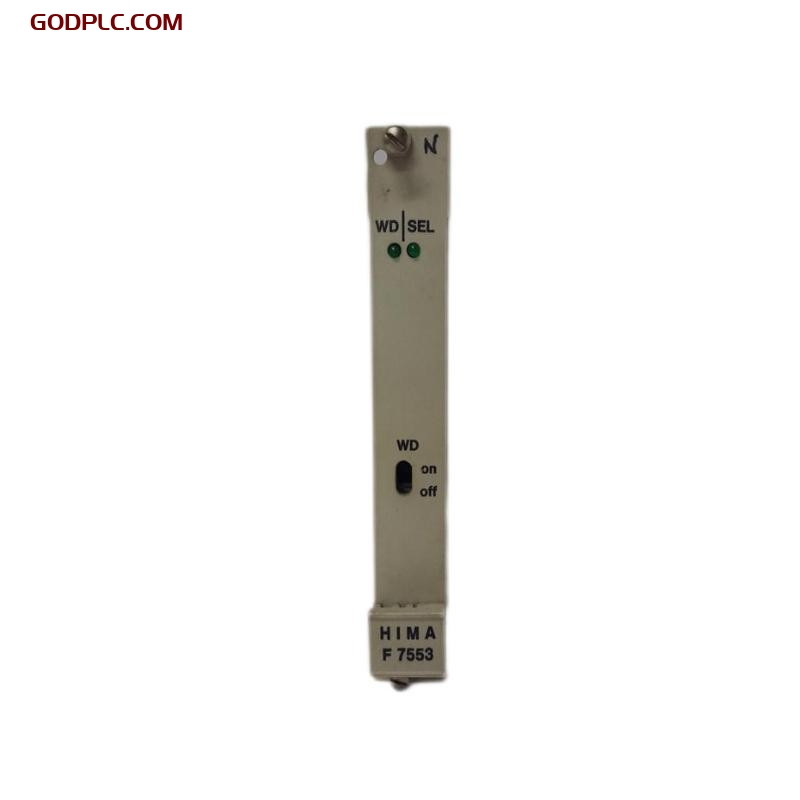

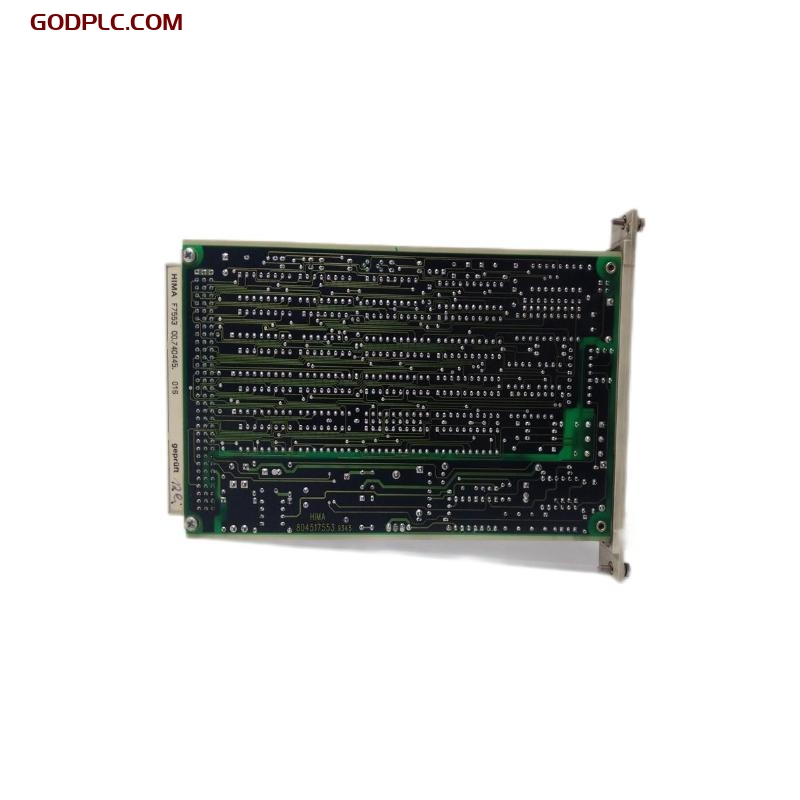

HIMA F7553 Coupling Module
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The HIMA F7553 is a coupling module designed to interface signal transmission between HIMA safety-related systems and external field devices or systems. It provides electrically isolated signal coupling and supports robust interfacing for critical applications in safety instrumented systems (SIS). Built for high reliability and secure operation in demanding industrial environments, the F7553 ensures stable and interference-resistant communication between control systems and their connected peripherals.
Key Features
-
Galvanic Isolation – Provides electrical isolation between input and output channels for safe and interference-free signal transfer
-
Flexible Coupling Functions – Supports signal adaptation between control systems and field devices
-
High Reliability – Designed for continuous operation in safety-critical environments
-
DIN Rail or Module Carrier Mounting – Allows easy installation within HIMA racks or cabinets
-
Diagnostics Support – Facilitates monitoring and troubleshooting of signal paths
-
SIL-Compatible Design – Suitable for use in Safety Integrity Level (SIL) rated systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Space requirement：4 TE |
| Weight | 0.14 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Channels | Typically 2 or 4 coupling channels |
| Input Voltage | 24 VDC nominal |
| Output Type | Passive relay/contact or logic level output |
| Isolation Voltage | ≥1500 V between input/output/system bus |
| Signal Delay | <10 ms typical |
| Power Consumption | <1.5 W |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -25°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (with cabinet enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | HIMA HIMax / HIQuad / Planar4 systems (varies) |
| Mounting | DIN rail or module rack installation |
| Configuration | Via system engineering tools (e.g., ELOP II/III) |
Industry Applications
-
Oil & Gas – Interfaces safety PLCs with field-level actuators or alarm systems
-
Chemical Processing – Provides galvanic separation for hazardous area signals
-
Power Generation – Ensures safe signal transmission in turbine and generator control systems
-
Pharmaceutical Plants – Supports safety monitoring and interlocking circuits
-
Railway & Transportation – Couples control systems in safety-critical signaling infrastructure
The HIMA F7553 Coupling Module is a critical component for achieving safe, interference-free signal transmission in industrial automation and safety systems. With high reliability, flexible application, and integration capability, it is an essential element in the architecture of modern safety control solutions.
HIMA F7553 Coupling Module is in stock. Please contact us for a quick quote and competitive pricing.
