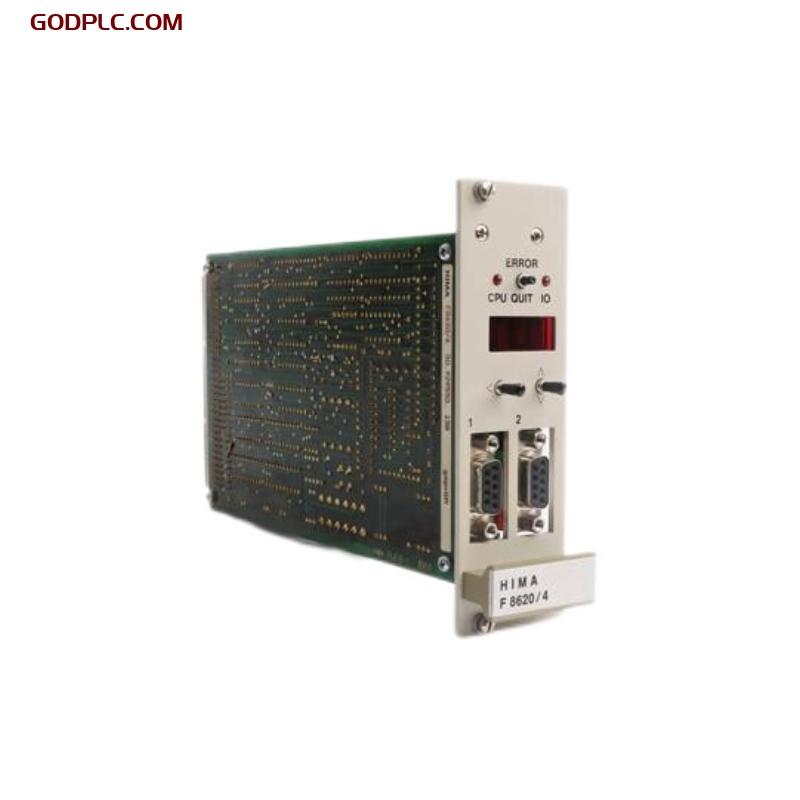

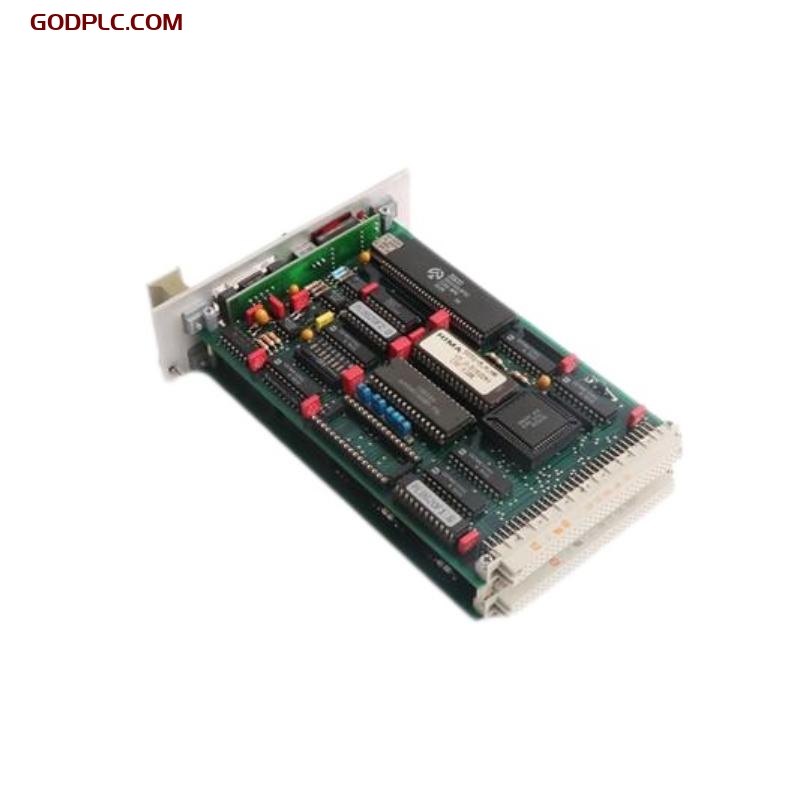

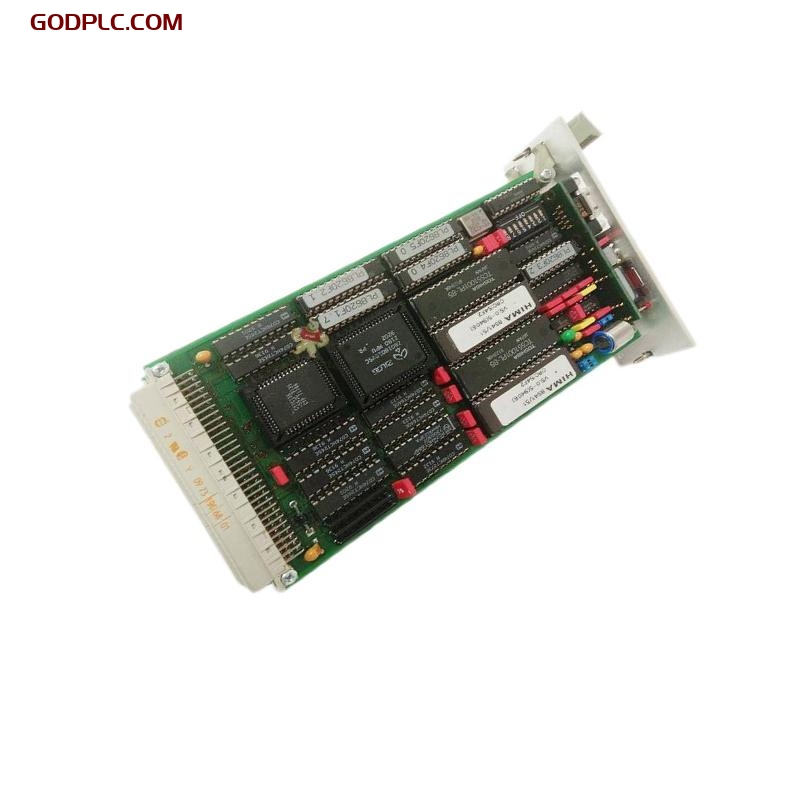

HIMA F8620/4 CPU Module (H41q/H51q System)
1. Product Overview
The HIMA F8620/4 CPU Module is an integral component of the H41q and H51q systems, designed for use in high-demand, safety-critical industrial applications. These systems are part of HIMA’s programmable electronic systems (PES), widely used in industries such as oil & gas, chemical processing, power generation, and manufacturing. The F8620/4 module offers high performance, redundancy, and reliability to meet the stringent requirements of modern industrial control systems.
The F8620/4 CPU module integrates seamlessly into the H41q and H51q system architectures, providing advanced control capabilities and real-time diagnostics, which are essential for complex industrial processes.
2. Key Features
-
High Processing Power: Features advanced microprocessors for handling complex control tasks efficiently and reliably.
-
Redundant Architecture: Dual processors with hardware comparison for high fault tolerance and continuous operation.
-
Flexible Communication Options: Multiple RS-485 communication ports, supporting various industrial protocols and configurable transmission rates.
-
Comprehensive Diagnostics: Built-in LED indicators for real-time monitoring of system status, power supply, and operational health.
-
Modular Design: Designed to integrate easily into the H41q and H51q system subracks, ensuring scalable and flexible configurations.
-
Memory Backup: Lithium battery backup for sRAM ensures memory retention during power loss, safeguarding critical data.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 50 mm |
| Weight | 0.45 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | F8620/4 |
| Manufacturer | HIMA |
| System Compatibility | H41q/H51q System Families |
| Mounting | Installed within H41q/H51q subrack |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
3.3 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (main supply) |
| Power Consumption | Approximately 12 W |
| Backup Power | Lithium battery for memory retention |
| Status Indicators | LEDs for power, fault, and operational status |
| Communication Ports | 2 × RS-485 serial interfaces |
3.4 System Features
-
Redundant Processors: Dual processors with hardware comparison to ensure continuous operation and fault detection.
-
Memory Backup: Lithium battery backup for sRAM to preserve data during power outages.
-
Communication Flexibility: Configurable transmission rates for RS-485 interfaces, supporting various industrial communication protocols.
-
Diagnostic Monitoring: Comprehensive diagnostics including system status LEDs, battery health monitoring, and power supply status checks.
4. Industry Applications
The HIMA F8620/4 CPU Module is widely used in industries that require high reliability, safety, and real-time processing:
-
Oil & Gas: Ensures safe operation of exploration and production processes, with a focus on system availability and fault detection.
-
Chemical Processing: Provides reliable control and monitoring for chemical reactions and process safety in harsh environments.
-
Power Generation: Oversees control systems in power plants, including turbine management and grid interfacing.
-
Manufacturing: Enhances automation in production lines and ensures quality control in industrial operations.
The F8620/4 module’s robust design, high processing power, and fault-tolerant features make it an essential component for mission-critical applications where safety and operational continuity are paramount.
HIMA F8620/4 CPU Module (H41q/H51q System) is in stock. Please contact us for a quick quote and competitive pricing.
