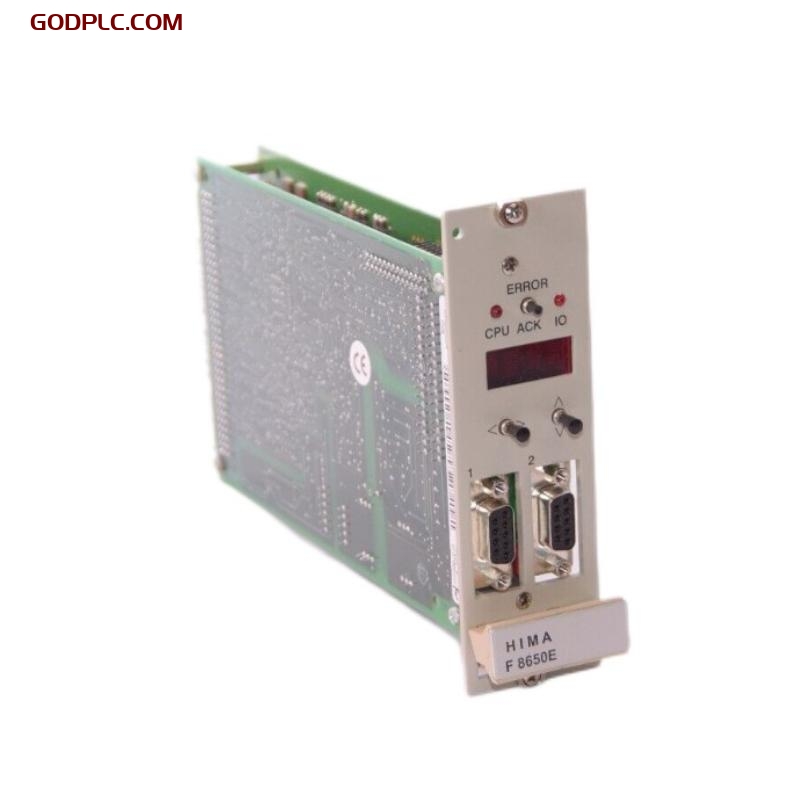

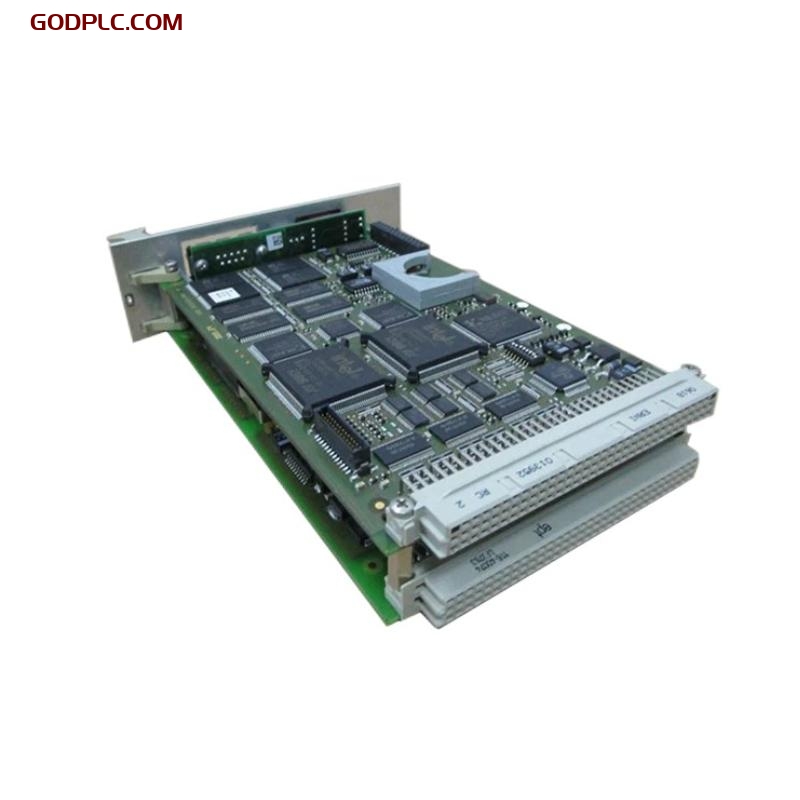

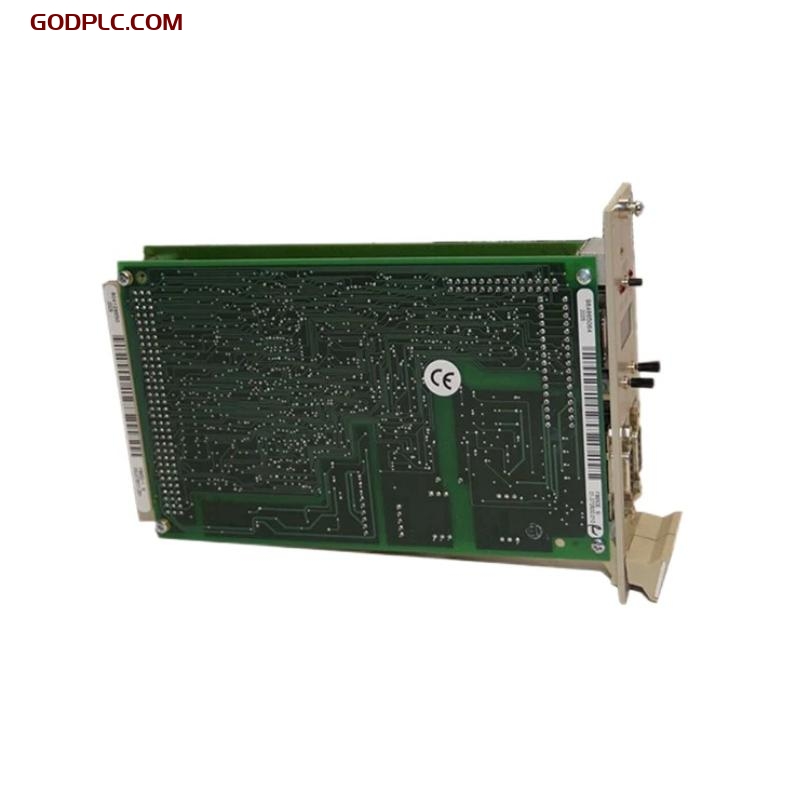

HIMA F8650E Central Module (HIQuad System)
1. Product Overview
The HIMA F8650E Central Module is a high-performance safety controller designed for use in the HIQuad safety system. It plays a central role in managing safety instrumented functions (SIFs) for process control and industrial automation, ensuring high availability, redundancy, and fault tolerance. The F8650E provides a reliable and secure platform for safety-critical applications, offering seamless integration into HIMA’s HIQuad architecture.
This module supports SIL3 certification, meeting the highest safety standards for industries such as oil & gas, chemical, and power generation. The F8650E is capable of executing complex logic functions, providing advanced diagnostics, and enabling system redundancy, ensuring safe and continuous operation in the most demanding environments.
2. Key Features
-
SIL3 Certified: Complies with IEC 61508 standards for functional safety in high-integrity applications.
-
Redundancy Support: Includes hot-standby redundancy for fault tolerance and system reliability.
-
Advanced Diagnostics: Built-in diagnostic tools for system health monitoring and fault detection.
-
High-Speed Processing: Optimized for quick execution of safety logic functions with minimal delay.
-
Flexible I/O Integration: Supports a wide range of field devices and I/O modules for versatile configuration.
-
Seamless Integration: Easily integrates with other HIMA safety and control systems.
-
Built-in Security: Provides secure communication and protection against unauthorized access.
-
Flexible Communication Protocols: Supports standard industrial protocols for easy system integration.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 257 x 114 x 30mm |
| Weight | 1.5 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | F8650E (HIQuad Central Module) |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Installation | Rack-mounted in HIQuad safety system |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Functional Capabilities
| Item | Specification |
|---|---|
| Safety Certification | SIL3 per IEC 61508 and IEC 61511 |
| Redundancy | Hot-standby redundant configuration |
| Processing Speed | Fast processing with < 50 ms response time |
| Diagnostics | Real-time diagnostics with fault isolation |
| I/O Configuration | Supports flexible I/O modules and field devices |
| Logic Execution | Supports complex logic and SIF execution |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% (via backplane) |
| Power Consumption | Approx. 8 W |
| Status Indicators | LEDs for power, status, and fault |
4. Industry Applications
-
Oil & Gas: Used in emergency shutdown systems (ESD), pressure safety systems, and wellhead control.
-
Chemical & Petrochemical: Implements safety instrumented functions for reactor protection, emergency venting, and hazardous material handling.
-
Power Generation: Ensures critical safety control for turbines, generators, and boiler systems.
-
Pharmaceuticals: Provides safety control for batch processes, chemical reactions, and environmental monitoring.
-
Water Treatment: Applied in critical safety loops for water distribution and treatment plants.
The HIMA F8650E Central Module ensures the highest level of safety integrity in mission-critical applications, providing the reliability and robustness needed for industrial safety systems. Its advanced features and flexibility make it a cornerstone in the HIQuad safety architecture.
HIMA F8650E Central Module (HIQuad system) is in stock. Please contact us for a quick quote and competitive pricing.
