Product Overview

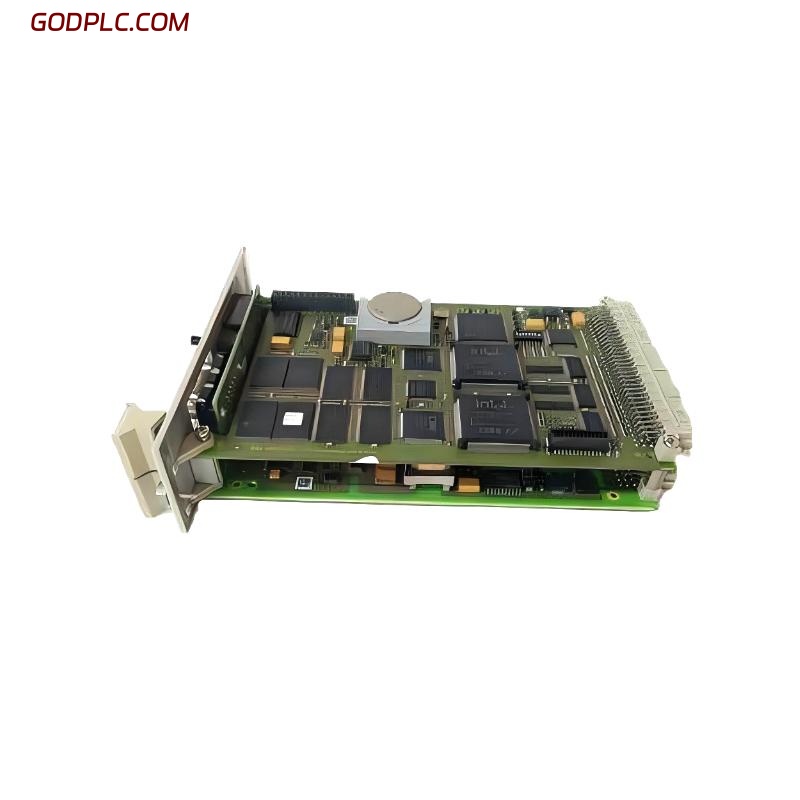

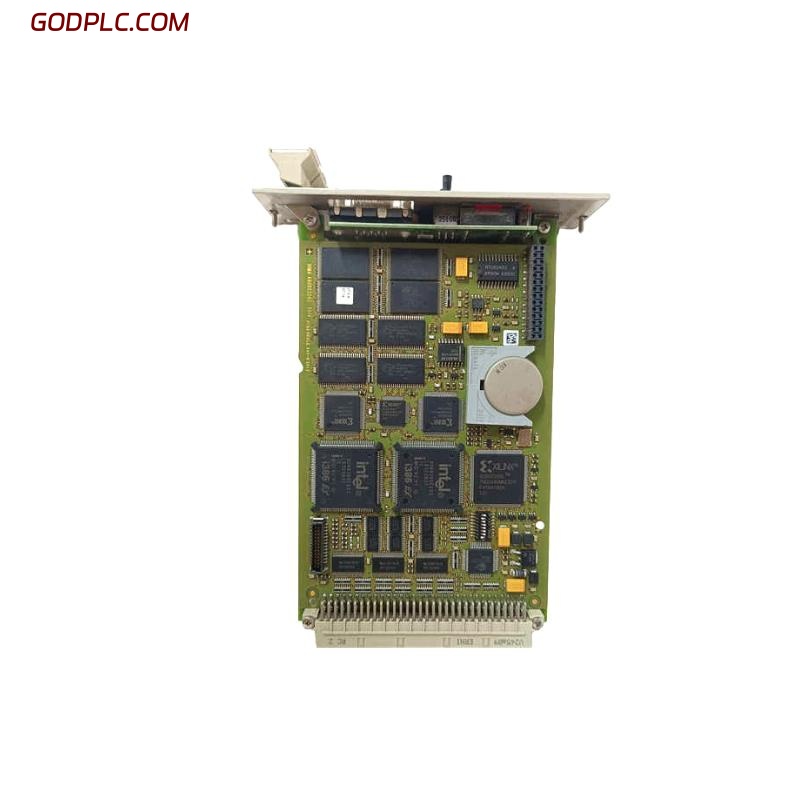

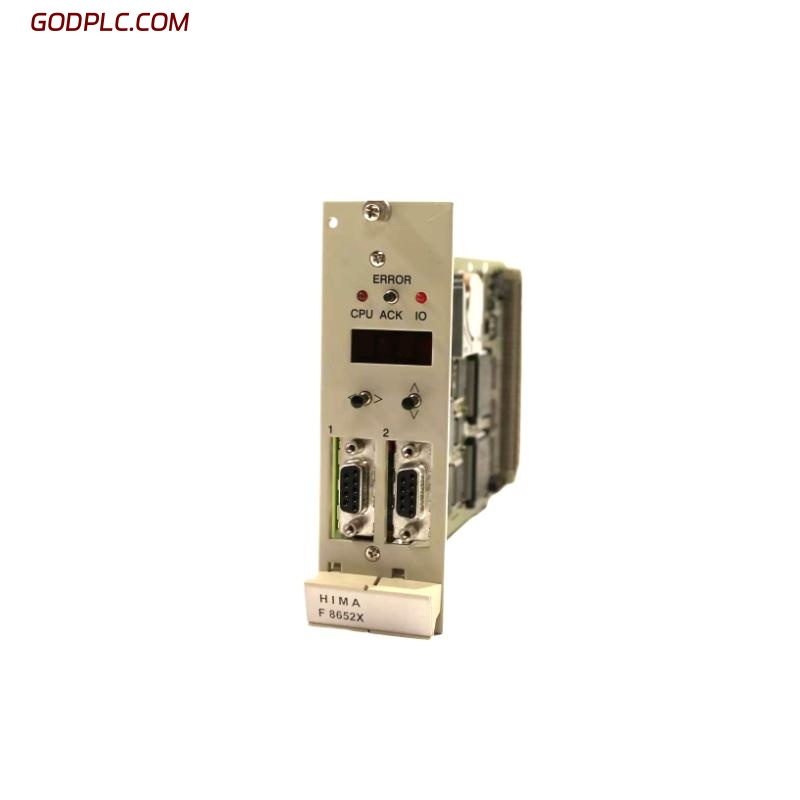

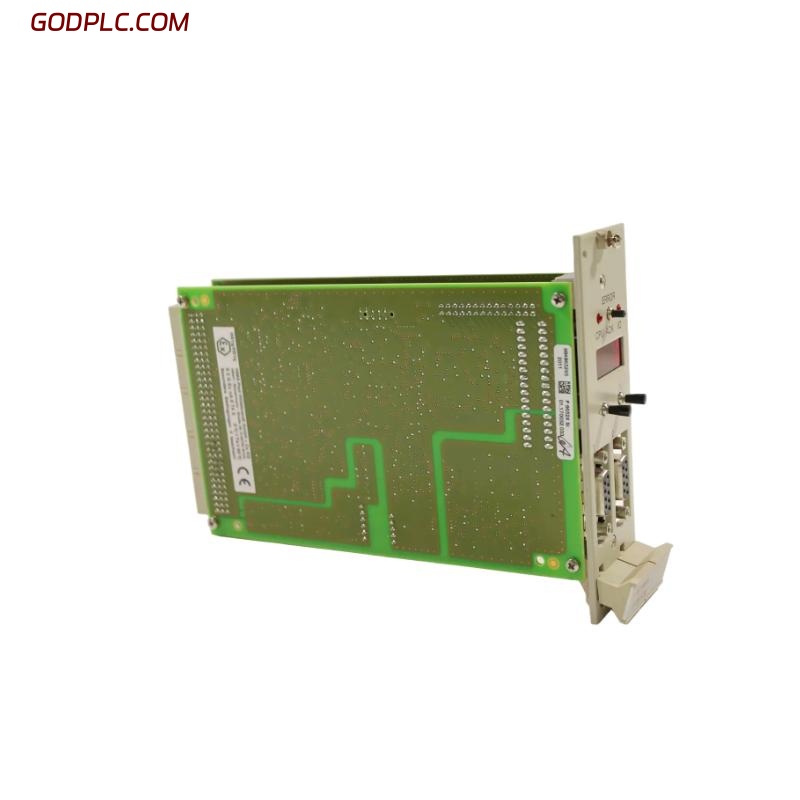

The HIMA F8652X is a high-reliability power supply module designed for use in HIMA HIMax and HIQuad safety-related automation systems. It provides regulated power to system modules, ensuring stable and safe operation even under demanding industrial conditions.
Developed for critical process control and safety applications, the F8652X delivers galvanically isolated, redundant power supply capability. It is engineered with fault tolerance, internal diagnostics, and robust electrical protection, ensuring compliance with international functional-safety standards such as IEC 61508 and SIL 3 requirements.
The module supports redundant installation, allowing two F8652X units to operate in parallel for uninterrupted system power. Its compact size, high efficiency, and integrated monitoring functions make it ideal for safety-critical environments such as refineries, chemical plants, power generation facilities, and offshore platforms.
Key Features
-
Designed for HIMA HIMax and HIQuad safety systems.
-
Provides stabilized, galvanically isolated DC power output.
-
Redundant operation supported for high availability.
-
Integrated self-diagnostics and status indication via front LEDs.
-
Short-circuit, over-voltage, and over-temperature protection.
-
Compact form factor for space-efficient system integration.
-
Designed for continuous 24/7 industrial operation.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | F8652X | Power Supply Module |
| Function | Regulated DC power supply for HIMA safety systems | Provides power to controller and I/O modules |
| Input Voltage | 24 V DC (nominal), range 19.2 – 30 V DC | Typical industrial supply voltage |
| Output Voltage | 5 V DC and 24 V DC (regulated outputs) | Provides separate supply rails for logic and field devices |
| Output Current | Up to 5 A (depending on load and configuration) | Stable under full load conditions |
| Power Output | Up to 120 W | Combined total output power |
| Efficiency | > 85 % | High-efficiency design minimizes heat generation |
| Galvanic Isolation | Input ↔ Output ↔ System Bus | Ensures electrical separation for safety |
| Redundancy | Fully redundant when two modules are used in parallel | Hot-swappable without system shutdown |
| Diagnostics | LED indicators for operating, fault, and standby status | Supports system fault detection |
| Cooling | Natural convection | No active fan required |
| Operating Temperature Range | 0 °C – +60 °C | Suitable for control cabinet environments |
| Storage Temperature Range | –40 °C – +85 °C | For transport and long-term storage |
| Humidity | 5 % – 95 %, non-condensing | Industrial environment specification |
| Dimensions (H × W × D) | 160 mm × 30 mm × 115 mm (6.30 in × 1.18 in × 4.53 in) | Compact rack-mount design |
| Weight | Approx. 0.35 kg (0.77 lb) | Lightweight aluminum enclosure |
| Mounting Type | DIN-rail / card-frame mounting | Fits HIMax and HIQuad racks |
| Protection | Short-circuit, reverse polarity, over-temperature | Integrated electronic safeguards |
| Certifications | SIL 3 (IEC 61508), CE, ATEX, TÜV | Suitable for safety-critical systems |
| Country of Origin | Germany | Manufactured by HIMA Paul Hildebrandt GmbH |
HIMA F8652X DIN-rail / card-frame mounting is in stock. Please contact us for a quick quote and competitive pricing.
