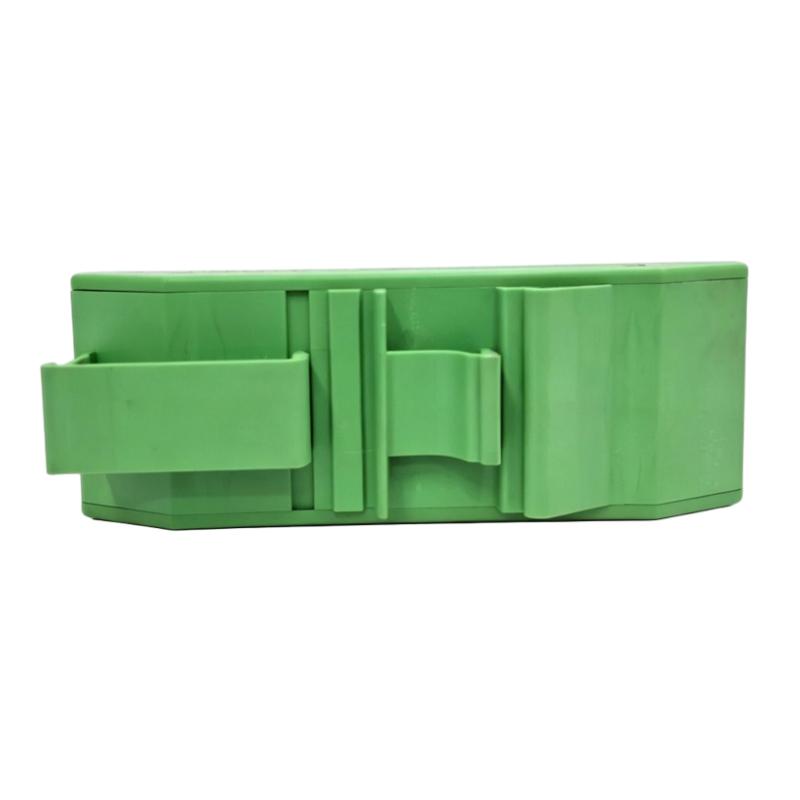

HIMA H7506 Bus Termination Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | HIMA |
| Model | H7506 |
| Product Type | Bus Termination Module |
| Main Function | Bus termination and connection for HIMA safety communication systems |
| Bus Type | HIBUS-2 / RS-485 |
| Bus Connection | 2-wire bus |

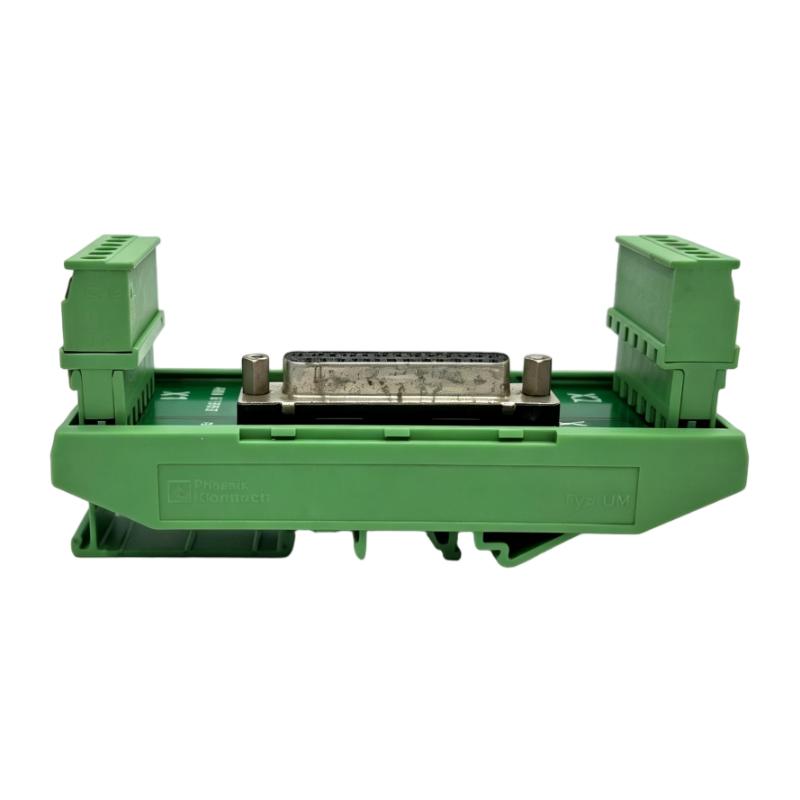

| Controller Connection | 25-pole Mini-D socket |

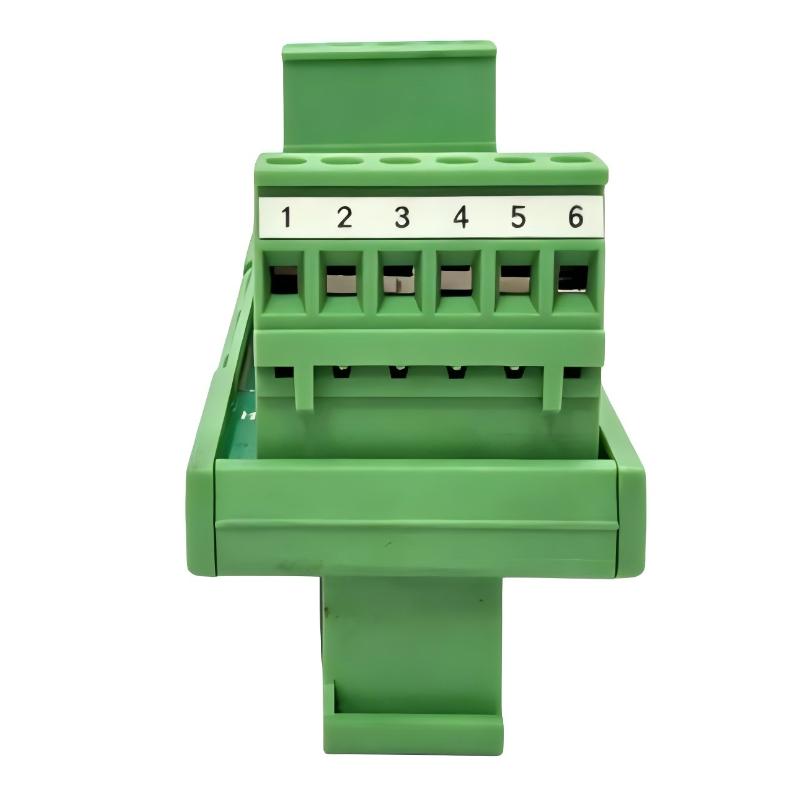

| Bus Terminals | 2 × 6-pole plug clamps |
| Compatible Controllers | H41q / H51q and related HIMA PES systems |
| Compatible Data Cables | BV 7040, BV 7046 |
| Bus Termination | Two selectable terminating resistors |
| Termination Control | Two switches for enabling or disabling bus termination |
| Loop Resistance | 180 Ω |
| Maximum Transmission Distance | 1,200 m with 0.25 mm² wiring; up to 2,400 m with 0.5 mm² wiring |
| Maximum Wire Cross-Section | Up to 2.5 mm² |
| Mounting | DIN rail / top-hat rail mounting |
| Communication Standard | RS-485 |
| Typical Application | HIMA safety controllers, industrial automation and process control communication |
| Dimensions | 110 × 35 × 70 mm |
| Weight | 0.11 kg |
FAQ
1. What is the HIMA H7506 Bus Termination Module used for?
The HIMA H7506 is a bus terminal designed for HIMA safety control systems. It provides the physical connection between compatible HIMA controllers and the two-wire RS-485 bus while also allowing bus termination resistors to be enabled when the module is installed at the end of the communication line.
2. Which communication interface does the H7506 use?
The H7506 is used with HIBUS-2 communication based on RS-485 technology. It provides a 25-pole Mini-D socket for connection to compatible HIMA PES equipment and two 6-pole plug clamps for the two-wire bus connections. This arrangement allows the module to serve as an interface between the controller connection and the field bus wiring.
3. Which HIMA controllers are compatible with the H7506?
The H7506 is designed for use with HIMA PES systems including H41q and H51q controllers. Compatible data cables include HIMA BV 7040 and BV 7046. The exact controller configuration and cable arrangement should be checked before installation to ensure that the complete communication path is correctly configured.
4. How are the bus terminating resistors activated on the H7506?
The H7506 has two switches that allow the bus terminating resistors to be switched on or off. When the module is installed at the end of a two-wire RS-485 bus, the appropriate termination setting should be enabled. Correct termination helps reduce signal reflections and maintain reliable communication, particularly on longer bus segments.
5. What is the maximum transmission distance supported by the H7506?
The available specifications indicate a maximum transmission length of approximately 1,200 meters when using 0.25 mm² wiring. With 0.5 mm² wiring, the specified transmission length can reach approximately 2,400 meters. Actual communication performance also depends on cable quality, network topology, electromagnetic interference and the configuration of the complete RS-485 network.
6. Can the H7506 be installed at the end of a two-wire bus?
Yes. The H7506 is specifically designed to provide bus termination and can be installed at the end of a two-wire RS-485 bus. When it is used at the end of the bus, the appropriate termination switch should be configured. The X2 terminal block cannot be connected when the H7506 is being used at the end of the two-wire bus.
7. What are common causes of communication problems with an H7506?
Communication problems can result from incorrect termination settings, reversed RS-485 data lines, loose terminal connections, unsuitable cable, excessive transmission distance, or incorrect controller configuration. When troubleshooting, check the A/B data connections, termination switches, cable continuity, shielding and grounding, and verify that the HIMA communication parameters match the system configuration.
8. What should be checked when replacing an HIMA H7506?
Before replacement, confirm the original module model and inspect the existing wiring and termination configuration. The replacement H7506 should be installed with the same bus connections and termination settings unless the network design has changed. After installation, verify the controller connection, RS-485 communication lines and bus termination, then perform a communication test to confirm stable data transmission.
HIMA H7506 Bus Termination Module is in stock. Please contact us for a quick quote and competitive pricing.
