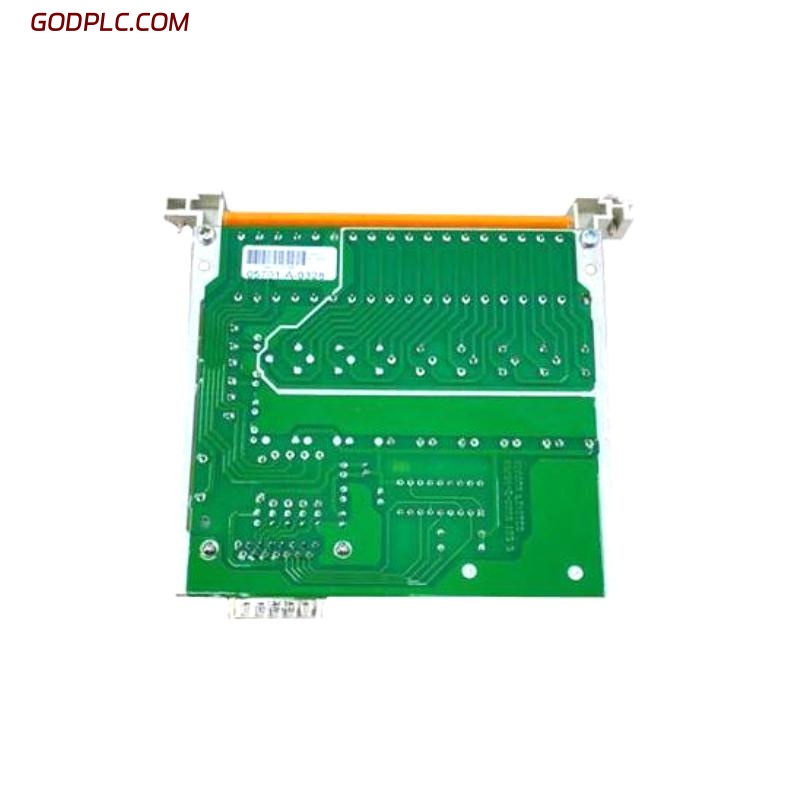

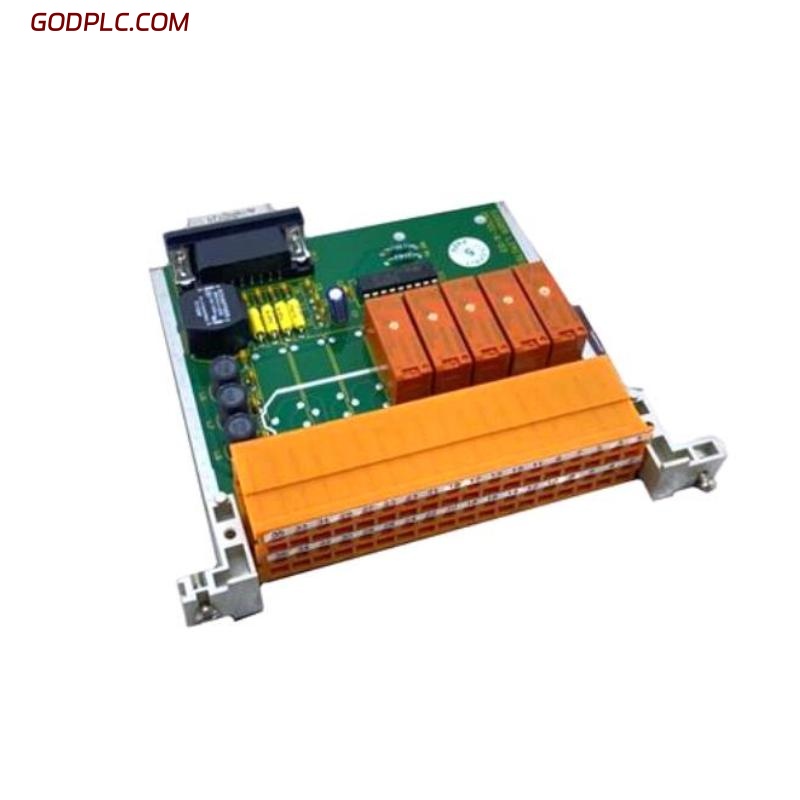

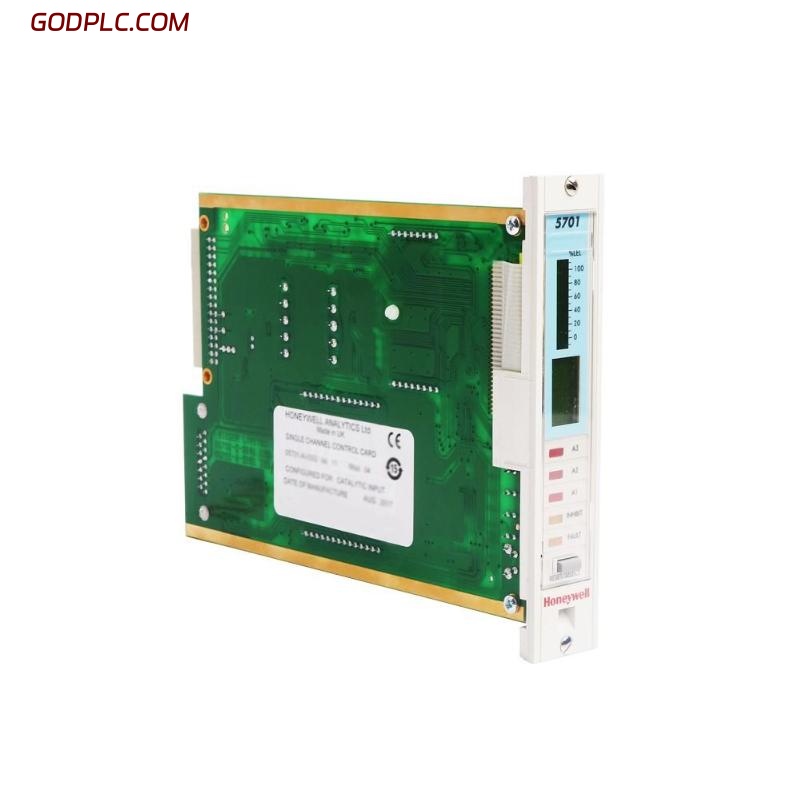

Honeywell 05701-A-0328 Single Channel Control Card
Product Overview
The Honeywell 05701-A-0328 Single Channel Control Card is a versatile and high-performance control module designed for a wide range of industrial applications. This control card provides precise management of control loops, alarms, and other critical system functions within Honeywell’s process control and safety systems. The 05701-A-0328 module is engineered for reliable performance in challenging environments, offering easy integration with Honeywell’s control platforms. Its flexibility and robust construction make it ideal for industries such as manufacturing, oil & gas, and chemical processing, where real-time control and safety are paramount.
Key Features
-
Single Channel Control – Dedicated channel that provides specific control functions, offering high precision and reliability for system operations
-
Flexible Functionality – Configurable for a variety of applications, including alarm management, system resets, and control loop tasks
-
Easy Integration – Designed for seamless integration with Honeywell’s control systems, simplifying system setup and ensuring consistent operation across connected devices
-
High Reliability – Built for long-term, continuous operation in demanding industrial environments, ensuring minimal downtime and reliable system performance
-
Compact Form Factor – Space-efficient design that delivers powerful control functionality without taking up excessive panel space
-
User-Friendly Configuration – Simple to calibrate and configure for different control requirements, making it easy to set up and maintain
-
Rugged and Durable – Capable of withstanding harsh industrial conditions, including extreme temperatures, humidity, and exposure to corrosive elements
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 170 x 25 x 112 mm |
| Weight | 0.165 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Current Consumption | Approx. 80 mA |
| Output Signal | Relay or analog output |
| Control Functions | Configurable for various control tasks (e.g., alarms, resets, loops) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | IP20 (when properly installed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Honeywell Process Control Systems |
| Compatible Modules | Various Honeywell Control Modules |
| Module Type | Single Channel Control Card |
Industry Applications
-
Process Control – Provides precise and reliable control of industrial processes in applications such as chemical, pharmaceutical, and food production
-
Manufacturing – Manages automation processes, ensuring efficient production lines and reducing downtime in complex manufacturing systems
-
Oil & Gas – Ideal for controlling operations in refineries, pipelines, and offshore platforms, ensuring that systems remain operational and safe
-
Energy and Utilities – Facilitates control in power generation and distribution systems, ensuring smooth and safe energy production
-
HVAC Systems – Monitors and controls HVAC processes in commercial, residential, and industrial applications, maintaining optimal environmental conditions
The Honeywell 05701-A-0328 Single Channel Control Card is an essential module for managing control functions within Honeywell’s industrial automation systems. Its flexibility, reliable performance, and easy integration make it a valuable component in industries that require precise control, including manufacturing, energy, and oil & gas. Built to withstand challenging environmental conditions, this control card ensures the continuous and safe operation of critical systems.
