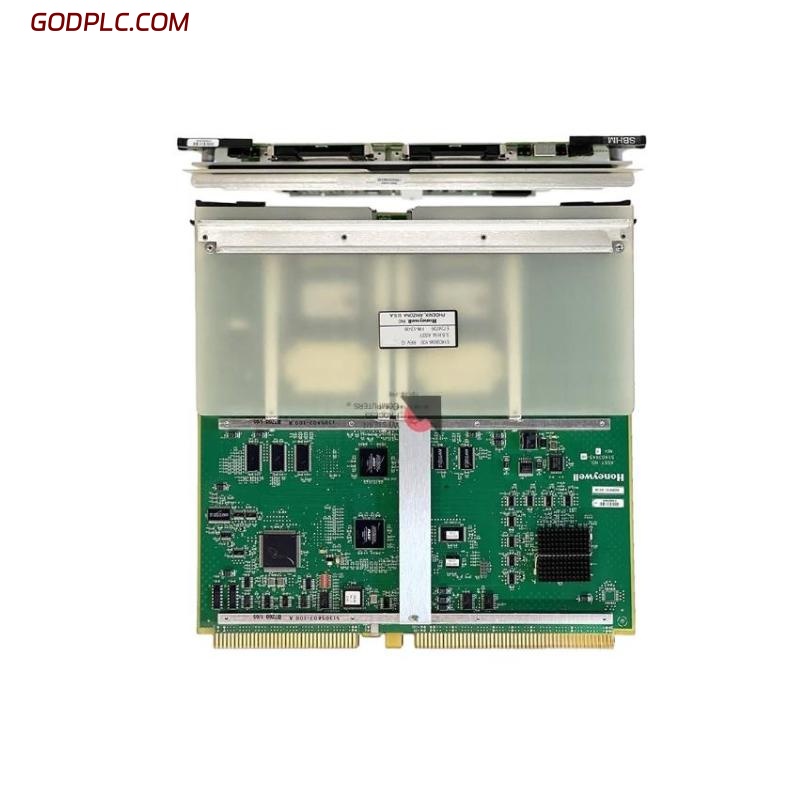

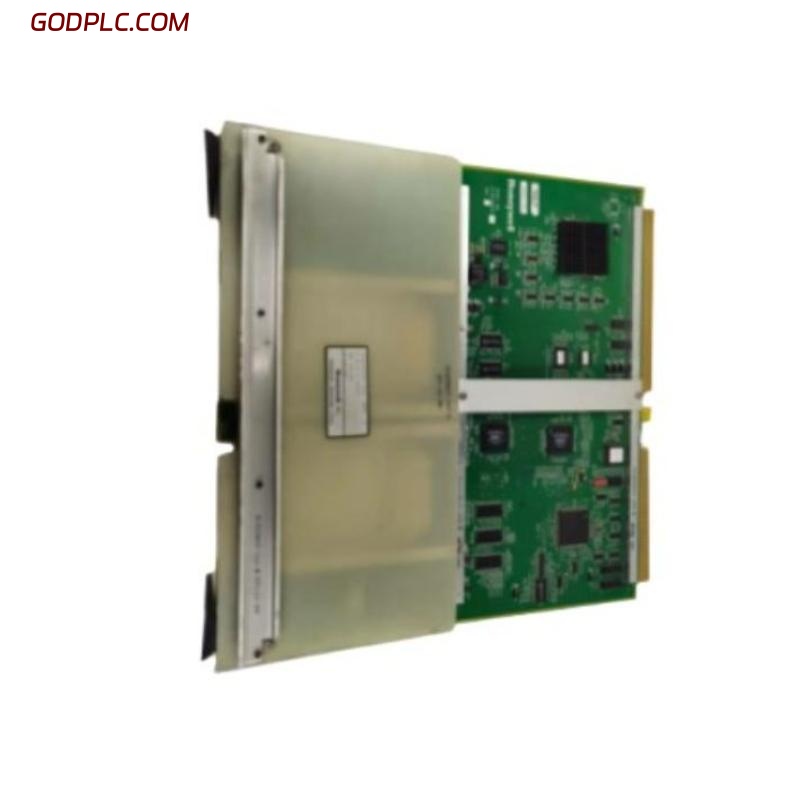

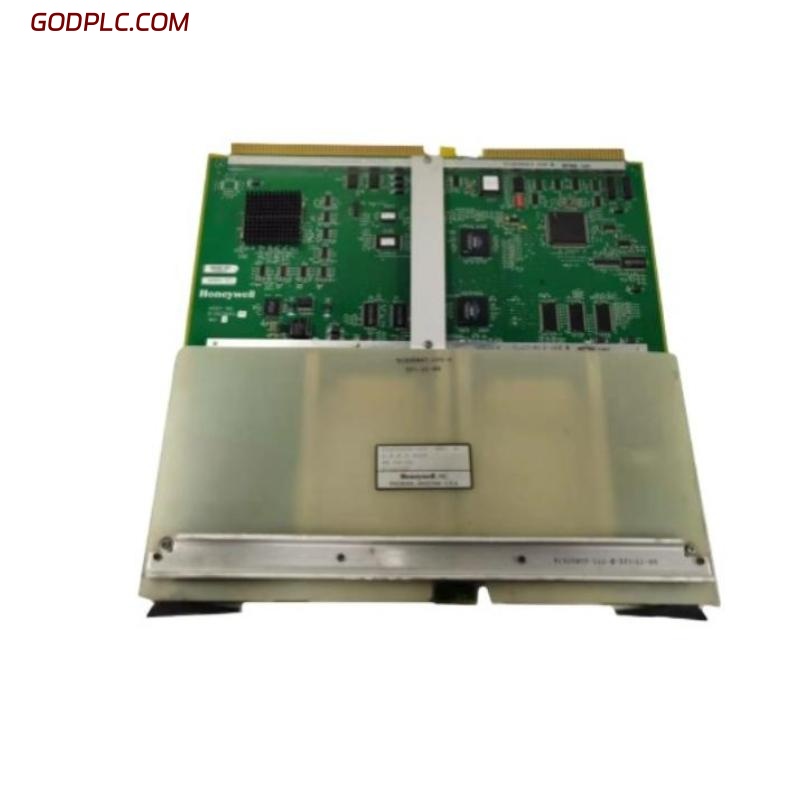

Honeywell 51403698-100 Circuit Board
Product Overview
The Honeywell 51403698-100 is a high-reliability circuit board designed for use within Honeywell’s TDC 3000 and TotalPlant Solution (TPS) control systems. It serves as a critical component in managing communication and data processing tasks between control system modules and field devices. Built to meet the demanding requirements of continuous process environments, this circuit board enhances overall system integrity, performance, and uptime in industrial automation applications.
Key Features
-
High-Reliability Design – Built for continuous operation in mission-critical systems
-
System Compatibility – Seamlessly integrates with Honeywell TDC 3000 and TPS platforms
-
Robust Communication Support – Facilitates data exchange between control nodes and I/O modules
-
Long-Life Components – Designed for extended service life and minimized maintenance
-
Field-Proven Performance – Tested under rigorous industrial conditions
-
Compact Form Factor – Enables efficient use of control cabinet space
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 205 x 224 x 35 mm |
| Weight | 0.5 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | Supplied via backplane interface |
| Power Consumption | Low power, varies by system configuration |
| Signal Type | Digital interface signals for system integration |
| Connector Type | Edge connector compatible with Honeywell chassis |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| EMC Compliance | Meets industrial EMI/RFI standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell TDC 3000, TPS (TotalPlant Solution) Systems |
| Mounting Type | Plug-in module for Honeywell control chassis |
Industry Applications
-
Petrochemical and Refining – Reliable control signal handling for high-availability process units
-
Power Generation – Enhances control infrastructure for turbines, boilers, and auxiliary systems
-
Pharmaceutical Manufacturing – Ensures precise and validated process control
-
Pulp & Paper – Supports seamless communication within distributed control systems
-
Water Treatment – Assures dependable I/O and process logic integration
The Honeywell 51403698-100 Circuit Board delivers durable performance and seamless integration within Honeywell’s legacy and modern control architectures, supporting safe, efficient, and continuous plant operation.
Honeywell 51403698-100 Circuit Board is in stock. Please contact us for a quick quote and competitive pricing.
