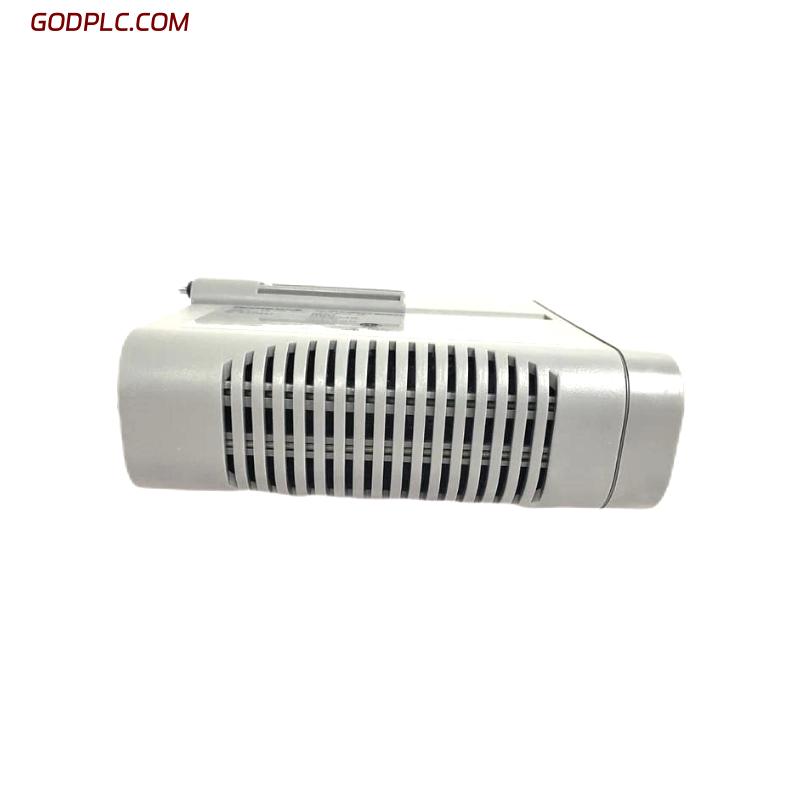

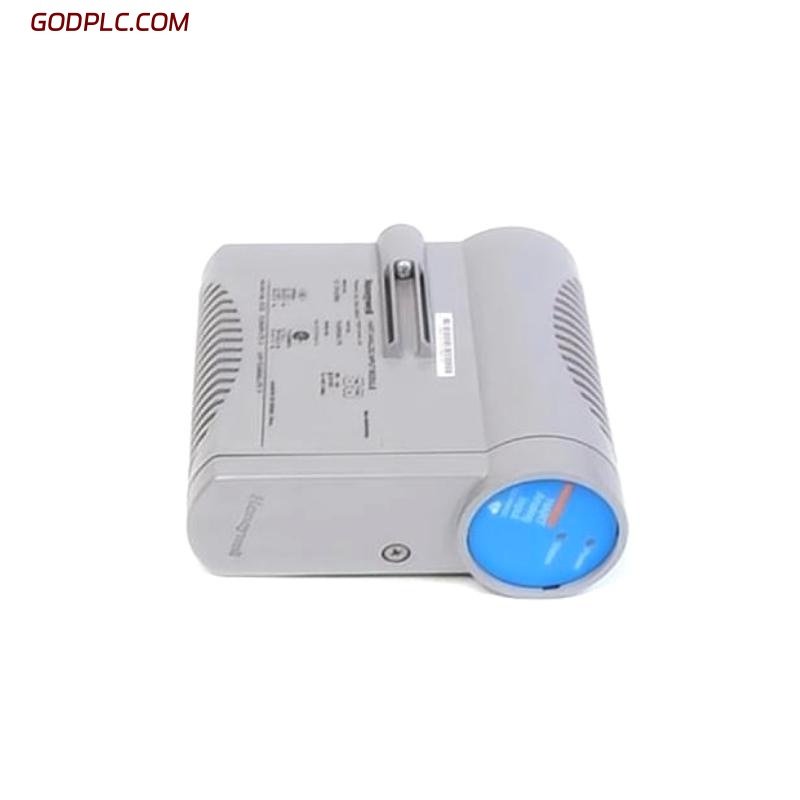

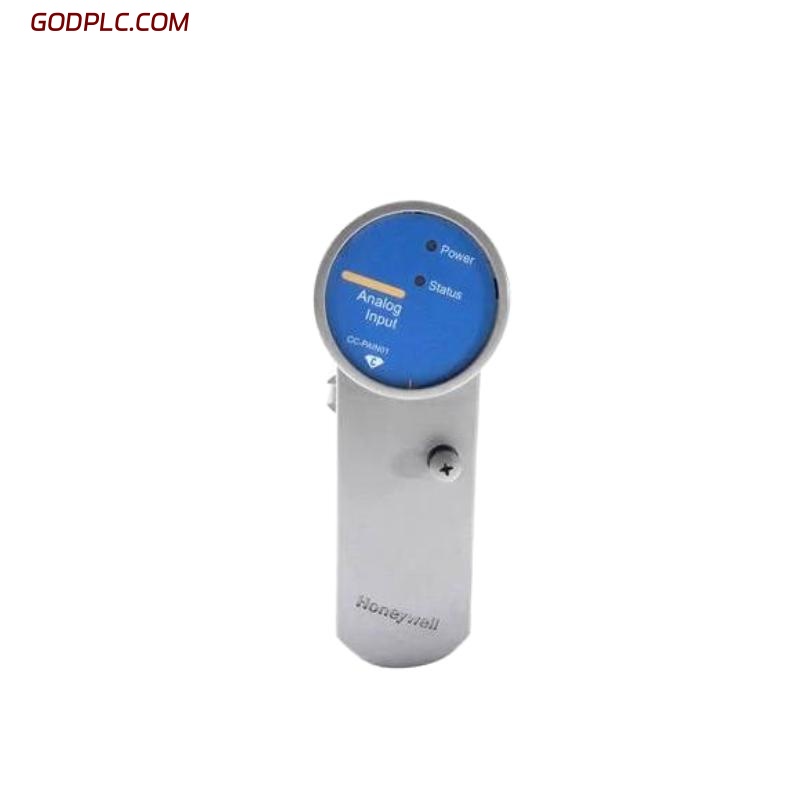

Honeywell 8C-PAIM01 51454358-175 Low Level Analog Input Module
Product Overview
The Honeywell 8C-PAIM01 51454358-175 is a low-level analog input module designed for use in the C300 controller of the Experion Process Knowledge System (PKS). This module offers high accuracy and resolution for critical process measurements such as millivolt signals from sensors, thermocouples (with external CJ compensation), or other low-level transducers. It ensures safe and reliable signal acquisition in demanding industrial environments with support for channel-to-channel isolation and redundancy.
Key Features
-
16 isolated analog input channels
-
Supports low-level signals such as ±20 mV, ±100 mV, and ±1 V
-
High resolution A/D conversion for precise measurement
-
Channel-to-channel and channel-to-ground isolation
-
Diagnostics for wire break, over/under range, and signal quality
-
Compatible with Experion PKS C300 architecture
-
Hot-swappable module for reduced downtime
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 220 x 120 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 (differential, isolated) |
| Input Signal Range | ±20 mV, ±100 mV, ±1 V |
| Resolution | 16-bit A/D converter |
| Input Impedance | >10 MΩ |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | Supplied through IOTA |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | Conformal coating on circuitry |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System | Honeywell Experion PKS C300 |
| IOTA Compatibility | 8C-IP0101, 8C-IP0102, or similar |
| Redundancy | Supported via redundant IOTA pairs |
| Application Type | Low-level analog signal acquisition |
Industry Applications
-
Chemical Processing – Accurate measurement of low-level signals from sensors in reactor or batch processes
-
Pharmaceutical – Precision data collection for temperature and pH sensors
-
Oil & Gas – Signal interface for millivolt-level field transmitters
-
Power Generation – Monitoring of control sensors and thermoelectric devices
-
Water Treatment – Input interface for low-level environmental monitoring devices
The Honeywell 8C-PAIM01 51454358-175 Low Level Analog Input Module is engineered to provide precise and reliable low-voltage analog signal acquisition in demanding control environments. Its robust design, advanced isolation, and seamless integration with Honeywell’s Experion platform ensure operational integrity and data fidelity across a wide range of industries.
Honeywell 8C-PAIM01 51454358-175 Low Level Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
