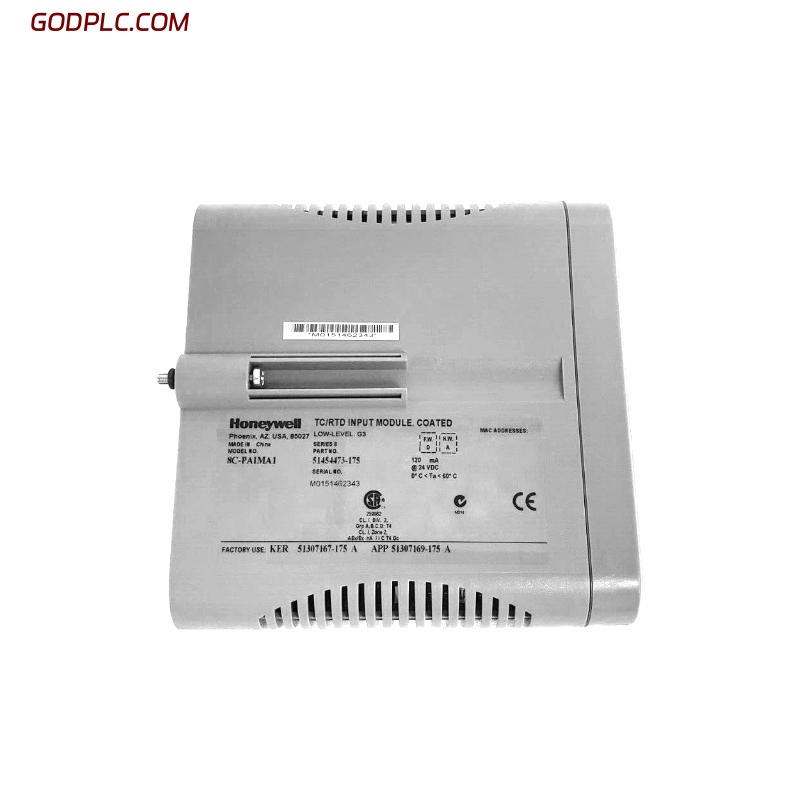

Honeywell 8C-PAIMA1 51454473-175 Low Level Analog Input Module
Product Overview
The Honeywell 8C-PAIMA1 51454473-175 is a high-performance low-level analog input module designed for integration within the C300 controller architecture of Honeywell’s Experion Process Knowledge System (PKS). This module provides 16 channels of isolated analog input capable of accurately acquiring millivolt-level signals, making it ideal for critical applications such as thermocouple interfaces and precision sensors. Its channel-to-channel isolation and diagnostic capabilities ensure reliability and signal integrity in mission-critical process control systems.
Key Features
-
16 isolated differential analog input channels
-
Supports low-voltage signals such as ±20 mV, ±100 mV, ±1 V
-
High-resolution 16-bit A/D conversion for accurate signal representation
-
Full channel-to-channel and channel-to-ground isolation
-
Real-time diagnostics including open wire detection and signal over/under range
-
Hot-swappable module reduces maintenance downtime
-
Fully compatible with Honeywell Experion PKS C300 systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 157 x 106 x 35 mm |
| Weight | 0.4 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 differential, isolated |
| Input Signal Range | ±20 mV, ±100 mV, ±1 V |
| Resolution | 16-bit A/D |
| Input Impedance | >10 MΩ |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | Provided via IOTA |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | Conformal coating on circuits |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System | Honeywell Experion PKS C300 |
| Compatible IOTA | 8C-IP0101, 8C-IP0102, and equivalents |
| Redundancy Support | Yes, via redundant IOTA configurations |
| Application Type | Low-level analog signal acquisition |
Industry Applications
-
Chemical Industry – Accurate millivolt signal reading for reaction process control
-
Oil & Gas – Reliable acquisition from millivolt-level field sensors
-
Pharmaceutical – High-fidelity analog input for sterile process environments
-
Energy and Utilities – Monitoring of precision measurement equipment
-
Water & Wastewater – Low-level input capture from analytical instrumentation
The Honeywell 8C-PAIMA1 51454473-175 Low Level Analog Input Module is engineered for high-precision, high-reliability analog input in the most demanding control environments. With isolated input channels, advanced diagnostics, and seamless integration with Honeywell’s Experion PKS system, it offers unparalleled performance for critical process monitoring.
Honeywell 8C-PAIMA1 51454473-175 Low Level Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
