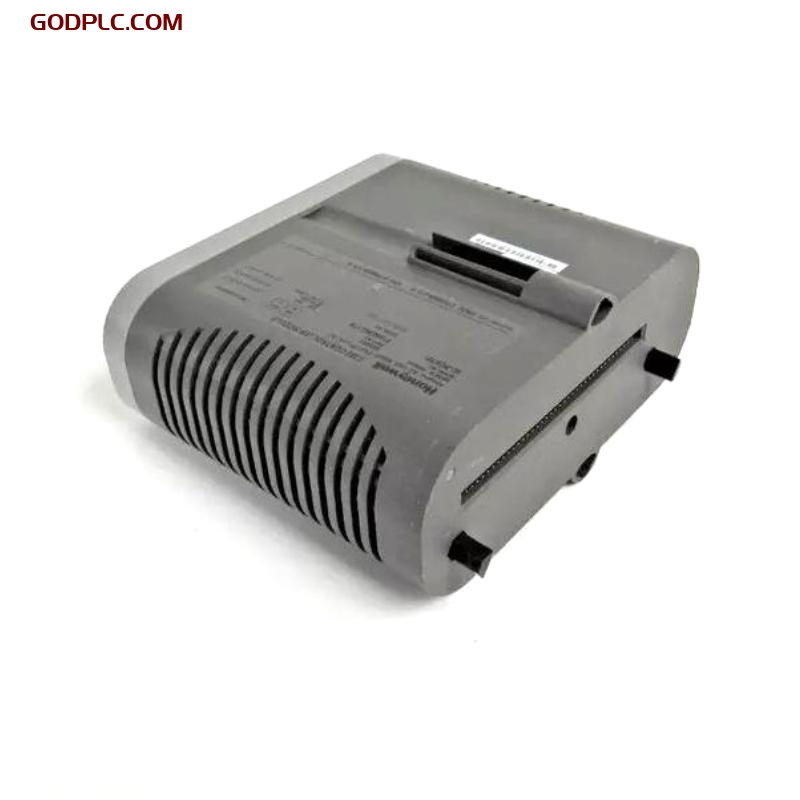

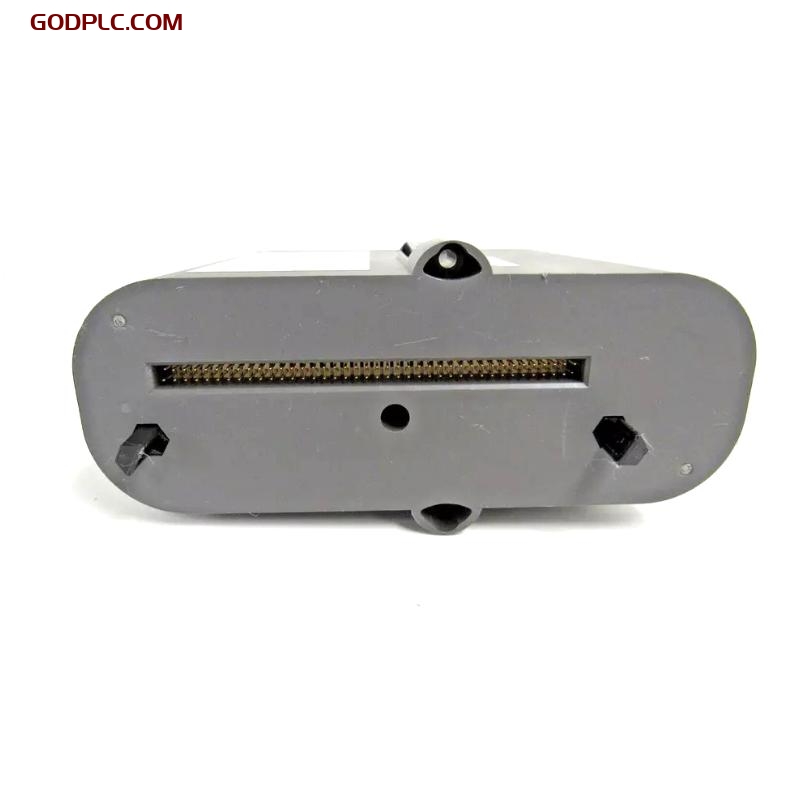

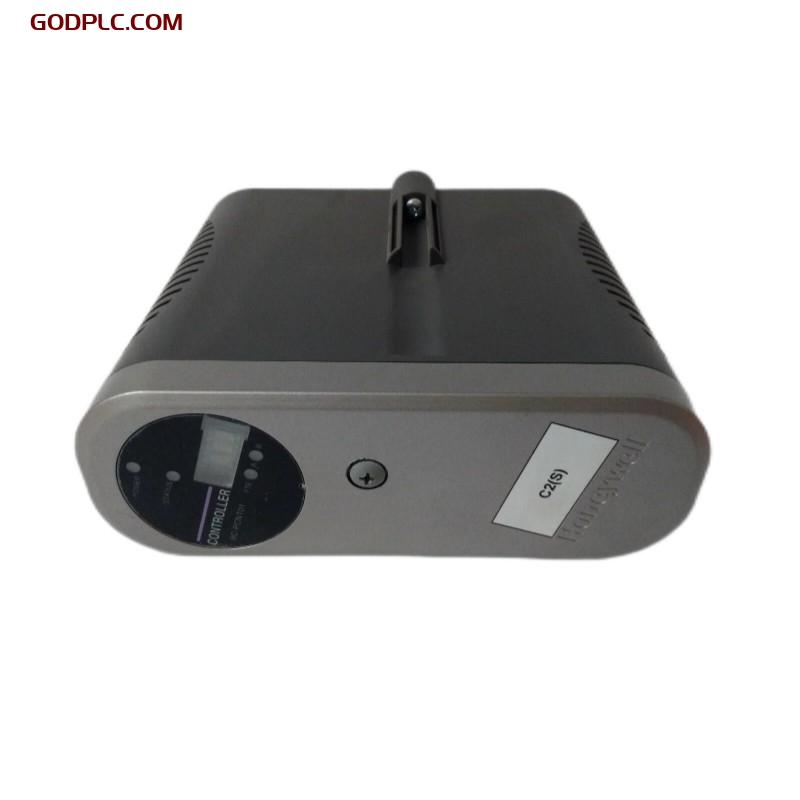

Honeywell 8C-PCNT01 51454363-175 Controller Module
Product Overview
The Honeywell 8C-PCNT01 51454363-175 Controller Module is a key component in Honeywell’s process control systems, designed to provide high-performance control and monitoring capabilities for a variety of industrial applications. As part of Honeywell’s Experion Process Knowledge System (PKS), this module integrates seamlessly into control environments, offering advanced data processing and control functionalities for critical systems. The 8C-PCNT01 module is ideal for controlling discrete processes, monitoring equipment status, and managing alarms, ensuring operational efficiency and safety.
Key Features
-
High-Performance Control: Offers real-time control and monitoring for discrete and continuous processes, enabling precise adjustments and reliable operation.
-
Integration with Experion PKS: Fully compatible with Honeywell’s Experion PKS, allowing for seamless integration and centralized control of industrial systems.
-
Modular Design: Designed to fit into the Honeywell controller rack system, it allows for easy installation, upgrades, and system expansions.
-
Advanced Diagnostics: Features built-in diagnostics and status indicators to monitor the health and performance of the module, simplifying troubleshooting and maintenance.
-
Flexible I/O Configuration: Supports a variety of input and output configurations, enabling versatile applications across different industries.
-
High-Speed Data Processing: Equipped with powerful processors for quick data processing and response, ensuring minimal latency in critical control applications.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 51 x 267 x 178 mm) |
| Weight | 0.5 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | 8C-PCNT01 51454363-175 |
| Module Type | Controller Module |
| Compatibility | Honeywell Experion PKS |
| Mounting | Honeywell standard controller rack |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Power Consumption | < 10 W |
| Operating Voltage | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell Experion PKS |
| Communication Interface | Ethernet, serial, or I/O expansion |
| Software Configuration | Honeywell Experion Control Studio |
Industry Applications
-
Process Control: Used in a variety of industries such as oil and gas, chemical processing, and power generation for controlling and monitoring processes.
-
Manufacturing Automation: Ideal for discrete manufacturing applications, including assembly line control and equipment monitoring.
-
Energy Management: Supports the control and optimization of energy usage in industrial plants and facilities.
-
Water Treatment: Suitable for managing water treatment processes, including pumping, filtration, and chemical dosing.
-
Building Automation: Used in large-scale building automation systems to control HVAC, lighting, and other environmental systems.
The Honeywell 8C-PCNT01 51454363-175 Controller Module is a reliable and high-performance solution for integrating control and monitoring capabilities into Honeywell’s advanced process control systems. With its ease of integration, modular design, and powerful diagnostics, it is ideal for a wide range of industrial applications that demand high levels of control, safety, and operational efficiency.
