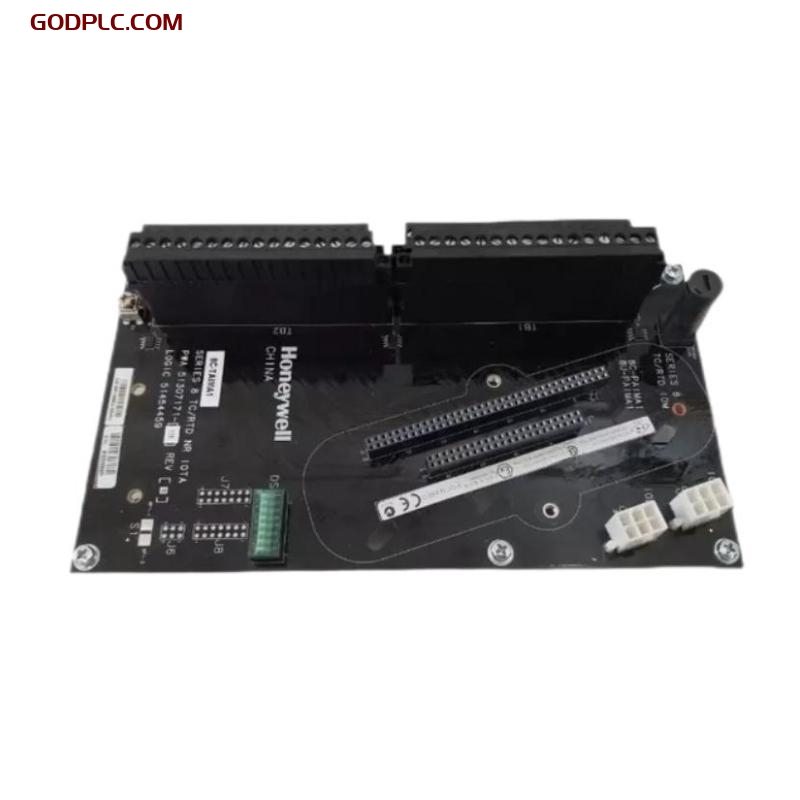

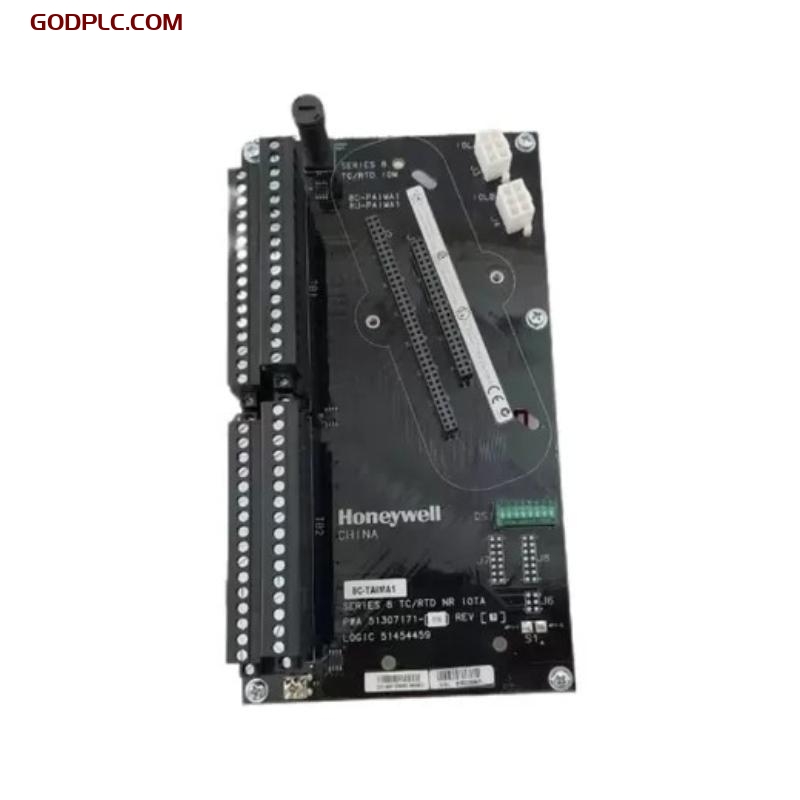

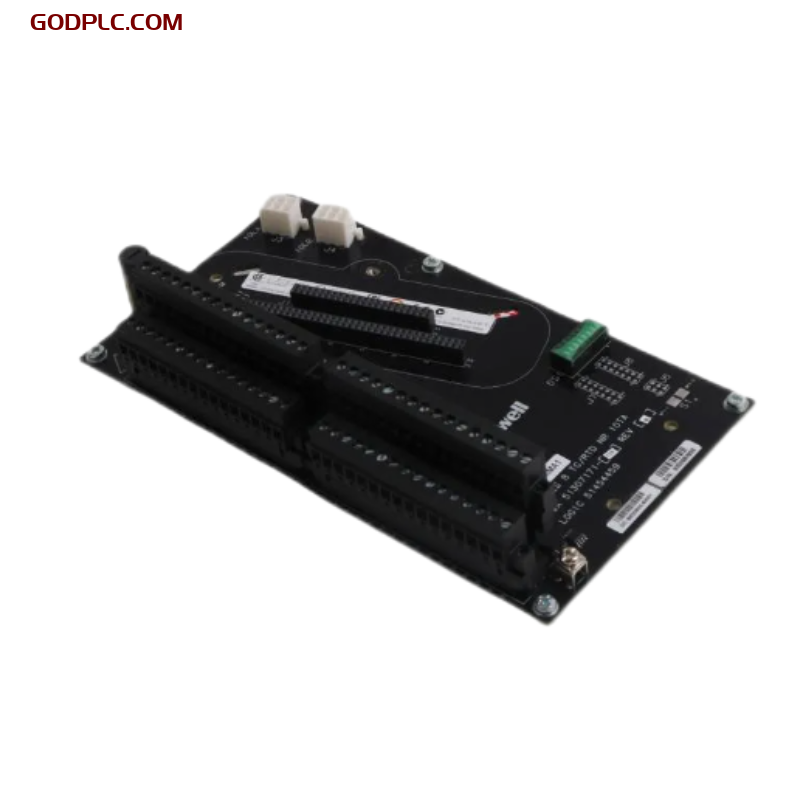

Honeywell 8C-TAIMA1 51307171-175 Low Level Analog Input I/O Termination Assembly
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Honeywell 8C-TAIMA1 51307171-175 Low Level Analog Input I/O Termination Assembly
Product Overview
The Honeywell 8C-TAIMA1 51307171-175 is a Low Level Analog Input I/O Termination Assembly (TA) designed for use with Honeywell’s TDC 3000 and Experion PKS distributed control systems. This termination assembly provides the critical interface between low-level analog field devices—such as thermocouples, RTDs, and millivolt output transmitters—and the system’s analog input modules.
Engineered for precision and reliability, the 8C-TAIMA1 offers secure, low-noise signal connections and is optimized to maintain signal integrity across various industrial environments. Its compact and modular design simplifies panel integration, ensures dependable field wiring connections, and supports easy maintenance in control systems that demand high accuracy and uptime.
Key Features
-
Low-Level Analog Signal Support – Optimized for millivolt-level input signals, including RTDs and thermocouples
-
Direct Module Interface – Seamlessly connects with compatible analog input modules in Honeywell TDC 3000 systems
-
Noise-Resistant Design – Shielded terminations and high-quality components ensure minimal signal degradation
-
Compact Footprint – Saves space in crowded control cabinets with a slim and modular form factor
-
Secure Field Wiring – Provides labeled terminal points for fast, error-free connections during installation
-
Durable Construction – Built for long life in harsh industrial conditions with high resistance to vibration and temperature extremes
-
Easy Maintenance – Clear labeling and modular access simplify troubleshooting and replacement
-
System Compatibility – Fully compatible with Honeywell’s IOTA (I/O Termination Assembly) design philosophy
-
High Reliability – Contributes to safe and continuous plant operation with dependable signal performance
Technical Specifications
3.1 Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions | 220 x 120 x 228.6 mm |
| Weight | 0.6 kg |
3.2 Electrical Specifications
| Item | Specification |
|---|---|
| Signal Type | Low-level analog (e.g., mV, RTD, thermocouple) |
| Channel Capacity | Supports up to 16 channels (via interface card) |
| Voltage Isolation | Galvanic isolation between field and system |
| Wiring Connections | Individually labeled terminals |
| System Interface | For use with Honeywell analog input modules |
3.3 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Rating | IP20 (when mounted in enclosure) |
| Compliance | CE, RoHS |
3.4 System Compatibility
| Item | Specification |
|---|---|
| DCS Platform | Honeywell TDC 3000, Experion PKS |
| Compatible Modules | Honeywell low-level analog input modules |
| Interface Type | Honeywell IOTA (I/O Termination Assembly) |
Industry Applications
-
Oil & Gas – Interfaces precision sensors for temperature and pressure in refineries, gas plants, and pipelines
-
Chemicals – Connects process-critical instrumentation in batch and continuous chemical production
-
Pharmaceuticals – Supports high-accuracy analog inputs for quality-critical process environments
-
Power Generation – Monitors vital parameters in turbines and boilers through low-level analog signals
-
Pulp & Paper – Interfaces temperature and condition sensors in demanding process environments
The Honeywell 8C-TAIMA1 51307171-175 Low Level Analog Input I/O Termination Assembly ensures high-fidelity signal acquisition and robust performance, making it a key component for accurate and dependable process control in Honeywell automation platforms.
Honeywell 8C-TAIMA1 51307171-175 Low Level Analog Input I/O Termination Assembly is in stock. Please contact us for a quick quote and competitive pricing.
