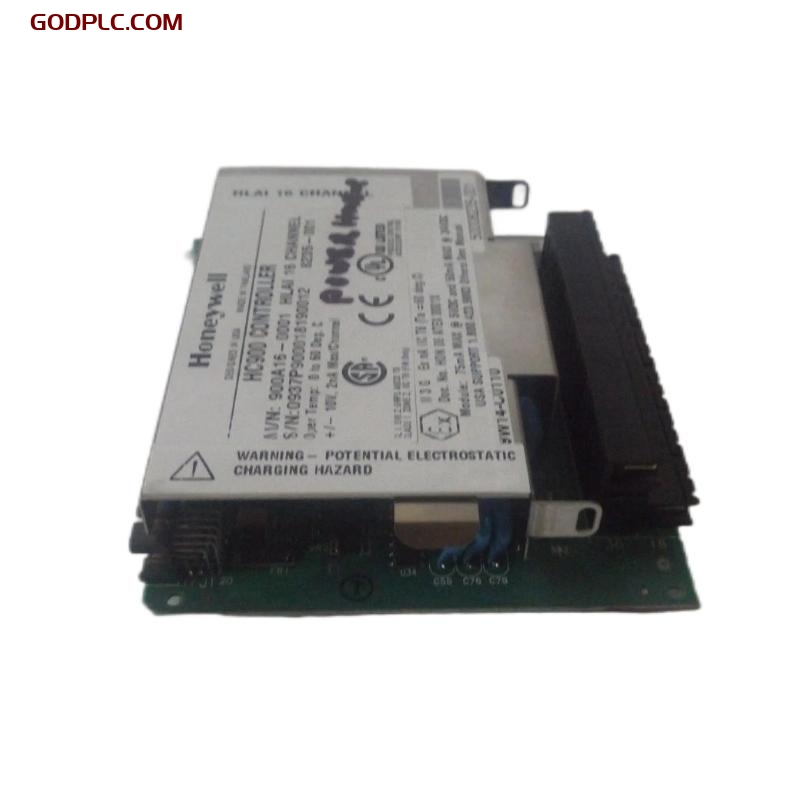

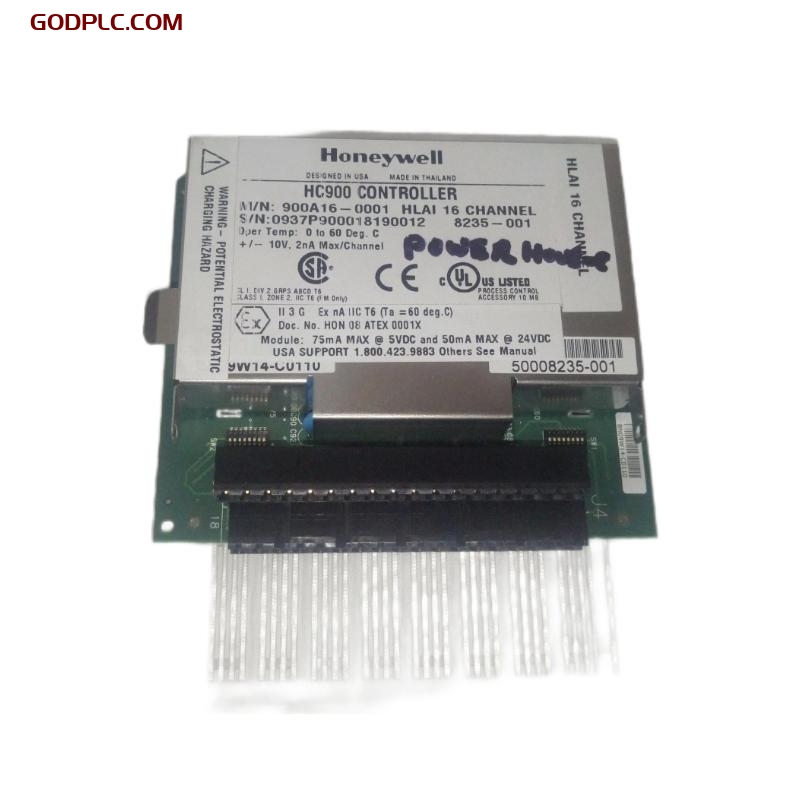

Honeywell 900A16-0001 HC900 High Level Analog Input Module

Product Overview

The Honeywell 900A16-0001 HC900 High Level Analog Input Module is a specialized component of Honeywell’s HC900 Process Control System, designed to provide high-level analog signal processing in industrial automation environments. This module is particularly used for monitoring and controlling process variables such as pressure, temperature, flow, and level, with high precision. It is suitable for industries that require reliable and continuous measurement and control, including oil and gas, chemical manufacturing, and power generation.

The 900A16-0001 module is built to handle a wide range of input signal types, and it is ideal for systems requiring precise control and monitoring of process variables. With its integration capability into the HC900 system, it offers an effective solution for plant automation and process control.

Key Features

• Wide Range of Inputs: Accepts standard high-level analog inputs, such as 0-10 V, ±10 V, and other voltage ranges.

• High Accuracy and Resolution: Delivers high-resolution (12-bit) measurements, ensuring accurate readings for critical process parameters.

• Seamless Integration: Easily integrates with Honeywell’s HC900 process control systems for centralized control and monitoring.

• Scalable and Flexible: Supports multiple channels per module and can be expanded as needed for larger systems.

• Built-in Diagnostics: Includes self-test functionality for troubleshooting, enabling proactive system maintenance.

• Compact and Reliable Design: Optimized for industrial environments, providing long-term durability and performance.

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Oil & Gas: Provides continuous monitoring of critical variables in refineries, pipelines, and offshore platforms to enhance safety and operational efficiency.

• Chemical Manufacturing: Enables accurate measurement and control of temperature, pressure, and flow, ensuring safe and optimal chemical processing.

• Power Generation: Helps monitor and control key parameters in power plants, such as steam temperature, pressure, and flow, ensuring reliable operations.

• Water Treatment: Ideal for monitoring levels, flow, and pressure in water treatment plants, ensuring compliance with safety and quality standards.

• Food & Beverage: Critical for ensuring the proper monitoring of temperature and pressure during the production process, guaranteeing product quality.

• Pharmaceuticals: Ensures precise control of process variables in pharmaceutical production, meeting stringent industry regulations.

The Honeywell 900A16-0001 HC900 High Level Analog Input Module is a versatile and reliable solution for high-accuracy analog signal processing in industrial environments. Its ability to handle a wide range of input types, coupled with seamless integration into Honeywell HC900 systems, makes it an ideal choice for industries requiring continuous monitoring and precise control. The module’s flexibility, high resolution, and robust design ensure it delivers dependable performance in even the most demanding applications.
