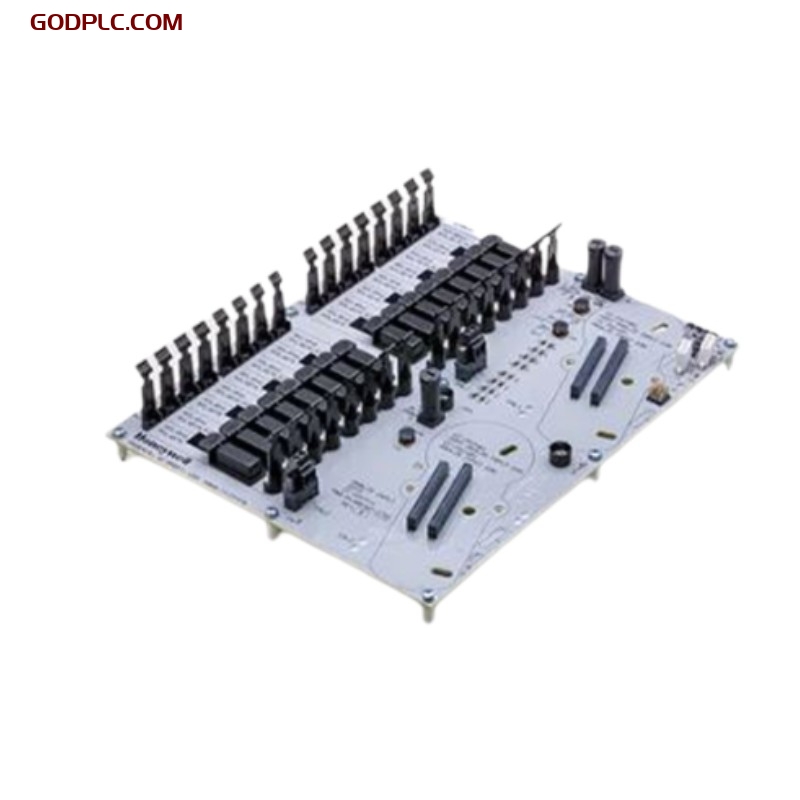

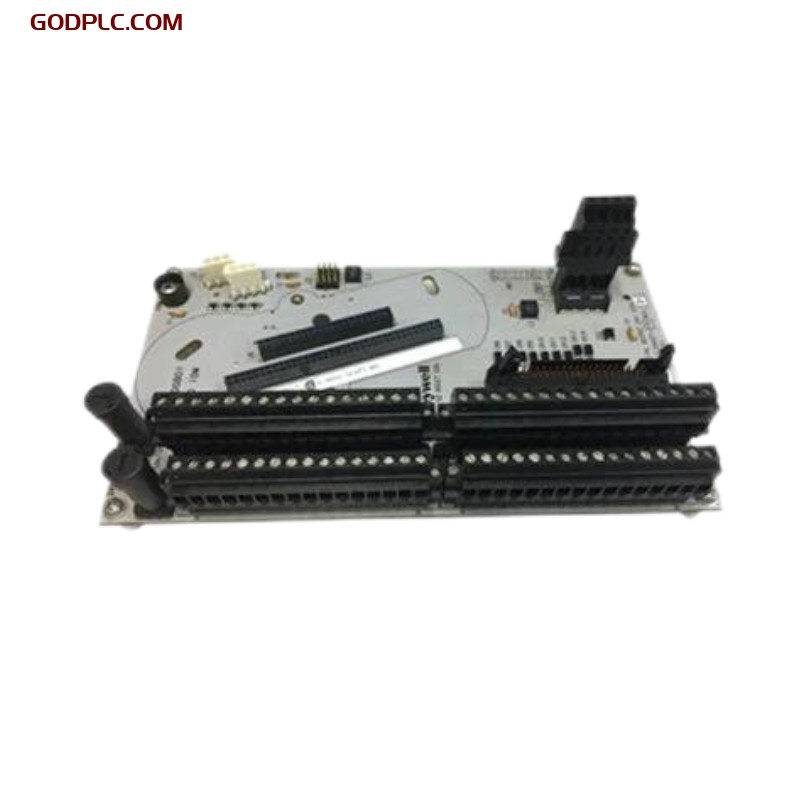

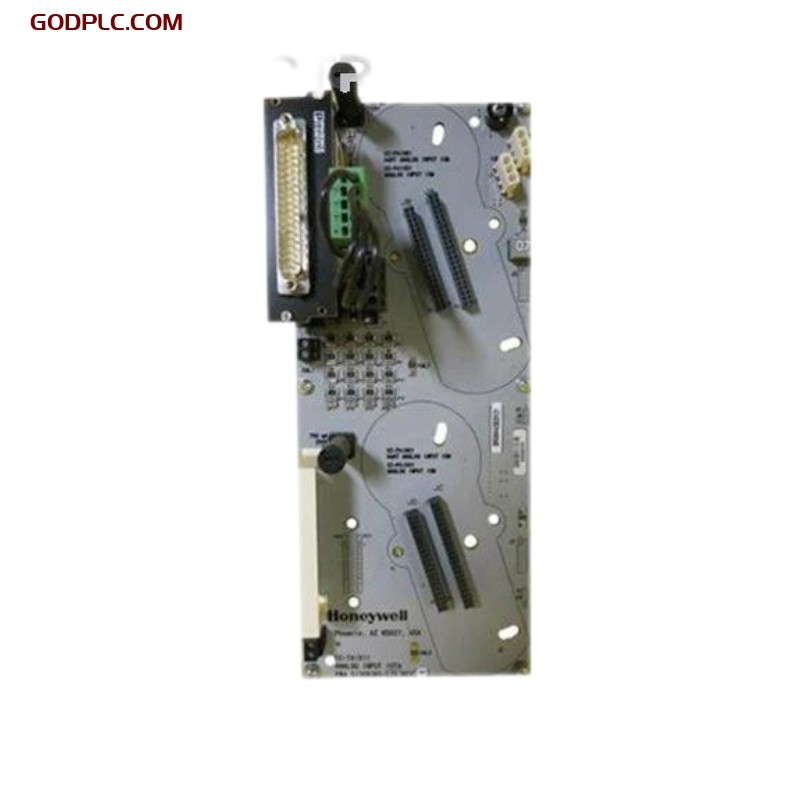

Honeywell CC-GAIX11 Analog Input Modules
Product Overview
The Honeywell CC-GAIX11 Analog Input Module is designed to provide accurate and reliable analog signal acquisition for industrial control systems within the Experion and TDC3000 automation platforms. Engineered for precision and robust performance, this module converts various analog process signals into digital data for processing and control, making it suitable for monitoring parameters such as temperature, pressure, and flow.
With built-in diagnostics, isolation, and support for multiple input types, the CC-GAIX11 ensures high availability and fault-tolerant operation in critical process control environments. Its compact and modular design allows seamless integration into Honeywell’s system architecture, supporting scalable and efficient automation solutions.
Key Features
-
High Accuracy: Ensures precise signal acquisition for consistent control and monitoring.
-
Multi-Channel Input: Supports multiple analog input channels for efficient data handling.
-
Flexible Signal Compatibility: Accepts a wide range of analog signals including voltage, current, and thermocouple inputs.
-
Isolation Protection: Provides galvanic isolation between input channels and the system to protect against electrical faults.
-
Hot Swappable: Enables module replacement without disrupting system operation.
-
Integrated Diagnostics: Onboard diagnostics for input signal validation and module status.
-
Modular Design: Supports scalable system expansion and easy installation.
Technical Specifications
3.1 Dimensions and Weight
| Parameter | Value |
|---|---|
| Dimensions | 115 x 130 x 35 mm |
| Weight | 0.28 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | CC-GAIX11 |
| Type | Analog Input Module |
| Manufacturer | Honeywell |
| System Compatibility | Experion, TDC3000 |
| Mounting Method | DIN rail or chassis mount |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
| Isolation Voltage | ≥ 1500 V |
3.3 Performance Characteristics
| Item | Specification |
|---|---|
| Input Channels | 8 channels |
| Signal Types Supported | 0–20 mA, 4–20 mA, 0–10 V, Thermocouples |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Scan Rate | Configurable, up to 100 ms/channel |
| Input Impedance | ≥ 250 Ω |
| Power Supply | 24 V DC nominal |
| Diagnostics | Channel fault detection, signal loss |
Industry Applications
-
Process Industries: Used in chemical, petrochemical, and refining processes for monitoring and control of temperature, pressure, and flow.
-
Power Generation: Supports analog signal acquisition in turbine and boiler control systems.
-
Water Treatment: Provides input processing for monitoring flow and chemical dosing in water and wastewater treatment plants.
-
Pharmaceuticals: Enables precise environmental and process condition monitoring for regulatory compliance.
-
Food and Beverage: Assists in quality control by monitoring variables like temperature and pressure during production.
The Honeywell CC-GAIX11 Analog Input Module delivers high-performance signal acquisition with advanced diagnostics and flexible signal compatibility, making it a reliable and efficient choice for modern industrial automation and control systems.
Honeywell CC-GAIX11 Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
