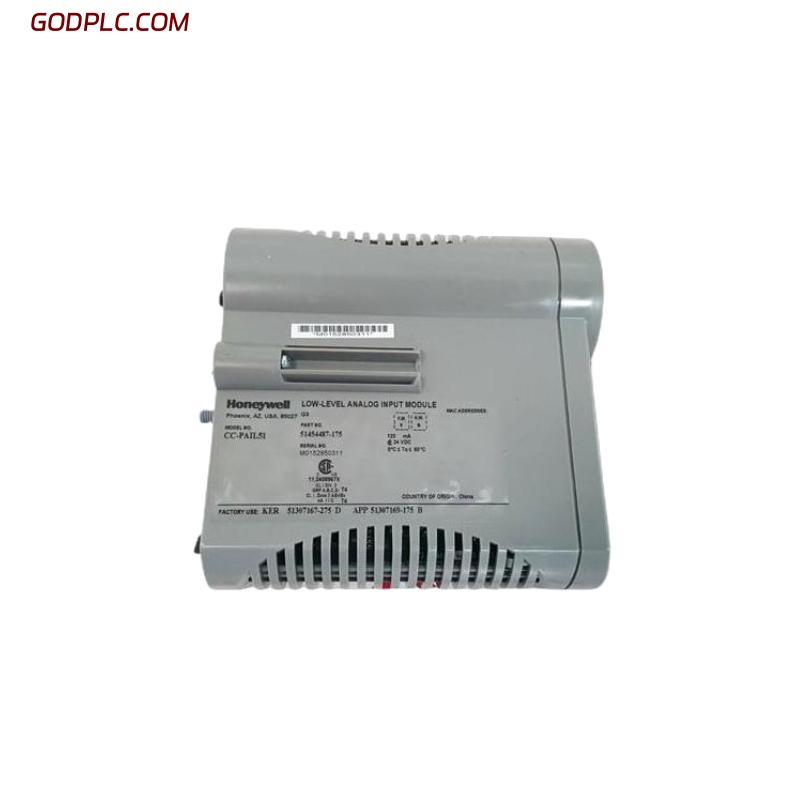

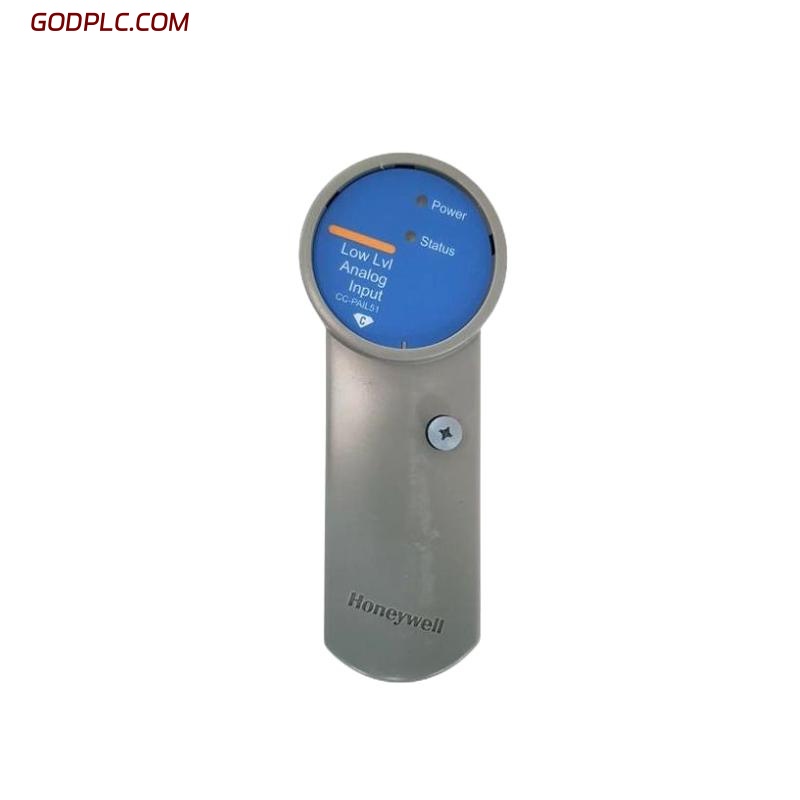

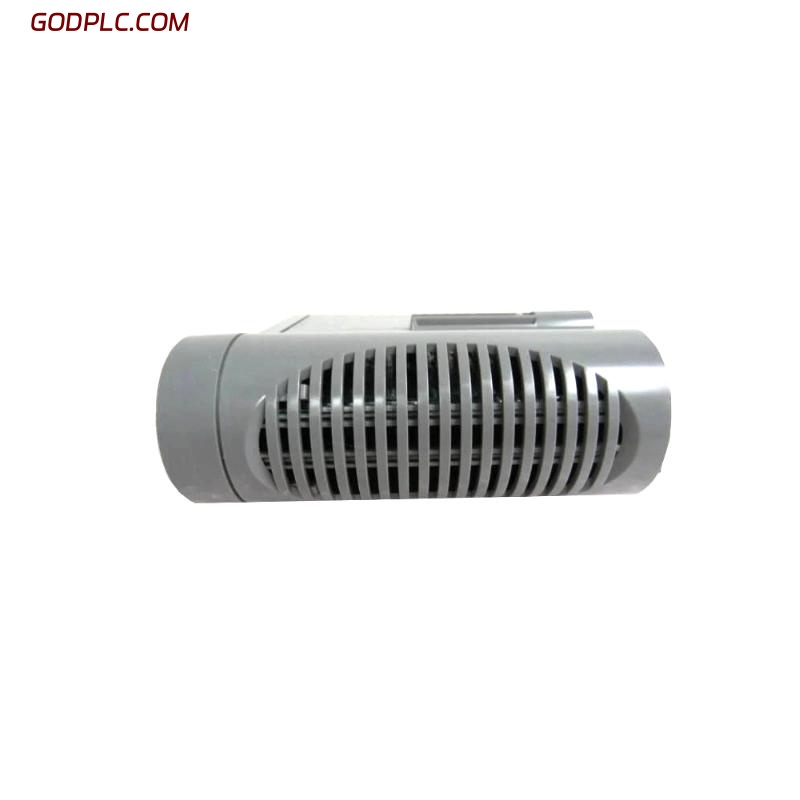

Honeywell CC-PAIL51 51454487-175 Analog Input Module

Product Overview
The Honeywell CC-PAIL51 Analog Input Module (Part Number 51454487-175) is engineered to provide accurate and reliable analog signal conversion in industrial automation systems. This module is designed to interface with field devices such as temperature sensors, pressure transmitters, and flow meters, converting their analog signals (e.g., 4–20 mA or 0–10 V) into digital signals that can be processed by Honeywell control systems. The CC-PAIL51 is ideal for applications that demand high accuracy, reliability, and fast response times in process control and monitoring systems.

Key Features

• Multiple Analog Input Channels – Supports multiple input channels for simultaneous monitoring of various field devices, enhancing flexibility and control over the system

• Wide Input Range – Accepts a variety of standard analog input signals, such as 4–20 mA, 0–10 V, and other signals, providing versatility in interfacing with different types of sensors and transmitters

• High Accuracy and Resolution – Provides precise data conversion with high resolution and accuracy, essential for critical process measurements and control applications

• Built-in Diagnostics – Features LED indicators and diagnostic capabilities to ensure system integrity and simplify troubleshooting, reducing downtime and maintenance costs

• Robust Industrial Design – Designed to withstand harsh industrial environments, ensuring long-term durability and reliable performance even in extreme conditions

• Easy Integration – Seamlessly integrates with Honeywell’s control systems and platforms, making installation and system setup straightforward

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Process Control – Used for precise measurement and monitoring of critical parameters such as temperature, pressure, and flow in industries like chemicals, pharmaceuticals, and food processing

• Oil & Gas – Monitors analog signals from field devices such as pressure transmitters and temperature sensors, ensuring safe and efficient operation of oil and gas facilities

• Power Generation – Provides accurate data acquisition for turbines, generators, and other power generation equipment, optimizing energy production and system performance

• Water/Wastewater Treatment – Enables accurate monitoring of water flow, chemical concentrations, and pressure levels in water treatment and distribution systems

• Building Automation – Integrates with HVAC, environmental control, and energy management systems, ensuring efficient operation and energy savings in commercial and industrial buildings

The Honeywell CC-PAIL51 51454487-175 Analog Input Module offers reliable, high-precision analog signal conversion for industrial control systems. With its wide input range, high accuracy, and built-in diagnostics, it is an excellent choice for process control applications that require precise and dependable performance.
